| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNU2G183MSEJBNCAP ALUM 18000UF 20% 400V SCREW |
857 | 220.47 |
RFQ |
Datasheet |
Bulk | LNU | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
LNU2G183MTEJCAP ALUM 18000UF 20% 400V SCREW |
671 | 220.47 |
RFQ |
Datasheet |
Bulk | LNU | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
36DY104F060DF2ACAP ALUM 100000UF 60V SCREW |
484 | 160.88 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 100000 µF | -10%, +50% | 60 V | 4.5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36.7 A @ 120 Hz | 42.21 A @ 1 kHz | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
LNK2H103MSEJBBCAP ALUM 10000UF 20% 500V SCREW |
808 | 221.63 |
RFQ |
Datasheet |
Bulk | LNK | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.3 A @ 120 Hz | 41.02 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
CGS214U050X5RCAP ALUM 210000UF 50V SCREW |
886 | 223.61 |
RFQ |
Datasheet |
Bulk | CGS | Active | 210000 µF | -10%, +75% | 50 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.6 A @ 120 Hz | 41.08 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.875 (149.23mm) | - | Chassis Mount |
|
|
CGS942T300X5LCAP ALUM 9400UF 300V SCREW |
309 | 223.61 |
RFQ |
Datasheet |
Bulk | CGS | Active | 9400 µF | -10%, +50% | 300 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.4 A @ 120 Hz | 21.6 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
HES222G450X5LCAP ALUM 2200UF 450V SCREW |
688 | 223.65 |
RFQ |
Datasheet |
Bulk | HES | Active | 2200 µF | 0%, +50% | 450 V | 40mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.1 A @ 120 Hz | 12.423 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
400LSG10000M90X191CAP ALUM 10000UF 20% 400V SCREW |
812 | 162.01 |
RFQ |
Datasheet |
Bulk | LSG | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 30.94 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
|
B43743A5688M000CAP ALUM 6800UF 20% 450V SCREW |
997 | 162.11 |
RFQ |
Bulk | B43743 | Active | 6800 µF | ±20% | 450 V | 13mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount | |
|
MAL210136474E3CAP ALUM 470000UF 20% 25V SCREW |
851 | 162.30 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 25 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210176474E3CAP ALUM 470000UF 20% 25V SCREW |
962 | 162.30 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 25 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
B43762B5688M008CAP ALUM 6800UF 20% 450V SCREW |
560 | 162.42 |
RFQ |
Bulk | B43762 | Active | 6800 µF | ±20% | 450 V | 14mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.2 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount | |
|
|
B43763A5688M000CAP ALUM 6800UF 20% 450V SCREW |
314 | 162.42 |
RFQ |
Bulk | B43763 | Active | 6800 µF | ±20% | 450 V | 13mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount | |
|
|
100LSQ100000M90X141CAP ALUM 100000UF 20% 100V SCREW |
989 | 162.92 |
RFQ |
Datasheet |
Bulk | LSQ | Active | 100000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 A @ 120 Hz | 23.1 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 5.669 (144.00mm) | - | Chassis Mount |
|
|
36DX123F250DJ2ACAP ALUM 12000UF 250V SCREW |
903 | 162.99 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 12000 µF | -10%, +50% | 250 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|

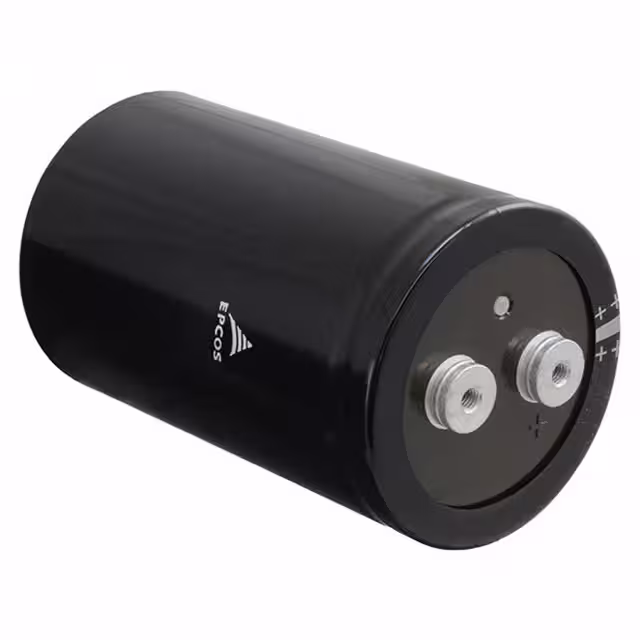

B43456A5688M000CAP ALUM 6800UF 20% 450V SCREW |
549 | 226.10 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 6800 µF | ±20% | 450 V | 17mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
B43310A5688M000CAP ALUM 6800UF 20% 450V SCREW |
435 | 163.11 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 6800 µF | ±20% | 450 V | 28mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 6.181 (157.00mm) | - | Chassis Mount |
|
|
B43723A5109M000CAP ALUM 10000UF 20% 450V SCREW |
929 | 163.26 |
RFQ |
Bulk | B43723 | Active | 10000 µF | ±20% | 450 V | 9.9mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount | |
|
B43704B5688M050CAP ALUM 6800UF 20% 450V SCREW |
941 | 163.32 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 6800 µF | ±20% | 450 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.1 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount |
|
LNK2H682MSEJCAP ALUM 6800UF 20% 500V SCREW |
921 | 163.40 |
RFQ |
Datasheet |
Bulk | LNK | Active | 6800 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.2 A @ 120 Hz | 29.68 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.693 (170.00mm) | - | Chassis Mount |
