| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCX1V471MNQ1MSCAP ALUM 470UF 20% 35V SMD |
9,806 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 470 µF | ±20% | 35 V | 70mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
UCZ1K271MNQ1MSCAP ALUM 270UF 20% 80V SMD |
7,518 | 2.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 270 µF | ±20% | 80 V | 190mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPM1A222MHDCAP ALUM 2200UF 20% 10V RADIAL |
8,171 | 1.30 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.71 A @ 10 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPM0J222MHD6CAP ALUM 2200UF 20% 6.3V RADIAL |
8,302 | 1.30 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.34 A @ 10 kHz | 49 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
UCZ2A151MNQ1MSCAP ALUM 150UF 20% 100V SMD |
6,996 | 2.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 150 µF | ±20% | 100 V | 190mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UKL1A222KHDCAP ALUM 2200UF 10% 10V RADIAL |
5,074 | 1.32 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 2200 µF | ±10% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPJ2C330MHDCAP ALUM 33UF 20% 160V RADIAL |
9,383 | 1.32 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 33 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 280 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UEP1C471MPDCAP ALUM 470UF 20% 16V RADIAL |
6,695 | 1.33 |
RFQ |
Datasheet |
Bulk | UEP | Not For New Designs | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 345 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPM1A222MHD6CAP ALUM 2200UF 20% 10V RADIAL |
5,324 | 1.34 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 1.6 A @ 10 kHz | 39 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UFW1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
6,538 | 1.34 |
RFQ |
Datasheet |
Bulk | UFW | Not For New Designs | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 120 Hz | 2.07 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
860010480025CAP ALUM 4700UF 20% 25V RADIAL |
6,715 | 2.05 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3792 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

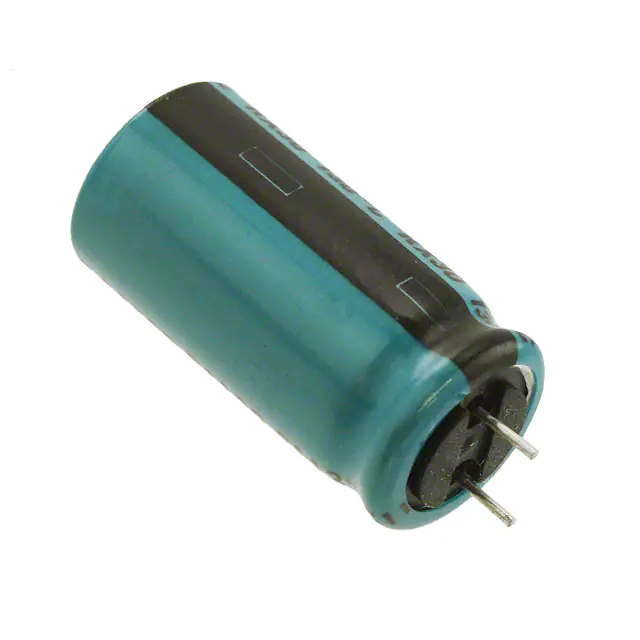

10RX302200MCE12.5X25CAP ALUM 2200UF 20% 10V RADIAL |
8,965 | 1.36 |
RFQ |
Datasheet |
Bulk | RX30 | Active | 2200 µF | ±20% | 10 V | - | 4000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 1.144 A @ 120 Hz | 1.43 A @ 100 kHz | 40 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UKL2A151KHDCAP ALUM 150UF 10% 100V RADIAL |
9,680 | 1.36 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 150 µF | ±10% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
UKL1C152KHDCAP ALUM 1500UF 10% 16V RADIAL |
6,507 | 1.36 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 1500 µF | ±10% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.3225 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UKL1J221KHDCAP ALUM 220UF 10% 63V RADIAL |
8,493 | 1.36 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 220 µF | ±10% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|

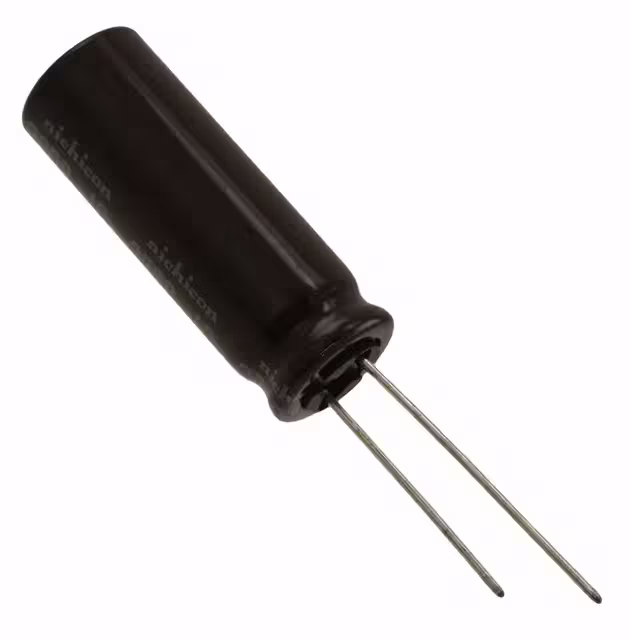

UPJ1A332MHDCAP ALUM 3300UF 20% 10V RADIAL |
7,945 | 1.36 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.18 A @ 10 kHz | 32 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
860240380010CAP ALUM 2200UF 20% 16V RADIAL |
9,246 | 1.83 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-AT1H | Active | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.047 A @ 120 Hz | 2.093 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPS2A221MHDCAP ALUM 220UF 20% 100V RADIAL |
7,396 | 1.37 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 220 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 445 mA @ 120 Hz | - | 100 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
CGS502U050R3CCAP ALUM 5000UF 50V SCREW |
1,106 | 28.56 |
RFQ |
Datasheet |
Bulk | CGS | Active | 5000 µF | -10%, +75% | 50 V | 26mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.1 A @ 120 Hz | 7.93 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
ALS70A333KE063CAP ALUM 33000UF 20% 63V SCREW |
1,085 | 28.57 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 33000 µF | ±20% | 63 V | 20mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 18.7 A @ 10 kHz | 17 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
