| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

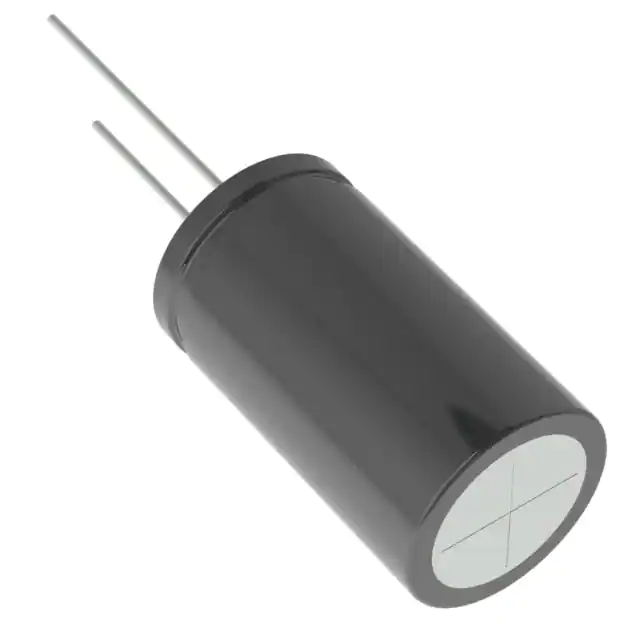

UAQ2G100MHDCAP ALUM 10UF 20% 400V RADIAL |
9,242 | 1.38 |
RFQ |
Datasheet |
Bulk | UAQ | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 160 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL217050221E3CAP ALUM 220UF 20% 35V RADIAL |
9,022 | 1.38 |
RFQ |
Datasheet |
Bulk | 170 RVZ | Active | 220 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 500.5 mA @ 100 Hz | 770 mA @ 100 kHz | 92 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|

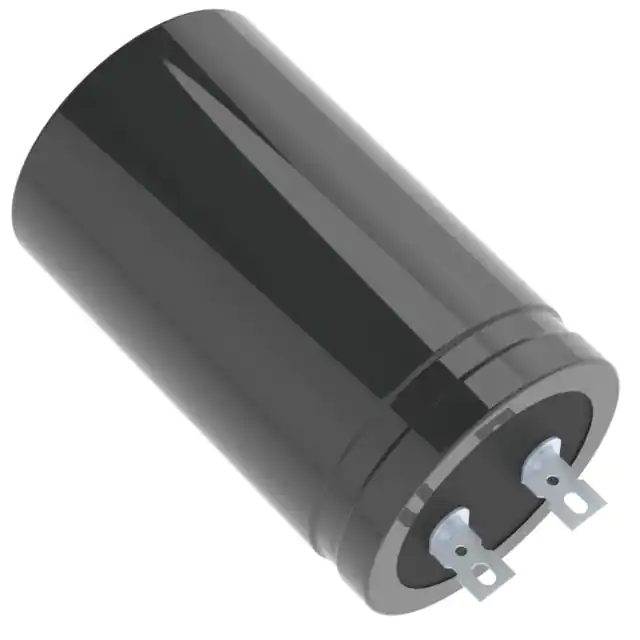

LKG1K103MKZCAP ALUM 10000UF 20% 80V SOLDER |
1,108 | 26.75 |
RFQ |
Datasheet |
Bulk | LKG | Active | 10000 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 6.2 A @ 120 Hz | - | - | 0.709 (18.00mm) | 1.969 Dia (50.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
UPS1E152MHDCAP ALUM 1500UF 20% 25V RADIAL |
7,385 | 1.39 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 1500 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.653 A @ 120 Hz | 1.9 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ALS80A123KE100CAP ALUM 12000UF 20% 100V SCREW |
1,288 | 29.67 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 12000 µF | ±20% | 100 V | 30mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | 15.4 A @ 10 kHz | 25 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
UUE1V471MNS1MSCAP ALUM 470UF 20% 35V SMD |
9,858 | 2.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUE | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 670 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
EEU-TA1C471CAP ALUM 470UF 20% 16V RADIAL |
7,137 | 1.43 |
RFQ |
Datasheet |
Bulk | TA | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 708.8 mA @ 120 Hz | 945 mA @ 100 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEU-TP1E471LCAP ALUM 470UF 20% 25V RADIAL |
6,113 | 1.43 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 795 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-TA1V221CAP ALUM 220UF 20% 35V RADIAL |
9,154 | 1.43 |
RFQ |
Datasheet |
Bulk | TA | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 497.3 mA @ 120 Hz | 765 mA @ 100 kHz | 130 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
UPJ2G100MHDCAP ALUM 10UF 20% 400V RADIAL |
7,433 | 1.44 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 10 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 136 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UCY2E121MHD6TNCAP ALUM 120UF 20% 250V RADIAL |
9,700 | 2.73 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 120 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 815 mA @ 120 Hz | 1.63 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
450QXW12MEFR8X25CAP ALUM 12UF 20% 450V RADIAL |
6,205 | 1.45 |
RFQ |
Datasheet |
Bulk | QXW | Active | 12 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 225 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ1C222MHDCAP ALUM 2200UF 20% 16V RADIAL |
6,924 | 1.45 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.01 A @ 10 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
400QXW18MEFR8X25CAP ALUM 18UF 20% 400V RADIAL |
6,006 | 1.45 |
RFQ |
Datasheet |
Bulk | QXW | Active | 18 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHD1E182MHDCAP ALUM 1800UF 20% 25V RADIAL |
9,259 | 1.46 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 1800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.632 A @ 120 Hz | 3.29 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL212634102E3CAP ALUM 1000UF 20% 10V AXIAL |
8,276 | 1.46 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 1000 µF | ±20% | 10 V | 509mOhm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 297 mA @ 100 Hz | 356.4 mA @ 10 kHz | 750 mOhms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
|
UUE1H331MNS1MSCAP ALUM 330UF 20% 50V SMD |
8,605 | 2.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUE | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 569.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPM1H471MHD6CAP ALUM 470UF 20% 50V RADIAL |
8,196 | 1.48 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.47 A @ 10 kHz | 46 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

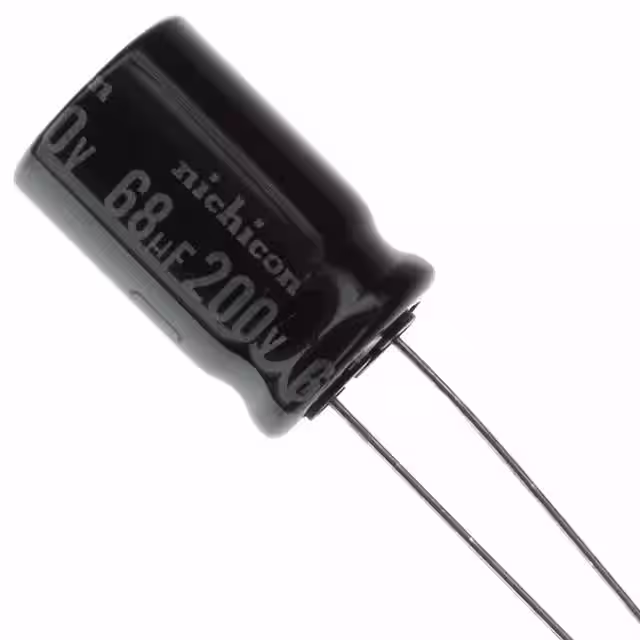

UCY2D680MHD3CAP ALUM 68UF 20% 200V RADIAL |
5,166 | 1.48 |
RFQ |
Datasheet |
Bulk | UCY | Active | 68 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
ALS70A203KF100CAP ALUM 20000UF 20% 100V SCREW |
2,114 | 34.10 |
RFQ |
Datasheet |
Tray | ALS70 | Active | 20000 µF | ±20% | 100 V | 22mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 20.1 A @ 10 kHz | 19 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
