| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS401U150R2CCAP ALUM 400UF 150V SCREW |
3,801 | 41.83 |
RFQ |
Datasheet |
Bulk | CGS | Active | 400 µF | -10%, +75% | 150 V | 137mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.99 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|

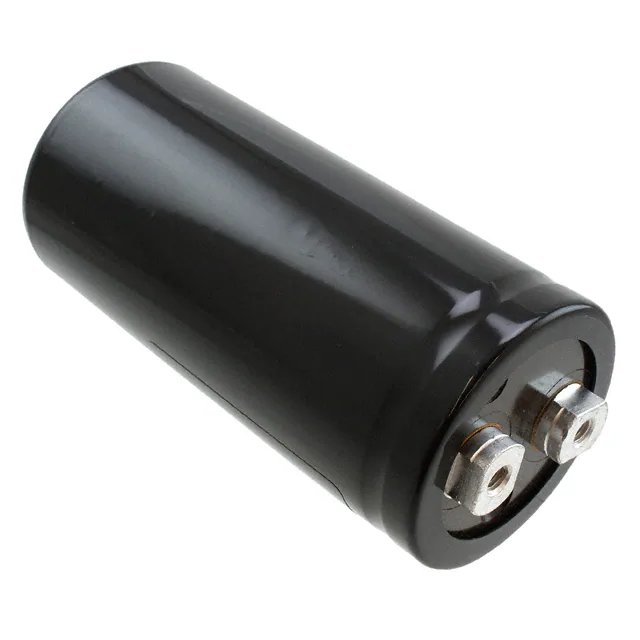

ALS30A152KF450CAP ALUM 1500UF 20% 450V SCREW |
2,667 | 41.84 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1500 µF | ±20% | 450 V | 93mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 65 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
UPM0J682MHD6TNCAP ALUM 6800UF 20% 6.3V RADIAL |
9,480 | 2.31 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.35 A @ 10 kHz | 27 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

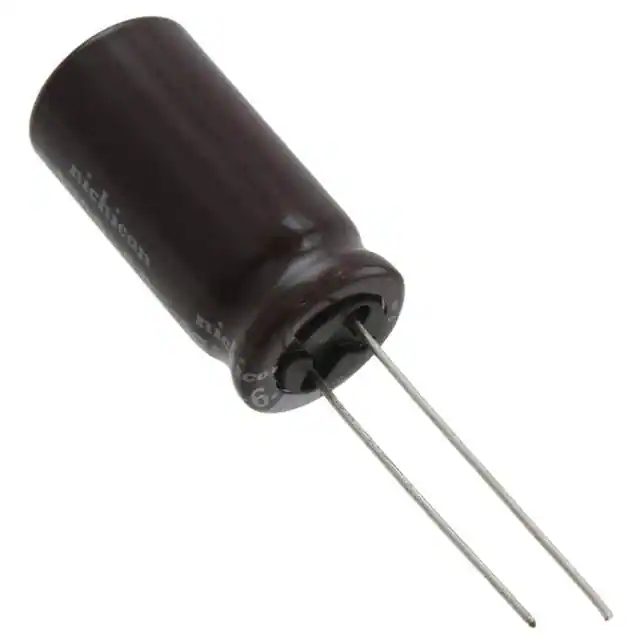

UPJ1E122MHDCAP ALUM 1200UF 20% 25V RADIAL |
7,618 | 1.23 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.76 A @ 10 kHz | 43 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|

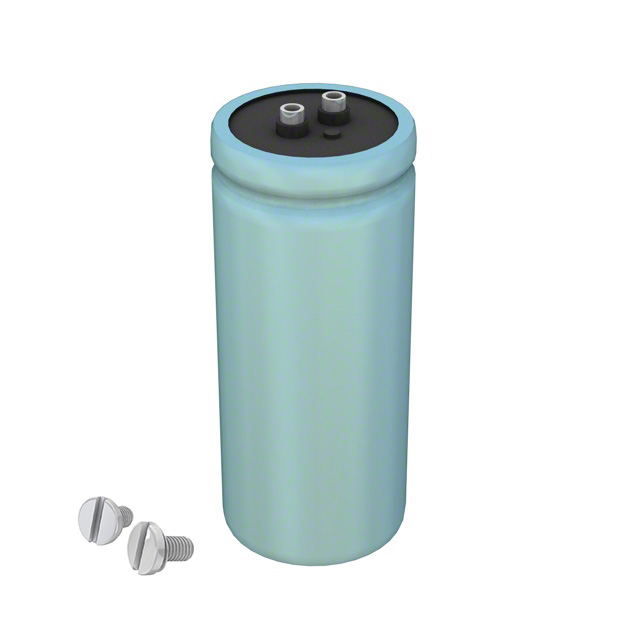

CGR103U050V4CCAP ALUM 10000UF 50V SCREW |
4,934 | 42.25 |
RFQ |
Datasheet |
Bulk | CGR | Active | 10000 µF | -10%, +75% | 50 V | 11.3mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 120 Hz | 21.275 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CGS203U025V3CCAP ALUM 20000UF 25V SCREW |
3,670 | 42.39 |
RFQ |
Datasheet |
Bulk | CGS | Active | 20000 µF | -10%, +75% | 25 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 10.4 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS251T250R2CCAP ALUM 250UF 250V SCREW |
2,546 | 42.45 |
RFQ |
Datasheet |
Bulk | CGS | Active | 250 µF | -10%, +50% | 250 V | 278mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.4 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|
|
CGS103U025R3CCAP ALUM 10000UF 25V SCREW |
4,720 | 42.58 |
RFQ |
Datasheet |
Bulk | CGS | Active | 10000 µF | -10%, +75% | 25 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.32 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
.JPG)
|

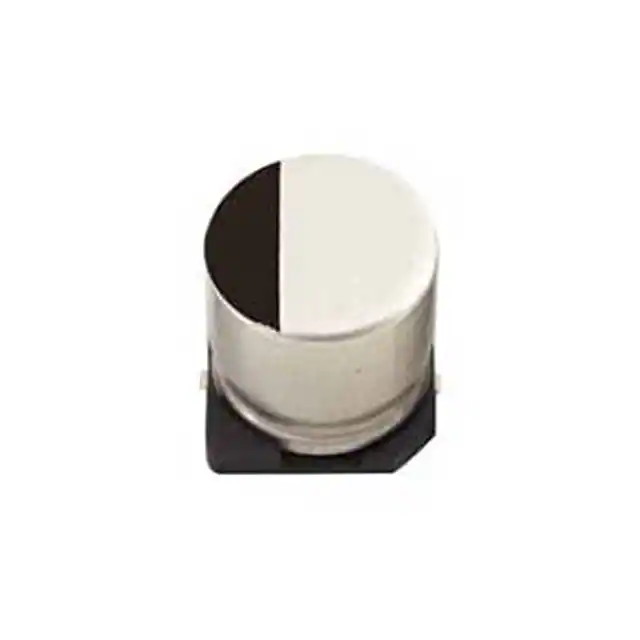

10TRV1800M12.5X13.5CAP ALUM 1800UF 20% 10V SMD |
9,650 | 2.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 1800 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 950 mA @ 100 kHz | 92 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|

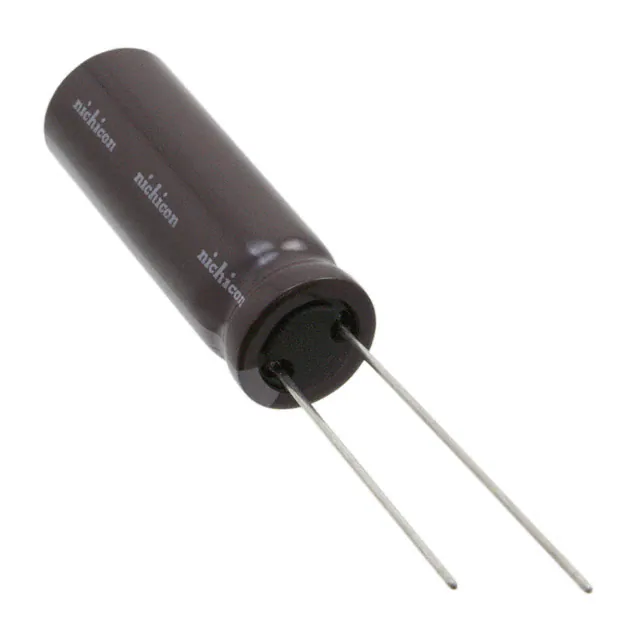

UPT2G220MPDCAP ALUM 22UF 20% 400V RADIAL |
5,395 | 1.25 |
RFQ |
Datasheet |
Bulk | UPT | Active | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 210 mA @ 120 Hz | 336 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

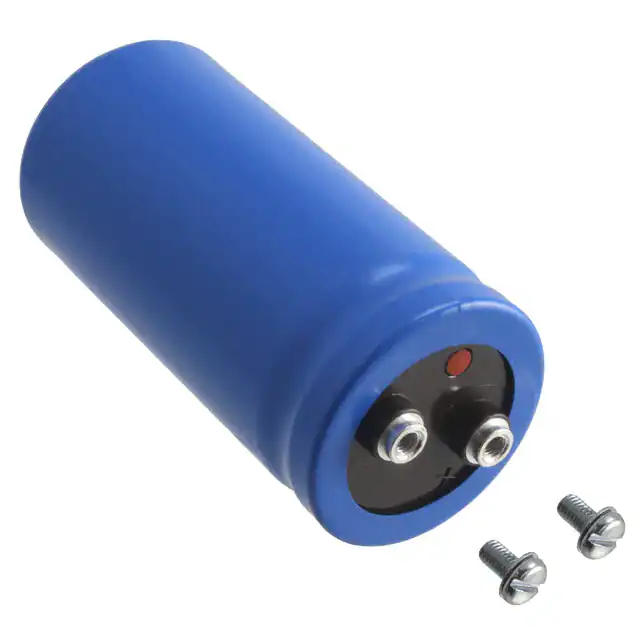

500C473T025BB2BCAP ALUM 47000UF 25V SCREW |
2,962 | 42.99 |
RFQ |
Datasheet |
Bulk | 500C | Active | 47000 µF | -10%, +50% | 25 V | 19mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|

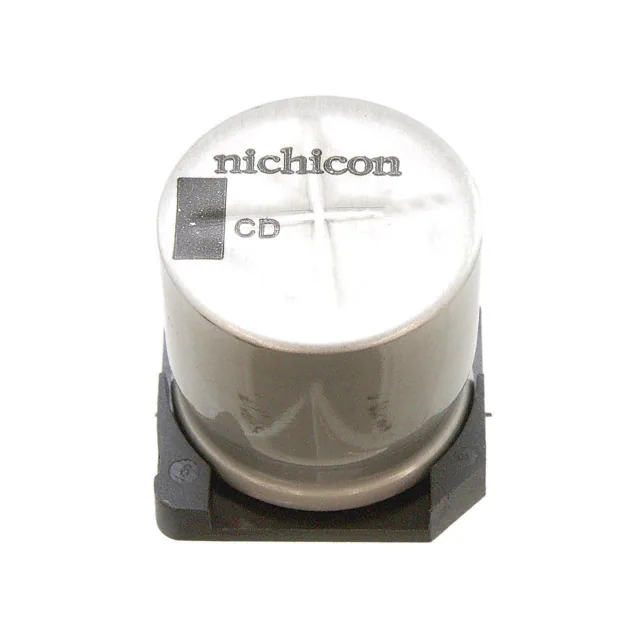

UCD1K331MNQ1MSCAP ALUM 330UF 20% 80V SMD |
8,028 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 330 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 396.5 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
|

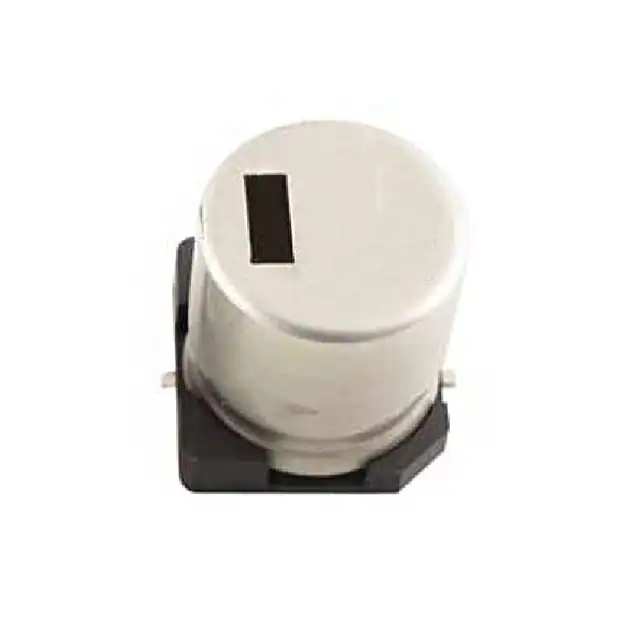

6.3TRV2700M12.5X16CAP ALUM 2700UF 20% 6.3V SMD |
8,954 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 2700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.2 A @ 100 kHz | 74 mOhms | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
|
500C683T025BJ2BCAP ALUM 68000UF 25V SCREW |
3,653 | 43.31 |
RFQ |
Datasheet |
Bulk | 500C | Active | 68000 µF | -10%, +50% | 25 V | 15mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
500C223T040BB2BCAP ALUM 22000UF 40V SCREW |
4,378 | 43.50 |
RFQ |
Datasheet |
Bulk | 500C | Active | 22000 µF | -10%, +50% | 40 V | 30mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
35TRV680M12.5X16CAP ALUM 680UF 20% 35V SMD |
5,685 | 2.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 680 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.2 A @ 100 kHz | 74 mOhms | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|

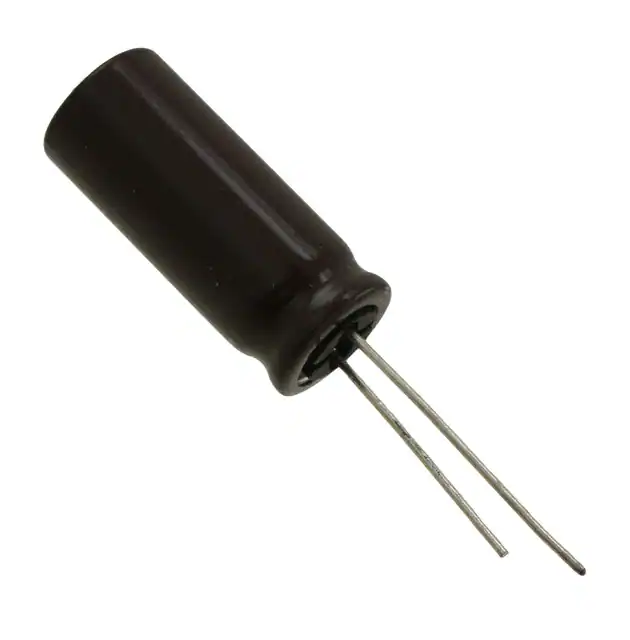

UPJ1C182MHDCAP ALUM 1800UF 20% 16V RADIAL |
6,567 | 1.27 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 120 Hz | 1.88 A @ 10 kHz | 39 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|

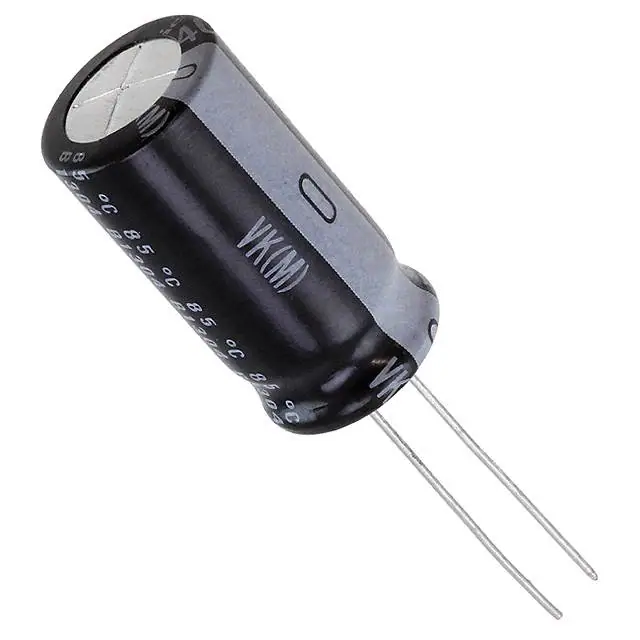

UVK2A331MHDCAP ALUM 330UF 20% 100V RADIAL |
5,779 | 1.27 |
RFQ |
Datasheet |
Bulk | UVK | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

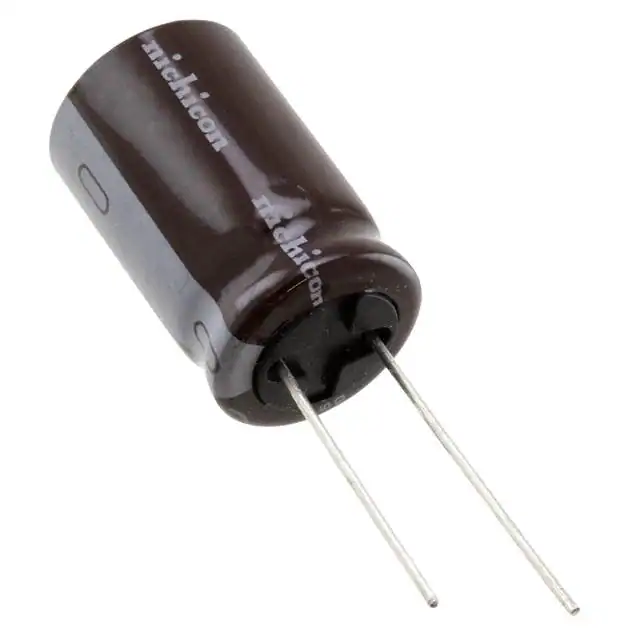

UPA0J822MHD1TNCAP ALUM 8200UF 20% 6.3V RADIAL |
9,193 | 2.41 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 8200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.346 A @ 120 Hz | 2.76 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

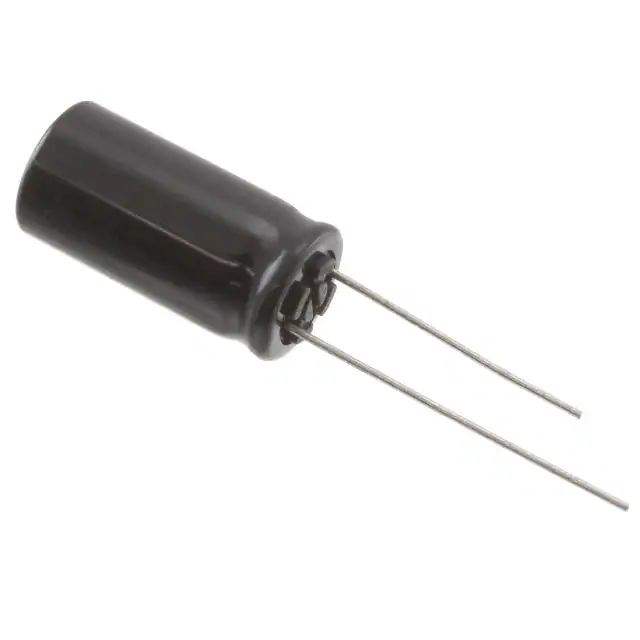

EEU-FS1K181CAP ALUM 180UF 20% 80V RADIAL |
8,628 | 1.28 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 784 mA @ 120 Hz | 1.12 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
