| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

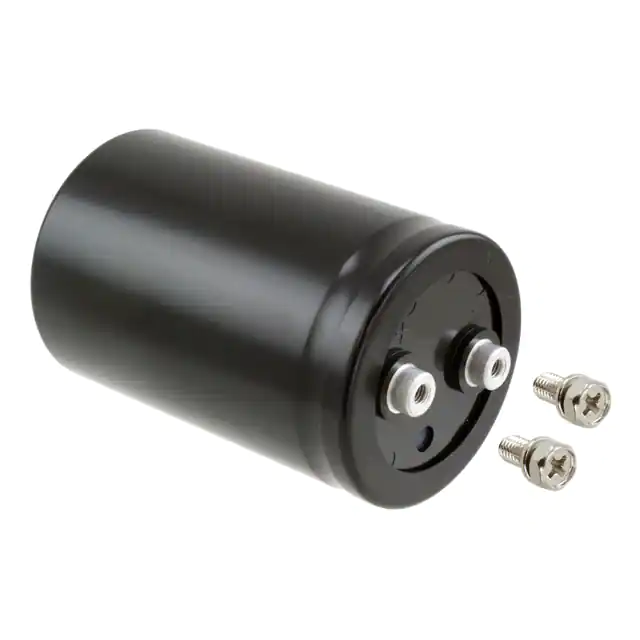

200LSQ6800MNB64X99CAP ALUM 6800UF 20% 200V SCREW |
2,955 | 54.02 |
RFQ |
Datasheet |
Bulk | LSQ | Active | 6800 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 120 Hz | 11.21 A @ 10 kHz | - | 1.110 (28.20mm) | 2.520 Dia (64.00mm) | 4.016 (102.00mm) | - | Chassis Mount |
|
UPT2P560MPDCAP ALUM 56UF 20% 220V RADIAL |
7,404 | 1.53 |
RFQ |
Datasheet |
Bulk | UPT | Active | 56 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
CGS103U035V2CCAP ALUM 10000UF 35V SCREW |
4,579 | 54.92 |
RFQ |
Datasheet |
Bulk | CGS | Active | 10000 µF | -10%, +75% | 35 V | 38mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.15 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount |
|

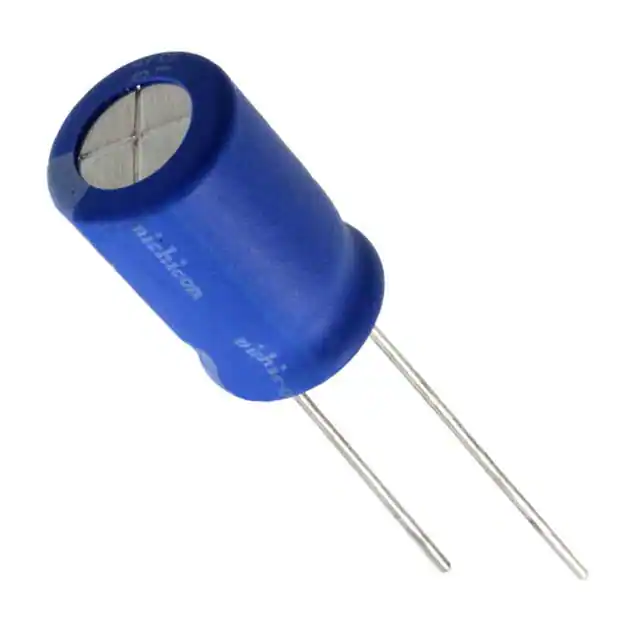

UBW1E331MPDCAP ALUM 330UF 20% 25V RADIAL |
6,097 | 1.54 |
RFQ |
Datasheet |
Bulk | UBW | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 472.5 mA @ 120 Hz | 945 mA @ 100 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
MAL212636561E3CAP ALUM 560UF 20% 25V AXIAL |
8,274 | 1.55 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 560 µF | ±20% | 25 V | 512mOhm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 330 mA @ 100 Hz | 396 mA @ 10 kHz | 570 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
CGS503U016V3CCAP ALUM 50000UF 16V SCREW |
1,030 | 55.56 |
RFQ |
Datasheet |
Bulk | CGS | Active | 50000 µF | -10%, +75% | 16 V | 11mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 15.21 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
CGS422U075R4CCAP ALUM 4200UF 75V SCREW |
2,414 | 55.97 |
RFQ |
Datasheet |
Bulk | CGS | Active | 4200 µF | -10%, +75% | 75 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 9.62 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

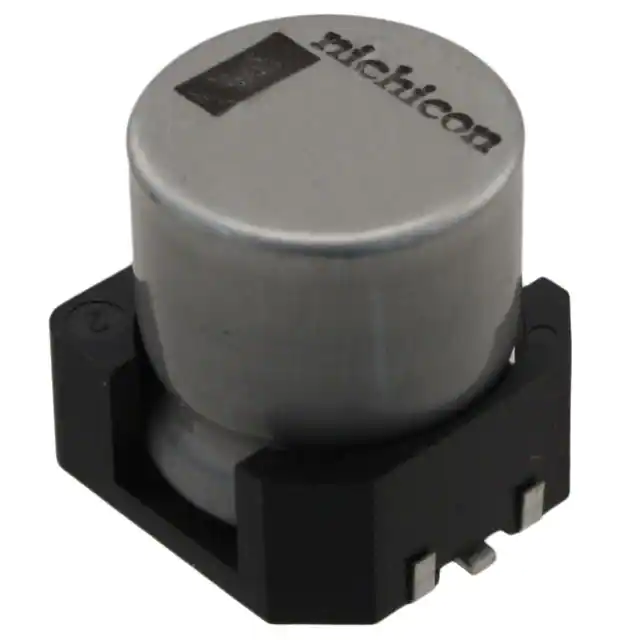

UBC1C471MNS1MSCAP ALUM 470UF 20% 16V SMD |
8,077 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UBC | Not For New Designs | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 502.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
UCZ1E122MNQ1MSCAP ALUM 1200UF 20% 25V SMD |
5,566 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 1200 µF | ±20% | 25 V | 47mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
ALS80A114QC040CAP ALUM 110000UF 20% 40V SCREW |
3,979 | 56.49 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 110000 µF | ±20% | 40 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 20.4 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|

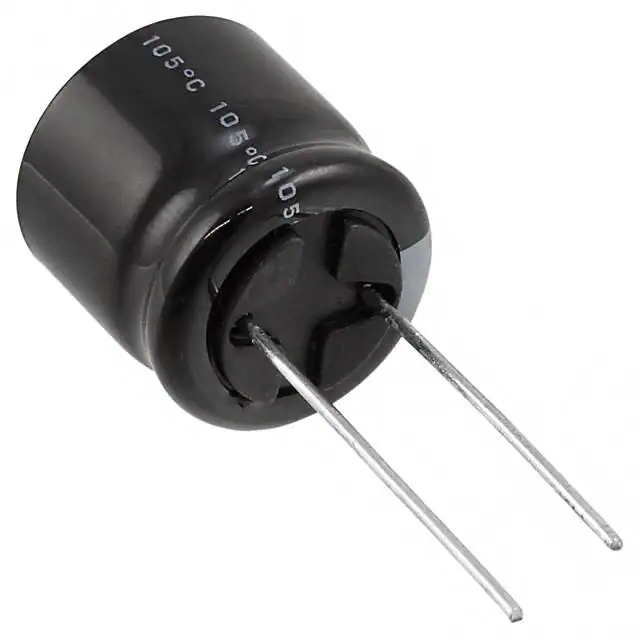

URZ1A332MHDCAP ALUM 3300UF 20% 10V RADIAL |
8,599 | 1.57 |
RFQ |
Datasheet |
Bulk | URZ | Active | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
UPTW6180MPDCAP ALUM 18UF 20% 420V RADIAL |
6,296 | 1.58 |
RFQ |
Datasheet |
Bulk | UPT | Active | 18 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 170 mA @ 120 Hz | 272 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

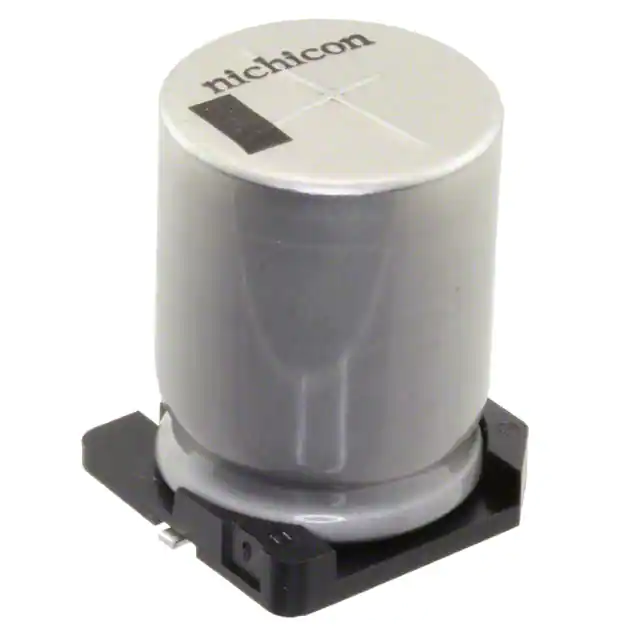

UCZ2A181MNQ1MSCAP ALUM 180UF 20% 100V SMD |
5,683 | 2.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 180 µF | ±20% | 100 V | 170mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.689 (17.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
860020280028CAP ALUM 8200UF 20% 10V RADIAL |
9,531 | 2.43 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 8200 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.3552 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
PSU21635ACAP ALUM 216UF 250V QC TERM |
3,653 | 67.11 |
RFQ |
Datasheet |
Bulk | PSU | Active | 216 µF | 0%, +20% | 250 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063 Dia (52.40mm) | 4.435 (112.65mm) | - | Chassis Mount |
|
UUG2G220MNQ6MSCAP ALUM 22UF 20% 400V SMD |
5,603 | 2.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|

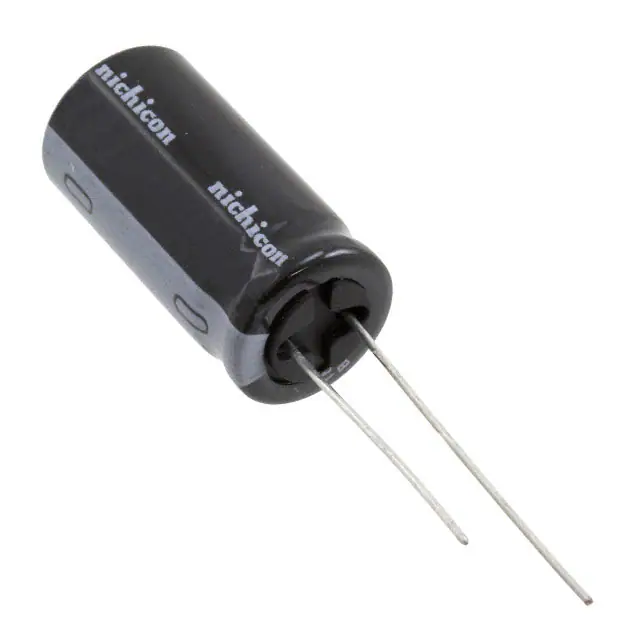

UHD0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
9,425 | 1.63 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.632 A @ 120 Hz | 3.29 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|

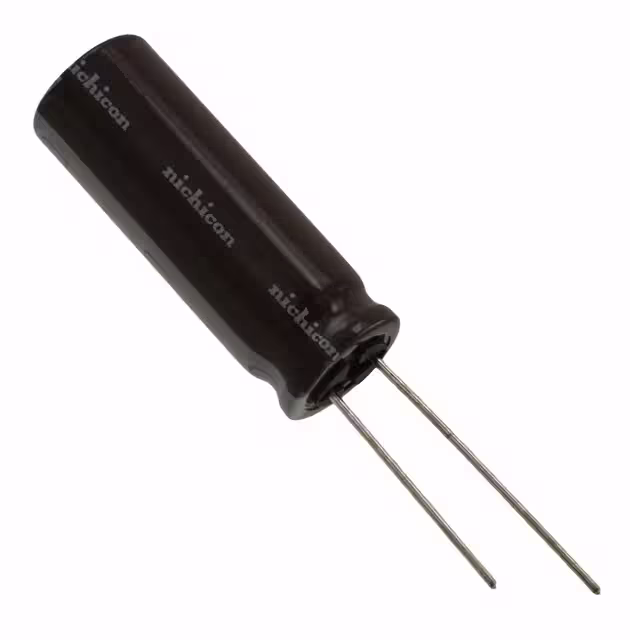

UPJ1C272MHDCAP ALUM 2700UF 20% 16V RADIAL |
5,314 | 1.63 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.22 A @ 10 kHz | 31 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|

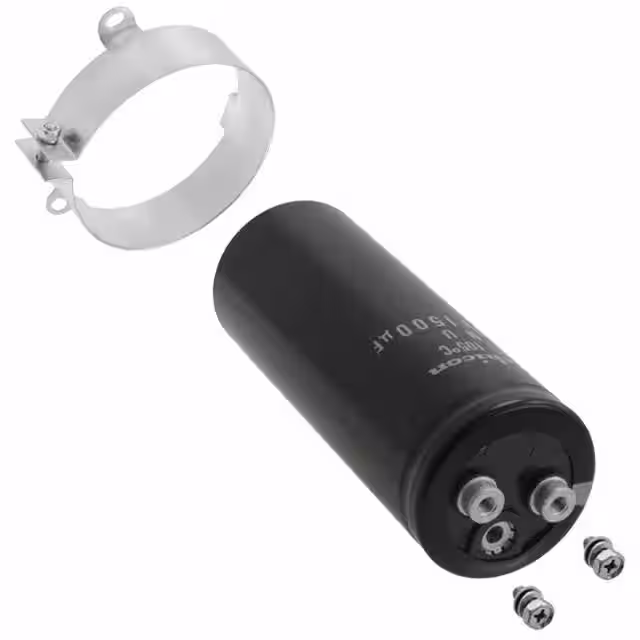

LNU2H152MSEFCAP ALUM 1500UF 20% 500V SCREW |
1,330 | 59.36 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1500 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.6 A @ 120 Hz | 9.24 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|
UPJ2A101MHD6CAP ALUM 100UF 20% 100V RADIAL |
8,298 | 1.64 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 100 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | - | 170 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
