| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAP-40/440RCAP FILM 40UF 370-440V RND |
1,114 | 36.78 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 40 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|

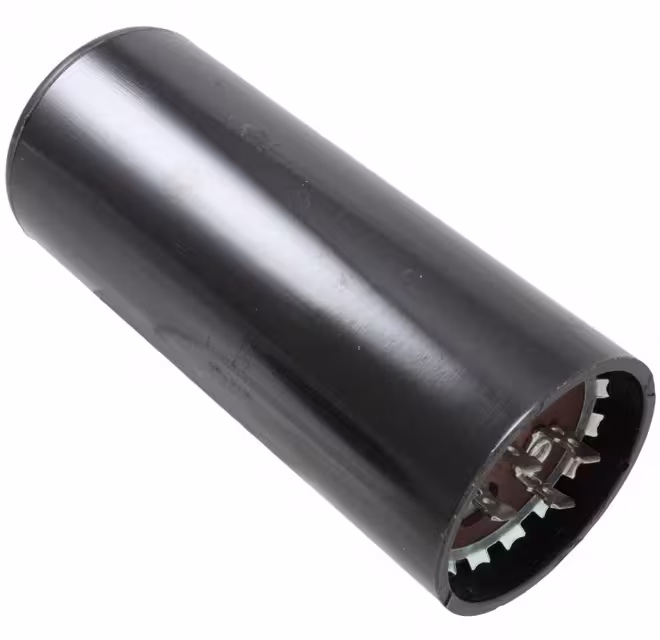

PSU7230BCAP ALUM 72UF 330V QC TERM |
1,939 | 43.18 |
RFQ |
Datasheet |
Bulk | PSU | Active | 72 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.435 (112.65mm) | - | Chassis Mount |
|
MSC330V400CAP ALUM 400UF 330V RADIAL |
1,350 | 39.55 |
RFQ |
Datasheet |
Box | MSC | Active | 400 µF | - | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | 0.880 (22.35mm) | 2.560 Dia (65.02mm) | 4.380 (111.25mm) | - | Chassis Mount |
|
TVA1962CAP ALUM 16UF 350V AXIAL |
3,937 | 40.53 |
RFQ |
Datasheet |
Bulk | TVA ATOM® | Active | 16 µF | - | 350 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole |
|
CGS721T250R4CCAP ALUM 720UF 250V SCREW |
2,633 | 39.26 |
RFQ |
Datasheet |
Bulk | CGS | Active | 720 µF | -10%, +50% | 250 V | 110mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 5.1 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CAP-45/440RCAP FILM 45UF 370-440V RND |
4,353 | 39.51 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 45 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
CAP-40/440CAP FILM 40UF 370-440V OVL |
4,870 | 39.51 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 40 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
|
CGS162U050R2CCAP ALUM 1600UF 50V SCREW |
2,290 | 39.81 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1600 µF | -10%, +75% | 50 V | 48mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 5.07 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|

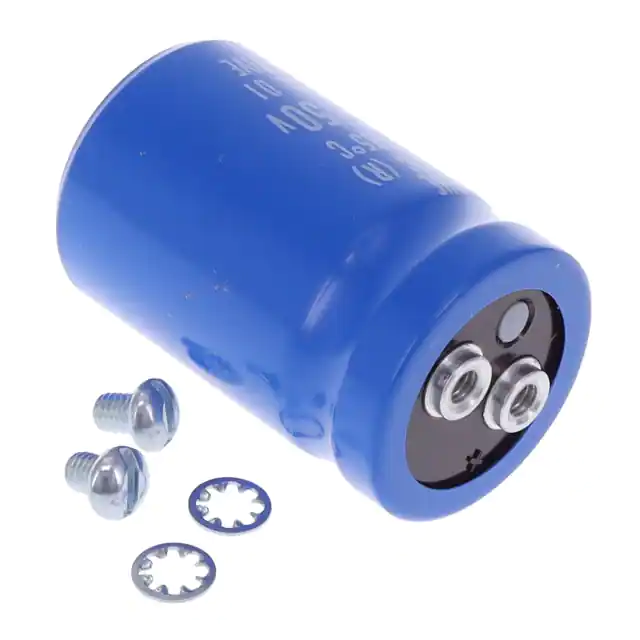

36DY562F050AA2ACAP ALUM 5600UF 50V SCREW |
3,842 | 41.51 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 5600 µF | -10%, +50% | 50 V | 40mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.25 A @ 120 Hz | 5.775 A @ 1 kHz | - | 0.500 (12.70mm) | 1.453 Dia (36.90mm) | 2.252 (57.20mm) | - | Chassis Mount |
|
CAP-25/15/440CAP FILM 25UF/15UF 370-440V OVL |
3,338 | 40.62 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 40 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
CGS113U040V3CCAP ALUM 11000UF 40V SCREW |
4,165 | 42.06 |
RFQ |
Datasheet |
Bulk | CGS | Active | 11000 µF | -10%, +75% | 40 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 120 Hz | 10.4 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS292U075R3CCAP ALUM 2900UF 75V SCREW |
1,812 | 42.39 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2900 µF | -10%, +75% | 75 V | 32mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 7.28 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS472U040R2CCAP ALUM 4700UF 40V SCREW |
3,567 | 42.45 |
RFQ |
Datasheet |
Bulk | CGS | Active | 4700 µF | -10%, +75% | 40 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.85 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|
|
CAP-45/440CAP FILM 45UF 370-440V OVL |
3,399 | 42.48 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 45 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
|
CGS243U016R3CCAP ALUM 24000UF 16V SCREW |
1,294 | 42.58 |
RFQ |
Datasheet |
Bulk | CGS | Active | 24000 µF | -10%, +75% | 16 V | 32mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 7.28 A @ 10 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS652U050V3CCAP ALUM 6500UF 50V SCREW |
3,275 | 43.72 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6500 µF | -10%, +75% | 50 V | 25mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 10.27 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS142T200V3CCAP ALUM 1400UF 200V SCREW |
3,494 | 43.86 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1400 µF | -10%, +50% | 200 V | 81mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.6 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|

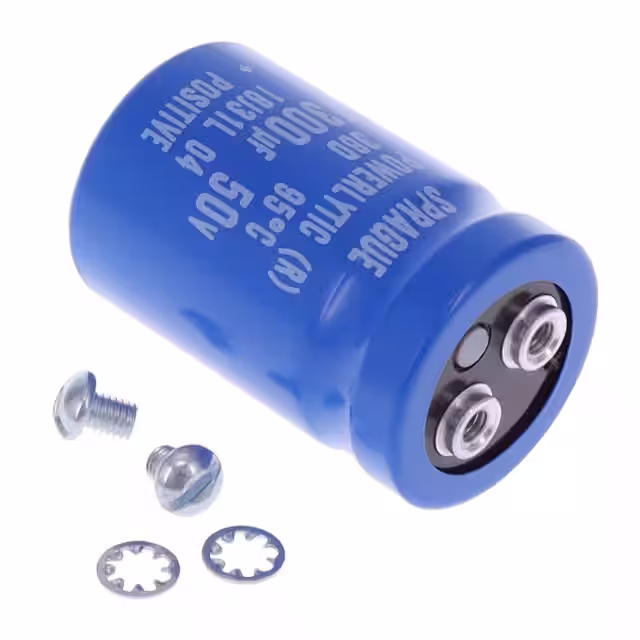

36D132G050AA2ACAP ALUM 1300UF 50V SCREW |
2,645 | 45.44 |
RFQ |
Datasheet |
Bulk | 36D | Active | 1300 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.453 Dia (36.90mm) | 2.252 (57.20mm) | - | Chassis Mount |
|
|
CAP-50/440RCAP FILM 50UF 370-440V RND |
1,743 | 44.82 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 50 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
CG241T450V4CCAP ALUM 240UF 450V SCREW |
3,781 | 44.88 |
RFQ |
Datasheet |
Bulk | CG | Active | 240 µF | -10%, +50% | 450 V | 330mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.592 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
