| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAP-50/440CAP FILM 50UF 370-440V OVL |
4,692 | 51.15 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 50 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
|
CAP-60/440CAP FILM 60UF 370-440V OVL |
1,710 | 51.27 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 60 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
CP-CE-20X4-475VCAP ALUM 475V QC TERM |
1,476 | 53.25 |
RFQ |
Bulk | - | Active | - | - | 475 V | - | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | |
|
CGS651T350V3CCAP ALUM 650UF 350V SCREW |
1,250 | 53.70 |
RFQ |
Datasheet |
Bulk | CGS | Active | 650 µF | -10%, +50% | 350 V | 212mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS222T200V4CCAP ALUM 2200UF 200V SCREW |
4,821 | 54.25 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2200 µF | -10%, +50% | 200 V | 54mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 9 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
B43705A5108M000CAP ALUM 1000UF 20% 450V SCREW |
3,355 | 55.12 |
RFQ |
Datasheet |
Bulk | B43705 | Active | 1000 µF | ±20% | 450 V | 110mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.69 A @ 100 Hz | - | 180 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
CGS451T450V3CCAP ALUM 450UF 450V SCREW |
1,312 | 55.52 |
RFQ |
Datasheet |
Bulk | CGS | Active | 450 µF | -10%, +50% | 450 V | 188mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|

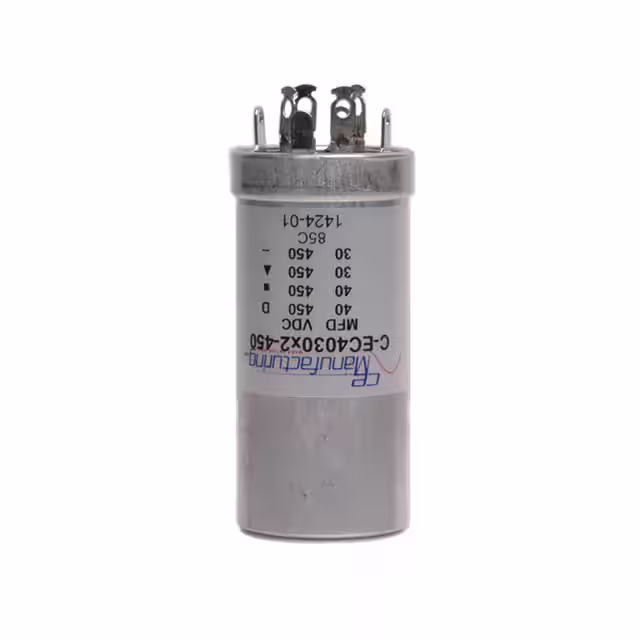

CP-CE-40X2-30X2-450VCAP ALUM 450V QC TERM |
3,498 | 55.83 |
RFQ |
Bulk | - | Active | - | - | 450 V | - | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | |
|

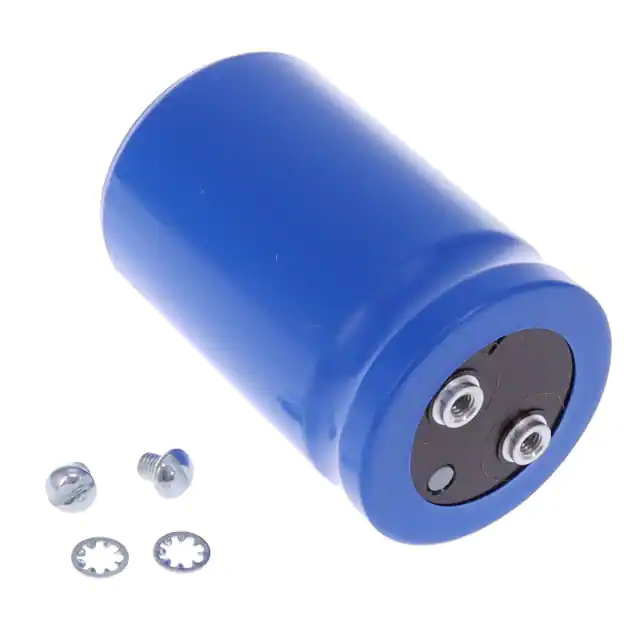

36D602G050BB2ACAP ALUM 6000UF 50V SCREW |
4,551 | 58.10 |
RFQ |
Datasheet |
Bulk | 36D | Active | 6000 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 3.252 (82.60mm) | - | Chassis Mount |
|
DCM562U150DJ2BCAP ALUM 5600UF 150V SCREW |
3,265 | 57.42 |
RFQ |
Datasheet |
Bulk | DCM | Active | 5600 µF | -10%, +75% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.687 (93.65mm) | - | Chassis Mount |
|

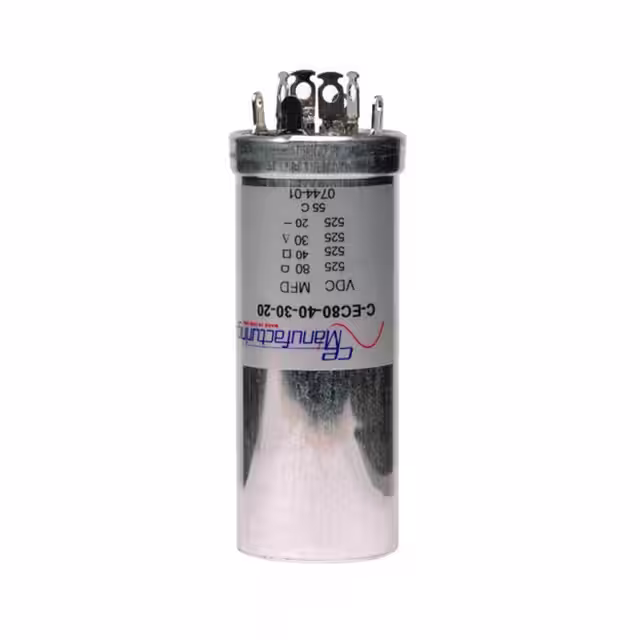

CP-CE-80-40-30-20-525VCAP ALUM 20UF 525V QC TERM |
1,672 | 58.25 |
RFQ |
Bulk | - | Active | 20 µF | - | 525 V | - | - | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | |
|
PSU18930CAP ALUM 189UF 330V QC TERM |
1,564 | 67.11 |
RFQ |
Datasheet |
Bulk | PSU | Active | 189 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563 Dia (65.10mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
|
CGS353U040V5LCAP ALUM 35000UF 40V SCREW |
1,806 | 58.97 |
RFQ |
Datasheet |
Bulk | CGS | Active | 35000 µF | -10%, +75% | 40 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 16.64 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
CAP-70/440RCAP FILM 70UF 370-440V RND |
3,336 | 59.84 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 70 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
36DY153F050BM2ACAP ALUM 15000UF 50V SCREW |
2,265 | 61.78 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 15000 µF | -10%, +50% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 2.752 (69.90mm) | - | Chassis Mount |
|

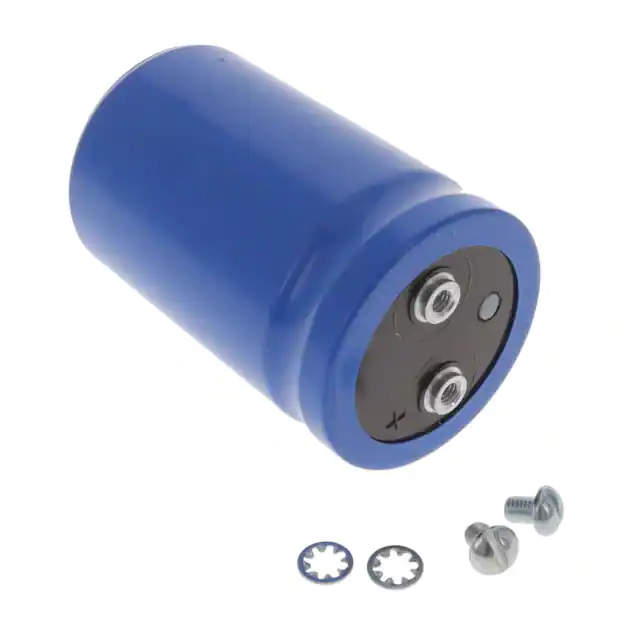

36D392G075BB2ACAP ALUM 3900UF 75V SCREW |
4,318 | 62.57 |
RFQ |
Datasheet |
Bulk | 36D | Active | 3900 µF | -10%, +75% | 75 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 3.252 (82.60mm) | - | Chassis Mount |
|
|
36DX263G030BC2ACAP ALUM 26000UF 30V SCREW |
1,794 | 63.50 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 26000 µF | -10%, +75% | 30 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 4.252 (108.00mm) | - | Chassis Mount |
|

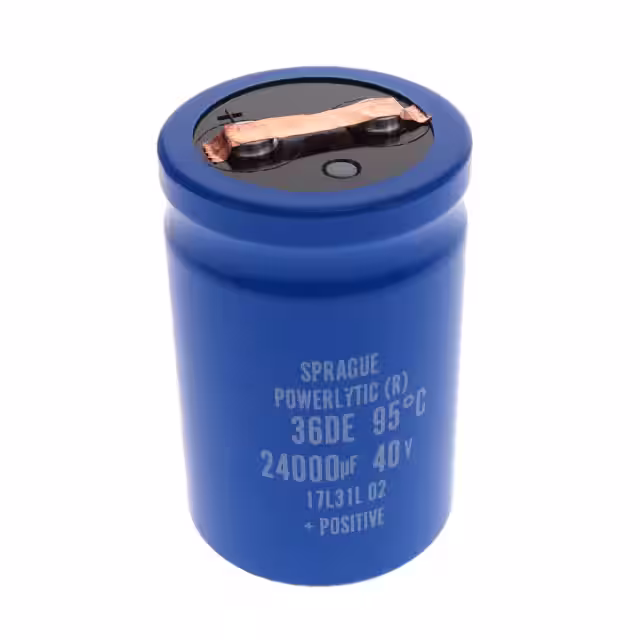

36DE243G040BB2ACAP ALUM 24000UF 40V SCREW |
3,018 | 64.66 |
RFQ |
Datasheet |
Bulk | 36DE | Active | 24000 µF | -10%, +75% | 40 V | - | 1000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 3.252 (82.60mm) | - | Chassis Mount |
|

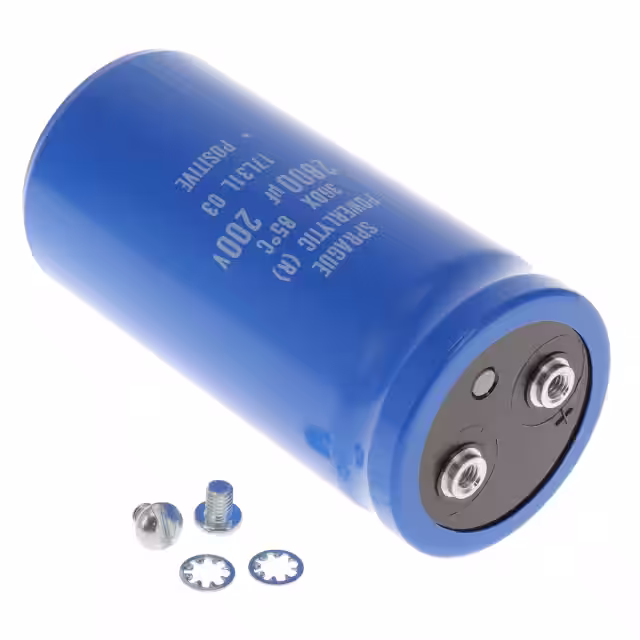

36DX282F200BC2ACAP ALUM 2800UF 200V SCREW |
4,707 | 64.95 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 2800 µF | -10%, +50% | 200 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.079 Dia (52.80mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
B43721B5228M000CAP ALUM 2200UF 20% 450V SCREW |
1,483 | 65.31 |
RFQ |
Datasheet |
Bulk | B43721 | Active | 2200 µF | ±20% | 450 V | 55mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.66 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 3.846 (97.70mm) | - | Chassis Mount |
