| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ForMeasuring | SensorType | Current-Sensing | NumberofChannels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage-Supply | ResponseTime | Current-Supply(Max) | OperatingTemperature | Polarization | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S23P50/100D15M2CURRENT SENSOR (50A/100A; 15V) |
4,835 | 15.14 |
RFQ |
Datasheet |
Tray | S23P M2 | Active | AC/DC | Hall Effect, Closed Loop | 50A, 100A | 1 | Ratiometric, Current | - | - | ±0.15% | ±0.25% | ±12V ~ 15V | 500ns | 16mA | -40°C ~ 85°C | Unidirectional | Through Hole |
|
L18P010D15SENSOR CURRENT HALL 10A AC/DC |
662 | 11.57 |
RFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
|
F01P015S05LSENSOR |
2,853 | 15.47 |
RFQ |
Datasheet |
Tray | F01P | Active | AC/DC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±1.9% | 5V | 0.3µs | 30mA | -40°C ~ 105°C | Bidirectional | Through Hole |
|

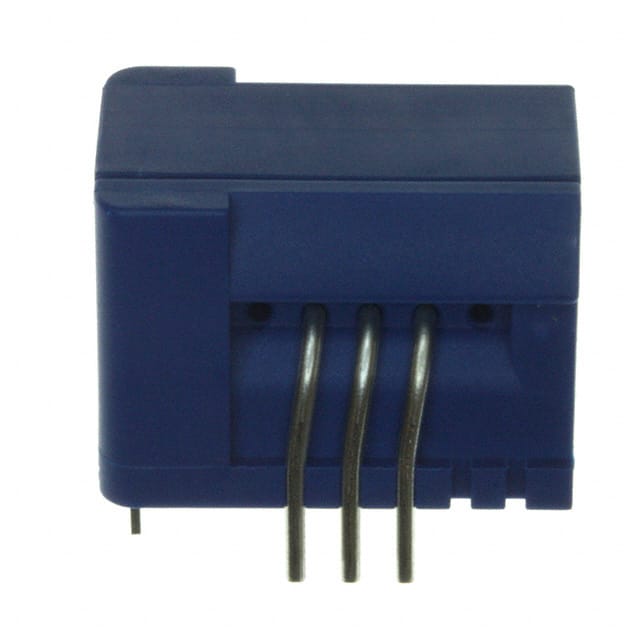

CAS 25-NPSENSOR CURRENT FLUX 25A AC/DC |
2,760 | 17.07 |
RFQ |
Datasheet |
Tray | CAS | Active | AC/DC | Flux Gate, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | Bidirectional | Through Hole |
|

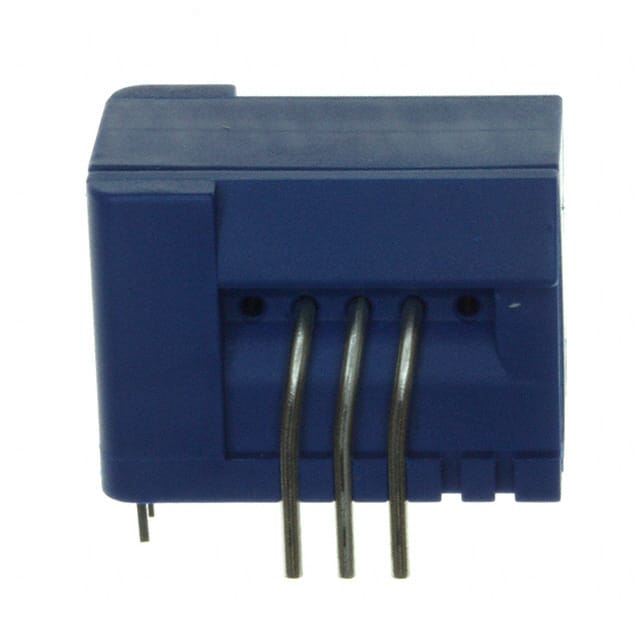

CAS 15-NPSENSOR CURRENT FLUX 15A AC/DC |
4,241 | 17.07 |
RFQ |
Datasheet |
Tray | CAS | Active | AC/DC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±0.8% | 4.75V ~ 5.25V | 0.3µs | 20mA | -40°C ~ 85°C | Bidirectional | Through Hole |
|

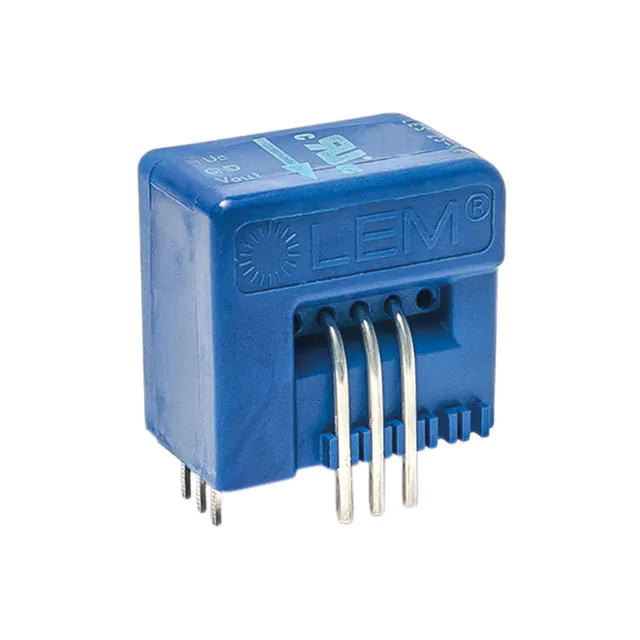

LES 25-NPSENSOR CURRENT HALL 25A UNIPOLAR |
3,927 | 17.94 |
RFQ |
Datasheet |
Tray | LES | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±2.25% | 4.75V ~ 5.25V | 400ns | 21.3mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|

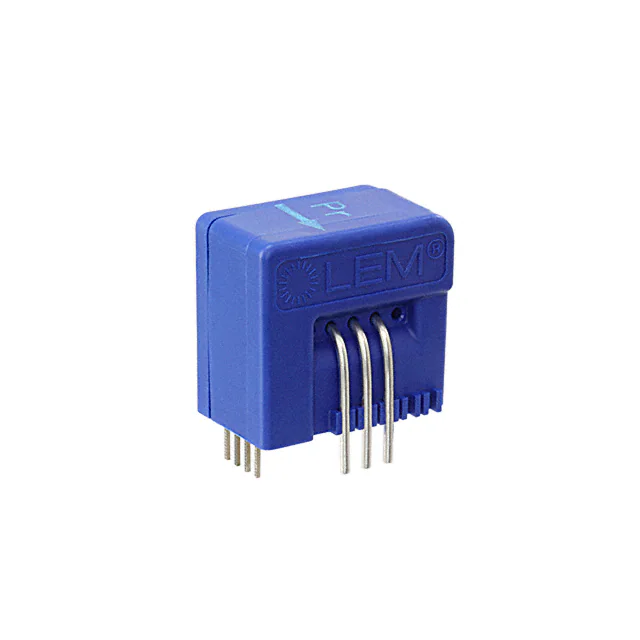

LESR 25-NPSENSOR CURRENT HALL 25A UNIPOLAR |
1,913 | 17.94 |
RFQ |
Datasheet |
Tray | LESR | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 32.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|
LXSR 25-NPSSENSOR CURRENT HALL 25A UNIPOLAR |
4,785 | 17.94 |
RFQ |
Datasheet |
Tray | LXSR | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 32.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|
|
LESR 15-NPSENSOR CURRENT HALL 15A UNIPOLAR |
1,184 | 17.94 |
RFQ |
Datasheet |
Tray | LESR | Active | AC/DC | Hall Effect, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 27.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|

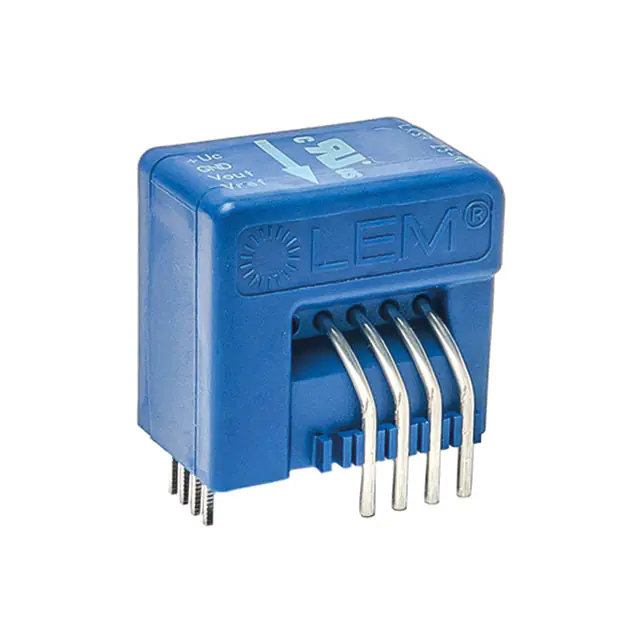

LKSR 6-NPSENSOR CURRENT HALL 6A UNIPOLAR |
2,567 | 17.94 |
RFQ |
Datasheet |
Tray | LKSR | Active | AC/DC | Hall Effect, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 23mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|
|
LXSR 15-NPSSENSOR CURRENT HALL 15A UNIPOLAR |
4,281 | 17.94 |
RFQ |
Datasheet |
Tray | LXSR | Active | AC/DC | Hall Effect, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 27.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|
|
LESR 6-NPSENSOR CURRENT HALL 6A UNIPOLAR |
4,707 | 17.94 |
RFQ |
Datasheet |
Tray | LESR | Active | AC/DC | Hall Effect, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 23mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|
|
LKSR 25-NPSENSOR CURRENT HALL 25A UNIPOLAR |
1,691 | 17.94 |
RFQ |
Datasheet |
Tray | LKSR | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 32.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|

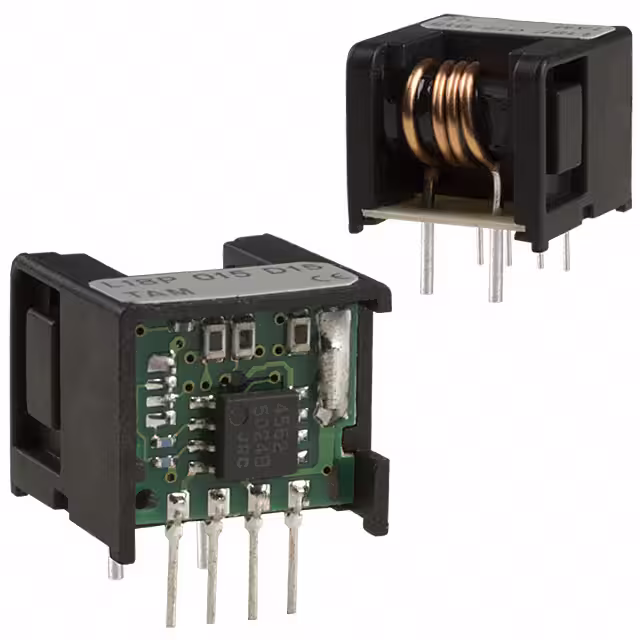

L18P015D15SENSOR CURRENT HALL 15A AC/DC |
392 | 12.54 |
RFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 15A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | Bidirectional | Through Hole |
|

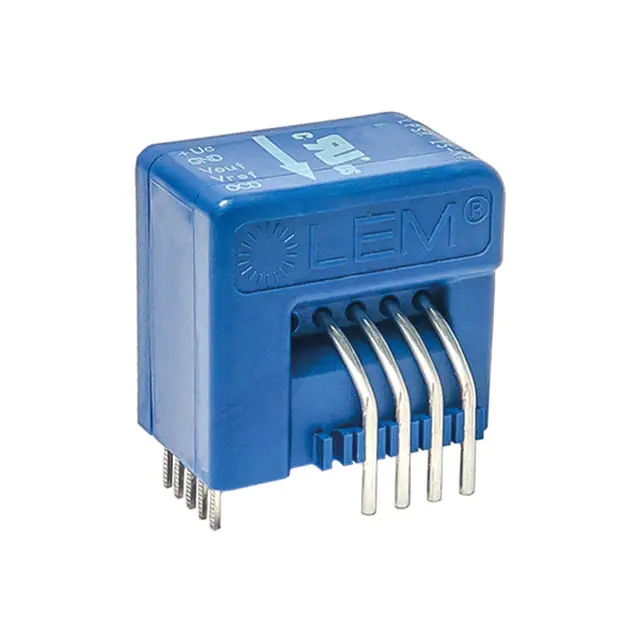

LPSR 25-NPSENSOR CURRENT HALL 25A UNIPOLAR |
1,334 | 18.68 |
RFQ |
Datasheet |
Tray | LPSR | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 32.5mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|

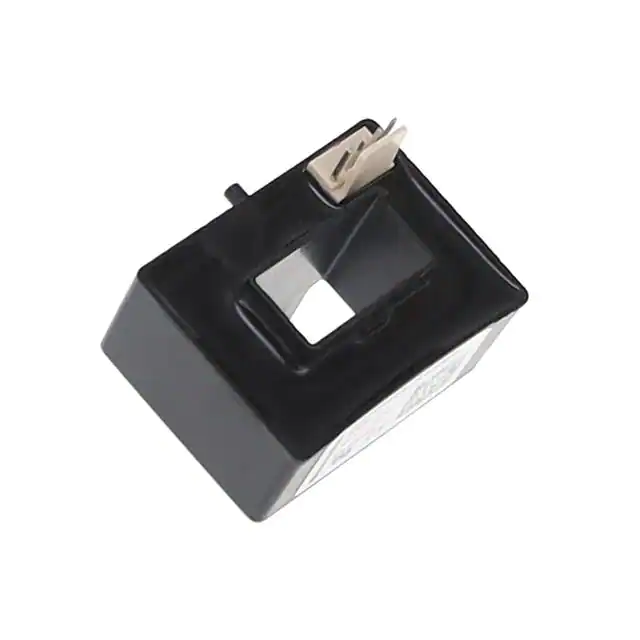

L37S400S05MCURRENT SENSOR (400A; +5V) |
4,597 | 19.13 |
RFQ |
Datasheet |
Tray | L37S S05 | Active | DC | Hall Effect, Open Loop | 400A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | - | 4.75V ~ 5.25V | 5µs | 20mA | -40°C ~ 85°C (TA) | Bidirectional | Chassis Mount |
|
|
LKSR 50-NPSENSOR CURRENT HALL 50A UNIPOLAR |
1,986 | 19.67 |
RFQ |
Datasheet |
Tray | LKSR | Active | AC/DC | Hall Effect, Closed Loop | 50A | 1 | Ratiometric, Voltage | 12.5mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 51.3mA | -40°C ~ 105°C (TA) | Bidirectional | Through Hole |
|

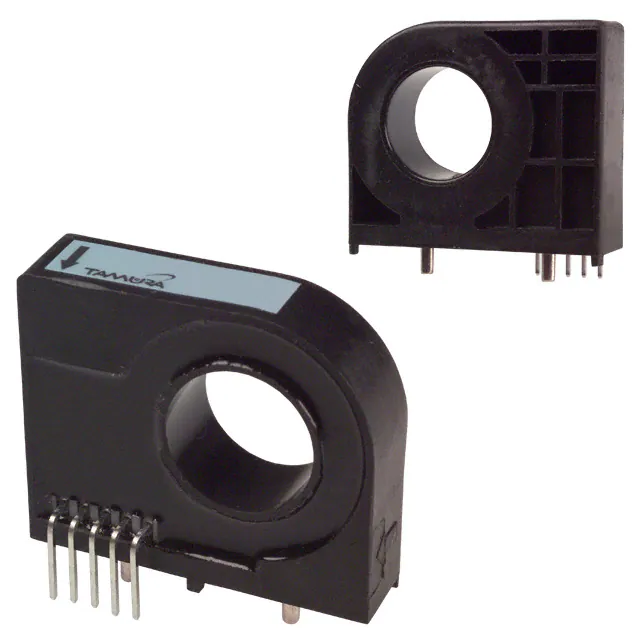

L08P100D15SENSOR CURRENT HALL 100A AC/DC |
776 | 13.20 |
RFQ |
Datasheet |
Bulk | - | Obsolete | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 10µs | 12mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|
CZ3702IC CORELESS CURRENT SENSOR 10VSO |
3,138 | 13.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CZ | Active | AC/DC | Hall Effect, Open Loop | 21A | 1 | Ratiometric, Voltage | 100mV/A | - | ±0.13% | ±1% | 4.5V ~ 5.5V | 1µs | 25mA | -40°C ~ 105°C (TA) | Bidirectional | Surface Mount |
|
|
CZ3701IC CORELESS CURRENT SENSOR 10VSO |
4,733 | 13.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CZ | Active | AC/DC | Hall Effect, Open Loop | 10.7A | 1 | Ratiometric, Voltage | 200mv/A | - | ±0.13% | ±1% | 4.5V ~ 5.5V | 1µs | 25mA | -40°C ~ 105°C (TA) | Bidirectional | Surface Mount |
