Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
NTE555 D-PIN VHF BAND SW NTE Electronics, Inc	8,447	1.92	RFQ	Datasheet	Bag	-	Active	PIN - Single	50V	-	1pF @ 20V, 1MHz	-	400 mW	-55°C ~ 125°C (TJ)
MMBD354LT1G DIODE SCHOTTKY 7V 225MW SOT23-3 onsemi	10,796	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - 1 Pair Common Cathode	7V	-	1pF @ 0V, 1MHz	-	225 mW	-55°C ~ 150°C (TJ)
BAP51-06W,115 RF DIODE PIN 50V 240MW SOT323 NXP USA Inc.	474	0.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - 1 Pair Common Anode	50V	50 mA	0.35pF @ 5V, 1MHz	2.5Ohm @ 10mA, 100MHz	240 mW	-65°C ~ 150°C (TJ)
1SS390TE61 RF DIODE STANDARD 35V 150MW EMD2 Rohm Semiconductor	456	0.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	900mOhm @ 2mA, 100MHz	150 mW	125°C (TJ)
1N5711WS-7-F DIODE SCHOTTKY 70V 150MW SOD323 Diodes Incorporated	10,566	0.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	70V	15 mA	2pF @ 0V, 1MHz	-	150 mW	-55°C ~ 125°C (TJ)
MA4P606-131 RF DIODE PIN 1000V DIE MACOM Technology Solutions	3,201	10.42	RFQ	Datasheet	Bulk	-	Active	PIN - Single	1000V	-	0.6pF @ 100V, 1MHz	700mOhm @ 100mA, 100MHz	-	175°C (TJ)
MGS802 SCHOTTKY DIODE,GAAS-CHIP,GC210 MACOM Technology Solutions	1,120	11.45	RFQ	Datasheet	Tray	MGS8xx	Active	Schottky - Anti-Parallel	5V (Min)	50 mA	0.1pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	75 mW	-65°C ~ 150°C
MA4P506-131 RF DIODE PIN 500V DIE MACOM Technology Solutions	8,033	7.74	RFQ	Datasheet	Bulk	-	Active	PIN - Single	500V	-	0.7pF @ 100V, 1MHz	300mOhm @ 100mA, 100MHz	-	175°C (TJ)
MMP4405-GM2 SI PIN NON HERMETIC PLASTIC SMT Microchip Technology	2,997	12.99	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMP4400	Active	PIN - Single	1000V	-	0.6pF @ 50V, 1MHz	750mOhm @ 100mA, 100MHz	8 W	-55°C ~ 150°C
MEST2G-020-15 SWITCH,RF,PIN,2012 PKG MACOM Technology Solutions	2,627	11.53	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	100 mA	0.08pF @ 10V, 1MHz	1.2Ohm @ 100mA, 100MHz	20 W	175°C (TJ)
MMPN080045 DIODE,PIN-CHIP, C50 MACOM Technology Solutions	3,141	13.77	RFQ		Tray	-	Active	PIN - Single	200V	150 mA	-	-	-	175°C (TJ)
MA4E2039 DIODE,SCHOTTKY,BEAM_LEAD,GAAS,OD MACOM Technology Solutions	2,827	15.71	RFQ		Tray	-	Active	PIN - Single	-	-	0.06pF @ 0V, 1MHz	7Ohm @ 10mA, 1MHz	-	-65°C ~ 125°C
MSS39-144-B10B COM SCHOTTKY, BEAMLEAD, B10B MACOM Technology Solutions	3,713	20.35	RFQ		Tray	-	Active	Schottky - Single	3.5V	50 mA	0.08pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MGS903 SCHOTTKY DIODE,GAAS-BEAMLEAD,GB3 MACOM Technology Solutions	1,084	30.67	RFQ	Datasheet	Tray	MGS9xx	Active	Schottky - 1 Pair Series Connection	5V (Min)	50 mA	0.06pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	75 mW	-65°C ~ 150°C
MA4P4002B-402 RF DIODE PIN 200V 2.5W AXIAL MACOM Technology Solutions	1,281	32.46	RFQ	Datasheet	Bulk	-	Active	PIN - Single	200V	-	-	500mOhm @ 100mA, 100MHz	2.5 W	-55°C ~ 175°C (TJ)
MA4L021-120 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	2,154	32.58	RFQ		Tray	MA4L	Active	PIN - Single	35V	100 mA	0.2pF @ 0V, 1MHz	2.1Ohm @ 10mA, 500MHz	3 W	175°C (TJ)
MA4L032-1056 DIODE,PIN,BONDED,STRIPLINE,SI MACOM Technology Solutions	1,928	33.58	RFQ		Tray	MA4L	Active	PIN - Single	50V	100 mA	0.18pF @ 10V, 1MHz	2.5Ohm @ 10mA, 500MHz	4 W	175°C (TJ)

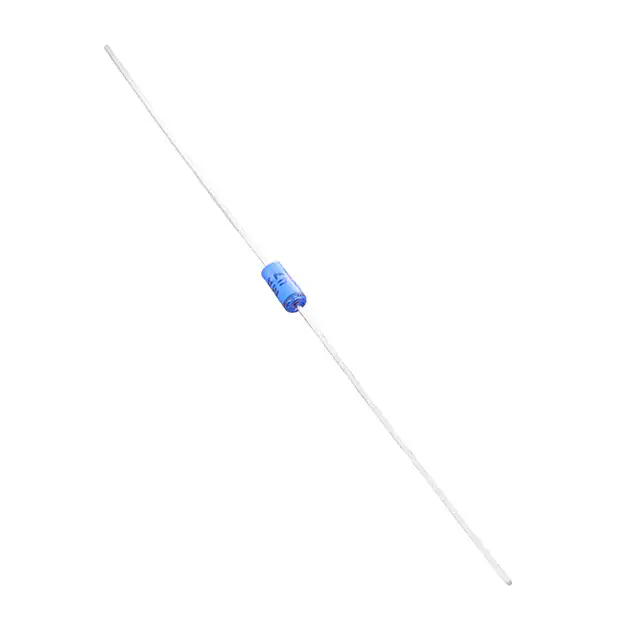

MA47047-54 DIODE,PIN,GLASS,AXIAL,HI_VOLUME MACOM Technology Solutions	2,176	34.26	RFQ		Tray	-	Active	PIN - Single	200V	-	0.3pF @ 50V, 1MHz	3Ohm @ 10mA, 100MHz	300 mW	-55°C ~ 175°C
MSS40-141-E25 SCHOTTKY DIODE,BEAMLEAD, E25-1 MACOM Technology Solutions	4,098	35.30	RFQ		Tray	-	Active	Schottky - Single	3V	50 mA	0.22pF @ 0V, 1MHz	10Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

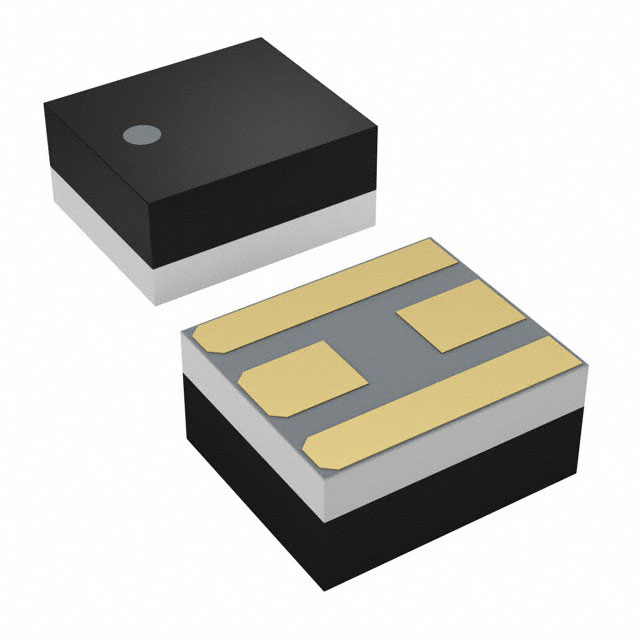

MEST2G-150-10-CM32 RF DIODE PIN CM32 MACOM Technology Solutions	4,962	43.12	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	-	500 mA	0.5pF @ 50V, 1MHz	220mOhm @ 100mA, 100MHz	-	-
