Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
1SS381,L3F DIODE RF SWITCH 30V 100MA ESC Toshiba Semiconductor and Storage	14,282	0.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	PIN - Single	30V	100 mA	1.2pF @ 6V, 1MHz	900mOhm @ 2mA, 100MHz	-	125°C (TJ)
1SS315TPH3F RF DIODE SCHOTTKY 5V USC Toshiba Semiconductor and Storage	10,906	0.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Schottky - Single	5V	30 mA	0.6pF @ 0.2V, 1MHz	-	-	125°C (TJ)
RN262CST2R RF DIODE PIN 30V 100MW VMN2 Rohm Semiconductor	11,684	0.07	RFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	30V	100 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	100 mW	150°C (TJ)
1SV308,L3F RF DIODE PIN 30V ESC Toshiba Semiconductor and Storage	10,704	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	125°C (TJ)
JDV2S07FSTPL3 RF DIODE STANDARD 10V FSC Toshiba Semiconductor and Storage	13,466	0.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	10V	-	4.9pF @ 1V, 1MHz	-	-	150°C (TJ)
MADP-042308-130600 DIODE,HMIC,SURMOUNT,PIN,8UM MACOM Technology Solutions	5,028	4.73	RFQ	Datasheet	Tray	MADP-042308-130600 Surmount™	Active	PIN - Single	100V	250 mA	0.2pF @ 40V, 1MHz	1.38Ohm @ 20mA, 1GHz	-	175°C (TJ)
MADP-030015-13140G RF DIODE PIN 115V MACOM Technology Solutions	5,520	6.59	RFQ	Datasheet	Bulk	-	Active	PIN - Single	115V	500 mA	0.85pF @ 40V, 1MHz	820mOhm @ 10mA, 1GHz	-	175°C (TJ)
MADP-017015-13140G RF DIODE PIN 115V MACOM Technology Solutions	7,517	6.59	RFQ	Datasheet	Bulk	-	Active	PIN - Single	115V	500 mA	0.38pF @ 40V, 1MHz	720mOhm @ 10mA, 1GHz	-	175°C (TJ)
MA4E931Z2-1261A DIODE,SCHOTTKY,ZBD,CHIP MACOM Technology Solutions	6,026	6.62	RFQ		Tray	-	Active	Schottky	3V	-	-	-	75 mW	-65°C ~ 150°C
MA4L401-134 DIODE,PIN,CHIP,OXI MACOM Technology Solutions	7,581	7.40	RFQ		Tray	MA4L	Active	PIN - Single	-	100 mA	0.3pF @ 0V, 1MHz	1.2Ohm @ 10mA, 500MHz	10 W	175°C (TJ)
MGS801 DIODE,SCHOTTKY,GAAS,GC110 PACKAG MACOM Technology Solutions	9,825	4.55	RFQ	Datasheet	Tray	MGS8xx	Active	Schottky - 1 Pair Series Connection	5V (Min)	50 mA	0.05pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	75 mW	-65°C ~ 150°C
MADP-000488-13740W DIODE,PIN,CHIP MACOM Technology Solutions	2,177	13.15	RFQ		Tray	-	Active	PIN - Single	900V	-	0.19pF @ 50V, 1MHz	1.6Ohm @ 50mA, 100MHz	15 W	175°C (TJ)
MA4P7104B-401T DIODE,PIN,CERAMIC,AXIAL,HI-PAX MACOM Technology Solutions	1,005	19.11	RFQ		Tape & Reel (TR),Cut Tape (CT)	MA4P	Active	PIN - Single	400V	-	1pF @ 100V, 1MHz	750mOhm @ 50mA, 100MHz	6 W	-55°C ~ 175°C (TJ)
MA4L011-186 PIN B0NDED SL,ODS186 MACOM Technology Solutions	1,496	36.55	RFQ		Tray	MA4L	Active	PIN - Single	35V	100 mA	0.18pF @ 10V, 1MHz	2.1Ohm @ 10mA, 500MHz	2 W	175°C (TJ)
MSS25-141-0402 SCHOTTKY-BEAMLEAD-PACKAGE MACOM Technology Solutions	3,463	41.66	RFQ	Datasheet	Tray	MSS25-xxx-x	Active	Schottky - Single	3V	-	0.08pF @ 200mV, 1MHz	-	150 mW	-65°C ~ 150°C

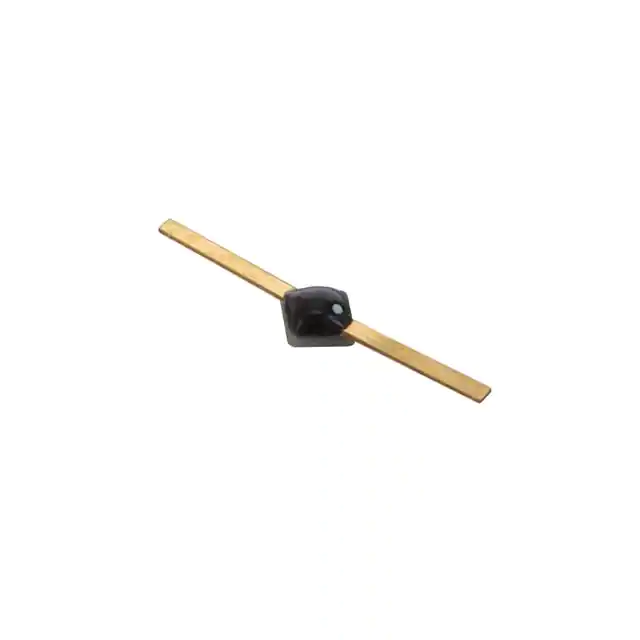

MSS20-055-E25 SCHOTTKY DIODE,BEAMLEAD, E25 MACOM Technology Solutions	3,827	52.00	RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.28pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS60-153-H27 COM SCHOTTKY-BEAMLEAD-PACKAGE, H MACOM Technology Solutions	3,748	69.76	RFQ	Datasheet	Tray	MSS60-xxx-x	Active	Schottky - Single	3.5V	50 mA	0.3pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

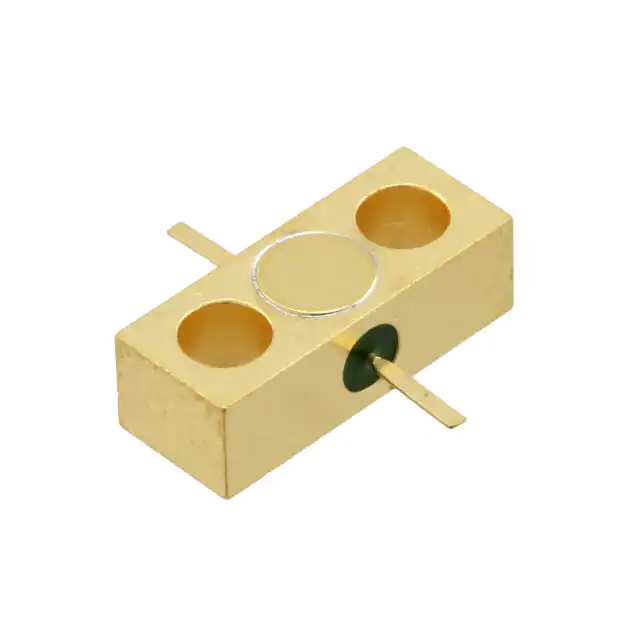

MA47222 RF DIODE PIN 150V MODULE MACOM Technology Solutions	451	125.94	RFQ	Datasheet	Tray	-	Active	PIN - Single	150V	-	0.09pF @ 10V, 1MHz	-	-	-65°C ~ 150°C (TJ)
MSS30-154-B10B DIODE,SCHOTTKY,BEAM LEAD MACOM Technology Solutions	6,384	8.57	RFQ		Tray	-	Active	Schottky - Single	2V	50 mA	0.25pF @ 0V, 1MHz	3Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MPN7453A-C12 DIODE,PIN-CHIP, C12 MACOM Technology Solutions	7,446	8.65	RFQ		Tray	-	Active	PIN - Single	300V	-	0.15pF @ 50V, 100MHz	1Ohm @ 100mA, 100MHz	-	175°C (TJ)
