Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
MA4P1200NM-401T RF DIODE PIN 100V 1.5W AXIAL MACOM Technology Solutions	2,887	19.26	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	-	1.5pF @ 50V, 1MHz	750mOhm @ 50mA, 100MHz	1.5 W	-55°C ~ 175°C (TJ)
MA2707700L RF DIODE STANDAR 35V SSSMINI2-F1 Panasonic Electronic Components	2,005	0.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
MA2JP0200L RF DIODE PIN 60V 150MW SMINI2-F1 Panasonic Electronic Components	3,617	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
MA2SP050GL RF DIODE PIN 60V SSMINI2-F4 Panasonic Electronic Components	2,069	0.60	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	50 mA	2.4pF @ 0V, 1MHz	5.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
MMBD301M3T5G DIODE SCHOTTKY 30V 200MW SOT723 onsemi	10,323	0.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	30V	-	1.5pF @ 15V, 1MHz	-	200 mW	-55°C ~ 125°C (TJ)
MA4P7447-287T DIODE,PIN,PLASTIC,LEADFREE MACOM Technology Solutions	8,247	1.48	RFQ		Tape & Reel (TR),Cut Tape (CT)	SMPP	Active	PIN - Single	100V	150 mA	1.2pF @ 20V, 1MHz	600mOhm @ 10mA, 100MHz	250 mW	175°C (TJ)
MADP-007448-12790T PIN, PLASTIC,SINGLE, TAPE & REEL MACOM Technology Solutions	6,181	1.48	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SMPP	Active	PIN - Single	100V	150 mA	0.25pF @ 50V, 1MHz	2Ohm @ 10mA, 100MHz	200 mW	175°C (TJ)
MA4E1338A1-1146T SCHOTTKY PLASTIC LEAD-FREE MACOM Technology Solutions	6,165	1.48	RFQ		Tape & Reel (TR),Cut Tape (CT)	MA4E1338	Active	Schottky - Single	8V	30 mA	1pF @ 0V, 1MHz	-	250 mW	-55°C ~ 125°C (TJ)
MA4P7436-1141T DIODE,PIN,PLASTIC,LEADFREE MACOM Technology Solutions	7,284	1.48	RFQ		Tape & Reel (TR),Cut Tape (CT)	SMPP	Active	PIN - Single	75V	150 mA	1pF @ 20V, 1MHz	500mOhm @ 10mA, 100MHz	200 mW	175°C (TJ)
MA4E1339A1-1146T ASSEMBLY,SCHOTTKY,MA4E1339A1-114 MACOM Technology Solutions	7,922	1.48	RFQ		Tape & Reel (TR),Cut Tape (CT)	MA4E1339	Active	Schottky - Single	20V	30 mA	1.2pF @ 0V, 1MHz	-	250 mW	-55°C ~ 125°C (TJ)

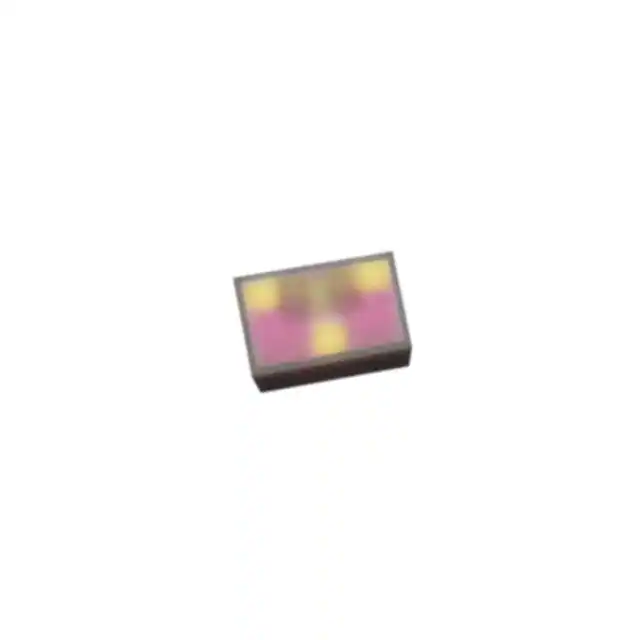

MA4E1319-1 RF DIODE SCHOTTKY 7V DIE MACOM Technology Solutions	7,761	4.81	RFQ	Datasheet	Bulk	-	Active	Schottky - Tee	7V	-	0.6pF @ 0V, 1MHz	-	-	-65°C ~ 125°C (TJ)

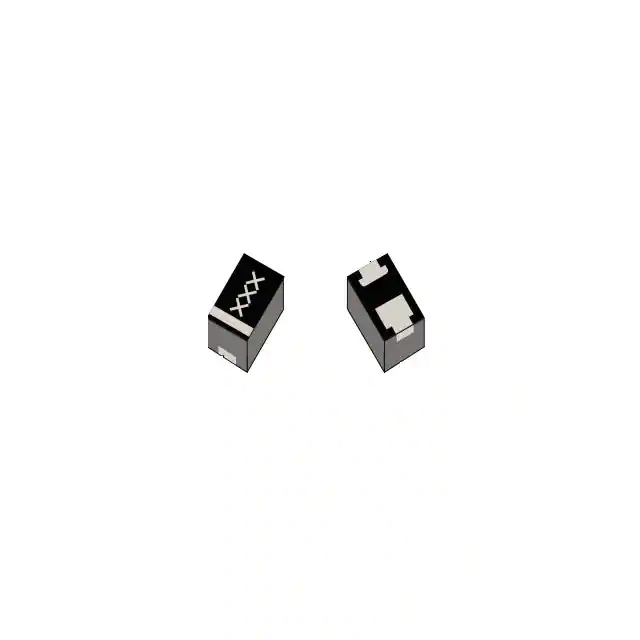

MSWSE-050-10 SWITCH,RF,0805P_X000D_ PKG MACOM Technology Solutions	5,037	7.50	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	500V	500 mA	0.65pF @ 50V, 1MHz	600mOhm @ 100mA, 500MHz	50 W	175°C (TJ)
MA4L101-134 DIODE, LIMITER, CHIP MACOM Technology Solutions	6,904	5.04	RFQ		Tray	MA4L	Active	PIN - Single	-	100 mA	0.15pF @ 0V, 1MHz	2Ohm @ 10mA, 500MHz	6 W	175°C (TJ)
MA4P7461F-1072T RF DIODE PIN 100V 8W MACOM Technology Solutions	9,410	8.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	250 mA	1pF @ 100V, 100MHz	500mOhm @ 100mA, 100MHz	8 W	175°C (TJ)

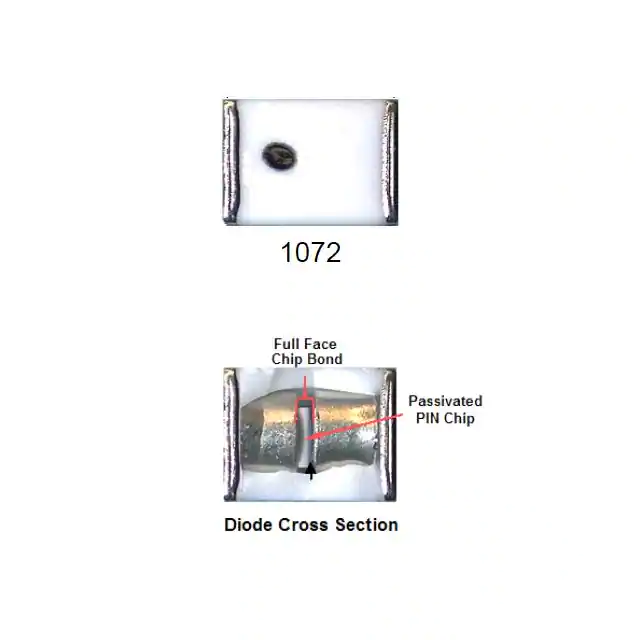

MA4P7464F-1072T DIODE, PIN, MRI APPLICATION MACOM Technology Solutions	6,339	8.23	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	400V	250 mA	0.8pF @ 100V, 100MHz	500mOhm @ 100mA, 100MHz	7.5 W	175°C (TJ)
MA4SPS502 HMIC,SURMOUNT,PIN MACOM Technology Solutions	8,465	8.62	RFQ		Tray	MA4SPS502 Surmount™	Active	PIN - Single	275V	600 mA	0.2pF @ 40V, 1MHz	2.2Ohm @ 100mA, 100MHz	3 W	175°C (TJ)
MEST2G-010-20 COM PIN RF, SWITCH 2012 MACOM Technology Solutions	2,423	12.16	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	100 mA	0.04pF @ 10V, 1MHz	2Ohm @ 100mA, 1MHz	10 W	175°C (TJ)

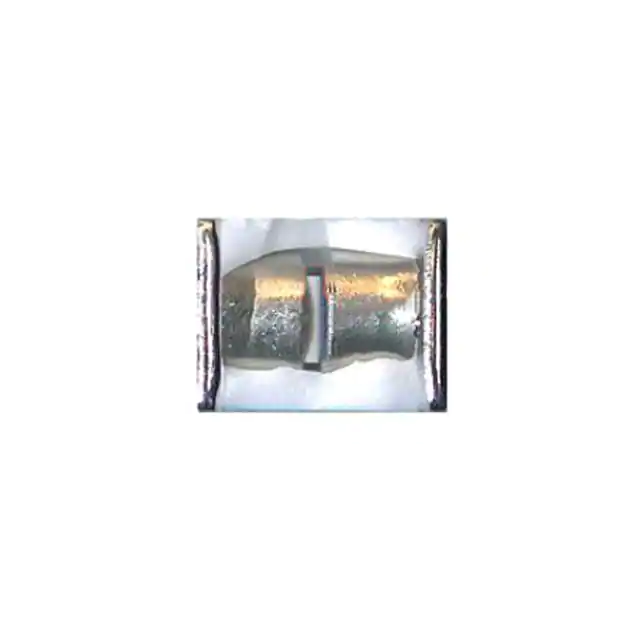

MA4P7418-1072T SQML, PIN MACOM Technology Solutions	2,454	14.11	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	1100V	150 mA	0.8pF @ 100V, 100MHz	1.2Ohm @ 100mA, 100MHz	11.5 W	175°C (TJ)
MA4P7441F-1091T RF DIODE PIN 100V 30W MACOM Technology Solutions	4,000	20.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	500 mA	2.2pF @ 100V, 100MHz	500mOhm @ 100mA, 100MHz	30 W	175°C (TJ)

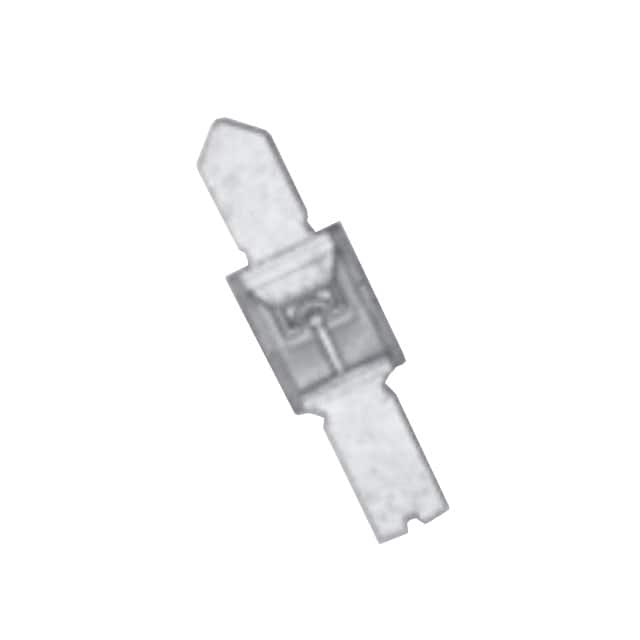

MMDB45-B11 DIODE,SRD,BEAMLEAD,B11 MACOM Technology Solutions	3,641	24.97	RFQ		Tray	MMDx	Active	Standard - Single	25V	50 mA	0.2pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C
