Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66413G0100X187 FERRITE CORE EPCOS - TDK Electronics	14,561	0.33	RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Gapped	-	2200	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
E14/3.5/5-3C95 PLANAR E CORES Ferroxcube	10,656	0.33	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B64290P0074X033 FERRITE CORE EPCOS - TDK Electronics	14,597	0.33	RFQ	Datasheet	Box	TC5.84/3.05/1.75	Active	Toroid	-	M33	-	-	-	Gapped	-	750	-	-	-	-	-	Parylene	-
PLT13/9/1-3C96 EQ CORES Ferroxcube	11,020	0.33	RFQ	Datasheet	Bulk	-	Active	EQ	PLT 13 x 9 x 1	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-

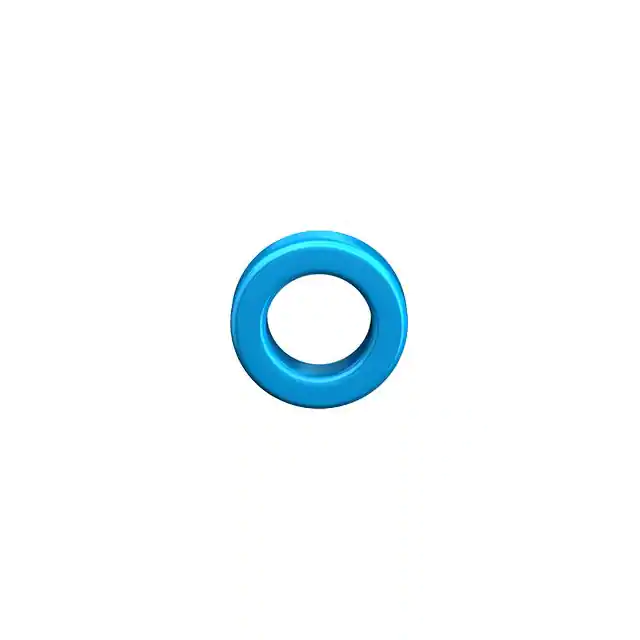

B64290L0658X035 FERRITE CORE TOROID 2.65UH T35 EPCOS - TDK Electronics	11,306	0.33	RFQ	Datasheet	Box	TX14/9/5	Active	Toroid	-	T35	0.594 (15.10mm)	2.65 µH	±25%	Ungapped	-	6000	2.84	34.98	12.3	-	430	Epoxy	0.236 (6.00mm)
E14/3.5/5-3C92-A100-E PLANAR E CORES Ferroxcube	13,472	0.33	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-3C92-A100-P PLANAR E CORES Ferroxcube	13,444	0.33	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-3C92-A63-E PLANAR E CORES Ferroxcube	11,804	0.33	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-3C92-A63-P PLANAR E CORES Ferroxcube	13,686	0.33	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
5985001101 85 TOROID Fair-Rite Products Corp.	13,021	0.33	RFQ		Box	-	Active	Toroid	-	-	0.500 (12.70mm)	-	-	Ungapped	-	600	208	31.2	15	-	470	Uncoated	0.250 (6.35mm)
PLT18/10/2-3C90 PLANAR E CORES Ferroxcube	14,045	0.33	RFQ		Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
4077292011 77 ROD Fair-Rite Products Corp.	11,165	0.33	RFQ	Datasheet	Box	-	Active	ROD	-	77	0.250 (6.35mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
PLT14/5/1.5/S-3C97 PLANAR E CORES Ferroxcube	13,691	0.33	RFQ	Datasheet	Bulk	-	Active	E	PLT 14 x 5 x 1.5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B65807J0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	7,555	1.34	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	400 nH	±3%	Gapped	274	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65807J0630J048 FERRITE CORE EPCOS - TDK Electronics	8,867	1.34	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
E42/21/20-3C90-E250 E CORES Ferroxcube	6,671	1.34	RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/20-3C90-G1500 E CORES Ferroxcube	6,754	1.34	RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/20-3C91-G500 E CORES Ferroxcube	8,756	1.34	RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
5978001201 78 TOROID Fair-Rite Products Corp.	8,519	1.42	RFQ	Datasheet	Bulk	-	Active	Toroid	-	78	1.142 (29.00mm)	-	±25%	Ungapped	-	2300	-	73	68	-	5000	Uncoated	0.545 (13.84mm)
PQ26/25-3C94 PQ CORES 2PC SET Ferroxcube	6,328	1.42	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 25	3C94	-	-	±25%	Ungapped	1890	-	0.451	54.3	120	108	6530	Uncoated	0.972 (24.70mm)
