Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E14/3.5/5-3C95-A63-E PLANAR E CORES Ferroxcube	12,028	0.34	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-3C95-A63-P PLANAR E CORES Ferroxcube	13,826	0.34	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
PLT18/10/2-3C92 PLANAR E CORES Ferroxcube	13,047	0.34	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
9595100502 95 ER CORE SET Fair-Rite Products Corp.	13,760	0.35	RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	152	13.6	8.93	7.6	122	Uncoated	-
B64290L0721X049 FERRITE CORE EPCOS - TDK Electronics	14,658	0.35	RFQ	Datasheet	Box	TX16/9.6/2.5	Active	Toroid	-	N49	-	-	-	Gapped	-	1500	-	-	-	-	-	Epoxy	-
B66315G0250X127 FERRITE CORE EPCOS - TDK Electronics	12,009	0.35	RFQ	Datasheet	Box	E25.4/10/7	Active	E	E 25.4 x 10 x 7	N27	-	-	-	Gapped	-	2000	1.27	49.2	38.8	38.4	1910	Uncoated	0.384 (9.78mm)
B66315G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	11,075	0.35	RFQ	Datasheet	Box	E25.4/10/7	Active	E	E 25.4 x 10 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.384 (9.78mm)

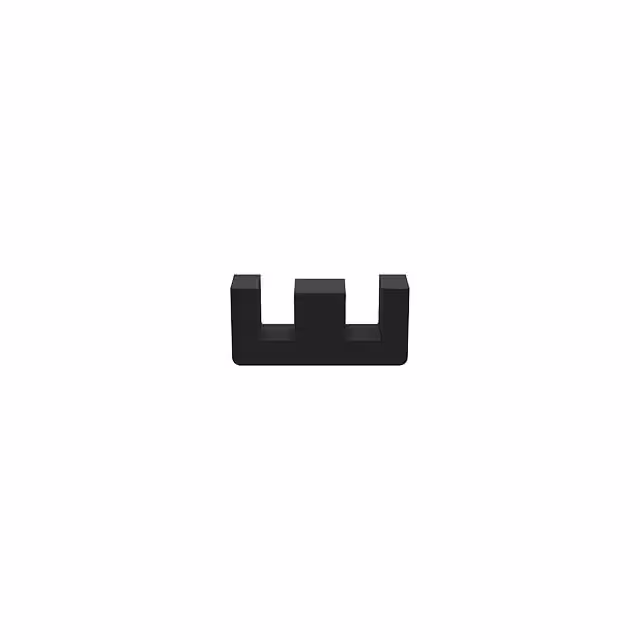

B66315G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	14,346	0.35	RFQ	Datasheet	Box	E25.4/10/7	Active	E	E 25.4 x 10 x 7	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.384 (9.78mm)
B66307G0060X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	13,504	0.35	RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
TX16/9.1/4.7-3E10-M FERRITE CORES ROUND Ferroxcube	14,485	0.35	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	-	0.635 (16.13mm)	-	-	Ungapped	-	-	2.53	37.2	14.7	-	548	Epoxy	0.195 (4.95mm)
B64290L0743X830 FERRITE CORE TOROID 2.32UH N30 EPCOS - TDK Electronics	11,911	0.35	RFQ	Datasheet	Box	TX16/9/5	Active	Toroid	-	N30	0.661 (16.80mm)	2.32 µH	±25%	Ungapped	-	4300	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)
E14/3.5/5-3C97 PLANAR E CORES Ferroxcube	11,100	0.35	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E25/13/7-3C92 E CORES Ferroxcube	14,770	0.35	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 7	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E14/3.5/5-3F36 PLANAR E CORES Ferroxcube	10,548	0.35	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5-3F46 PLANAR E CORES Ferroxcube	13,432	0.35	RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
39T0501-10H FT,MNZN,EC 12.70X7.14X6.35-7000 Laird-Signal Integrity Products	10,518	0.35	RFQ	Datasheet	Bulk	-	Active	Toroid	-	39	0.506 (12.85mm)	5.12 µH	±25%	Ungapped	-	7000	1.59	29.32	18.47	-	-	Epoxy	0.256 (6.50mm)
PLT18/10/2/S-3C90 PLANAR E CORES Ferroxcube	12,294	0.35	RFQ		Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
PLT18/10/2-3C96 PLANAR E CORES Ferroxcube	14,914	0.35	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
U20/16/7-3C94 U AND UR CORES Ferroxcube	12,690	0.35	RFQ	Datasheet	Bulk	-	Active	U	U 20 x 16 x 7	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.614 (15.60mm)
B65862A0000R057 FERRITE CORES EPCOS - TDK Electronics	13,707	0.35	RFQ		Box	B65862	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
