Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

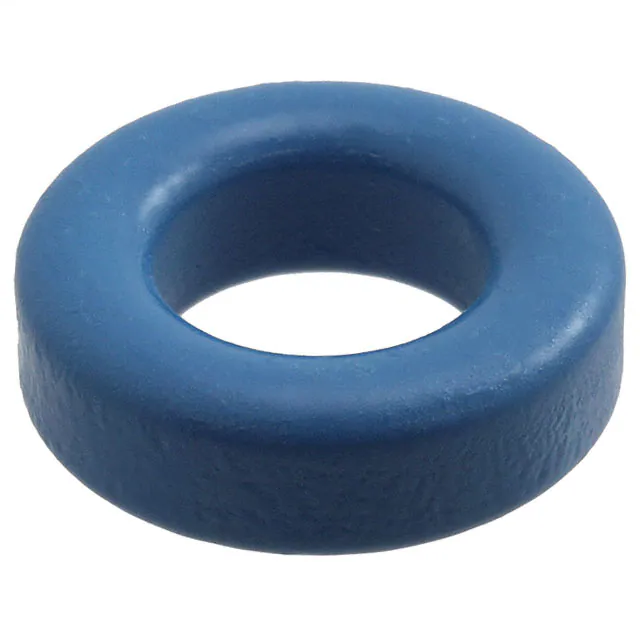

B64290L0743X065 FERRITE CORE TOROID 2.8UH T65 EPCOS - TDK Electronics	12,746	0.41	RFQ	Datasheet	Bulk	TX16/9/5	Active	Toroid	-	T65	0.661 (16.80mm)	2.8 µH	±30%	Ungapped	-	5200	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)

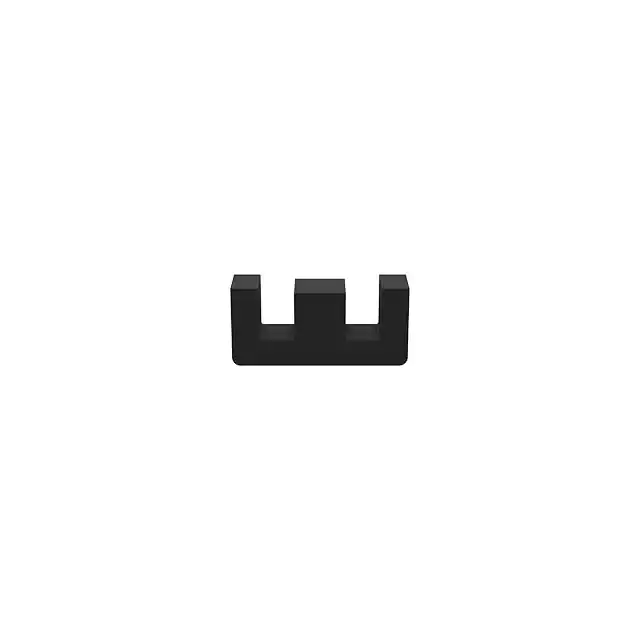

B66379G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	13,308	0.42	RFQ	Datasheet	Box	E19/8/5	Active	E	E 19 x 8 x 5	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
5698090621 98 POT CORE SET Fair-Rite Products Corp.	13,303	0.42	RFQ	Datasheet	Bulk	-	Active	PS	-	-	-	-	±25%	Ungapped	-	2400	120	13.5	11.2	-	152	Uncoated	-
4077272011 77 ROD Fair-Rite Products Corp.	11,592	0.42	RFQ	Datasheet	Bulk	-	Active	ROD	-	77	0.250 (6.35mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
E18/4/10-3C95 PLANAR E CORES Ferroxcube	13,052	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

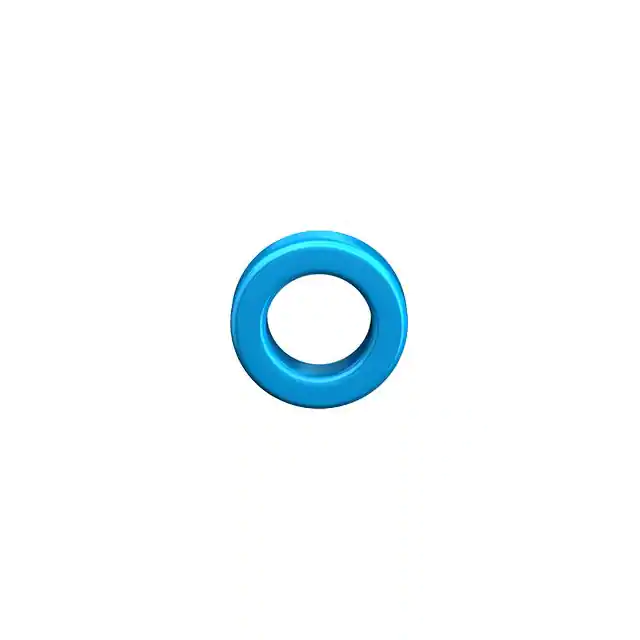

B64290L0652X038 FERRITE CORE TOROID 6.28UH T38 EPCOS - TDK Electronics	10,485	0.42	RFQ	Datasheet	Box	TX17.4/10.3/7	Active	Toroid	-	T38	0.717 (18.20mm)	6.28 µH	±30%	Ungapped	-	10000	2	42	21.04	-	884	Epoxy	0.307 (7.80mm)
ER28/17/11-3C94-G200 ER AND ETD CORES Ferroxcube	13,268	0.42	RFQ	Datasheet	Bulk	-	Active	ER	ER 28 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.665 (16.90mm)
PLT18/10/2/S-3C97 PLANAR E CORES Ferroxcube	14,887	0.42	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)

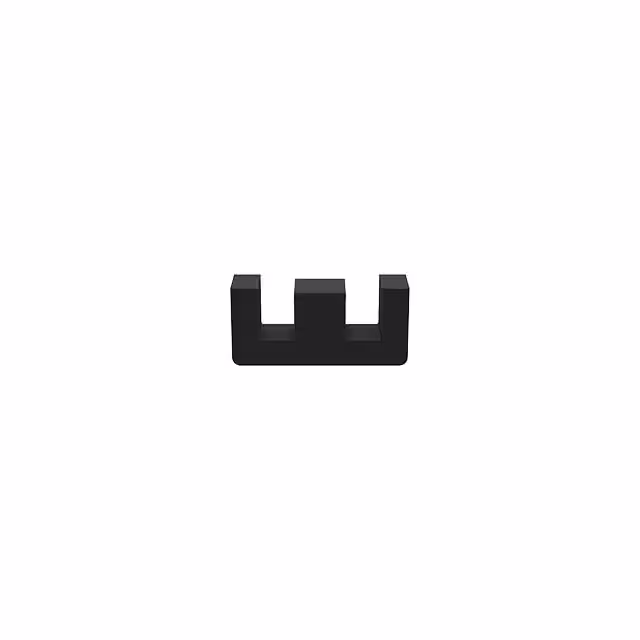

B66314G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	14,629	0.42	RFQ	Datasheet	Box	E21/9/5	Active	E	E 21 x 9 x 5	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.343 (8.70mm)
E25/13/11-3C94-G100 E CORES Ferroxcube	13,486	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E25/13/11-3C94-G200 E CORES Ferroxcube	13,542	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E30/15/7-3C90-A160 E CORES Ferroxcube	12,252	0.42	RFQ		Bulk	-	Active	E	E 30 x 15 x 7	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E30/15/7-3C90-A250 E CORES Ferroxcube	10,634	0.42	RFQ		Bulk	-	Active	E	E 30 x 15 x 7	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E30/15/7-3C90-A315 E CORES Ferroxcube	11,417	0.42	RFQ		Bulk	-	Active	E	E 30 x 15 x 7	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E30/15/7-3C90-G100 E CORES Ferroxcube	10,184	0.42	RFQ		Bulk	-	Active	E	E 30 x 15 x 7	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E30/15/7-3C94-G200 E CORES Ferroxcube	11,669	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E18/4/10-3C92-A160-E PLANAR E CORES Ferroxcube	12,794	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C92-A160-P PLANAR E CORES Ferroxcube	13,962	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C92-A250-E PLANAR E CORES Ferroxcube	11,430	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3C92-A250-P PLANAR E CORES Ferroxcube	10,263	0.42	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
