Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD29/16/10-3C96 ER AND ETD CORES Ferroxcube	11,693	0.45	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ER28/14/11-3C94-G1000 ER AND ETD CORES Ferroxcube	13,611	0.45	RFQ	Datasheet	Bulk	-	Active	ER	ER 28 x 14 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
ER28/14/11-3C94-G500 ER AND ETD CORES Ferroxcube	12,978	0.45	RFQ	Datasheet	Bulk	-	Active	ER	ER 28 x 14 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
ETD29/16/10-3C94-G1000 ER AND ETD CORES Ferroxcube	14,058	0.45	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
ETD29/16/10-3C94-G500 ER AND ETD CORES Ferroxcube	11,353	0.45	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
B66434G0000X141 FERRITE CORE EPCOS - TDK Electronics	14,595	0.45	RFQ	Datasheet	Box	EV15/9/7	Active	EV	EV 15 x 9 x 7	N41	-	-	-	-	-	2800	1.4	38.7	27.7	25.8	1070	Uncoated	0.354 (9.00mm)
E30/15/7-3C94-G500 E CORES Ferroxcube	13,915	0.45	RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

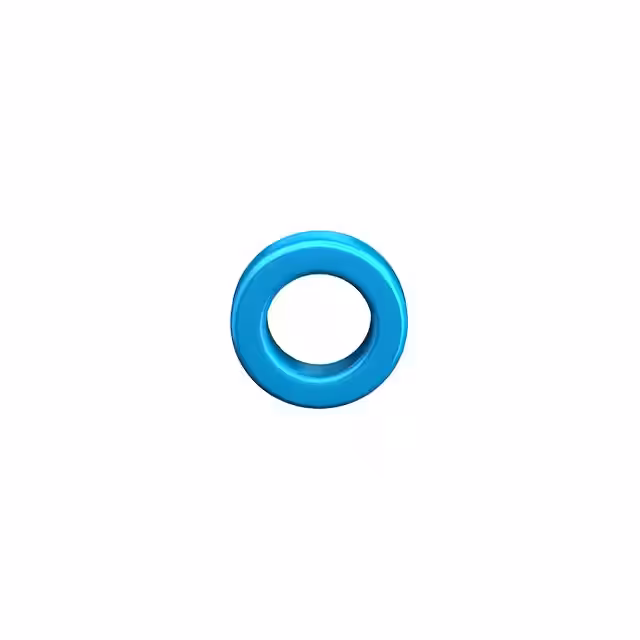

B64290L0644X087 R13.3/8.3/5 N87 TOROID EPCOS - TDK Electronics	10,789	0.45	RFQ	Datasheet	Box	TX13.3/8.3/5	Active	Toroid	R 13.3 x 8.3 x 5	N87	0.567 (14.40mm)	1.04 µH	±25%	Ungapped	-	2200	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
B64290L0045X048 FERRITE CORE EPCOS - TDK Electronics	12,202	0.45	RFQ		Box	TX16/9.6/6.3	Active	Toroid	-	N48	-	-	-	Gapped	-	2300	-	-	-	-	-	Epoxy	-
E18/4/10-3C97 PLANAR E CORES Ferroxcube	13,642	0.45	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10-3F46 PLANAR E CORES Ferroxcube	11,606	0.45	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
ER28/17/11-3C94 ER AND ETD CORES Ferroxcube	12,102	0.45	RFQ	Datasheet	Bulk	-	Active	ER	ER 28 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.665 (16.90mm)
E25/13/11-3C92-G100 E CORES Ferroxcube	10,695	0.45	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E25/13/11-3C96-G100 E CORES Ferroxcube	12,170	0.46	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E25/13/11-3C96-G200 E CORES Ferroxcube	13,766	0.46	RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E30/15/7-3C96-G200 E CORES Ferroxcube	12,318	0.46	RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E18/4/10/R-3C90-A250-P PLANAR E CORES Ferroxcube	10,294	0.46	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3C90-A315-P PLANAR E CORES Ferroxcube	14,515	0.46	RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

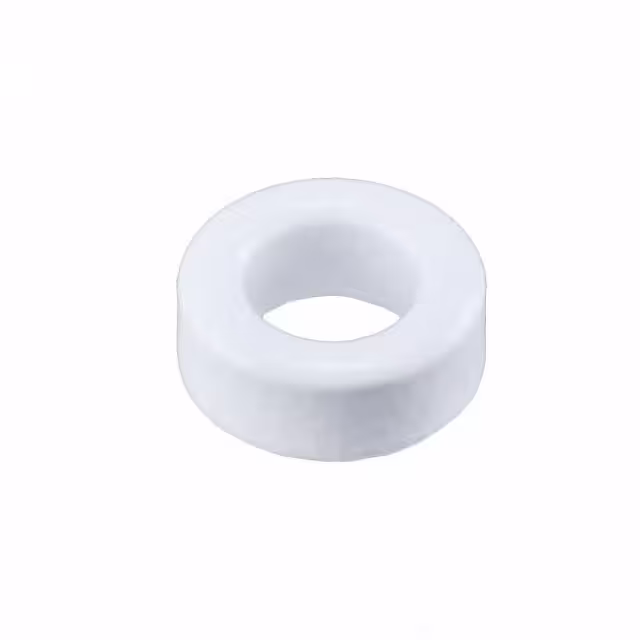

TX16/9.1/4.7-3E12 FERRITE CORES ROUND Ferroxcube	11,694	0.46	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	-	0.635 (16.13mm)	-	-	Ungapped	-	-	2.53	37.2	14.7	-	548	Epoxy	0.195 (4.95mm)
EQ13-3F36 EQ CORES Ferroxcube	14,925	0.46	RFQ	Datasheet	Bulk	-	Active	EQ	EQ 13	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)
