Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

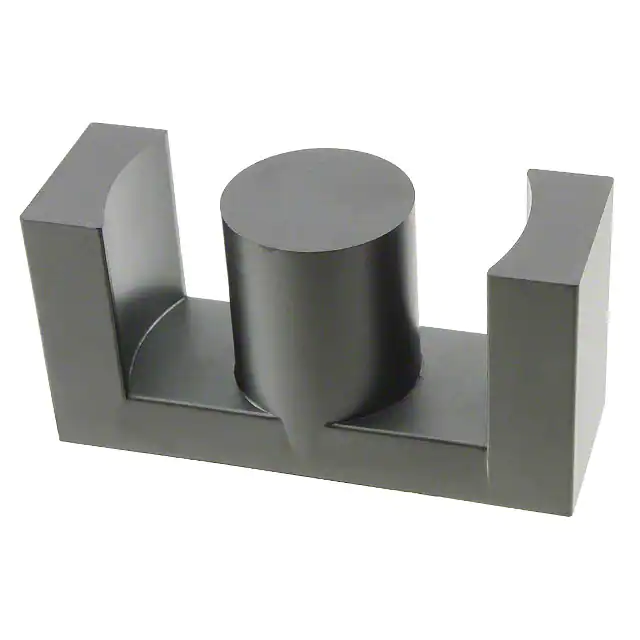

B66395G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	6,951	6.32	RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
T60004L2030W911 NANOCRYSTALLINE CORE, 30X20X10 VACUUMSCHMELZE	10,375	0.00	RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.272 (32.30mm)	56 µH	-	Ungapped	-	-	-	78.5	40	-	-	Epoxy	0.484 (12.30mm)

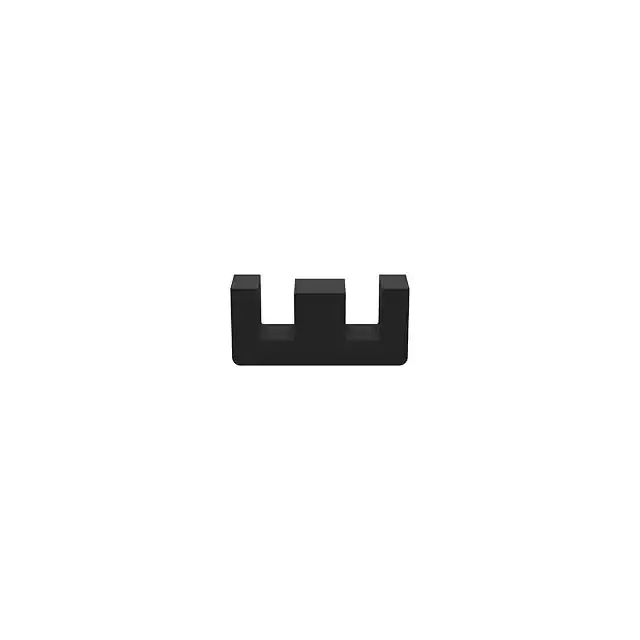

B66335G1000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	5,919	6.91	RFQ	Datasheet	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

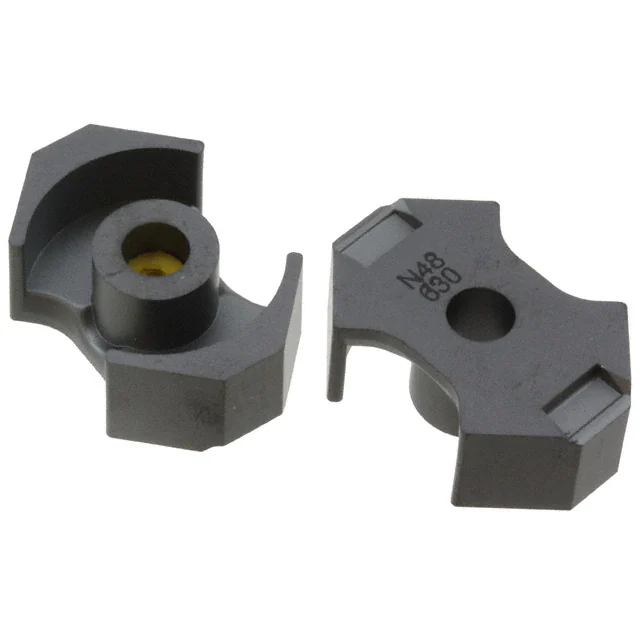

B65811F0630J048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	8,745	7.05	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	630 nH	±5%	Gapped	338	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
E58/11/38-3C95 FERRITE CORE Ferroxcube	5,965	7.08	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
PQ40/40-3C96 PQ CORES 2PC SET Ferroxcube	8,593	7.35	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 40	3C96	-	-	±25%	Ungapped	1690	-	0.507	102	201	175	20500	Uncoated	1.567 (39.80mm)

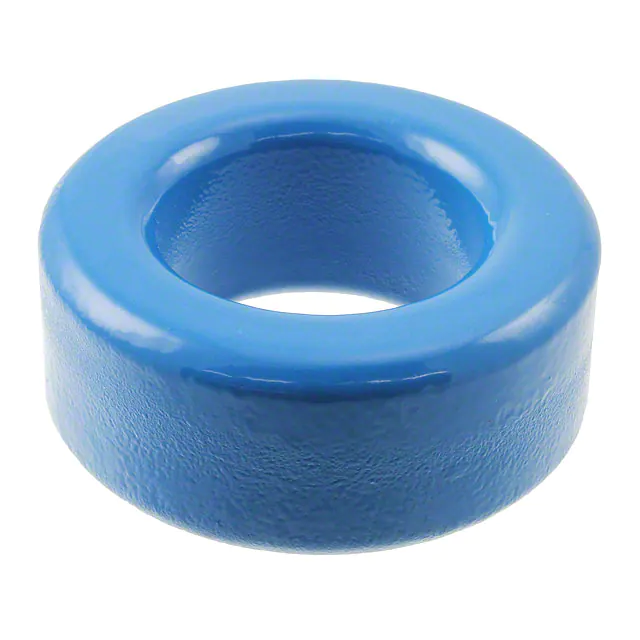

B64290L0659X087 FERRITE CORE TOROID 3.59UH N87 EPCOS - TDK Electronics	5,068	7.59	RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	N87	1.646 (41.80mm)	3.59 µH	±25%	Ungapped	-	2200	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)
PQ40/40-3C95 FERRITE CORE 2PC SET Ferroxcube	9,563	8.98	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 40	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567 (39.80mm)
PQ40/40-3C97 FERRITE CORE 2PC SET Ferroxcube	7,612	8.98	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 40	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567 (39.80mm)

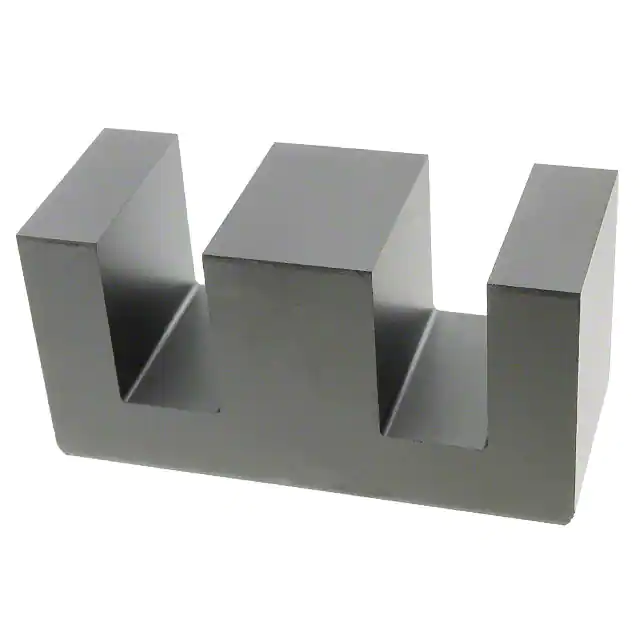

B66387G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,129	10.16	RFQ	Datasheet	Tray	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E64/10/50-3F36 FERRITE CORE Ferroxcube	4,938	12.12	RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

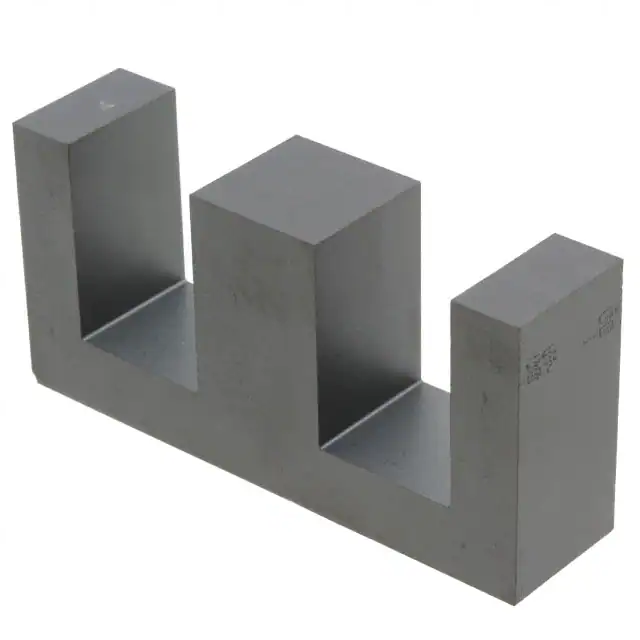

B66375G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	1,306	12.73	RFQ	Datasheet	Box	E80/38/20	Active	E	E 80 x 38 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.516 (38.50mm)

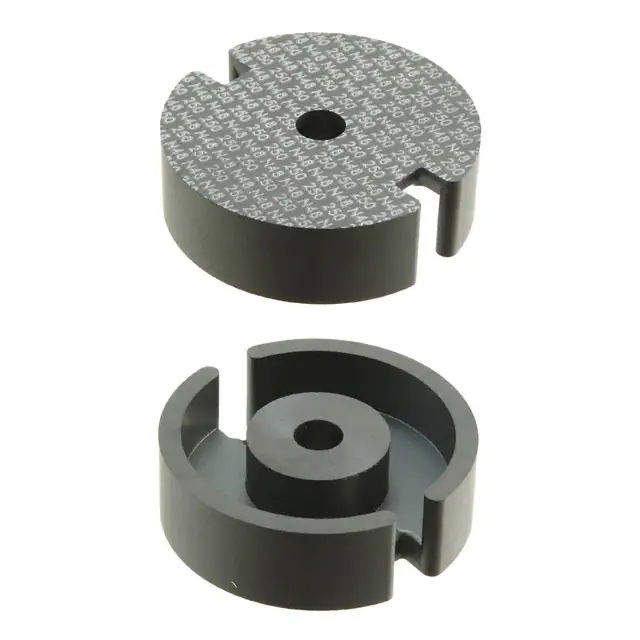

B65611T0250G048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,716	13.27	RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	250 nH	±2%	Gapped	51	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B65881A0000R097 FERRITE CORE PQ 4.7UH N97 2PCS EPCOS - TDK Electronics	4,661	13.31	RFQ	Datasheet	Box	PQ35/35	Active	PQ	PQ 35 x 35	N97	-	4.7 µH	-20%, +30%	Ungapped	1750	2300	0.467	79.2	169.7	146.5	13440	Uncoated	0.685 (17.40mm)
TX51/32/19-3E6 FERRITE CORES ROUND Ferroxcube	2,160	13.67	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	-	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)

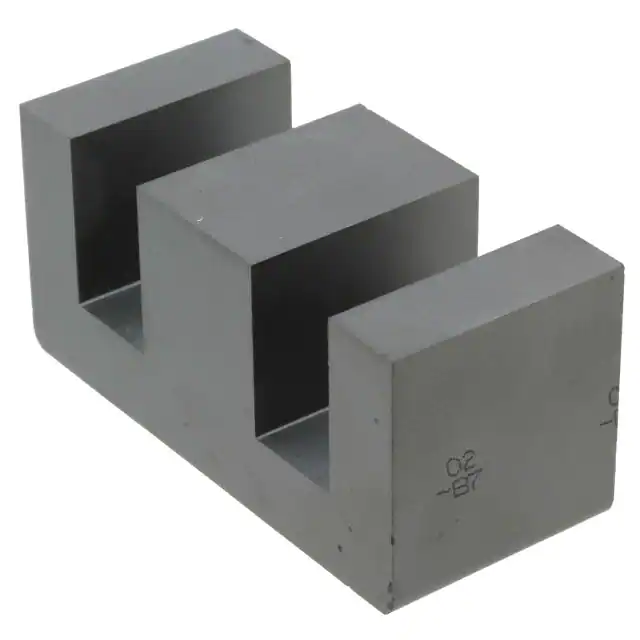

B66371G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,817	15.57	RFQ	Datasheet	Box	E70/33/32	Active	E	E 70 x 33 x 32	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
B64290L0040X087 FERRITE CORE TOROID 2.76UH N87 EPCOS - TDK Electronics	3,603	18.47	RFQ	Datasheet	Box	TX58.3/40.8/17.6	Active	Toroid	-	N87	2.366 (60.10mm)	2.76 µH	±25%	Ungapped	-	2200	1	152.4	152.4	-	23230	Epoxy	0.740 (18.80mm)

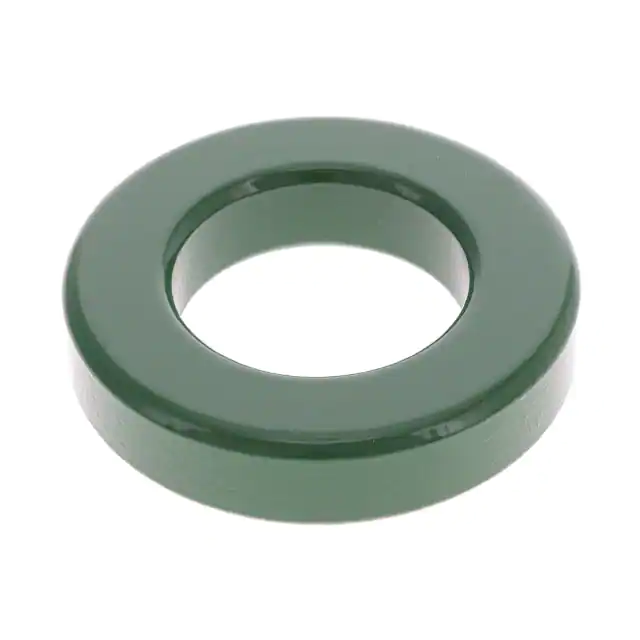

5952003821 52 TOROID COATED GREEN Fair-Rite Products Corp.	1,567	19.37	RFQ	Datasheet	Bulk	-	Active	Toroid	-	52	2.433 (61.80mm)	325 nH	±25%	Ungapped	-	250	0.92	145	158	-	22800	Plastic	0.539 (13.70mm)

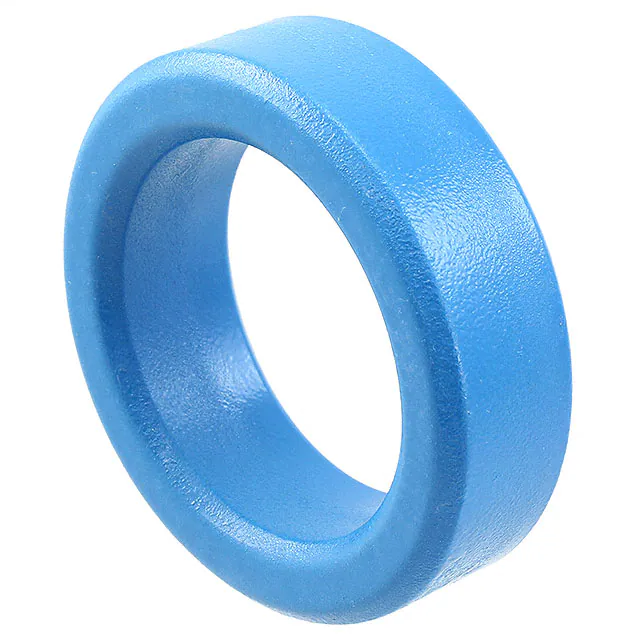

B64290L0040X037 FERRITE CORE TOROID 7.16UH T37 EPCOS - TDK Electronics	4,027	24.75	RFQ	Datasheet	Box	TX58.3/40.8/17.6	Active	Toroid	-	T37	2.366 (60.10mm)	7.16 µH	±25%	Ungapped	-	5700	1	152.4	152.4	-	23230	Epoxy	0.740 (18.80mm)

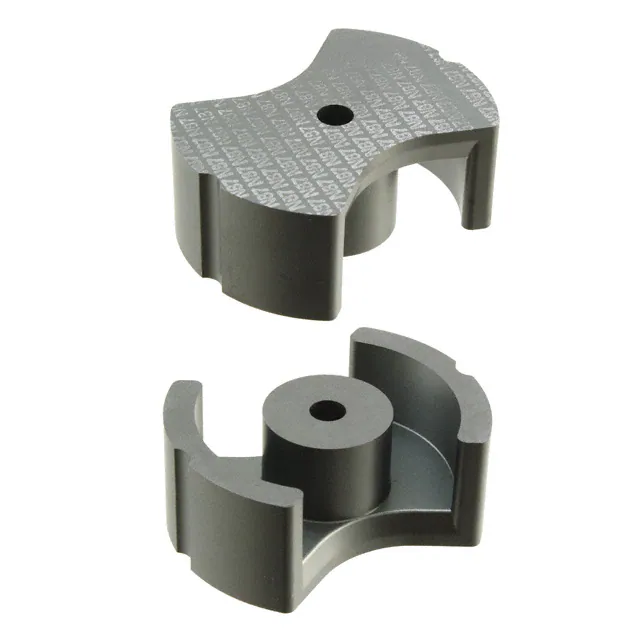

B65646A0000R087 FERRITE CORE PM 7.4UH N87 2PCS EPCOS - TDK Electronics	2,433	25.62	RFQ	Datasheet	Box	PM50/39	Active	PM	PM 50 x 39	N87	1.969 (50.00mm)	7.4 µH	-20%, +30%	Ungapped	1340	2200	0.227	84	370	280	31000	Uncoated	0.768 (19.50mm)
