Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65879B0000R097 FERRITE CORE PQ 5UH N97 2PCS EPCOS - TDK Electronics	5,666	6.68	RFQ	Datasheet	Box	PQ32/30	Active	PQ	PQ 32 x 30	N97	-	5 µH	-20%, +30%	Ungapped	1760	2300	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)

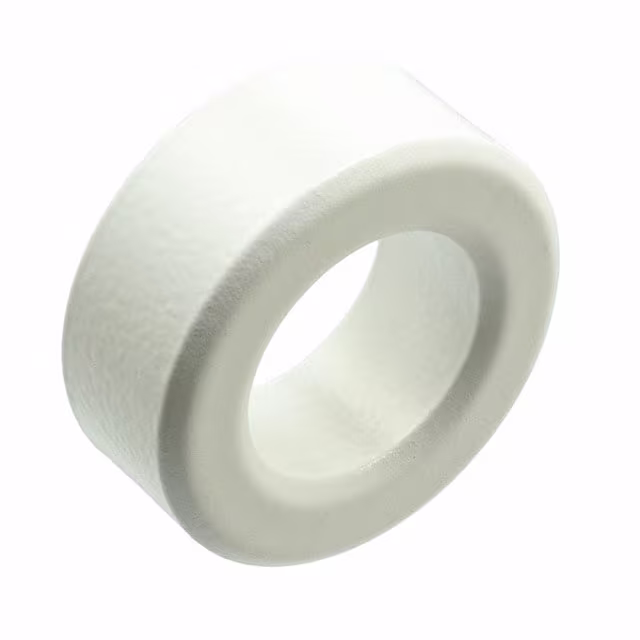

TX40/24/16-3C90 FERRITE CORES ROUND Ferroxcube	7,046	6.70	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	3C90	1.640 (41.65mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.673 (17.10mm)
E58/11/38-3F4 FERRITE CORE Ferroxcube	8,235	6.92	RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
B66459G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	5,038	7.24	RFQ	Datasheet	Box	ELP38/8/25	Active	ELP	ELP 38 x 8 x 25	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.324 (8.25mm)
PQ35/30-3C97 FERRITE CORE 2PC SET Ferroxcube	5,484	7.26	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)
B65879B0000R049 FERRITE CORE PQ 3.45UH N49 2PCS EPCOS - TDK Electronics	7,306	7.56	RFQ	Datasheet	Box	PQ32/30	Active	PQ	PQ 32 x 30	N49	-	3.45 µH	-20%, +30%	Ungapped	1210	1500	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)

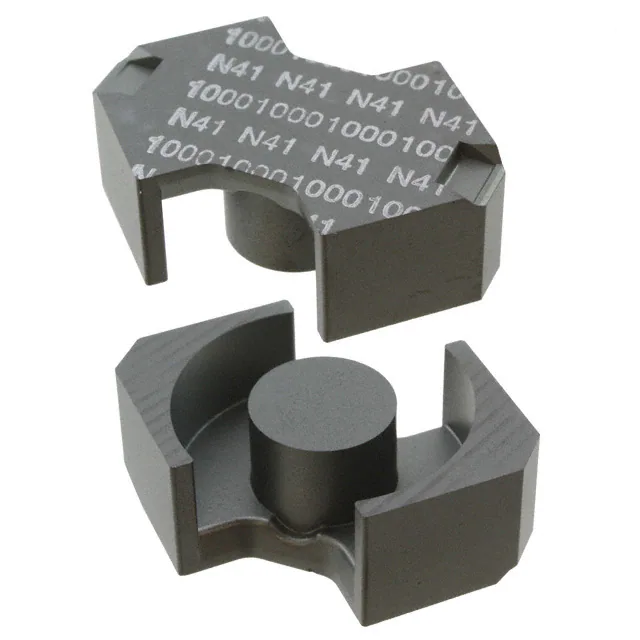

B65815E1000J041 FERRITE CORE RM 1UH N41 2PCS EPCOS - TDK Electronics	5,080	7.69	RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	1 µH	±5%	Gapped	311	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)

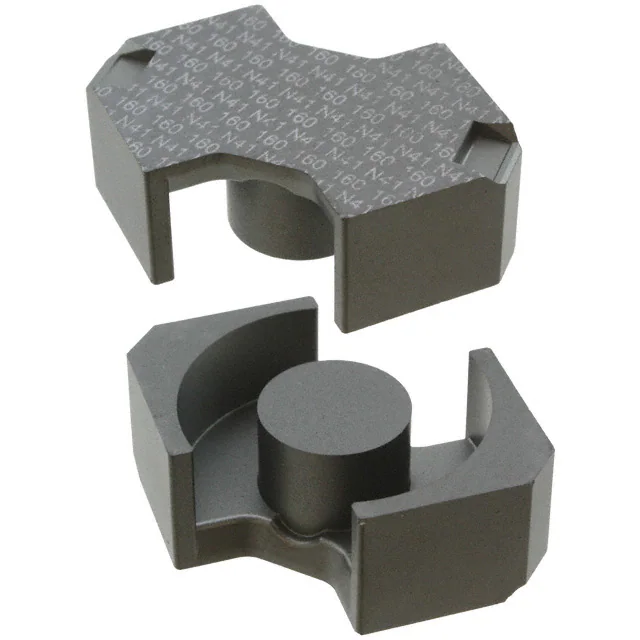

B65815E0160A041 FERRITE CORE RM 160NH N41 2PCS EPCOS - TDK Electronics	8,484	7.69	RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	160 nH	±3%	Gapped	50	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
PC47EER42-Z FERRITE CORE EER 4.69UH 2PC SET TDK Corporation	7,178	7.74	RFQ	Datasheet	Tray	E	Active	E	EER 42	PC47	-	4.69 µH	±25%	Ungapped	-	-	0.51	98.8	194	-	19200	Uncoated	0.882 (22.40mm)
PC47EI50-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	5,437	7.82	RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	6.11 µH	±25%	Ungapped	-	2500	0.409	94	230	-	21620	Uncoated	1.313 (33.35mm)
PC95SP50X50X5 FERRITE CORE SP 1PCS TDK Corporation	5,655	7.85	RFQ	Datasheet	Tray	SP	Active	SP	SP 50 x 50 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)

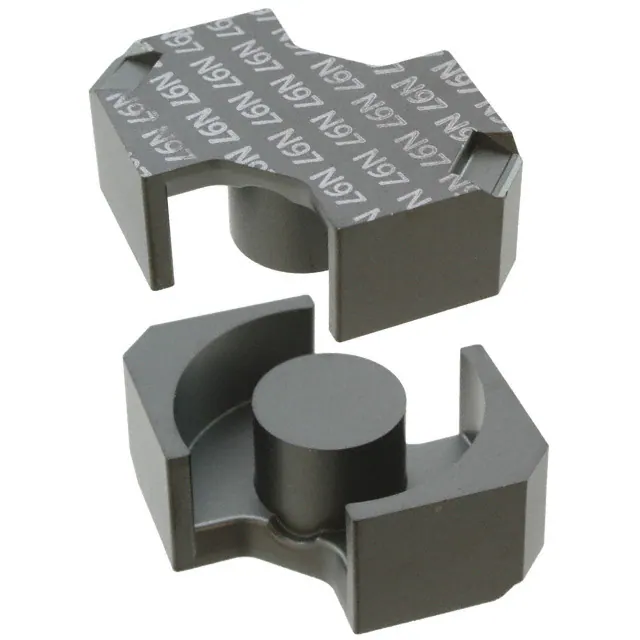

B65815E0000R097 FERRITE CORE RM 5.3UH N97 2PCS EPCOS - TDK Electronics	6,963	7.89	RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N97	-	5.3 µH	-20%, +30%	Ungapped	1640	2300	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65877A0000R049 FERRITE CORE PQ 3.3UH N49 2PCS EPCOS - TDK Electronics	7,850	8.18	RFQ	Datasheet	Box	PQ26/25	Active	PQ	PQ 26 x 25	N49	-	3.3 µH	-20%, +30%	Ungapped	1235	1500	0.44	53.6	122	108.7	6530	Uncoated	0.487 (12.38mm)
PC95PQ20/20Z-12 FERRITE CORE PQ 4UH 2PC SET TDK Corporation	8,364	8.39	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 20 x 20	PC95	-	4 µH	±25%	Ungapped	-	-	0.74	45.4	62	-	2790	Uncoated	0.795 (20.20mm)
B65879A0000R049 FERRITE CORE PQ 4.6UH N49 2PCS EPCOS - TDK Electronics	8,269	8.68	RFQ	Datasheet	Box	PQ32/20	Active	PQ	PQ 32 x 20	N49	-	4.6 µH	-20%, +30%	Ungapped	1150	1500	0.314	48.4	154.2	127.5	7460	Uncoated	0.404 (10.25mm)
PC47EER42/42/20-Z FERRITE CORE EER 5.34UH 2PC SET TDK Corporation	6,253	8.73	RFQ	Datasheet	Tray	E	Active	E	EER 42 x 42 x 20	PC47	-	5.34 µH	±25%	Ungapped	-	-	0.41	98.6	240	-	23700	Uncoated	0.835 (21.20mm)
B65611D0000R030 FERRITE CORE P 15.2UH N30 2PCS EPCOS - TDK Electronics	6,458	9.29	RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N30	1.417 (36.00mm)	15.2 µH	-20%, +30%	Ungapped	3040	4300	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)

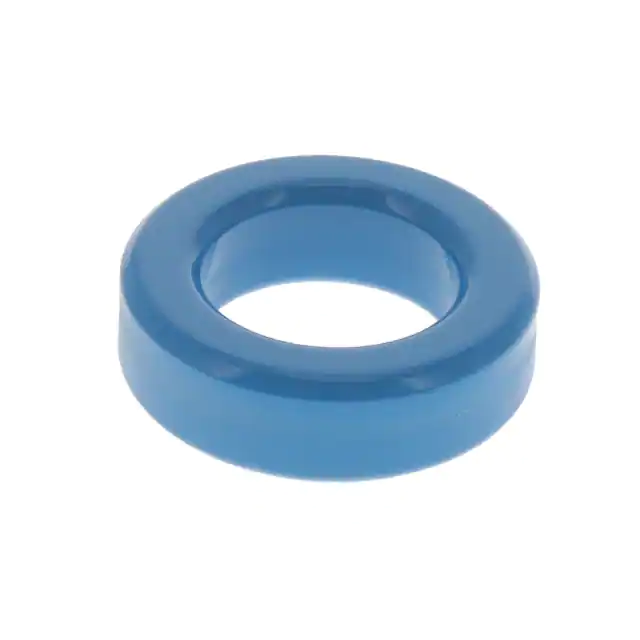

B64290L0022X097 FERRITE CORE EPCOS - TDK Electronics	8,530	9.40	RFQ	Datasheet	Box	TX42/26/13	Active	Toroid	-	N97	-	-	-	Gapped	-	2300	-	-	-	-	-	Epoxy	-

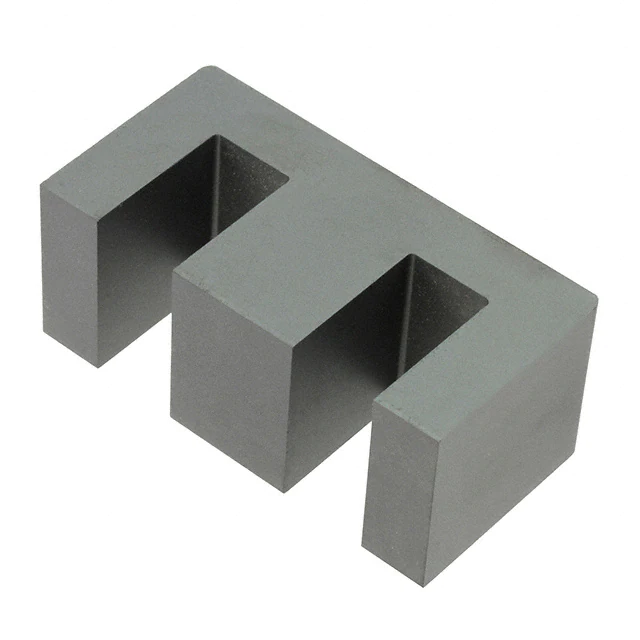

B66387G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	8,278	9.93	RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
B65883A0000R087 FERRITE CORE PQ 4.3UH N87 2PCS EPCOS - TDK Electronics	3,084	10.38	RFQ	Datasheet	Box	PQ40/40	Active	PQ	PQ 40 x 40	N87	-	4.3 µH	-20%, +30%	Ungapped	1680	2200	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)
