Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95EI22/8/16-Z FERRITE CORE EI 8.01UH 1SET TDK Corporation	9,231	2.15	RFQ	Datasheet	Tray	Planar	Active	HE, PLT	EI 22 x 8 x 16	PC95	-	8.01 µH	±25%	Ungapped	-	-	0.33	79	26.1	79	2060	Uncoated	0.315 (8.00mm)

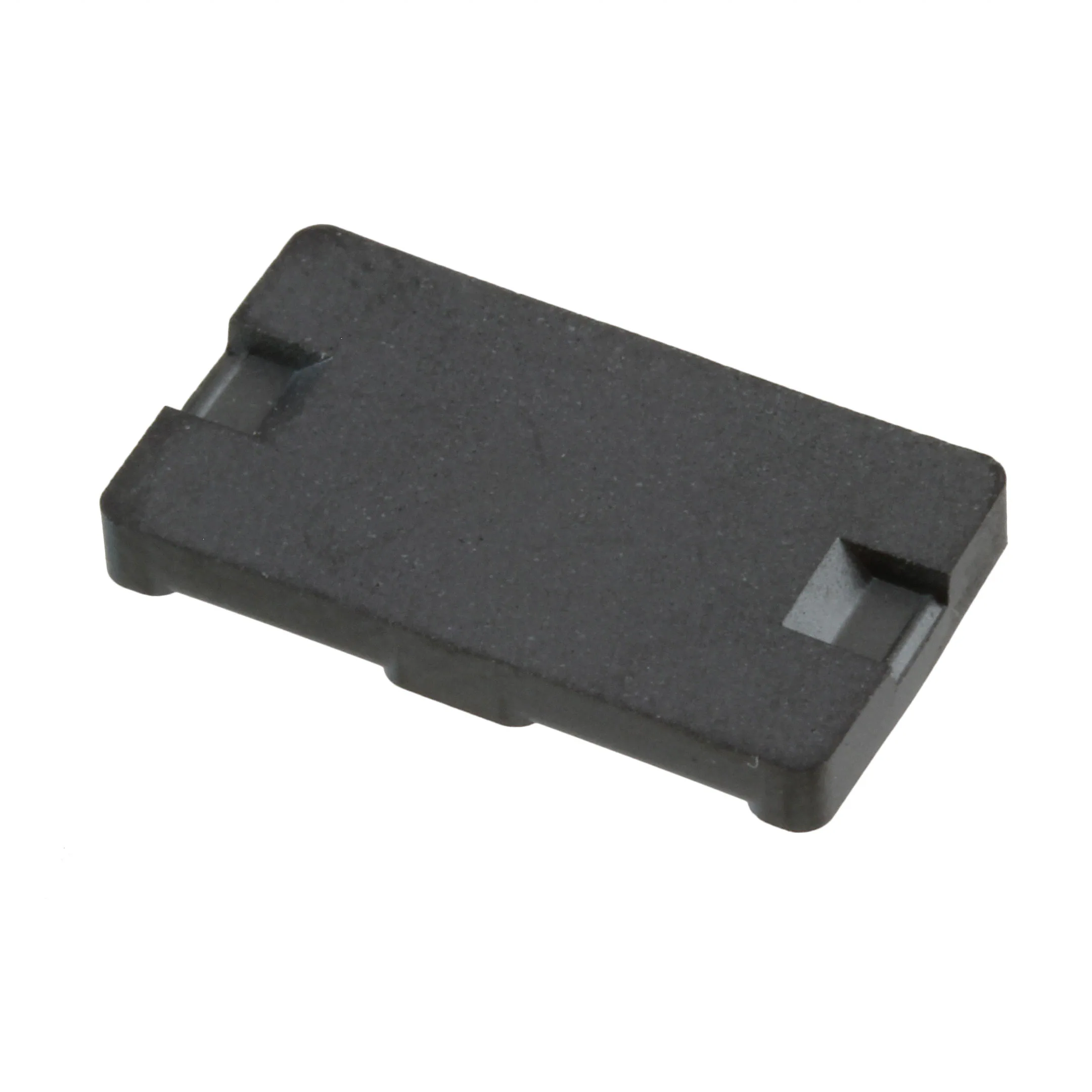

B66283K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	7,763	2.17	RFQ	Datasheet	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
PC47EI25-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	6,121	2.22	RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	2.14 µH	±25%	Ungapped	-	2500	1.15	47	41	-	1930	Uncoated	-

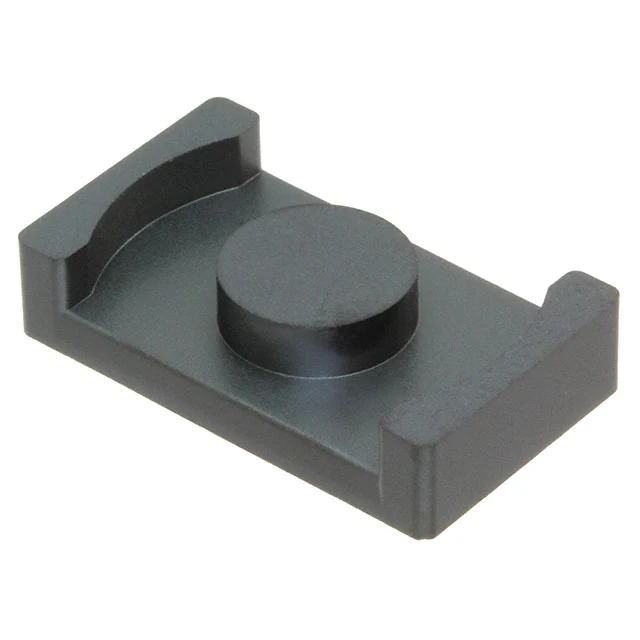

B66484G0000X187 FERRITE CORE ER N87 1PC EPCOS - TDK Electronics	7,319	2.48	RFQ	Datasheet	Box	ER25/6/15	Active	ER	ER 25 x 6 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.216 (5.50mm)
PC95EIR22/5.5/15-Z FERRITE CORE EIR 4.15UH 1SET TDK Corporation	8,233	2.58	RFQ	Datasheet	Tray	Planar	Active	HER, PLT	EIR 22 x 5.5 x 15	PC95	-	4.15 µH	±25%	Ungapped	-	-	0.51	46.1	23.2	36.3	1070	Uncoated	0.216 (5.50mm)

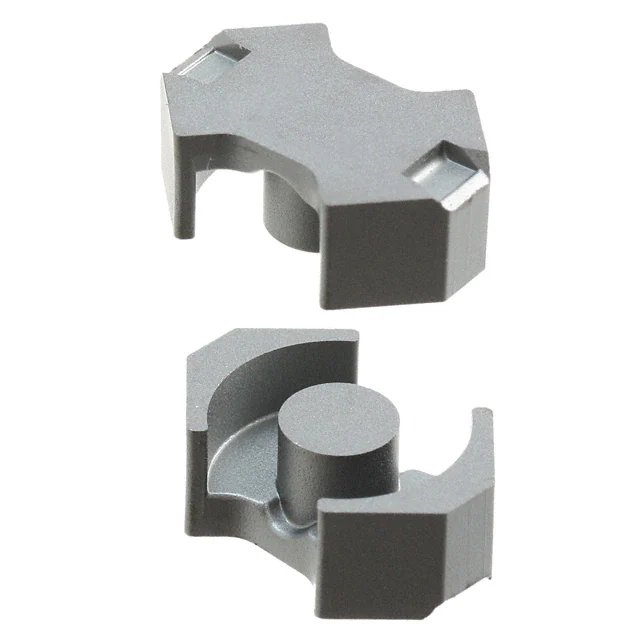

B65805C0000R048 FERRITE CORE RM 1.8UH N48 2PCS EPCOS - TDK Electronics	9,206	2.60	RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N48	-	1.8 µH	-20%, +30%	Ungapped	1430	-	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
PC95EL25X8.6-Z FERRITE CORE EL 7.54UH 2PC SET TDK Corporation	6,331	2.61	RFQ	Datasheet	Tray	Planar	Active	EL	EL 25 x 8.6	PC95	-	7.54 µH	±25%	Ungapped	-	-	0.35	30	85.6	83	2570	Uncoated	0.169 (4.29mm)

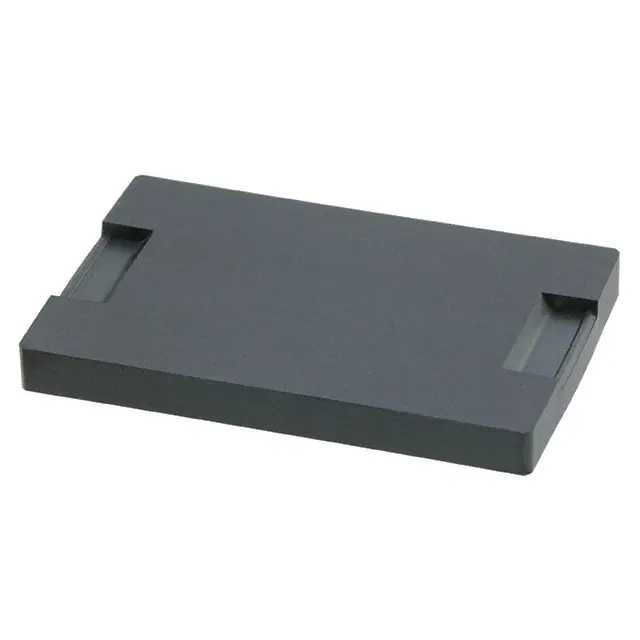

B66455K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	9,039	2.65	RFQ	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

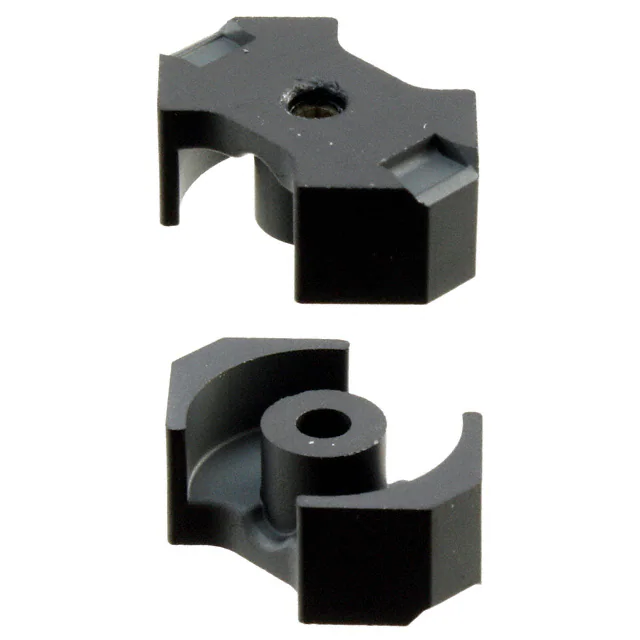

B65805C0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	6,202	2.70	RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N48	-	250 nH	±3%	Gapped	199	-	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)

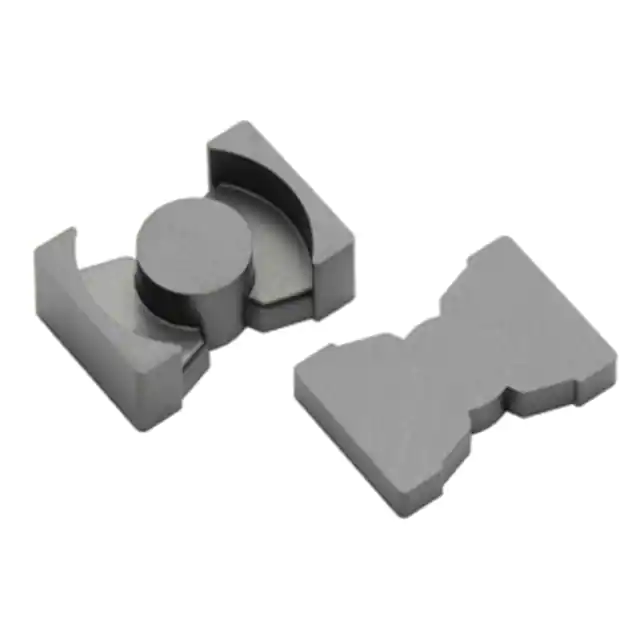

PC95PQI20/9Z-12 FERRITE CORE PQI 7.07UH 1SET TDK Corporation	8,892	2.77	RFQ	Datasheet	Tray	Planar	Active	HPQ, PQD	PQI 20 x 9	PC95	-	7.07 µH	±25%	Ungapped	-	-	0.35	66	22.9	59.3	1510	Uncoated	0.236 (6.00mm)

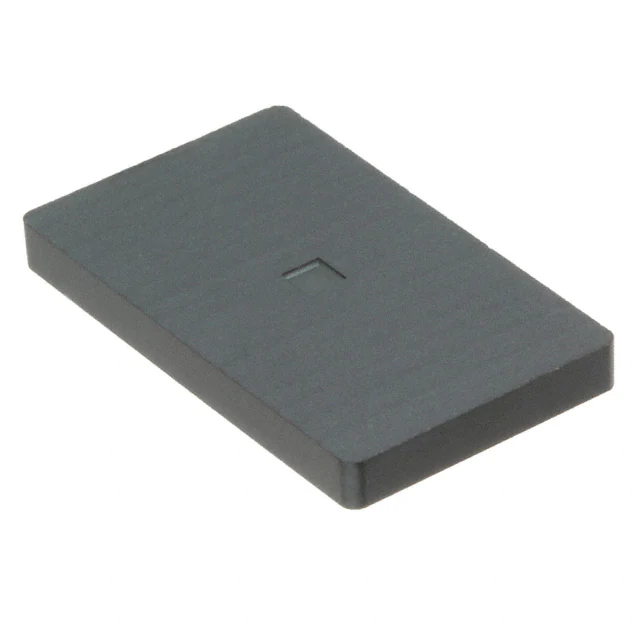

B66484K0000X192 FERRITE CORE I N92 1PC EPCOS - TDK Electronics	5,856	2.87	RFQ	Datasheet	Box	I25/3/15	Active	I	I 25 x 3 x 15	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B65807P0000R087 FERRITE CORE RM 3UH N87 2PCS EPCOS - TDK Electronics	7,604	2.88	RFQ	Datasheet	Box	RM6	Active	RM	RM 6 LP	N87	-	3 µH	-20%, +30%	Ungapped	1390	2200	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)
HF60T31X13X19 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	5,452	2.88	RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
B65875A0000R087 FERRITE CORE PQ 2.65UH N87 2PCS EPCOS - TDK Electronics	9,451	3.53	RFQ	Datasheet	Box	PQ20/20	Active	PQ	PQ 20 x 20	N87	-	2.65 µH	-20%, +30%	Ungapped	1515	2200	0.718	45.2	62.9	54.4	2843	Uncoated	0.398 (10.10mm)
B65811H2500X041 FERRITE CORE EPCOS - TDK Electronics	5,898	3.68	RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

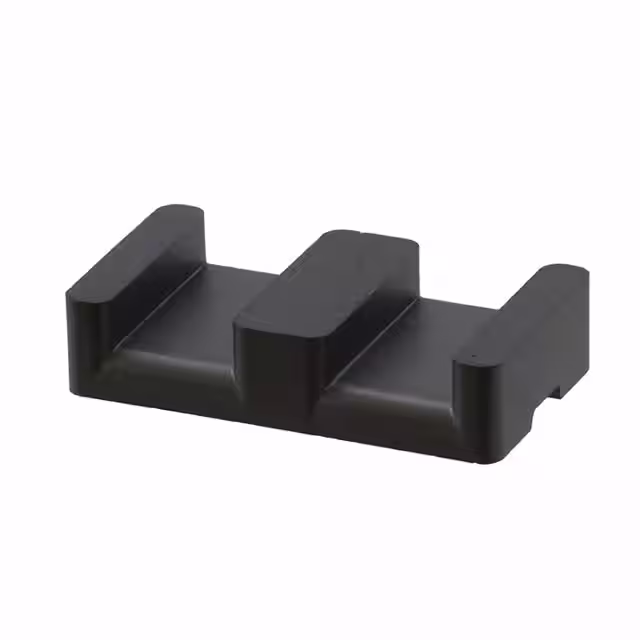

B66459G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	6,139	4.14	RFQ	Datasheet	Box	ELP38/8/25	Active	ELP	ELP 38 x 8 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.324 (8.25mm)
B66287G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	8,001	4.27	RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
TX39/20/13-3E27 FERRITE CORES ROUND Ferroxcube	6,588	4.56	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	3E27	1.567 (39.80mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.535 (13.60mm)
B65813P0000R049 FERRITE CORE RM 3.7UH N49 2PCS EPCOS - TDK Electronics	8,936	4.86	RFQ	Datasheet	Box	RM10/LP	Active	-	-	N49	-	-	-	-	-	-	-	-	-	-	-	-	-
PQ32/25-3C95 FERRITE CORE 2PC SET Ferroxcube	9,917	5.38	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
