Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

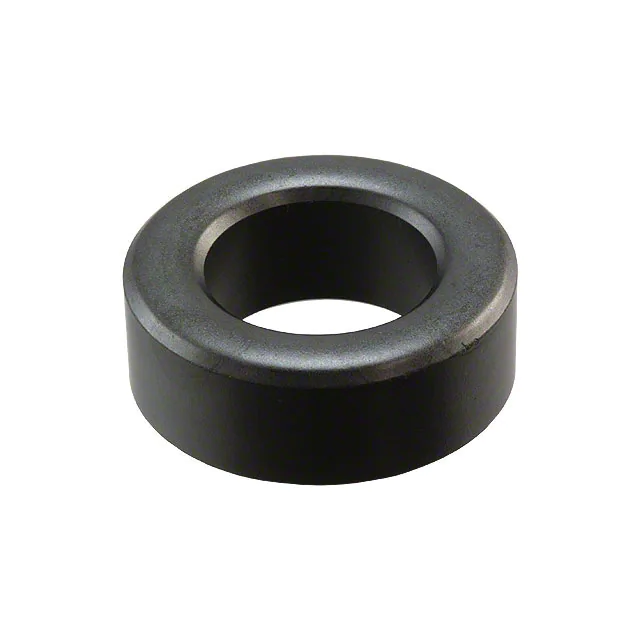

B64290L0670X038 FERRITE CORE EPCOS - TDK Electronics	14,389	0.19	RFQ	Datasheet	Box	TX10/6/3.1	Active	Toroid	-	T38	-	-	-	Gapped	-	10000	-	-	-	-	-	Epoxy	-

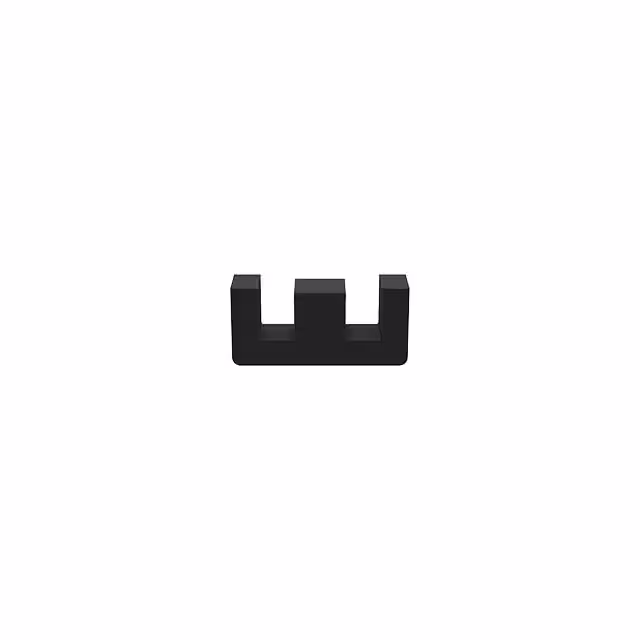

B66311G0100X187 FERRITE CORE EPCOS - TDK Electronics	12,984	0.19	RFQ	Datasheet	Box	-	Not For New Designs	E	E 20 x 10 x 6	N87	-	-	-	-	-	2200	1.44	46.3	32.1	31.9	1490	Uncoated	0.398 (10.10mm)
E16/12/5-3C90 E CORES Ferroxcube	11,755	0.19	RFQ	Datasheet	Bulk	-	Active	E	E 16 x 12 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.482 (12.25mm)
B62110A2049X022 FERRITE CORES EPCOS - TDK Electronics	14,823	0.19	RFQ		Box	TUB2.62/1.15/3.6	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E13/6/6-3F36 E CORES Ferroxcube	13,852	0.19	RFQ	Datasheet	Bulk	-	Active	E	E 13 x 6 x 6	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B64290A0044X087 FERRITE CORE TOROID 11.2UH N87 EPCOS - TDK Electronics	14,789	0.19	RFQ	Datasheet	Box	T12.5/7.5/5	Active	Toroid	R 12.5 x 7.5 x 5	N87	0.492 (12.50mm)	1.12 µH	±25%	Ungapped	-	2200	2.46	30.09	12.23	-	368	Uncoated	0.197 (5.00mm)
35T0375-30H FERRITE CORE TOROID Laird-Signal Integrity Products	12,392	0.20	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E19/8/5-3F36-G100 E CORES Ferroxcube	12,591	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.319 (8.10mm)
E19/8/5-3F36-G200 E CORES Ferroxcube	10,782	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.319 (8.10mm)
B64290A0044X072 FERRITE CORE EPCOS - TDK Electronics	11,135	0.20	RFQ	Datasheet	Box	T12.5/7.5/5	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
E16/12/5-3C90-G100 E CORES Ferroxcube	13,332	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 16 x 12 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.482 (12.25mm)
E16/12/5-3C90-G200 E CORES Ferroxcube	13,253	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 16 x 12 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.482 (12.25mm)
9478103002 78 E CORE SET Fair-Rite Products Corp.	11,273	0.20	RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	181	39.9	22	21.6	878	Uncoated	0.315 (8.00mm)
9478101002 78 E CORE SET Fair-Rite Products Corp.	11,603	0.20	RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	193	37.7	19.6	18.9	739	Uncoated	0.317 (8.05mm)
B64290P0683X038 FERRITE CORE TOROID 2.2UH T38 EPCOS - TDK Electronics	14,198	0.20	RFQ	Datasheet	Box	TC3.1/1.3/1.3	Active	Toroid	-	T38	0.121 (3.07mm)	2.2 µH	±30%	Ungapped	-	9900	5.65	5.99	1.06	-	6.4	Parylene	0.051 (1.29mm)
E13/6/6-3F36-G100 E CORES Ferroxcube	11,182	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 13 x 6 x 6	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E13/6/6-3F36-G200 E CORES Ferroxcube	13,317	0.20	RFQ	Datasheet	Bulk	-	Active	E	E 13 x 6 x 6	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)

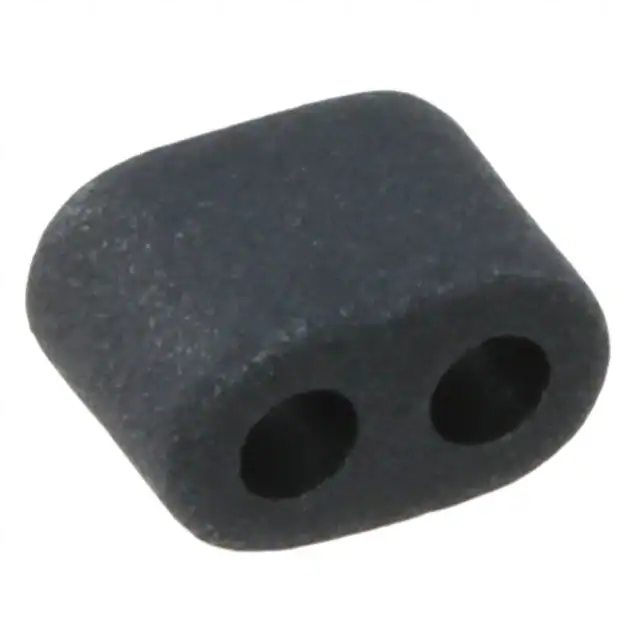

B62152P0015X030 FERRITE CORE 2 HOLE 1.6UH N30 EPCOS - TDK Electronics	13,037	0.20	RFQ		Box	MHB2/P-3.6/2.1/1.4	Active	Multi-Hole (2)	-	N30	-	1.6 µH	±30%	Ungapped	-	4300	3.22	3.7	1.2	-	4.5	Parylene	0.057 (1.45mm)
5952020301 52 TOROID Fair-Rite Products Corp.	10,234	0.20	RFQ	Datasheet	Box	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	20.6	7.2	-	147	Uncoated	0.125 (3.18mm)
E20/10/6-3C90-A160 E CORES Ferroxcube	12,063	0.20	RFQ		Bulk	-	Active	E	E 20 x 10 x 6	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
