Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

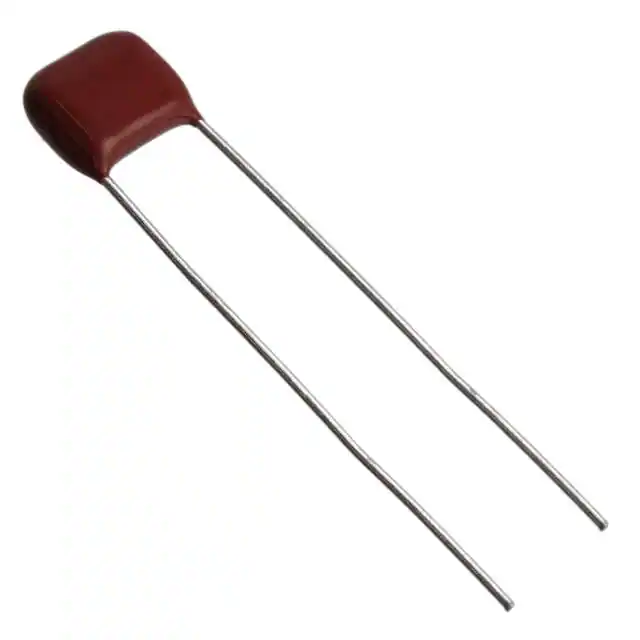

QXK2G103KTP CAP FILM 10000PF 10% 400VDC RAD Nichicon	8,269	1.06	RFQ	Datasheet	Radial	Bulk	QXK	Active	10000 pF	±10%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.433 L x 0.173 W (11.00mm x 4.40mm)	0.358 (9.10mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R75PI31504030K CAP FILM 0.15UF 10% 630VDC RAD KEMET	8,508	1.06	RFQ	Datasheet	Radial	Bulk	R75	Active	0.15 µF	±10%	250V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.575 (14.60mm)	PC Pins	0.591 (15.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
PHE450MB5120JR06 CAP FILM 0.012UF 5% 630VDC RAD KEMET	7,733	1.07	RFQ	Datasheet	Radial	Bag	PHE450	Active	0.012 µF	±5%	300V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.217 W (18.00mm x 5.50mm)	0.413 (10.50mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-H16682JV CAP FILM 6800PF 5% 1.6KVDC RAD Panasonic Electronic Components	8,142	1.07	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	6800 pF	±5%	424V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.906 L x 0.276 W (23.00mm x 7.00mm)	0.669 (17.00mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-

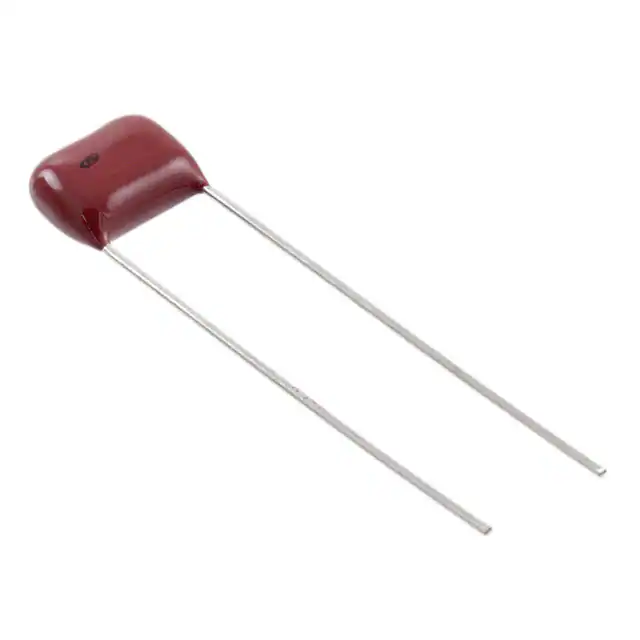

QXK2E223KTP CAP FILM 0.022UF 10% 250VDC RAD Nichicon	7,512	1.07	RFQ	Datasheet	Radial	Bulk	QXK	Active	0.022 µF	±10%	125V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.433 L x 0.173 W (11.00mm x 4.40mm)	0.374 (9.50mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R46KI347045N0M CAP FILM 0.47UF 20% 560VDC RAD KEMET	8,135	1.07	RFQ	Datasheet	Radial	Bulk	R46	Active	0.47 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.394 W (18.00mm x 10.00mm)	0.634 (16.10mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
ECW-H16822JV CAP FILM 8200PF 5% 1.6KVDC RAD Panasonic Electronic Components	8,140	1.07	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	8200 pF	±5%	424V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.906 L x 0.295 W (23.00mm x 7.50mm)	0.689 (17.50mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
FKS2D024701K00JSSD CAP FILM 0.047UF 5% 100VDC RAD WIMA	6,293	1.07	RFQ	Datasheet	Radial	Bulk	-	Active	0.047 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.283 W (7.20mm x 7.20mm)	0.512 (13.00mm)	PC Pins	0.197 (5.00mm)	High Pulse, DV/DT	-
QXK2E154KTP CAP FILM 0.15UF 10% 250VDC RAD Nichicon	7,048	1.07	RFQ	Datasheet	Radial	Bulk	QXK	Active	0.15 µF	±10%	125V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.433 L x 0.240 W (11.00mm x 6.10mm)	0.445 (11.30mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R46KN347050N0M CAP FILM 0.47UF 20% 560VDC RAD KEMET	6,361	1.07	RFQ	Datasheet	Radial	Bulk	R46	Active	0.47 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.043 L x 0.276 W (26.50mm x 7.00mm)	0.634 (16.10mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2

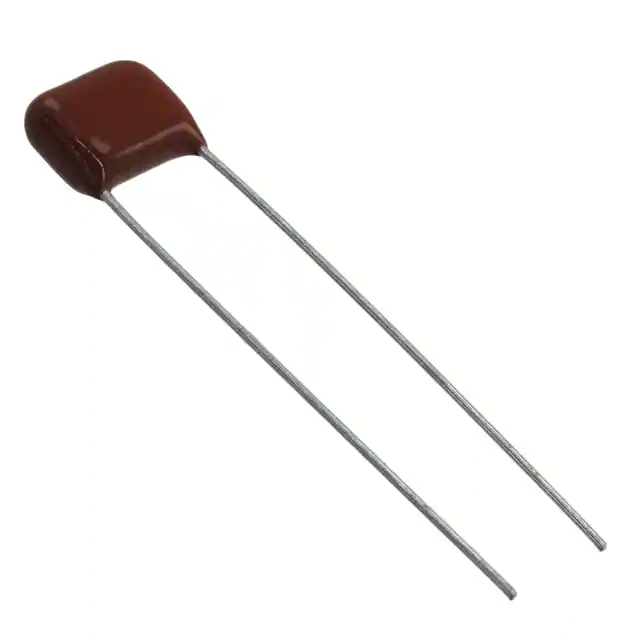

QXK2G223KTP CAP FILM 0.022UF 10% 400VDC RAD Nichicon	5,660	1.07	RFQ	Datasheet	Radial	Bulk	QXK	Active	0.022 µF	±10%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.433 L x 0.169 W (11.00mm x 4.30mm)	0.370 (9.40mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
ECW-FD2J824J CAP FILM 0.82UF 5% 630VDC RADIAL Panasonic Electronic Components	9,217	1.07	RFQ	Datasheet	Radial	Bulk	ECW-F(D)	Active	0.82 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.701 L x 0.402 W (17.80mm x 10.20mm)	0.654 (16.60mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
ECQ-E1684JF CAP FILM 0.68UF 5% 100VDC RADIAL Panasonic Electronic Components	9,105	1.08	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.68 µF	±5%	63V	100V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.472 L x 0.236 W (12.00mm x 6.00mm)	0.508 (12.90mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
R75GI368050H6J CAP FILM 0.68UF 5% 160VDC RADIAL KEMET	7,876	1.08	RFQ	Datasheet	Radial	Bulk	R75H	Active	0.68 µF	±5%	90V	160V	Polypropylene (PP), Metallized	7 mOhms	-55°C ~ 125°C	Through Hole	0.709 L x 0.512 W (18.00mm x 13.00mm)	0.476 (12.10mm)	PC Pins	0.591 (15.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
R463N410040N2M CAP FILM 1UF 20% 630VDC RAD KEMET	7,065	1.08	RFQ	Datasheet	Radial	Bulk	R46	Active	1 µF	±20%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.043 L x 0.394 W (26.50mm x 10.00mm)	0.732 (18.60mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
ECW-FE2W335K CAP FILM 3.3UF 10% 450VDC RADIAL Panasonic Electronic Components	6,696	1.08	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	3.3 µF	±10%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.394 W (26.00mm x 10.00mm)	0.669 (17.00mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
R75PN31004030J CAP FILM 0.1UF 5% 630VDC RADIAL KEMET	7,288	1.08	RFQ	Datasheet	Radial	Bulk	R75	Active	0.1 µF	±5%	220V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.043 L x 0.236 W (26.50mm x 6.00mm)	0.594 (15.10mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
B32671P4334K000 CAP FILM 0.33UF 10% 450VDC RAD EPCOS - TDK Electronics	6,350	1.08	RFQ	Datasheet	Radial	Bulk	B3267P - MKP Power Factor Correction	Active	0.33 µF	±10%	160V	450V	Polypropylene (PP), Metallized	-	-55°C ~ 125°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.394 (10.00mm)	Power Factor Correction (PFC)	AEC-Q200
ECQ-E2155JF CAP FILM 1.5UF 5% 250VDC RADIAL Panasonic Electronic Components	9,887	1.09	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	1.5 µF	±5%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.728 L x 0.354 W (18.50mm x 9.00mm)	0.701 (17.80mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
QXL2B104KTPT CAP FILM 0.1UF 10% 125VAC RADIAL Nichicon	5,387	1.09	RFQ	Datasheet	Radial	Bulk	QXL	Active	0.1 µF	±10%	125V	-	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.433 L x 0.268 W (11.00mm x 6.80mm)	0.469 (11.90mm)	PC Pins	0.295 (7.50mm)	High Frequency, Switching	-
