Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECQ-E4564JF CAP FILM 0.56UF 5% 400VDC RADIAL Panasonic Electronic Components	9,405	1.15	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.56 µF	±5%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.256 W (26.00mm x 6.50mm)	0.669 (17.00mm)	PC Pins	0.886 (22.50mm)	General Purpose	-

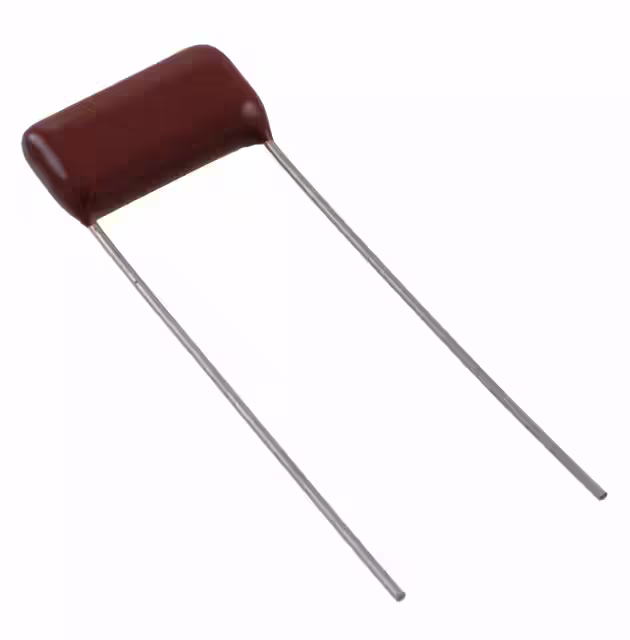

QXP2J153KRPT CAP FILM 0.015UF 10% 630VDC RAD Nichicon	6,059	1.15	RFQ	Datasheet	Radial	Bulk	QXP	Active	0.015 µF	±10%	200V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.630 L x 0.240 W (16.00mm x 6.10mm)	0.457 (11.60mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
890334026024CS CAP FILM 0.82UF 10% 310VAC RAD Würth Elektronik	7,079	1.16	RFQ	Datasheet	Radial	Bulk	WCAP-FTXX	Active	0.82 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.354 W (26.00mm x 9.00mm)	0.728 (18.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2

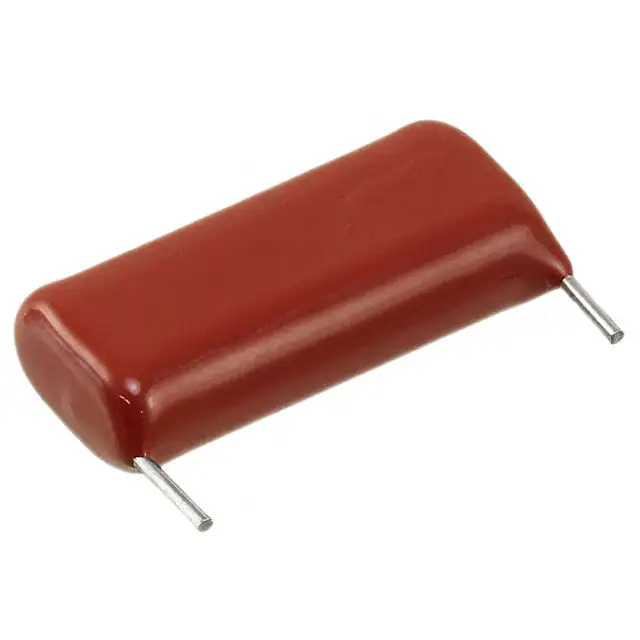

ECW-HC3F392JD CAP FILM 3900PF 5% 3KVDC RADIAL Panasonic Electronic Components	7,221	1.16	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	3900 pF	±5%	1060V (1.06kV)	3000V (3kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.016 L x 0.295 W (25.80mm x 7.50mm)	0.480 (12.20mm)	PC Pins	0.886 (22.50mm)	General Purpose	-

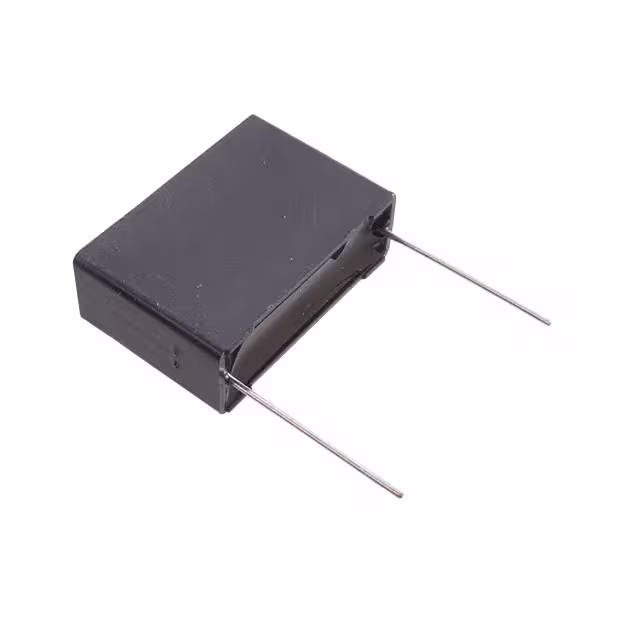

ECW-FE2W225P8 CAP FILM 2.2UF 5% 450VDC RADIAL Panasonic Electronic Components	9,869	1.16	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	2.2 µF	±5%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.433 W (31.00mm x 11.00mm)	0.846 (21.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
ECW-FD2J125K CAP FILM 1.2UF 10% 630VDC RADIAL Panasonic Electronic Components	7,682	1.16	RFQ	Datasheet	Radial	Bulk	ECW-F(D)	Active	1.2 µF	±10%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.996 L x 0.362 W (25.30mm x 9.20mm)	0.622 (15.80mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-

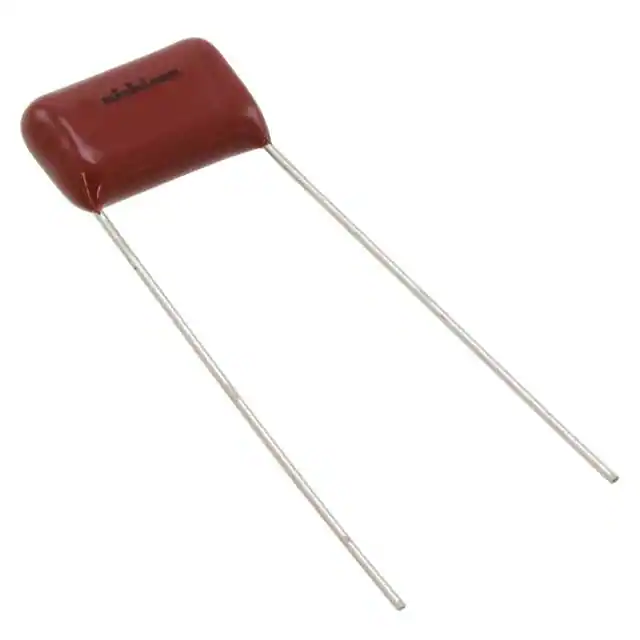

QXP2K103KRPT CAP FILM 10000PF 10% 800VDC RAD Nichicon	8,804	1.16	RFQ	Datasheet	Radial	Bulk	QXP	Active	10000 pF	±10%	250V	800V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.630 L x 0.244 W (16.00mm x 6.20mm)	0.465 (11.80mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
890334026024 CAP FILM 0.82UF 10% 310VAC RAD Würth Elektronik	5,976	1.16	RFQ	Datasheet	Radial	Bulk	WCAP-FTXX	Active	0.82 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.354 W (26.00mm x 9.00mm)	0.728 (18.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
PFR5151J63J11L4BULK CAP FILM 150PF 5% 63VDC RADIAL KEMET	8,467	1.17	RFQ	Datasheet	Radial	Bag	PFR	Active	150 pF	±5%	40V	63V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.236 (6.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-
ECW-H12182JV CAP FILM 1800PF 5% 1.25KVDC RAD Panasonic Electronic Components	9,409	1.17	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	1800 pF	±5%	354V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.276 W (18.00mm x 7.00mm)	0.610 (15.50mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-H12152JV CAP FILM 1500PF 5% 1.25KVDC RAD Panasonic Electronic Components	6,643	1.17	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	1500 pF	±5%	354V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.256 W (18.00mm x 6.50mm)	0.591 (15.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
R49AI322000B2M CAP FILM 0.22UF 20% 800VDC RAD KEMET	9,990	1.17	RFQ	Datasheet	Radial	Bulk	R49	Active	0.22 µF	±20%	310V	800V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.394 W (18.00mm x 10.00mm)	0.630 (16.00mm)	PC Pins	0.630 (16.00mm)	EMI, RFI Suppression	X1
R60MI3470AA30K CAP FILM 0.47UF 10% 400VDC RAD KEMET	5,019	1.18	RFQ	Datasheet	Radial	Bulk	R60	Active	0.47 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.575 (14.60mm)	PC Pins	0.591 (15.00mm)	Automotive	AEC-Q200
R60PN3220AA30J CAP FILM 0.22UF 5% 630VDC RAD KEMET	5,126	1.18	RFQ	Datasheet	Radial	Bulk	R60	Active	0.22 µF	±5%	220V	630V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.043 L x 0.276 W (26.50mm x 7.00mm)	0.634 (16.10mm)	PC Pins	0.886 (22.50mm)	Automotive	AEC-Q200
ECQ-E6274JF CAP FILM 0.27UF 5% 630VDC RADIAL Panasonic Electronic Components	5,572	1.18	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.27 µF	±5%	250V	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.276 W (26.00mm x 7.00mm)	0.689 (17.50mm)	PC Pins	0.886 (22.50mm)	General Purpose	-

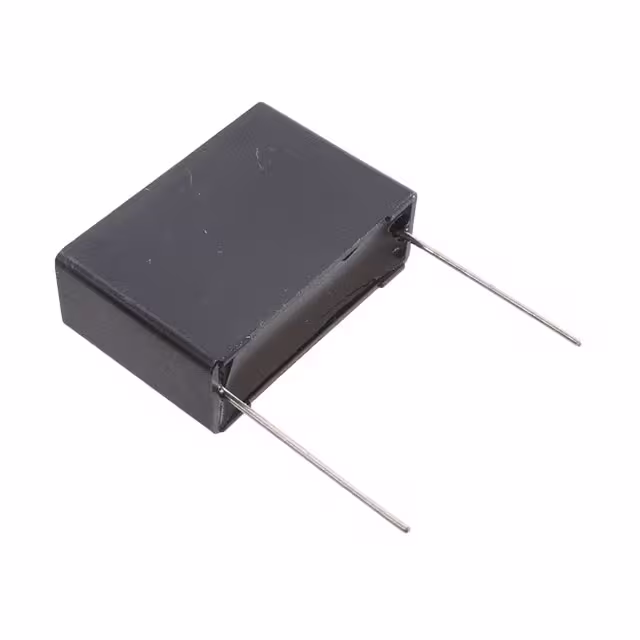

ECW-FE2W225Q8 CAP FILM 2.2UF 10% 450VDC RADIAL Panasonic Electronic Components	7,486	1.18	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	2.2 µF	±10%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.433 W (31.00mm x 11.00mm)	0.846 (21.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
B32672Z4105K000 CAP FILM 1UF 10% 450VDC RADIAL EPCOS - TDK Electronics	5,713	1.19	RFQ	Datasheet	Radial	Bulk	B3267Z - High Current PFC	Active	1 µF	±10%	220V	450V	Polypropylene (PP), Metallized	-	-55°C ~ 125°C	Through Hole	0.709 L x 0.433 W (18.00mm x 11.00mm)	0.728 (18.50mm)	PC Pins	0.591 (15.00mm)	Power Factor Correction (PFC)	AEC-Q200
168104J63A-F CAP FILM 0.1UF 5% 63VDC RADIAL Cornell Dubilier Electronics (CDE)	6,108	1.19	RFQ	Datasheet	Radial	Bulk	168	Active	0.1 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-

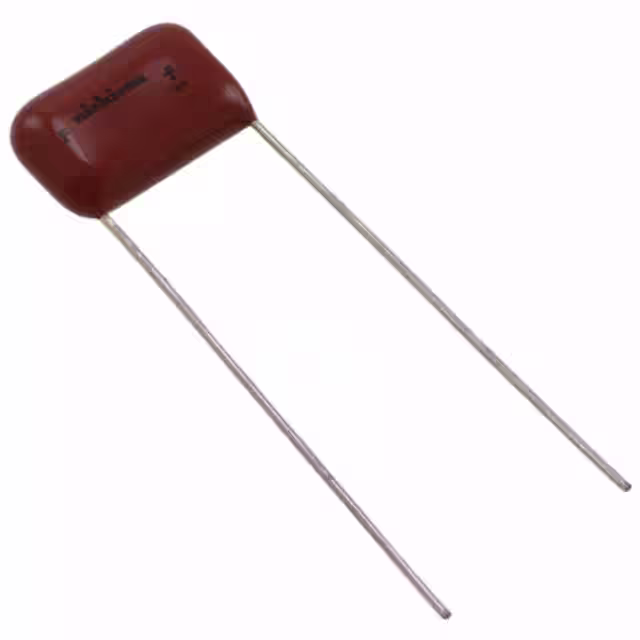

QXP2J223KRPT CAP FILM 0.022UF 10% 630VDC RAD Nichicon	8,402	1.19	RFQ	Datasheet	Radial	Bulk	QXP	Active	0.022 µF	±10%	200V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.630 L x 0.268 W (16.00mm x 6.80mm)	0.484 (12.30mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
160104J250D-F CAP FILM 0.1UF 5% 250VDC RADIAL Cornell Dubilier Electronics (CDE)	8,685	1.19	RFQ	Datasheet	Radial	Bulk	160	Active	0.1 µF	±5%	160V	250V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	0.512 L x 0.197 W (13.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
