Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
155MWR100K CAP FILM 1.5UF 10% 100VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,523	1.62	RFQ	Datasheet	Axial	Bulk	MWR	Active	1.5 µF	±10%	63V	100V	Polyester, Metallized	1.179 Ohms	-40°C ~ 105°C	Through Hole	0.354 Dia x 1.063 L (9.00mm x 27.00mm)	-	PC Pins	-	General Purpose	-
ECW-H6104HCC CAP FILM 0.1UF 3% 630VDC RADIAL Panasonic Electronic Components	8,999	1.62	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	0.1 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.815 L x 0.339 W (20.70mm x 8.60mm)	0.591 (15.00mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
B32683A0223K000 CAP FILM 0.022UF 10% 1KVDC RAD EPCOS - TDK Electronics	7,429	1.63	RFQ	Datasheet	Radial	Bulk	B3268* - MFP Very High Pulse	Active	0.022 µF	±10%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.043 L x 0.276 W (26.50mm x 7.00mm)	0.630 (16.00mm)	PC Pins	0.886 (22.50mm)	High Pulse, DV/DT	-
B32653A6334J000 CAP FILM 0.33UF 5% 630VDC RADIAL EPCOS - TDK Electronics	5,147	1.64	RFQ	Datasheet	Radial	Bulk	B3265* - MKP General Purpose	Active	0.33 µF	±5%	250V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.043 L x 0.413 W (26.50mm x 10.50mm)	0.650 (16.50mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Pulse, DV/DT	AEC-Q200
B32522E6105K000 CAP FILM 1UF 10% 400V RADIAL EPCOS - TDK Electronics	8,447	1.64	RFQ	Datasheet	Radial	Bulk	B3252* - MKT General Purpose	Active	1 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.709 L x 0.433 W (18.00mm x 11.00mm)	0.728 (18.50mm)	PC Pins	0.591 (15.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECW-H12153JV CAP FILM 0.015UF 5% 1.25KVDC RAD Panasonic Electronic Components	6,798	1.64	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	0.015 µF	±5%	354V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.374 W (18.00mm x 9.50mm)	0.689 (17.50mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F6303JL CAP FILM 0.03UF 5% 630VDC RADIAL Panasonic Electronic Components	8,646	1.65	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.03 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.512 L x 0.272 W (13.00mm x 6.90mm)	0.441 (11.20mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-
ECW-F6273JL CAP FILM 0.027UF 5% 630VDC RAD Panasonic Electronic Components	7,839	1.65	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.027 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.512 L x 0.260 W (13.00mm x 6.60mm)	0.433 (11.00mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-
ECW-FG70105K CAP FILM 1.0UF 700VDC RADIAL Panasonic Electronic Components	8,258	1.66	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	1 µF	±10%	-	700V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.374 W (31.50mm x 9.50mm)	0.728 (18.50mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
ECW-H6114HC CAP FILM 0.11UF 3% 630VDC RADIAL Panasonic Electronic Components	7,775	1.67	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	0.11 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.815 L x 0.354 W (20.70mm x 9.00mm)	0.606 (15.40mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
222PPB162K CAP FILM 2200PF 10% 1.6KVDC RAD Cornell Dubilier / Illinois Capacitor	9,098	1.70	RFQ	Datasheet	Radial	Bulk	PPB	Active	2200 pF	±10%	650V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.591 (15.00mm)	Commutation; High Pulse, DV/DT; Snubber	-
R60EI42204030K CAP FILM 2.2UF 10% 100VDC RADIAL KEMET	7,166	1.70	RFQ	Datasheet	Radial	Bulk	R60	Active	2.2 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.575 (14.60mm)	PC Pins	0.591 (15.00mm)	Automotive	AEC-Q200
ECW-F4243HL CAP FILM 0.024UF 3% 400VDC RAD Panasonic Electronic Components	8,536	1.70	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.024 µF	±3%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.492 L x 0.236 W (12.50mm x 6.00mm)	0.406 (10.30mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-
ECW-F4223HL CAP FILM 0.022UF 3% 400VDC RAD Panasonic Electronic Components	6,184	1.70	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.022 µF	±3%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.492 L x 0.228 W (12.50mm x 5.80mm)	0.398 (10.10mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-
B32683A7333K000 CAP FILM 0.033UF 1.25KVDC RADIAL EPCOS - TDK Electronics	5,312	1.72	RFQ	Datasheet	Radial	Bulk	B3268* - MFP Very High Pulse	Active	0.033 µF	±10%	450V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.043 L x 0.413 W (26.50mm x 10.50mm)	0.728 (18.50mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Pulse, DV/DT; Snubber	-

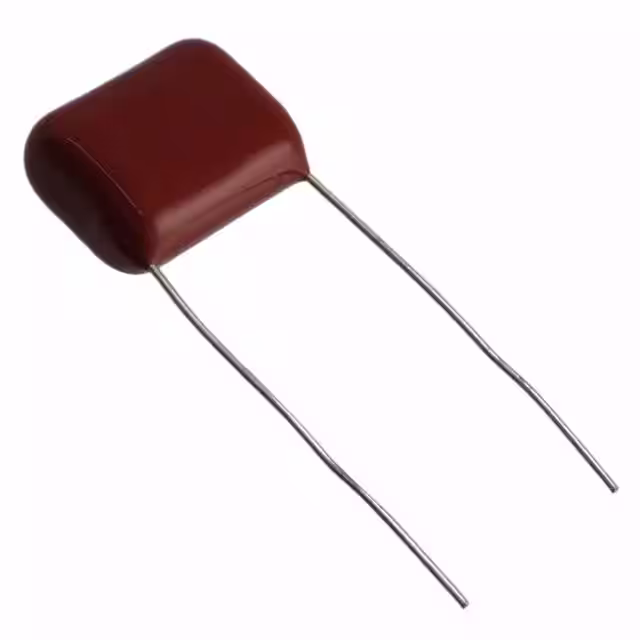

QXK2E155KTP CAP FILM 1.5UF 10% 250VDC RADIAL Nichicon	8,010	1.72	RFQ	Datasheet	Radial	Bulk	QXK	Active	1.5 µF	±10%	125V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.728 L x 0.390 W (18.50mm x 9.90mm)	0.654 (16.60mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
ECW-F6153HL CAP FILM 0.015UF 3% 630VDC RAD Panasonic Electronic Components	9,114	1.72	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.015 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.492 L x 0.232 W (12.50mm x 5.90mm)	0.402 (10.20mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-
B32653A0224K000 CAP FILM 0.22UF 10% 1KVDC RADIAL EPCOS - TDK Electronics	6,540	1.72	RFQ	Datasheet	Radial	Bulk	B3265* - MKP General Purpose	Active	0.22 µF	±10%	250V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.043 L x 0.433 W (26.50mm x 11.00mm)	0.807 (20.50mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Pulse, DV/DT	AEC-Q200

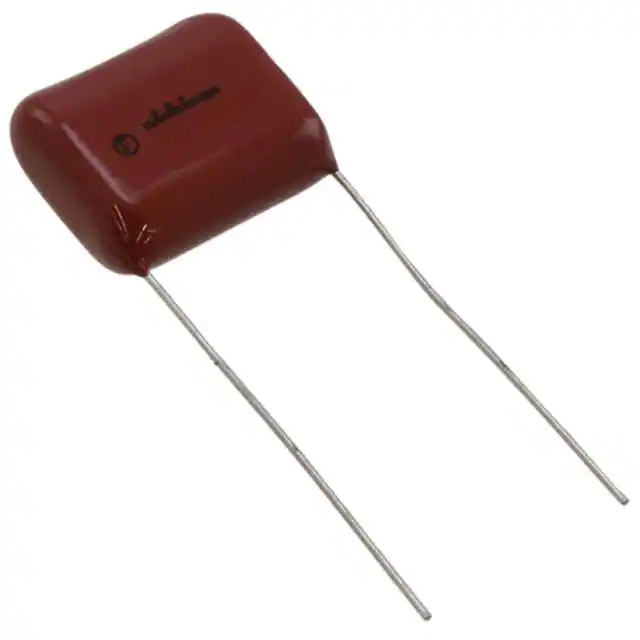

QXP2K104KRPT CAP FILM 0.1UF 10% 800VDC RADIAL Nichicon	5,357	1.74	RFQ	Datasheet	Radial	Bulk	QXP	Active	0.1 µF	±10%	250V	800V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.827 L x 0.378 W (21.00mm x 9.60mm)	0.748 (19.00mm)	PC Pins	0.689 (17.50mm)	High Frequency, Switching	-

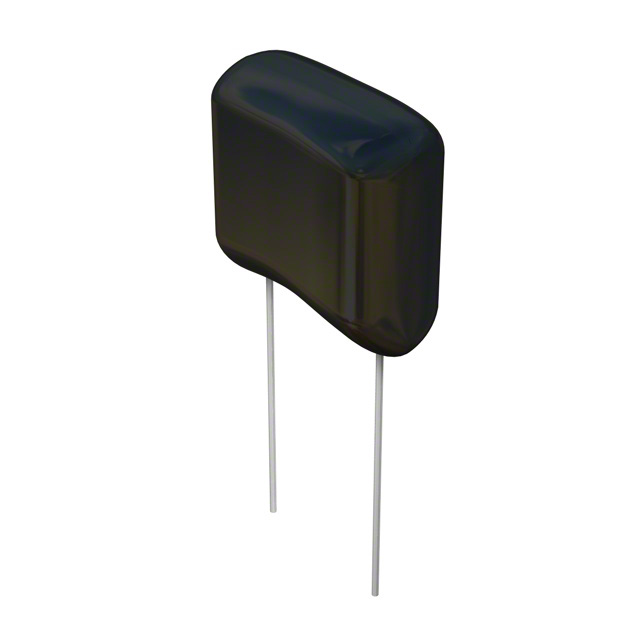

DME10P1K-F CAP FILM 0.1UF 10% 1KVDC RADIAL Cornell Dubilier Electronics (CDE)	7,165	1.75	RFQ	Datasheet	Radial	Bulk	DME	Active	0.1 µF	±10%	250V	1000V (1kV)	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.827 L x 0.394 W (21.00mm x 10.00mm)	0.846 (21.50mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
