Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECW-FA2J125J CAP FILM 1.2UF 5% 630VDC RADIAL Panasonic Electronic Components	9,241	1.26	RFQ	Datasheet	Radial	Bulk	ECW-F(A)	Active	1.2 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.476 W (26.00mm x 12.10mm)	0.677 (17.20mm)	PC Pins	0.886 (22.50mm)	High Frequency, Switching	-
PFR5682J63J11L4BULK CAP FILM 6800PF 5% 63VDC RADIAL KEMET	7,128	1.27	RFQ	Datasheet	Radial	Bulk	PFR	Active	6800 pF	±5%	40V	63V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.236 (6.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-

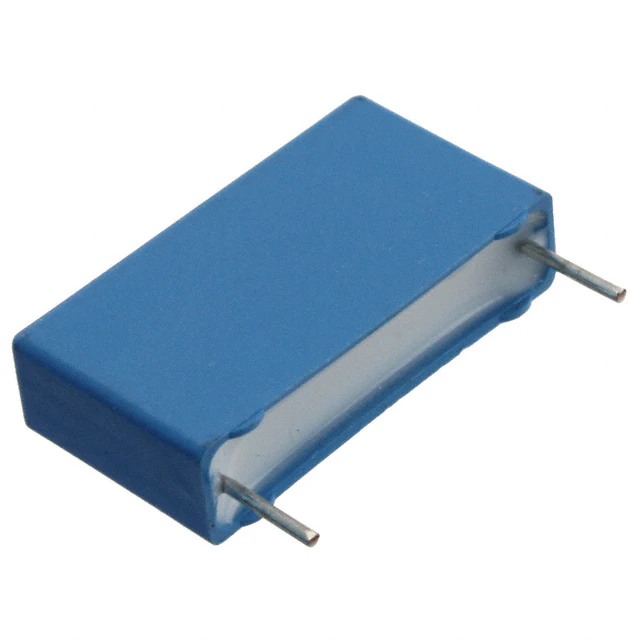

PHE840MD6220KD13R06L2 CAP FILM 0.22UF 10% 760VDC RAD KEMET	7,921	1.28	RFQ	Datasheet	Radial	Bulk	PHE840M	Active	0.22 µF	±10%	275V	760V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.024 L x 0.256 W (26.00mm x 6.50mm)	0.571 (14.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
R76UN239050H4J CAP FILM 0.039UF 5% 2KVDC RAD KEMET	8,219	1.28	RFQ	Datasheet	Radial	Bulk	R76	Active	0.039 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	49 mOhms	-55°C ~ 125°C	Through Hole	1.043 L x 0.394 W (26.50mm x 10.00mm)	0.732 (18.60mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
ECQ-E6334JF CAP FILM 0.33UF 5% 630VDC RADIAL Panasonic Electronic Components	7,331	1.28	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.33 µF	±5%	250V	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.307 W (26.00mm x 7.80mm)	0.709 (18.00mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
R60MI41005030K CAP FILM 1UF 10% 400VDC RADIAL KEMET	7,001	1.28	RFQ	Datasheet	Radial	Bulk	R60	Active	1 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.433 W (18.00mm x 11.00mm)	0.752 (19.10mm)	PC Pins	0.591 (15.00mm)	Automotive	AEC-Q200
R60MI41004030K CAP FILM 1UF 10% 400VDC RADIAL KEMET	8,014	1.28	RFQ	Datasheet	Radial	Bulk	R60	Active	1 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.433 W (18.00mm x 11.00mm)	0.752 (19.10mm)	PC Pins	0.591 (15.00mm)	Automotive	AEC-Q200

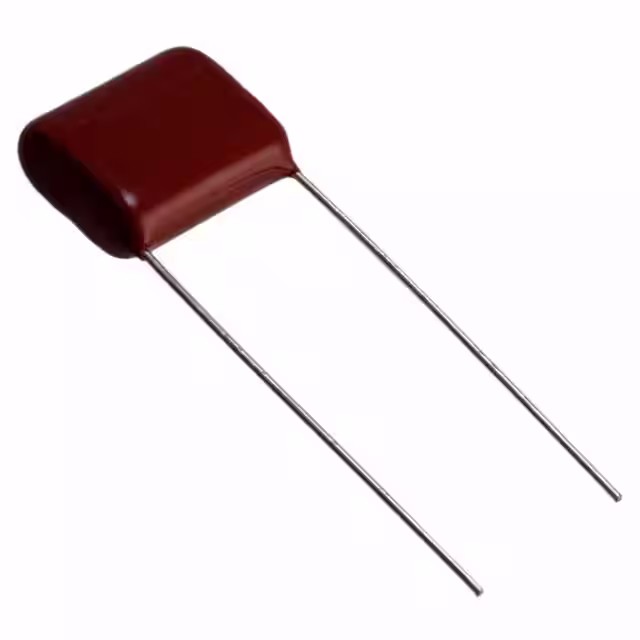

QXK2G224KTP CAP FILM 0.22UF 10% 400VDC RAD Nichicon	9,064	1.28	RFQ	Datasheet	Radial	Bulk	QXK	Active	0.22 µF	±10%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.728 L x 0.232 W (18.50mm x 5.90mm)	0.559 (14.20mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
PFR5472J100J12L4BULK CAP FILM 4700PF 5% 100VDC RADIAL KEMET	6,280	1.29	RFQ	Datasheet	Radial	Box	PFR	Active	4700 pF	±5%	63V	100V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.217 W (7.20mm x 5.50mm)	0.276 (7.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-
R76QN282050H3J CAP FILM 0.08UF 5% 1KVDC RAD KEMET	9,208	1.29	RFQ	Datasheet	Radial	Bulk	R76	Active	0.08 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	31 mOhms	-55°C ~ 125°C	Through Hole	1.043 L x 0.394 W (26.50mm x 10.00mm)	0.732 (18.60mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
PHE450KB6100JR06 CAP FILM 0.1UF 5% 400VDC RADIAL KEMET	7,202	1.30	RFQ	Datasheet	Radial	Bulk	PHE450	Active	0.1 µF	±5%	250V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.256 W (18.00mm x 6.50mm)	0.492 (12.50mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-

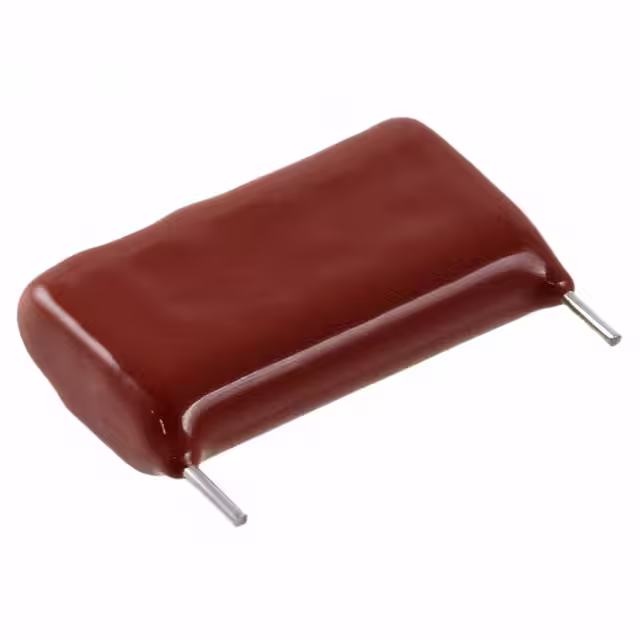

ECW-HC3F822JD CAP FILM 8200PF 5% 3KVDC RADIAL Panasonic Electronic Components	8,386	1.31	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	8200 pF	±5%	1060V (1.06kV)	3000V (3kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.016 L x 0.295 W (25.80mm x 7.50mm)	0.602 (15.30mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
R46KI3470JH02M CAP FILM 0.47UF 20% 560VDC RAD KEMET	5,326	1.32	RFQ	Datasheet	Radial	Bag	R46	Active	0.47 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.295 W (18.00mm x 7.50mm)	0.732 (18.60mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
ECW-FD2W395K CAP FILM 3.9UF 10% 450VDC RADIAL Panasonic Electronic Components	6,471	1.33	RFQ	Datasheet	Radial	Bulk	ECW-F(D)	Active	3.9 µF	±10%	-	450V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.996 L x 0.421 W (25.30mm x 10.70mm)	0.606 (15.40mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-

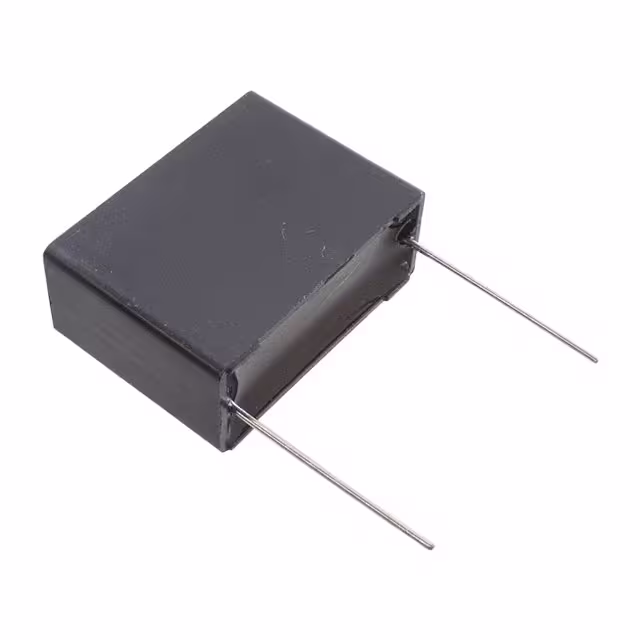

ECW-FE2W335P5 CAP FILM 3.3UF 5% 450VDC RADIAL Panasonic Electronic Components	6,376	1.34	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	3.3 µF	±5%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.512 W (31.00mm x 13.00mm)	0.925 (23.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-

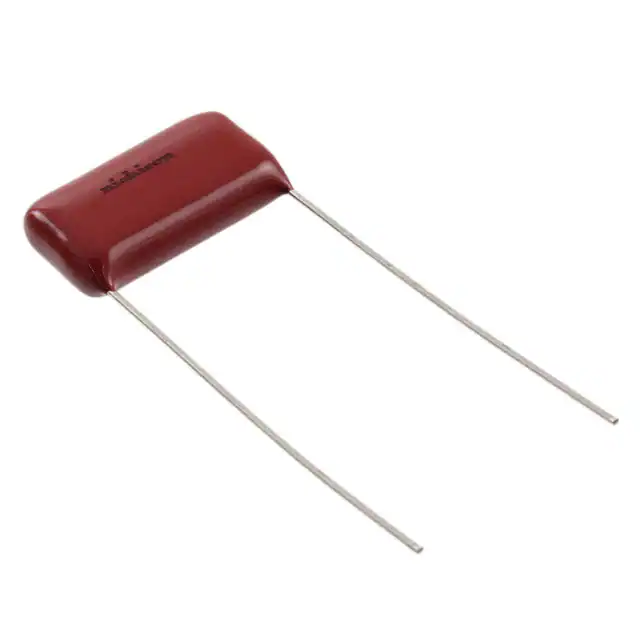

QXK2E474KTPTZH CAP FILM 0.47UF 10% 250VDC RAD Nichicon	7,470	1.34	RFQ	Datasheet	Radial	Bulk	QXK-ZH	Active	0.47 µF	±10%	125V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.807 L x 0.264 W (20.50mm x 6.70mm)	0.508 (12.90mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
890334026027CS CAP FILM 1UF 10% 310VAC RADIAL Würth Elektronik	8,220	1.35	RFQ	Datasheet	Radial	Bulk	WCAP-FTXX	Active	1 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.433 W (26.00mm x 11.00mm)	0.807 (20.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
R46KR368040M1M CAP FILM 0.68UF 20% 560VDC RAD KEMET	8,694	1.35	RFQ	Datasheet	Radial	Tray	R46	Active	0.68 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.673 (17.10mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X2
R46KR34704001M CAP FILM 0.47UF 20% 560VDC RAD KEMET	8,808	1.35	RFQ	Datasheet	Radial	Tray	R46	Active	0.47 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.673 (17.10mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X2
ECQ-UAAF125M CAP FILM 1.2UF 20% 275VAC RADIAL Panasonic Electronic Components	7,957	1.35	RFQ	Datasheet	Radial	Bulk	ECQ-UA	Active	1.2 µF	±20%	275V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.220 L x 0.472 W (31.00mm x 12.00mm)	0.886 (22.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X2
