Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECW-FG2J305J CAP FILM 3UF 5% 630VDC RADIAL Panasonic Electronic Components	7,347	2.46	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	3 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.531 W (31.50mm x 13.50mm)	1.142 (29.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
B32524Q6155K000 CAP FILM 1.5UF 10% 400VDC RADIAL EPCOS - TDK Electronics	7,744	2.46	RFQ	Datasheet	Radial	Bulk	B3252* - MKT General Purpose	Active	1.5 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	1.240 L x 0.433 W (31.50mm x 11.00mm)	0.748 (19.00mm)	PC Pins	1.083 (27.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200

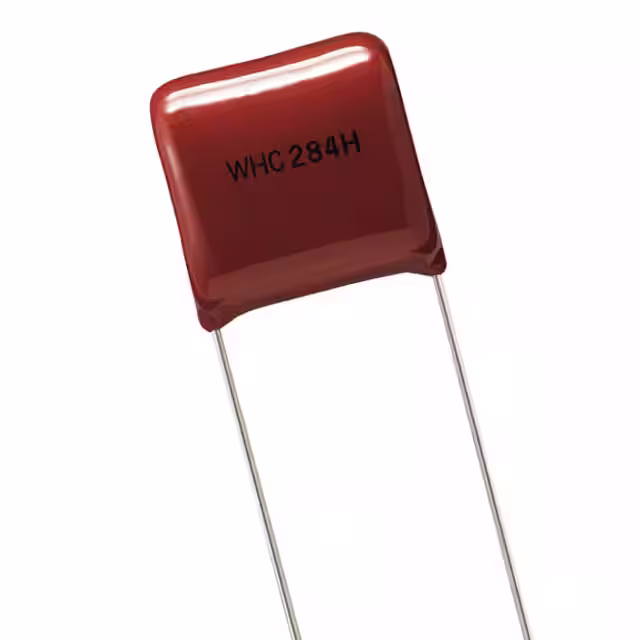

ECW-H6284HCC CAP FILM 0.28UF 3% 630VDC RADIAL Panasonic Electronic Components	6,681	2.47	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	0.28 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.815 L x 0.563 W (20.70mm x 14.30mm)	0.811 (20.60mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
ECW-F4564JB CAP FILM 0.56UF 5% 400VDC RADIAL Panasonic Electronic Components	5,174	2.48	RFQ	Datasheet	Radial	Bulk	ECW-F(B)	Active	0.56 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Through Hole	0.906 L x 0.512 W (23.00mm x 13.00mm)	0.846 (21.50mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
ECW-FG2J305PA CAP FILM 3UF 5% 630VDC RADIAL Panasonic Electronic Components	5,826	2.48	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	3 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.063 L x 0.689 W (27.00mm x 17.50mm)	1.063 (27.00mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching	AEC-Q200
ECW-F6274HL CAP FILM 0.27UF 3% 630VDC RADIAL Panasonic Electronic Components	8,610	2.49	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.27 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.807 L x 0.409 W (20.50mm x 10.40mm)	0.717 (18.20mm)	PC Pins	0.689 (17.50mm)	High Frequency, Switching	-
ECW-F4824JL CAP FILM 0.82UF 5% 400VDC RADIAL Panasonic Electronic Components	5,570	2.49	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.82 µF	±5%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.906 L x 0.465 W (23.00mm x 11.80mm)	0.787 (20.00mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
ECW-F4434HL CAP FILM 0.43UF 3% 400VDC RADIAL Panasonic Electronic Components	7,023	2.49	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.43 µF	±3%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.421 W (18.00mm x 10.70mm)	0.673 (17.10mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
R463W422050M1K CAP FILM 2.2UF 10% 630VDC RAD KEMET	8,407	2.51	RFQ	Datasheet	Radial	Tray	R46	Active	2.2 µF	±10%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.634 L x 0.512 W (41.50mm x 13.00mm)	0.949 (24.10mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2
ECW-F6244HL CAP FILM 0.24UF 3% 630VDC RADIAL Panasonic Electronic Components	5,964	2.52	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.24 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.441 W (18.00mm x 11.20mm)	0.685 (17.40mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
B32683A6154J000 CAP FILM 0.15UF 5% 630VDC RADIAL EPCOS - TDK Electronics	9,600	2.55	RFQ	Datasheet	Radial	Bulk	B3268* - MFP Very High Pulse	Active	0.15 µF	±5%	300V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.043 L x 0.472 W (26.50mm x 12.00mm)	0.866 (22.00mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Pulse, DV/DT; Snubber	-
ECW-F6754JL CAP FILM 0.75UF 5% 630VDC RADIAL Panasonic Electronic Components	5,107	2.55	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.75 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.102 L x 0.524 W (28.00mm x 13.30mm)	0.843 (21.40mm)	PC Pins	0.984 (25.00mm)	High Frequency, Switching	-
ECW-F6364HL CAP FILM 0.36UF 3% 630VDC RADIAL Panasonic Electronic Components	6,736	2.57	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.36 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.807 L x 0.469 W (20.50mm x 11.90mm)	0.787 (20.00mm)	PC Pins	0.689 (17.50mm)	High Frequency, Switching	-
R71XN447050H0K FILM, RADIAL, PULSE, SINGLE META KEMET	8,358	2.58	RFQ	Datasheet	Radial	Bulk	R71H	Active	4.7 µF	±10%	160V	450V	Polypropylene (PP), Metallized	11 mOhms	-55°C ~ 125°C	Through Hole	1.043 L x 0.512 W (26.50mm x 13.00mm)	0.870 (22.10mm)	PC Pins	0.886 (22.50mm)	High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC)	AEC-Q200
ECW-H6304HCC CAP FILM 0.3UF 3% 630VDC RADIAL Panasonic Electronic Components	6,586	2.59	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	0.3 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.815 L x 0.583 W (20.70mm x 14.80mm)	0.831 (21.10mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
C4AQPBU4180M1XJ CAP FILM 1.8UF 5% 1.2KVDC RADIAL KEMET	7,854	2.60	RFQ	Datasheet	Radial	Bulk	C4AQ-M	Active	1.8 µF	±5%	-	1200V (1.2kV)	Polypropylene (PP), Metallized	18.5 mOhms	-55°C ~ 105°C	Through Hole	1.240 L x 0.512 W (31.50mm x 13.00mm)	0.992 (25.20mm)	PC Pins	1.083 (27.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
ECW-F6824JL CAP FILM 0.82UF 5% 630VDC RADIAL Panasonic Electronic Components	9,513	2.60	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.82 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.102 L x 0.547 W (28.00mm x 13.90mm)	0.866 (22.00mm)	PC Pins	0.984 (25.00mm)	High Frequency, Switching	-

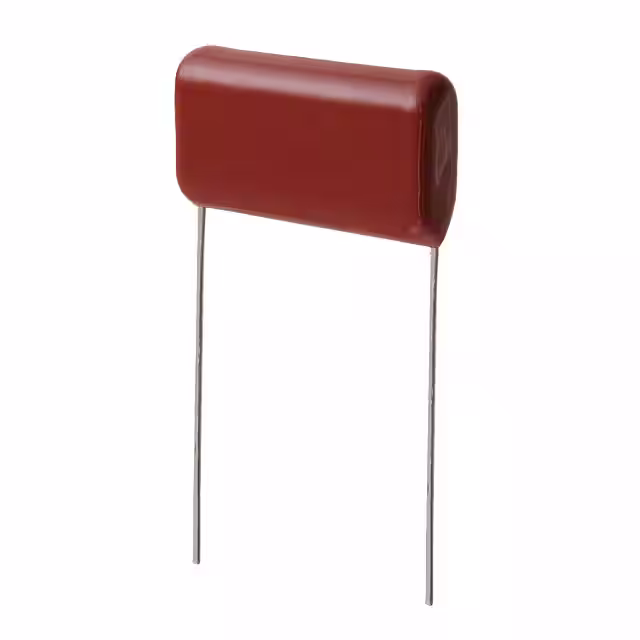

QXK2G155KTP CAP FILM 1.5UF 10% 400VDC RADIAL Nichicon	9,004	2.60	RFQ	Datasheet	Radial	Bulk	QXK	Active	1.5 µF	±10%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.201 L x 0.370 W (30.50mm x 9.40mm)	0.768 (19.50mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
R60IR4220AA30K CAP FILM 2.2UF 10% 250VDC RADIAL KEMET	6,480	2.61	RFQ	Datasheet	Radial	Box	R60	Active	2.2 µF	±10%	160V	250V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.673 (17.10mm)	PC Pins	1.083 (27.50mm)	Automotive	AEC-Q200
ECW-F4684JB CAP FILM 0.68UF 5% 400VDC RADIAL Panasonic Electronic Components	5,391	2.61	RFQ	Datasheet	Radial	Bulk	ECW-F(B)	Active	0.68 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Through Hole	0.906 L x 0.571 W (23.00mm x 14.50mm)	0.906 (23.00mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
