Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECH-U1H471JB5 CAP FILM 470PF 5% 50VDC 0805 Panasonic Electronic Components	11,808	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	470 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
ECW-HA3C752H4 CAP FILM 7500PF 3% 1.6KVDC RAD Panasonic Electronic Components	12,222	0.84	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	ECW-H(A)	Active	7500 pF	±3%	-	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.701 L x 0.256 W (17.80mm x 6.50mm)	0.488 (12.40mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
B32620A4333K289 CAP FILM 0.033UF 10% 400VDC RAD EPCOS - TDK Electronics	10,686	0.84	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3262* - MKP High Pulse (stacked)	Active	0.033 µF	±10%	200V	400V	Polypropylene (PP), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.406 L x 0.236 W (10.30mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.295 (7.50mm)	High Pulse, DV/DT	-
B32021A3103M189 CAP FILM 10000PF 20% 300VAC RAD EPCOS - TDK Electronics	11,762	0.85	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3202* - Y2 Standard	Active	10000 pF	±20%	300V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	Y2
R75RI2150DQ30J CAP FILM 0.015UF 5% 1.25KVDC RAD KEMET	11,754	0.86	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	R75	Active	0.015 µF	±5%	600V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.236 W (18.00mm x 6.00mm)	0.476 (12.10mm)	PC Pins	0.591 (15.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
B32529C3474K189 CAP FILM 0.47UF 10% 250VDC RAD EPCOS - TDK Electronics	13,486	0.87	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3252* - MKT General Purpose	Active	0.47 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.307 L x 0.307 W (7.80mm x 7.80mm)	0.512 (13.00mm)	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
F881KM472M300L CAP FILM 4700PF 20% 1KVDC RADIAL KEMET	12,167	0.87	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	F881	Active	4700 pF	±20%	300V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	-
BFC237076224 CAP FILM 0.22UF 5% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	10,380	0.87	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	MKT370	Active	0.22 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.315 (8.00mm)	PC Pins	0.200 (5.08mm)	Automotive	AEC-Q200
ECW-U1682JX5 CAP FILM 6800PF 5% 100VDC 1210 Panasonic Electronic Components	10,397	0.89	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(X)	Active	6800 pF	±5%	40V	100V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.067 (1.70mm)	Solder Pads	-	General Purpose	-
B32652A4334J189 CAP FILM 0.33UF 5% 400VDC RADIAL EPCOS - TDK Electronics	10,847	0.91	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3265* - MKP General Purpose	Active	0.33 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.571 (14.50mm)	PC Pins	0.591 (15.00mm)	Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber	AEC-Q200
ECH-U1C223JB5 CAP FILM 0.022UF 5% 16VDC 1206 Panasonic Electronic Components	13,046	0.92	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	0.022 µF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
R46KF3100CKP0K CAP FILM 0.1UF 10% 560VDC RADIAL KEMET	12,686	0.94	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	R46	Active	0.1 µF	±10%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.476 (12.10mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	X2
ECH-U1H151GB5 CAP FILM 150PF 2% 50VDC 0805 Panasonic Electronic Components	14,295	0.94	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	150 pF	±2%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
ECQ-U2A152MV CAP FILM 1500PF 20% 250VAC RAD Panasonic Electronic Components	781	0.94	RFQ	Datasheet	Radial	Bulk	ECQ-UV	Obsolete	1500 pF	±20%	250V	-	Polyester, Metallized	-	-40°C ~ 85°C	Through Hole	0.689 L x 0.157 W (17.50mm x 4.00mm)	0.433 (11.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
SMDTD02330QA00MP00 CAP FILM 0.033UF 20% 100VDC 2220 WIMA	13,418	0.94	RFQ	Datasheet	2220 (5750 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	0.033 µF	±20%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Surface Mount	0.224 L x 0.201 W (5.70mm x 5.10mm)	0.150 (3.80mm)	Solder Pads	-	General Purpose	-
ECW-U4332V17 CAP FILM 3300PF 5% 400VDC 1913 Panasonic Electronic Components	14,205	0.95	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-UC(V17)	Active	3300 pF	±5%	157V	400V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.055 (1.40mm)	Solder Pads	-	DC Link, DC Filtering	-
ECW-U4222V17 CAP FILM 2200PF 5% 400VDC 1913 Panasonic Electronic Components	10,770	0.95	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-UC(V17)	Active	2200 pF	±5%	157V	400V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.063 (1.60mm)	Solder Pads	-	DC Link, DC Filtering	-

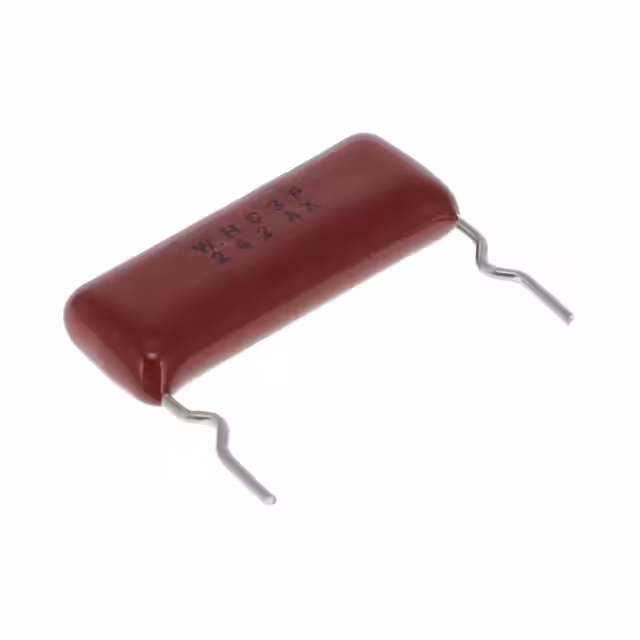

ECW-HC3F242JQ CAP FILM 2400PF 5% 3KVDC RADIAL Panasonic Electronic Components	11,236	0.97	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	2400 pF	±5%	-	3000V (3kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.016 L x 0.240 W (25.80mm x 6.10mm)	0.429 (10.90mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
ECW-U2123V16 CAP FILM 0.012UF 5% 250VDC 1913 Panasonic Electronic Components	7,364	1.20	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(V16)	Active	0.012 µF	±5%	-	250V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.067 (1.70mm)	Solder Pads	-	High Frequency, Switching; High Pulse, DV/DT	-
ECW-U1473KC9 CAP FILM 0.047UF 10% 100VDC 1913 Panasonic Electronic Components	8,621	1.21	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(C)	Active	0.047 µF	±10%	40V	100V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.087 (2.20mm)	Solder Pads	-	General Purpose	-
