| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM4224WARWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
5,644 | 8.10 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | 2 | 5000Vrms | 25kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM4224WBRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
8,654 | 8.10 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | -40°C ~ 125°C | Surface Mount |
|
SI823H2CD-IS35KV GATE DRIVER 14-WBSOIC |
6,338 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H3CD-IS35KV GATE DRIVER 14-WBSOIC |
5,728 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 116ns, 116ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H4AD-IS35KV GATE DRIVER 14-WBSOIC |
9,626 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H4CD-IS35KV GATE DRIVER 14-WBSOIC |
5,947 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H5AD-IS35KV GATE DRIVER 14-WBSOIC |
5,856 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H6AD-IS35KV GATE DRIVER 14-WBSOIC |
6,440 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H7AD-IS35KV GATE DRIVER 14-WBSOIC |
9,632 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H3BD-IS35KV GATE DRIVER 14-WBSOIC |
8,842 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 116ns, 116ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H5BD-IS35KV GATE DRIVER 14-WBSOIC |
5,315 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI823H6BD-IS35KV GATE DRIVER 14-WBSOIC |
5,049 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|

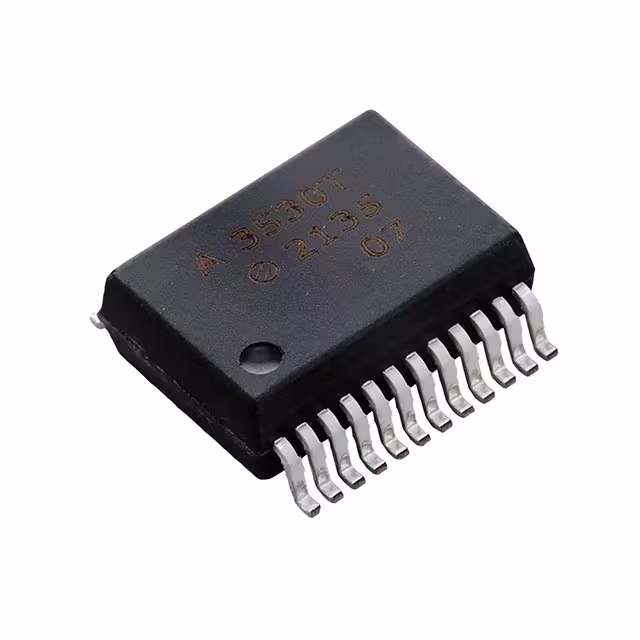

ACFJ-3530T-000EAUTOMOTIVE OPTOCOUPLER, LF |
9,300 | 7.28 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 2.5A | 1.55V | - | 15.2V ~ 16.8V | -40°C ~ 125°C | Surface Mount |
|
ADUM4221-2CRIZ1/2 BRIDGE DRV ISO LOGIC INPUT U |
6,355 | 8.27 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | 2 | 5700Vrms | 150kV/µs | 33ns, 44ns | 16ns | 25ns, 30ns | - | 4A | - | - | 4.5V ~ 35V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM4221-2BRIZ1/2 BRIDGE DRV ISO LOGIC INPUT U |
8,874 | 8.27 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | 2 | 5700Vrms | 150kV/µs | 33ns, 44ns | 16ns | 25ns, 30ns | - | 4A | - | - | 4.5V ~ 35V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM3223WBRZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
5,305 | 7.39 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | -40°C ~ 125°C | Surface Mount |
|
ADUM4135WBRWZAUTO, ISO HALF-BRIDGE GATE DRIVE |
9,904 | 8.44 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 70ns, 70ns | - | 16ns, 16ns | 13A, 14A | 4.61A | - | - | 12.25V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI82521AD-IS35KV GATE DRIVER 14-WBSOIC |
8,604 | 7.57 |
RFQ |
Datasheet |
Tube | Si8252x | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI82520BD-IS35KV GATE DRIVER 14-WBSOIC |
8,311 | 7.57 |
RFQ |
Datasheet |
Tube | Si8252x | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI82521BD-IS35KV GATE DRIVER 14-WBSOIC |
5,744 | 7.57 |
RFQ |
Datasheet |
Tube | Si8252x | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
