| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD3150SVOPTOISO 5KV 1CH GATE DRIVER 8SMD |
14,002 | 0.89 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
FOD3150ASDVOPTOISO 5KV 1CH GATE DRIVER 8DIP |
13,785 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
FOD3150AOPTOISO 5KV 1CH GATE DRIVER 8DIP |
11,919 | 0.86 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
FOD3150SDVOPTOISO 5KV 1CH GATE DRIVER 8SMD |
13,242 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-0302-560EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,451 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-3020-360EOPTOISO 3.75KV GATE DVR 8DIP GW |
12,530 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
VOD3120AB-VTOPTOISO IGBT MOSFET DRIVER 2.5A |
7,163 | 2.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|

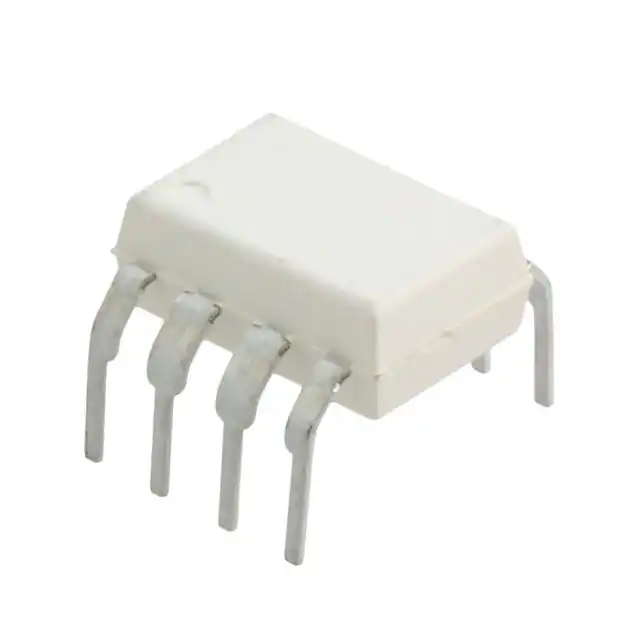

FOD3150TVOPTOISO 5KV 1CH GATE DRIVER 8DIP |
11,298 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
HCPL-T251-500EOPTOISO 3.75KV GATE DRVR 8DIP GW |
13,900 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Surface Mount |
|
|
HCPL-0314-060EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,607 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
TLP5751H(LF4,EGATE DRIVE COUPLER; 125C OPER TE |
11,335 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5751H(D4LF4,EGATE DRIVE COUPLER; 125C OPER TE |
14,854 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP5771(D4-TP,EGATE DRIVE COUPLER; LOW INPUT CU |
10,266 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-T251-300EOPTOISO 3.75KV GATE DRVR 8DIP GW |
11,767 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Surface Mount |
|
|
TLP5751(TP,EOPTOISO 5KV 1CH GATE DRIVER 6SO |
13,037 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5751(TP4,EDRIVER COUPLER; 1A; RAIL-TO-RAIL |
14,887 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-0314-560EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,324 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
TLP5771H(D4-TP,EGATE DRIVE COUPLER; 1A; HIGH TEM |
11,957 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5771H(TP,EGATE DRIVE COUPLER; 1A; HIGH TEM |
13,816 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 56ns, 25ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5751(D4-TP,EOPTOISO 5KV 1CH GATE DRIVER 6SO |
13,209 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
