| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-7710-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
9,856 | 6.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-2231-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
8,916 | 6.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
ACPL-074L-500EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
5,011 | 6.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-077L-000EOPTOISO 3.75KV PUSH PULL 8SO |
8,309 | 3.52 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 35kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 4ns, 3ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACNV2601-500EOPTOISO 7.5KV OPEN COLL 10DIP GW |
6,514 | 7.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

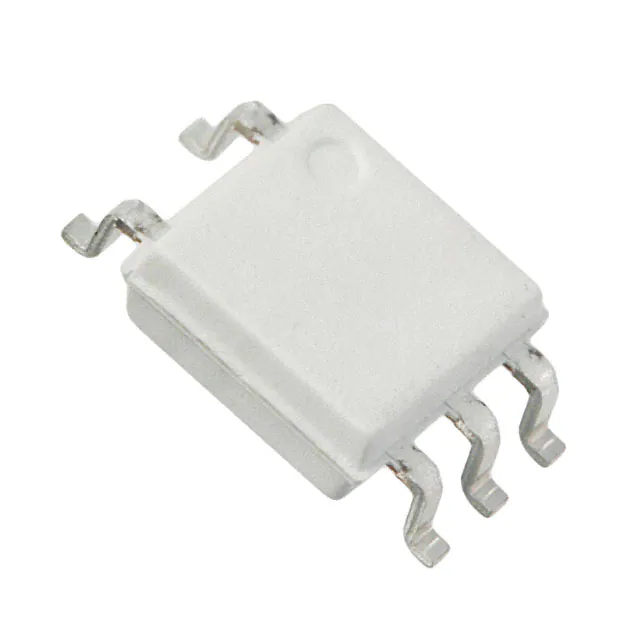

FODM8071OPTOISO 3.75KV PUSH PULL 5MFP |
7,644 | 3.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-0211-000EOPTOISO 3.75KV PUSH PULL 8SO |
8,677 | 3.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
HCNW2601-000EOPTOISO 5KV OPEN COLLECTOR 8DIP |
5,453 | 3.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCNW4506-300EOPTOISO 5KV OPEN COLL 8DIP GW |
6,236 | 3.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-2211-000EOPTOISO 3.75KV PUSH PULL 8DIP |
9,821 | 4.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
HCNW2611-300EOPTOISO 5KV OPEN COLL 8DIP GW |
5,396 | 4.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2630-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
7,520 | 4.40 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2630-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
6,410 | 4.47 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-024L-000EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
9,493 | 4.57 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
HCNW2201-300EOPTOISO 5KV PUSH PULL 8DIP GW |
8,236 | 4.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0300-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
7,701 | 9.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
HCNW2211-000EOPTOISO 5KV PUSH PULL 8DIP |
8,796 | 4.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-263L-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
5,880 | 5.70 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACPL-K64L-060EOPTOISO 5KV 2CH PUSH PULL 8SO |
8,011 | 6.40 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACSL-7210-00REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
7,417 | 6.51 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
