| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTV-816OPTOISOLATR 5KV TRANSISTOR 4-DIP |
13,748 | 0.39 |
RFQ |
Datasheet |
Tube | LTV-816 | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 110°C | Through Hole |
|

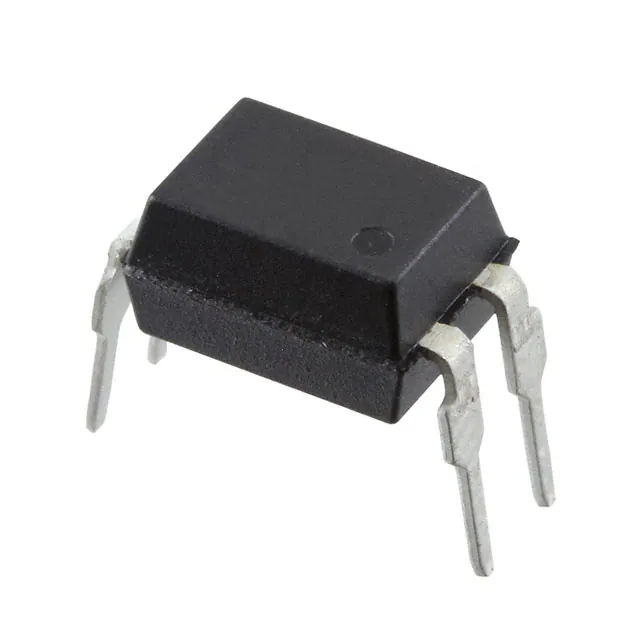

LTV-817OPTOISOLATR 5KV TRANSISTOR 4-DIP |
13,889 | 0.39 |
RFQ |
Datasheet |
Tube | LTV-8x7 | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Through Hole |
|
VO615AOPTOISOLATR 5KV TRANSISTOR 4-DIP |
13,200 | 0.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
VO617A-3X016OPTOISOLATOR 5.3KV TRANS 4-DIP |
14,334 | 0.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 5mA | 200% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
VOM452TOPTOISOLATOR 3.75KV TRANS 5-SOP |
8,928 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
FOD8523SDOPTOISOLATOR 5KV DARLINGTON 4SMD |
6,137 | 1.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
|
|
LTV-817-AOPTOISOLATR 5KV TRANSISTOR 4-DIP |
12,069 | 0.43 |
RFQ |
Datasheet |
Tube | LTV-8x7 | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Through Hole |
|
4N35OPTOISO 3.55KV TRANS W/BASE 6DIP |
12,346 | 0.46 |
RFQ |
Datasheet |
Tube | 4N3X | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
4N25OPTOISO 2.5KV TRANS W/BASE 6DIP |
10,524 | 0.46 |
RFQ |
Datasheet |
Tube | 4N2X | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
4N26OPTOISO 1.5KV TRANS W/BASE 6DIP |
10,580 | 0.46 |
RFQ |
Datasheet |
Tube | 4N2X | Active | 1 | 1500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
TLP621XGBOPTOISO 5.3KV 1CH TRANS 4DIP |
11,331 | 0.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
4N37OPTOISO 1.5KV TRANS W/BASE 6DIP |
14,913 | 0.46 |
RFQ |
Datasheet |
Tube | 4N3X | Active | 1 | 1500Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
PS2503L-1-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
8,901 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Not For New Designs | 1 | 5000Vrms | 100% @ 1mA | 400% @ 1mA | - | 20µs, 30µs | DC | Transistor | 40V | 30mA | 1.1V | 80 mA | 250mV | -55°C ~ 100°C | Surface Mount |
|
4N35SOPTOISO 3.55KV TRANS W/BASE 6SMD |
10,576 | 0.47 |
RFQ |
Datasheet |
Tube | 4N3X | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
4N25SOPTOISO 2.5KV TRANS W/BASE 6SMD |
13,138 | 0.47 |
RFQ |
Datasheet |
Tube | 4N2X | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2562L-1-F3-AOPTOISOLATOR 5KV DARL 4SMD |
6,097 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 1 | 5000Vrms | 200% @ 1mA | - | - | 100µs, 100µs | DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
|
CNY17F-3OPTOISOLTR 5KV TRANSISTOR 6-DIP |
13,965 | 0.49 |
RFQ |
Datasheet |
Tube | CNY17F | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
CNY17F-2OPTOISOLTR 5KV TRANSISTOR 6-DIP |
10,410 | 0.49 |
RFQ |
Datasheet |
Tube | CNY17F | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | - | 5µs, 5µs | DC | Transistor | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
CNY17F-4OPTOISOLTR 5KV TRANSISTOR 6-DIP |
10,158 | 0.49 |
RFQ |
Datasheet |
Tube | CNY17F | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | - | 5µs, 5µs | DC | Transistor | 70V | 150mA | 1.45V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
CNY17-3.OPTOISO 5KV TRANS W/BASE 6DIP |
14,559 | 0.66 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
-
