| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N25XSMOPTOISO 5.3KV TRANS W/BASE 6SMD |
11,632 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
FODM217C4 PIN TRANSISTOR OUTPUT MFP |
12,046 | 0.63 |
RFQ |
Datasheet |
Tube | FODM217 | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

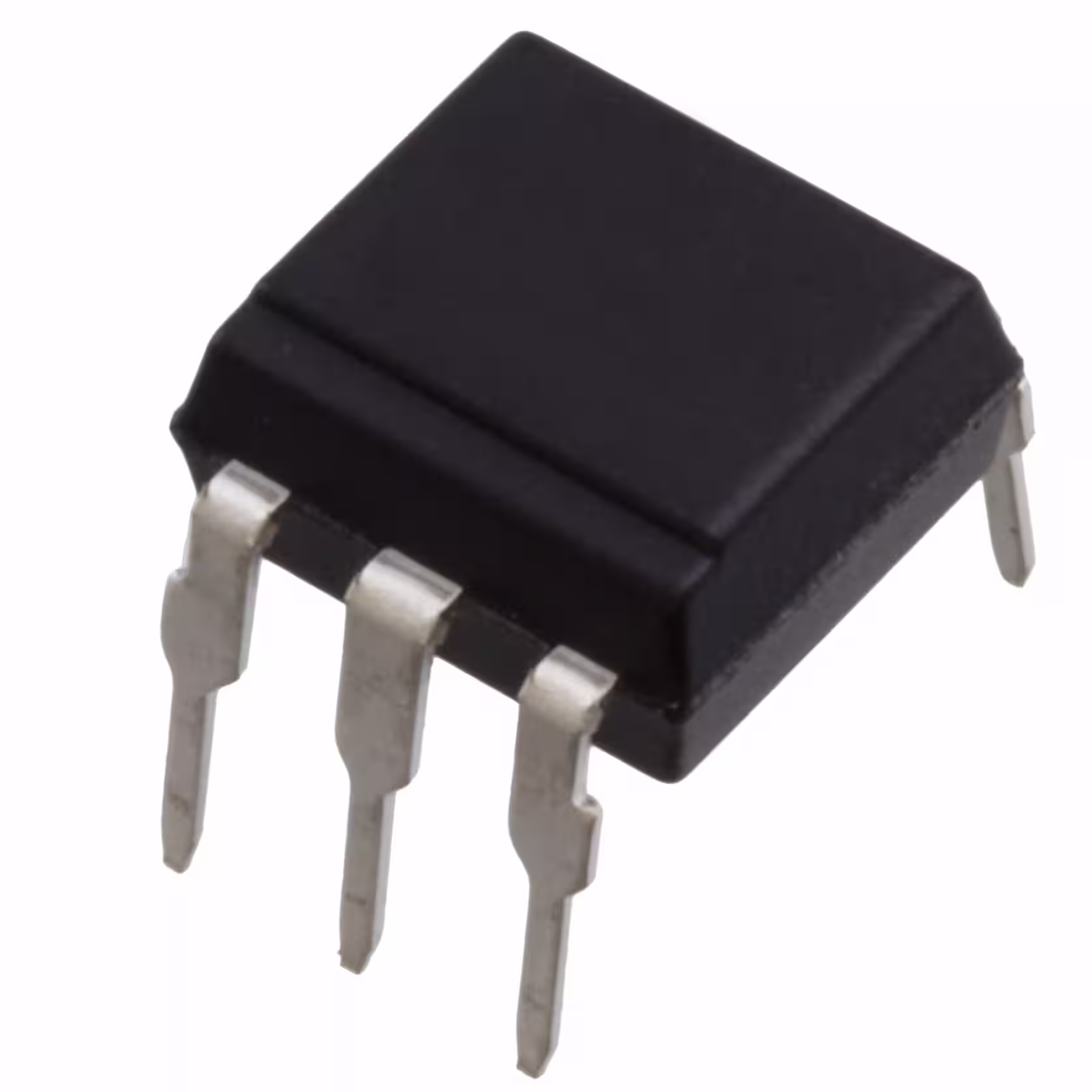

4N35-X000OPTOISO 5KV TRANS W/BASE 6DIP |
10,337 | 0.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
SFH615A-4XSMOPTOISOLATOR 5.3KV TRANS 4SMD |
10,546 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 25µs | 4.6µs, 15µs | DC | Transistor | 70V | 50mA | 1.65V (Max) | 50 mA | 400mV | -30°C ~ 100°C | Surface Mount |
|
4N32OPTOCOUPLER DARLINGTON 6DIP |
11,721 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 10mA | - | 5µs, 100µs | - | DC | Darlington | 30V | - | 1.2V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
PS2501-1XSMOPTOISO 5.3KV TRANS 4SMD |
11,966 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Surface Mount |
|
|
ISP817XSMOPTOISO 5.3KV TRANS 4SMD |
14,669 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
TLP621XSMOPTOISO 5.3KV TRANS 4SMD |
12,446 | 0.64 |
RFQ |
Tube | - | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount | |
|
4N36MOPTOISO 4.17KV TRANS W/BASE 6DIP |
13,222 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | -40°C ~ 100°C | Through Hole |
|
4N35-300EOPTOISO 3.55KV TRANS W/BASE 6SMD |
13,774 | 0.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
FOD2741BSDVOPTOISOLATOR 5KV TRANSISTOR 8SMD |
9,869 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Surface Mount |
|
CNY17-2-000EOPTOISO 5KV TRANS W/BASE 6DIP |
14,204 | 0.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
LTV-8141OPTOISOLTR 5KV DARLINGTON 4-DIP |
14,700 | 0.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | AC, DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
FOD814A300WOPTOISOLATOR 5KV TRANSISTOR 4DIP |
10,887 | 0.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 105°C | Through Hole |
|
|
CNY173MOPTOISO 4.17KV TRANS W/BASE 6DIP |
10,338 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
PS2535L-1-F3-AOPTOISOLATOR 5KV DARL 4SMD |
8,383 | 1.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 1 | 5000Vrms | 400% @ 1mA | 5500% @ 1mA | - | 18µs, 5µs | DC | Darlington | 350V | 120mA | 1.2V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
LTV-8141SOPTOISOLTR 5KV DARLINGTON 4-SMD |
14,027 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | AC, DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
.JPG)
|
TLP109(IGM-TPR,EOPTOISO 3.75KV TRANS 6-SO 5 LEAD |
7,309 | 1.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 25% @ 10mA | 75% @ 10mA | 450ns, 450ns | - | DC | Transistor | 20V | 8mA | 1.64V | 20 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
FODM217DOPTOISO 3.75KV 1CH TRANS 4SOP |
14,121 | 0.73 |
RFQ |
Datasheet |
Tube | FODM217 | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
FODM121AOPTOISO 3.75KV TRANSISTOR 4SMD |
13,525 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 80mA | 1.3V (Max) | 50 mA | 400mV | -40°C ~ 110°C | Surface Mount |
-
