| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

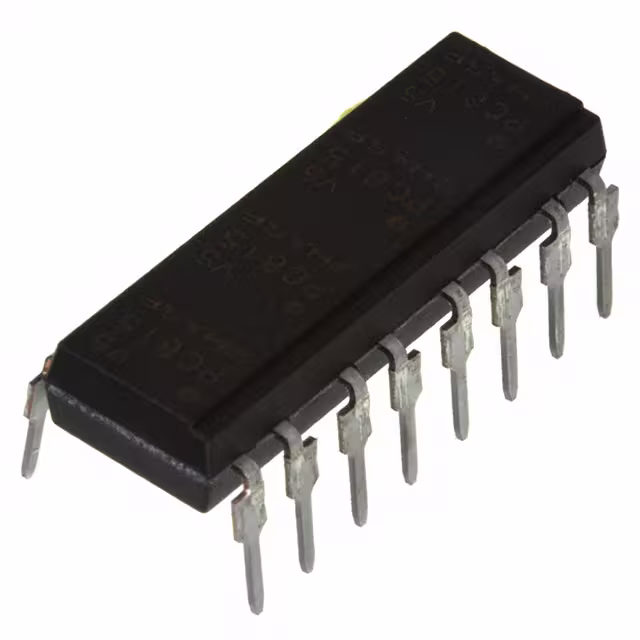

PC845XJ0000FOPTOISO 5KV 4CH DARLINGTON 16DIP |
3,127 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5000Vrms | 600% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
PC847X0J000FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
3,484 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
PC81718NSZ0FOPTOISOLATOR 5KV TRANS 4DIP |
2,037 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 120% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|

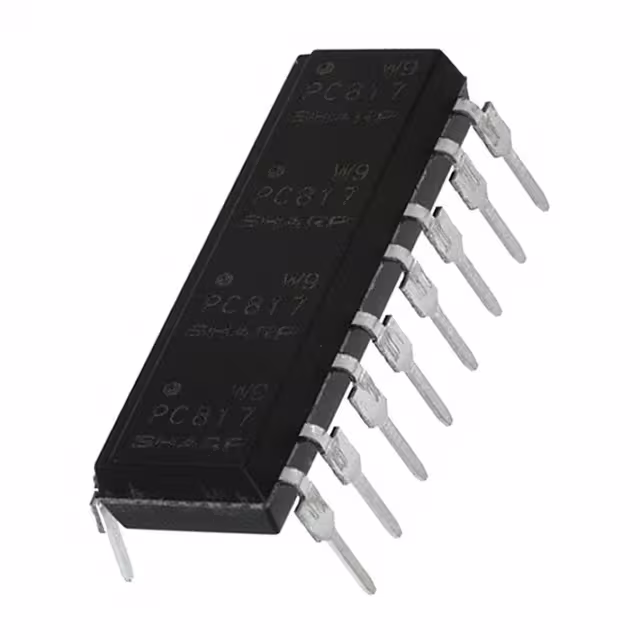

PC847X5J000FOPTOISOLTR 5KV 4CH TRANS 16-DIP |
3,737 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5000Vrms | 80% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
PC847XIJ000FOPTOISOLTR 5KV 4CH TRANS 16-SMD |
2,570 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
4N32(SHORT,F)OPTOISO 2.5KV DARL W/BASE 6DIP |
3,642 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 500% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 100mA | 1.15V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
4N35(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
2,499 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 40% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 30V | 100mA | 1.15V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
4N38(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
3,569 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 10% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | 100mA | 1.15V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
6N136FOPTOISO 2.5KV TRANS W/BASE 8DIP |
2,346 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 19% @ 16mA | - | 200ns, 500ns | - | DC | Transistor with Base | 15V | 8mA | 1.65V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
6N138FOPTOISO 2.5KV DARL W/BASE 8DIP |
3,024 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 300% @ 1.6mA | - | 1µs, 4µs | - | DC | Darlington with Base | 18V | 60mA | 1.65V | 20 mA | - | 0°C ~ 70°C | Through Hole |
|
|
6N139(F)OPTOISO 2.5KV DARL W/BASE 8DIP |
2,082 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 500% @ 1.6mA | - | 200ns, 1µs | - | DC | Darlington with Base | 18V | 60mA | 1.65V | 20 mA | - | 0°C ~ 70°C | Through Hole |
|
TLP126(F)OPTOISOLTR 3.75KV TRANS 6-MFSOP |
3,339 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 3750Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
TLP137(F)OPTOISO 3.75KV TRANS 6-MFSOP |
2,448 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 3750Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor with Base | 80V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
TLP280-4(GB,J,F)OPTOISO 2.5KV 4CH TRANS 16-SOP |
2,224 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 2500Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
TLP331(F)OPTOISO 5KV TRANS W/BASE 6DIP |
3,777 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP332(F)OPTOISOLATR 5KV TRANSISTOR 6-DIP |
2,211 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP371FOPTOISO 5KV DARL W/BASE 6DIP |
3,725 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington with Base | 300V | 150mA | 1.15V | 60 mA | 1.2V | -55°C ~ 100°C | Through Hole |
.jpg)
|
TLP371(TP1,F)OPTOISO 5KV DARL W/BASE 6SMD |
3,990 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington with Base | 300V | 150mA | 1.15V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|
TLP504A-2(GB,F)OPTOISO 2.5KV 4CH TRANS 16-DIP |
2,778 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 2500Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP504A(GB,F)OPTOISOLTR 2.5KV 2CH TRANS 8-DIP |
3,918 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 2500Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
-
