| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP550(F)OPTOISOLATOR 2.5KV TRANS 8-DIP |
3,259 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 10% @ 16mA | - | 300ns, 1µs | - | DC | Transistor | 15V | 8mA | 1.65V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
TLP559(F)OPTOISOLATOR 2.5KV TRANS 8-DIP |
2,537 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 20% @ 16mA | - | 200ns, 300ns | - | DC | Transistor | 15V | 8mA | 1.65V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
TLP620(F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
13,907 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP620-2(F)OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
11,165 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
TLP620-4(F)OPTOISOLTR 5KV 4CH TRANS 16-DIP |
14,107 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|

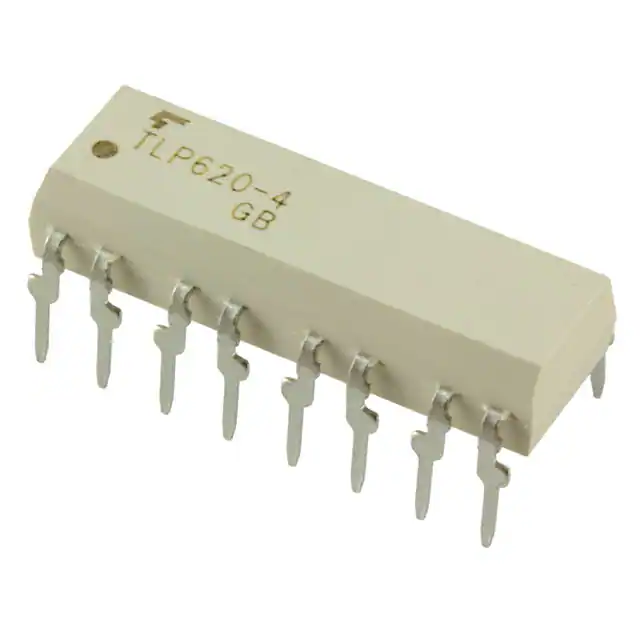

TLP620-4(GB,F)OPTOISOLTR 5KV 4CH TRANS 16-DIP |
12,041 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 4 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP624FOPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,453 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP624-2(F)OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
2,028 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
TLP624LF1FOPTOISOLATR 5KV TRANSISTOR 4-SMD |
3,779 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
TLP626(F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
12,882 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP626-2(F)OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
13,289 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP626(BV,F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
12,801 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 | 5000Vrms | 200% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP627-4FOPTOISO 5KV 4CH DARLINGTON 16DIP |
3,810 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 4 | 5000Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.15V | 50 mA | 1.2V | -55°C ~ 100°C | Through Hole |
|
TLP630(GB,F)OPTOISO 5KV TRANS W/BASE 6DIP |
14,136 | 0.00 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP631(F)OPTOISO 5KV TRANS W/BASE 6DIP |
3,847 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP631(GB,F)OPTOISO 5KV TRANS W/BASE 6DIP |
2,869 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP632(GB,F)OPTOISOLATR 5KV TRANSISTOR 6-DIP |
2,803 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP732(D4-GR-LF2,FOPTOISOLATR 4KV TRANSISTOR 6DIP |
3,407 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 4000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
FOD2743ASDVOPTOISOLATOR 5KV TRANSISTOR 8SMD |
2,627 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | -40°C ~ 85°C | Surface Mount |
|
|
FOD2743CSDVOPTOISOLATOR 5KV TRANSISTOR 8SMD |
2,913 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | -40°C ~ 85°C | Surface Mount |
-
