| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

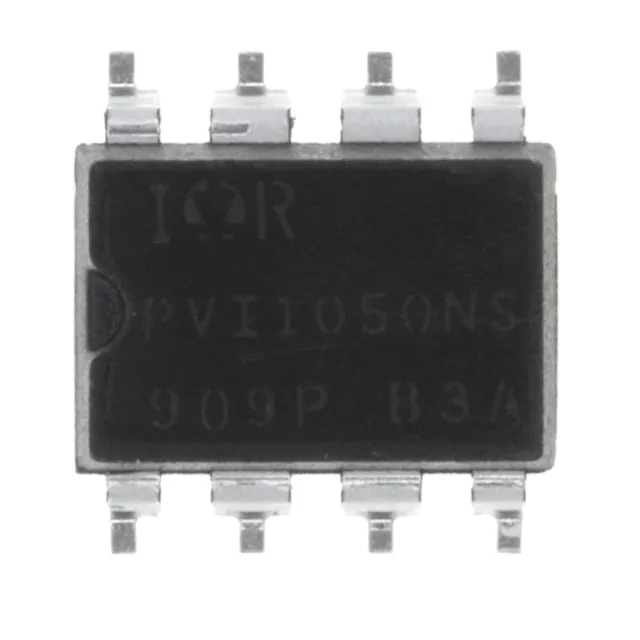

PVI1050NS-TPBFOPTOISO 2.5KV 2CH PHVOLT 8-SMT |
3,601 | 10.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PVI | Active | 2 | 2500Vrms | - | - | 300µs, 220µs (Max) | - | DC | Photovoltaic | 5V | 5µA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
HCPL-3760-000EOPTOISO 3.75KV DARLINGTON 8-DIP |
5,656 | 6.86 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | 4.5µs, 8µs | 14µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Through Hole |
|

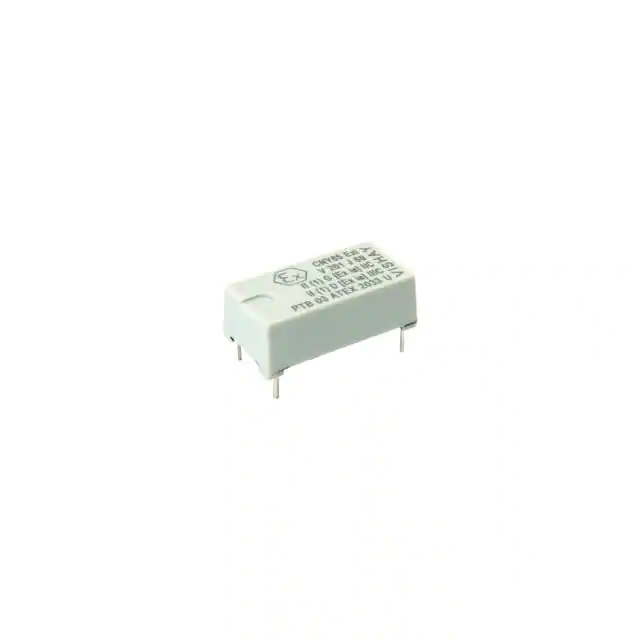

CNY65EXIOPTOISOLATOR 11.6KV TRANS 4-DIP |
5,229 | 6.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 11600VDC | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.4µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
IL300-EF-X007OPTOISO 5.3KV PHVOLT 8SMD |
9,179 | 6.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
IL300-EFOPTOISO 5.3KV LINEAR PHVOLT 8DIP |
5,206 | 6.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|

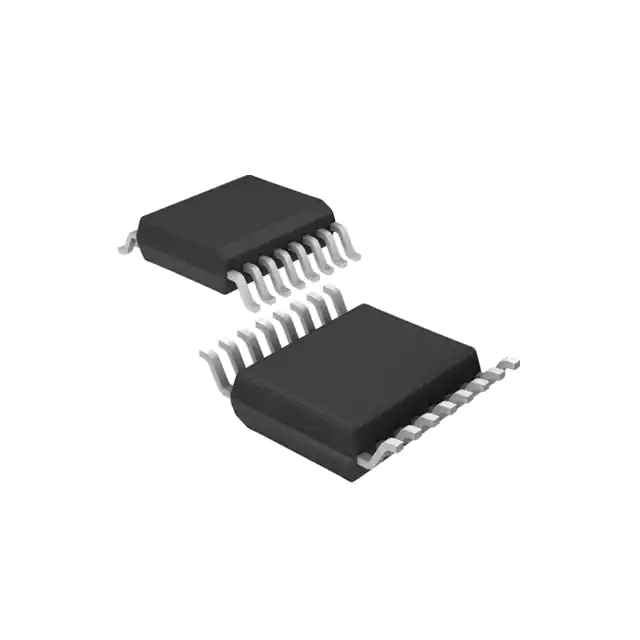

PS2806-4-AOPTOISOLTR 2.5KV 4CH DARL 16SOIC |
8,495 | 7.56 |
RFQ |
Datasheet |
Strip | NEPOC | Not For New Designs | 4 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | AC, DC | Darlington | 40V | 100mA | 1.1V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
.jpg)
|
HCNR201OPTOISO 5KV LINEAR PHVOLT 8DIP |
6,856 | 7.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|

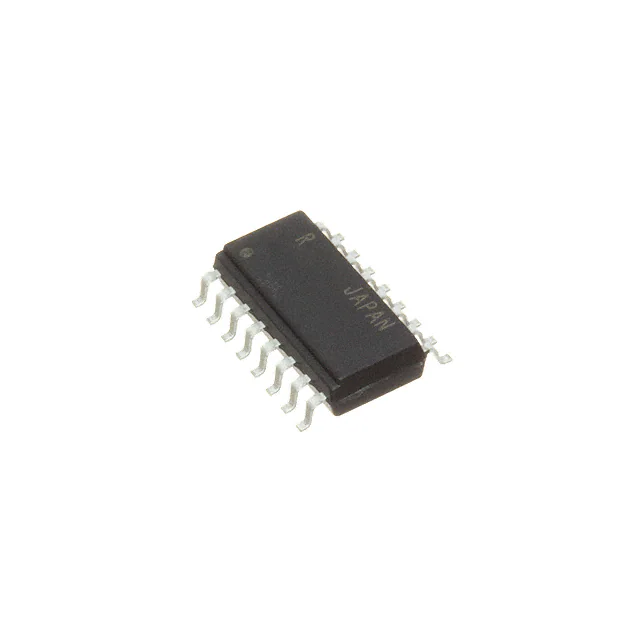

PS2833-4-AOPTOISOLTR 2.5KV 4CH DARL 16SOIC |
8,795 | 7.89 |
RFQ |
Datasheet |
Strip | NEPOC | Not For New Designs | 4 | 2500Vrms | 400% @ 1mA | 4500% @ 1mA | - | 20µs, 5µs | DC | Darlington | 350V | 60mA | 1.2V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|

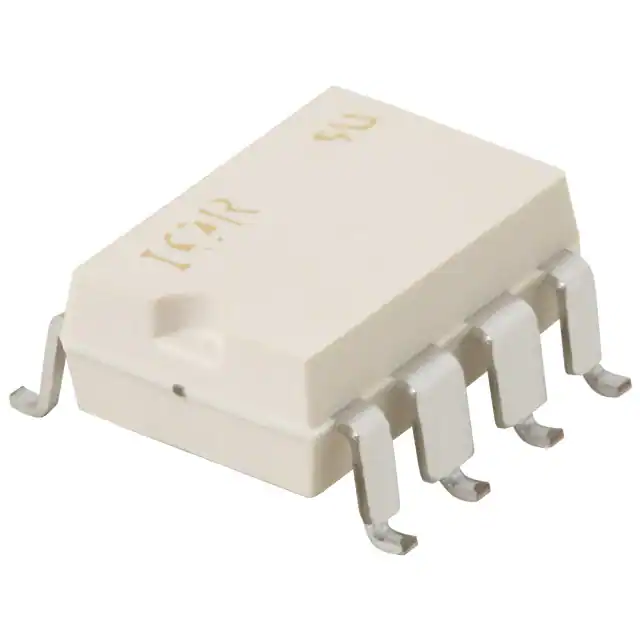

PVI1050NSPBFOPTOISO 2.5KV 2CH PHVOLT 8-SMT |
1,539 | 10.89 |
RFQ |
Datasheet |
Tube | PVI | Active | 2 | 2500Vrms | - | - | 300µs, 220µs (Max) | - | DC | Photovoltaic | 5V | 5µA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
|
IL300-EOPTOISO 5.3KV LINEAR PHVOLT 8DIP |
3,895 | 11.41 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
IL300-F-X007OPTOISO 5.3KV PHVOLT 8SMD |
1,859 | 11.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
4N49UOPTOISO 1KV TRANS W/BASE 6LCC |
4,609 | 21.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000Vrms | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.5V | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
4N49UTXOPTOISO 1KV TRANS W/BASE 6LCC |
4,470 | 34.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 45V | - | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
OPTO-150HV OPTOCOUPLER, 15KV RATED, 100U |
3,523 | 87.82 |
RFQ |
Datasheet |
Bulk | OPTO-150 | Active | 1 | - | - | - | 2µs, 2µs | - | DC | Photovoltaic | - | - | 3.25V | 360 mA | - | -40°C ~ 85°C | Through Hole |
|
6N140A/883BOPTOISO 1.5KV 4CH DARLNG 16-DIP |
730 | 106.48 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
|
8302401EAOPTOISO 1.5KV 4CH DARLNG 16-DIP |
661 | 106.91 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
|
HCPL-5701OPTOISO 1.5KV DARLINGTON 8-DIP |
817 | 109.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
HCPL-6750OPTOISO 1.5KV 4CH DARL 16FLATPAK |
400 | 135.35 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
-G.jpg)
|
EL8171S1(TU)-GOPTOISOLTR |
14,729 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EL817-G | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
VO617A-3X017TOPTOISOLATOR 5.3KV TRANS 4-SMD |
12,637 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 5mA | 200% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
-
