PMIC - Gate Drivers

Manufacturer	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
Allegro MicroSystems Alpha & Omega Semiconductor Inc. Analog Devices Inc. Analog Devices Inc./Maxim Integrated CISSOID Dialog Semiconductor GmbH Diodes Incorporated Elantec EPC Fairchild Semiconductor Freescale Semiconductor Harris Corporation Infineon Technologies International Rectifier Intersil Inventchip IXYS IXYS Integrated Circuits Division IXYS-RF Linear Technology Melexis Technologies NV Micrel Inc. Microchip Technology Microsemi Corporation Monolithic Power Systems Inc. Motorola National Semiconductor Nisshinbo Micro Devices Inc. NXP USA Inc. onsemi Power Integrations Powerex Inc. pSemi Renesas Electronics America Inc Richtek USA Inc. Rochester Electronics, LLC Rohm Semiconductor Sanken Sanyo Semtech Corporation SimpleChips SMSC STMicroelectronics Tamura Texas Instruments Toshiba Semiconductor and Storage Trinamic Motion Control GmbH Unitrode Vishay Siliconix	Box Bulk Bulk,Bulk Bulk,Tray Bulk,Tube Bulk,Tube,Tube Cut Tape (CT) Cut Tape (CT),Bulk Cut Tape (CT),Digi-Reel® Strip Tape & Reel (TR) Tape & Reel (TR),Bulk Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Bulk Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Tape & Reel (TR) Tape & Reel (TR),Tape & Reel (TR),Bulk Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tray Tray,Tray Tube Tube,Tube	* - ADP3412 ADP3413 ADP3417 Advanced Smart Rectifier™ Automotive Automotive, AEC-Q100 Automotive, AEC-Q100, EiceDriver™ Automotive, AEC-Q100, FLEXMOS™ Automotive, AEC-Q100, Functional Safety (FuSa) Automotive, AEC-Q101 Combi-Sense® CoreControl™ EiceDriver™ FLEXMOS™ iMOTION™ ISOSMART™ IttyBitty® Military, MIL-STD-883 MOTIX™ OptiMOS™ SCALE™-1 SCALE™-2 SmartRectifier™ µHVIC™	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete	- Full-Bridge Half-Bridge Half-Bridge, Low-Side High-Side High-Side and Low-Side High-Side or Low-Side Low-Side	- 3-Phase Independent Single Synchronous	- 1 2 3 4 6 8	- Enhanced Mode GaN FET IGBT IGBT, N-Channel MOSFET IGBT, N-Channel, P-Channel MOSFET IGBT, SiC MOSFET N-Channel MOSFET N-Channel, P-Channel MOSFET P-Channel MOSFET SiC MOSFET	- -10V ~ 25V 0.3V ~ 60V 0V ~ 100V 0V ~ 16V 0V ~ 18V 1.8V ~ 5.5V 1.8V ~ 6V 10.2V ~ 20V 10.5V ~ 13.5V 10.8V ~ 13.2V 10.8V ~ 16.5V 10V ~ 12V 10V ~ 13.2V 10V ~ 13.5V 10V ~ 15.4V 10V ~ 15.6V 10V ~ 15V 10V ~ 16.6V 10V ~ 16V 10V ~ 17.5V 10V ~ 18V 10V ~ 20V 10V ~ 22V 10V ~ 24V 10V ~ 25V 10V ~ 32V 10V ~ 35V 10V ~ 450V 10V ~ 56V 10V ~ 60V 11.2V ~ 20V 11.4V ~ 12.6V 11.4V ~ 18V 11.5V ~ 20V 11V ~ 18V 11V ~ 19V 11V ~ 20V 11V ~ 50V 12.5V ~ 20V 12.5V ~ 35V 12.7V ~ 20V 12V (Max) 12V ~ 16V 12V ~ 18V 12V ~ 20V 12V ~ 26V 12V ~ 36V 13.5V ~ 16.5V 13V ~ 17.5V 13V ~ 18V 13V ~ 20V 13V ~ 25V 13V ~ 28V 14.2V ~ 15.8V 14.3V ~ 15.7V 14.5V ~ 15.5V 14.5V ~ 16V 14.5V ~ 17.5V 14.6V ~ 16.6V 140V 14V ~ 15V 14V ~ 16V 14V ~ 17V 14V ~ 18V 15.5V ~ 16.8V 15.5V ~ 26.5V 15V 15V ~ 20V 15V ~ 24V 16V 16V ~ 30V 17V (Max) 18V 19V ~ 25V 2.35V ~ 7V 2.5V ~ 6.5V 2.75V ~ 30V 2.7V ~ 28V 2.7V ~ 5.5V 2.7V ~ 9V 20V 20V (Max) 22V 23.5V ~ 26.5V 24V 24V ~ 150V 25V (Max) 3.15V ~ 3.46V 3.15V ~ 5.5V 3.2V ~ 4.4V 3.3V 3.3V ~ 20V 3.3V ~ 5V 3.5V ~ 135V 3.5V ~ 14V 3.5V ~ 15V 3.5V ~ 40V 3.7V ~ 20V 35V 3V ~ 15V 3V ~ 18V 3V ~ 20V 3V ~ 36V 3V ~ 42V 3V ~ 5.5V 3V ~ 5.5V, 15V ~ 30V 4.15V ~ 13.2V 4.15V ~ 6V 4.15V ~ 7.5V 4.25V ~ 14.5V 4.25V ~ 15V 4.25V ~ 16V 4.25V ~ 26V 4.2V ~ 11V 4.2V ~ 5.5V 4.3V ~ 6.8V 4.4V ~ 20V 4.4V ~ 45V 4.4V ~ 6.5V 4.5 ~ 5.5V 4.5V ~ 11V 4.5V ~ 12V 4.5V ~ 13.2V 4.5V ~ 13.5V 4.5V ~ 13V 4.5V ~ 14V 4.5V ~ 15V 4.5V ~ 16.5V 4.5V ~ 16V 4.5V ~ 17V 4.5V ~ 18V 4.5V ~ 20V 4.5V ~ 25V 4.5V ~ 26V 4.5V ~ 28V 4.5V ~ 30V 4.5V ~ 32V 4.5V ~ 35V 4.5V ~ 40V 4.5V ~ 5.5V 4.5V ~ 50V 4.5V ~ 6.5V 4.5V ~ 60V 4.5V ~ 6V 4.5V ~ 7.5V 4.5V ~ 7V 4.5V ~ 8.8V 4.5V ~ 8V 4.6V ~ 13.2V 4.6V ~ 40V 4.6V ~ 5.5V 4.6V ~ 6V 4.75V ~ 28V 4.75V ~ 32V 4.75V ~ 5.25V 4.75V ~ 5.25V, 4.75V ~ 24V 4.75V ~ 5.25V, 6V ~ 18V 4.7V ~ 14V 4.7V ~ 15V 4.7V ~ 18V 4.8V ~ 20V 40V 40V (Max) 4V ~ 12.6V 4V ~ 14V 4V ~ 15.5V 4V ~ 15V 4V ~ 16V 4V ~ 18V 4V ~ 28V 4V ~ 36V 4V ~ 40V 4V ~ 5.25V 4V ~ 5.5V 4V ~ 6.5V 4V ~ 6.85V 4V ~ 6V 4V ~ 7V 5.25V ~ 16V 5.2V ~ 20V 5.5V 5.5V ~ 13.2V 5.5V ~ 16V 5.5V ~ 20V 5.5V ~ 24V 5.5V ~ 28V 5.5V ~ 35V 5.5V ~ 45V 5.5V ~ 50V 5.5V ~ 55V 5.5V ~ 60V 5.5V ~ 65V 5.5V ~ 80V 5.75V ~ 26V 5V 5V ~ 10V 5V ~ 12V 5V ~ 14V 5V ~ 15V 5V ~ 18V 5V ~ 20V 5V ~ 25V 5V ~ 26V 5V ~ 30V 5V ~ 35V 5V ~ 40V 5V ~ 54V 5V ~ 60V 6.1V ~ 18V 6.5V ~ 18V 6.5V ~ 28V 6.5V ~ 7.5V 6.8V ~ 13.2V 6.8V ~ 8.8V 6V ~ 13.2V 6V ~ 14V 6V ~ 15V 6V ~ 16V 6V ~ 18V 6V ~ 20V 6V ~ 28V 6V ~ 36V 6V ~ 38V 6V ~ 60V 6V ~ 9.5V 7.2V ~ 13.5V 7.5V ~ 14.5V 7.5V ~ 16V 7V 7V ~ 10V 7V ~ 13.2V 7V ~ 15V 7V ~ 17V 7V ~ 18.5V 7V ~ 18V 7V ~ 20V 7V ~ 26V 7V ~ 28V 7V ~ 32V 7V ~ 34V 7V ~ 40V 8.5V ~ 14V 8.5V ~ 15V 8.5V ~ 20V 8.5V ~ 35V 8.6V ~ 20V 8.7V ~ 20V 8V ~ 12.6V 8V ~ 14V 8V ~ 15V 8V ~ 16V 8V ~ 17V 8V ~ 18V 8V ~ 19V 8V ~ 20V 8V ~ 27V 8V ~ 30V 8V ~ 35V 8V ~ 48V 8V ~ 60V 9.5V ~ 15V 9.5V ~ 18V 9.6V ~ 14.4V 9V ~ 12V 9V ~ 13.2V 9V ~ 14V 9V ~ 15V 9V ~ 16V 9V ~ 17V 9V ~ 18V 9V ~ 20V 9V ~ 24V 9V ~ 35V 9V ~ 70V	- -, 1.65V 0.25V, 2.4V 0.3V, 1.2V 0.3V, 1.7V 0.48V, 1.4V 0.48V, 2V 0.4V, 0.7V 0.4V, 1.2V 0.4V, 1.6V 0.4V, 5.5V 0.5V, 2.3V 0.5V, 2V 0.5V, 3.15V 0.5V, 3.3V 0.5V, 4.5V 0.5V, 4V 0.65V, 1.4V 0.65V, 2.7V 0.6V, 1.4V 0.6V, 1.6V 0.6V, 2.4V 0.6V, 2.5V 0.6V, 2.65V 0.6V, 2.7V 0.6V, 2V 0.6V, 3.3V 0.6V, 3.5V 0.75V, 4.3V 0.7V, 1.3V 0.7V, 1.7V 0.7V, 2.1V 0.7V, 2.2V 0.7V, 2.3V 0.7V, 2.4V 0.7V, 2.5V 0.7V, 2.65V 0.7V, 2.6V 0.7V, 2V 0.7V, 3.2V 0.7V, 3.4V 0.7V, 3.5V 0.7V, 4V 0.85V, 2.35V 0.85V, 2.3V 0.8V, 0.8V 0.8V, 1.5V 0.8V, 1V 0.8V, 2.1V 0.8V, 2.2 V 0.8V, 2.25V 0.8V, 2.2V 0.8V, 2.3V 0.8V, 2.4V 0.8V, 2.5V 0.8V, 2.6V 0.8V, 2.7V 0.8V, 2.8V 0.8V, 2.9V 0.8V, 2V 0.8V, 3.5V 0.8V, 3V 0.8V, 4.2V 0.8V, 6.5V 0.8V, 8V 0.9V, 2.4V 0.9V, 2.5V 0.9V, 2.64V 0.9V, 2.7V 0.9V, 3.8V 1.045V, 3.85V 1.08V, 1.93V 1.16V, 2.08V 1.1V, 1.7V 1.1V, 1.8V 1.1V, 1.98V 1.1V, 1.9V 1.1V, 2.7V 1.22V, 2.08V 1.25V, 1.6V 1.25V, 3.5V 1.2V, 1.6V 1.2V, 1.7V 1.2V, 1.8V 1.2V, 1.9V 1.2V, 2.2V 1.2V, 2.55V 1.2V, 2.5V 1.2V, 2.7V 1.2V, 2.9V 1.2V, 2V 1.2V, 3.2V 1.2V, 3V 1.3V, 1.6V 1.3V, 1.85V 1.3V, 1.9V 1.3V, 2.4V 1.3V, 2.5V 1.3V, 2.7V 1.3V, 2.8V 1.45V, 2V 1.47V, 1.84V 1.4V, 2.2V 1.4V, 2V 1.4V, 3V 1.55V, 2.25V 1.5V, 1.65V 1.5V, 1.6V 1.5V, 1.9V 1.5V, 3.5V 1.5V, 3.6V 1.5V, 3V 1.607V, 1.615V 1.63V, 2.06V 1.65V, 1.3V 1.65V, 3.85V 1.6V, 1.2V 1.6V, 2.3V 1.76V, 1.89V 1.7V, 1.5V 1.7V, 1.6V 1.7V, 2.2V 1.7V, 3.4V 1.85V, 3.15V 1.85V, 3.25V 1.8V, 1.7V 1.8V, 2V 1.8V, 3.1V 1.8V, 3.9V 1.8V, 4V 1V, 2.1V 1V, 2.2V 1V, 2.3V 1V, 2.4V 1V, 2.5V 1V, 2.6V 1V, 2V 1V, 3.3V 1V, 3.65V 1V, 3.6V 1V, 3V 1V, 4V 2.31V, 4.69V 2.3V, - 2.4V, 1.8V 2.4V, 2.7V 2.4V, 5.8V 2.4V, 5.9V 2.4V, 9.6V 2.5V, 3V 2.6V, 1.3V 2.75V, 2.25V 2V, 0.8V 2V, 1.8V 2V, 2.15V 2V, 2.25V 2V, 4.25V 2V, 4.5V 2V, 4V; 3V, 6V 3.5V, 0.5V 3.7V, 7.4V 3.7V, 7.93V 3V, 6.5V 3V, 8V 4.5V, 9.5V 4.7V, 9.3V 4V, 1.25V, 10V, 3.5V 4V, 7V 5V, 9.5V 6V, 14V 6V, 7V 6V, 9.5V 6V, 9.6V 8.3V, 12.6V 8V, 12.6V	- -, 3A -, 4A -50mA, 300mA 1.1A, 1.1A 1.25A, 1.25A 1.25A, 2A 1.2A, 1.2A 1.2A, 1.8A 1.2A, 1A 1.2A, 5A 1.2mA, 1.2mA 1.3A, 1.4A 1.3A, 1.7A 1.3A, 7.6A 1.4A, 1.3A 1.4A, 1.4A 1.4A, 1.6A 1.4A, 1.8A 1.4A, 2.2A 1.5A 1.5A, 1.5A 1.5A, 1A 1.5A, 2.3A 1.5A, 2.5A 1.5A, 2A 1.5A, 3A 1.5A, 4A 1.6A, 1.6A 1.6A, 2.4A 1.6A, 2.6A 1.6A, 3.3A 1.8A, 1.8A 1.8A, 2.3A 1.8A, 2.8A 1.9A, 1.8A 1.9A, 2.3A 10.6A, 11.4A 100mA, 100mA 10A, 10A 125mA, 250mA 12A, 12A 130mA, 130mA 13A, 13A 14A, 14A 150mA, 300mA 15A, 15A 160mA, 240mA 16A, 16A 170mA, 270mA 180mA, 200mA 180mA, 260mA 180mA, 380mA 18A, 18A 1A, 1.5A 1A, 1A 1A, 2A 1A, 3A 1A, 4A 1A, 5A 1A, 900mA 2.2A, 2.7A 2.3A, 2.3A 2.3A, 3.3A 2.4A, 2.4A 2.5A, 1.6A 2.5A, 2.5A 2.5A, 2.8A 2.5A, 3.4A 2.5A, 3.5A 2.5A, 3A 2.5A, 4A 2.5A, 5A 2.5A, 6A 2.5A, 7A 2.6A, 2.4A 2.6A, 2.6A 2.6A, 4.5A 2.7A, 2.4A 2.7A, 2.7A 2.8A, 4.3A 200mA, 200mA 200mA, 350mA 200mA, 400mA 200mA, 420mA 200mA, 600mA 20A, 20A 20mA, - 20mA, 15mA 210mA, 360mA 220mA, 480mA 24A, 24A 24µA, 2.2mA 250mA, 250mA 250mA, 500mA 25A, - 26mA 290mA, 430mA 290mA, 600mA 290mA, 700mA 2A 2A, - 2A, 1.2A 2A, 2.5A 2A, 2.7A 2A, 2A 2A, 3.5A 2A, 3A 2A, 4A 2A, 5A 2A, 7A 3.2A, 3.2A 3.2A, 4.5A 3.5A, - 3.5A, 3.5A 3.5A, 4.5A 300mA, 300mA 300mA, 550mA 300mA, 600mA 30A, 30A 32µA, 400µA 350mA, 200mA 350mA, 350mA 350mA, 540mA 350mA, 650mA 35A, 35A 360mA, 700mA 3A 3A, 3.2A 3A, 3A 3A, 4.5A 3A, 4A 3A, 5A 3A, 6A 3A, 7A 4.3A, 4.3A 4.5A, 3.9A 4.5A, 4.5A 4.5A, 7.6A 400mA, 400mA 400mA, 650mA 420mA, 750mA 450mA, 450mA 48A, 48A 4A 4A, 4A 4A, 5A 4A, 6A 4A, 8A 4A, 9A 500mA, 1A 500mA, 500mA 500mA, 800mA 50A, 50A 50mA, 50mA 5A, 2A 5A, 5A 5A, 6A 5A, 9A 5mA 5mA, - 600mA, 600mA 60A, 60A 60mA, 130mA 6A, 10A 6A, 30A 6A, 6A 7.1A, 12.5A 7.8A, 6.8A 7.8A, 7.1A 72A, 72A 750mA, 1.5A 7A, 5A 7A, 7A 800mA, 1.75A 800mA, 1A 80A, 80A 8A, 15A 8A, 48A 8A, 8A 900mA, 1.1A 90A, 70A 90mA, 180mA 95A, 95A 9A, 9A	- CMOS CMOS, TTL CMOS/TTL Inverting Inverting, Non-Inverting Non-Inverting RC Input Circuit TTL	- 1.2 V 1.4 V 100 V 1000 V 105 V 107 V 108 V 114 V 115 V 118 V 12 V 120 V 1200 V 125 V 135 V 14 V 15 V 150 V 1700 V 175 V 180 V 2 V 20 V 200 V 22 V 24 V 25 V 250 V 2500 V 26 V 28 V 29 V 30 V 300 V 32 V 33 V 3300 V 34 V 35 V 36 V 40 V 400 V 41 V 42 V 45 V 4500 V 46 V 48 V 50 V 500 V 55 V 550 V 56 V 6 V 60 V 600 V 620 V 65 V 650 V 6500 V 670 V 675 V 680 V 70 V 700 V 710 V 75 V 80 V 800 V 84 V 85 V 90 V 900 V 95 V 950 V	- -, 8ns 0.2ms, 1.5µs 1.4µs, 1.4µs (Max) 1.7µs, 2.5µs 100ns, 100ns 100ns, 100ns (Max) 100ns, 25ns 100ns, 35ns 100ns, 50ns 100ns, 70ns 100ns, 80ns 105ns, 46ns 10ns, 10ns 10ns, 10ns (Max) 10ns, 13ns 10ns, 15ns 10ns, 25ns 10ns, 5ns 10ns, 6ns 10ns, 7ns 10ns, 8ns 10µs, 10µs 10µs, 280µs 11.5ns, 10ns 110ns, 50ns 115ns, 25ns 11ns, 11ns 11ns, 8ns 120ns, 45ns 120ns, 50ns 125ns, 50ns 12ns, 10ns 12ns, 12.2ns 12ns, 12ns 12ns, 13ns 12ns, 15ns 12ns, 6ns 12ns, 8ns 12ns, 9ns 13.4ns, 12.4ns 13.5ns, 13ns 130ns, 100ns 130ns, 120ns 130ns, 50ns 130ns, 60ns 130ns, 75ns (Max) 130µs, 18µs 13ns, 10ns 13ns, 12ns 13ns, 13ns 13ns, 15ns 13ns, 8ns 13ns, 9ns 14.5ns, 15ns 14ns, 11ns 14ns, 12ns 14ns, 13ns 14ns, 14ns 14ns, 15ns 14ns, 16ns 14ns, 17ns 14ns, 7ns 14ns, 9ns 150ns, 150ns 150ns, 50ns 15ns, 10ns 15ns, 12ns 15ns, 13.5ns 15ns, 13ns 15ns, 15ns 15ns, 18ns 15ns, 25ns 15ns, 7ns 15ns, 9ns 160ns, 130ns 160ns, 70ns 16ns, 10ns 16ns, 11ns 16ns, 12ns 16ns, 13ns 16ns, 14ns 16ns, 15ns 16ns, 16ns 16ns, 18ns 175ns, 20ns 17ns, 10ns 17ns, 12ns 17ns, 15ns 17ns, 17ns 17ns, 26ns 18ns, 10ns 18ns, 14ns 18ns, 16ns 18ns, 18ns 18ns, 19ns 18ns, 21ns 19ns, 13ns 19ns, 15ns 19ns, 17ns 19ns, 19ns 1ns, 1ns 1µs, 1µs 2.4ns, 1.55ns 2.5ns, 2.5ns 200ns, 100ns 200ns, 200ns 200ns, 25ns 20ns, 10ns 20ns, 11ns 20ns, 13ns 20ns, 15ns 20ns, 16ns 20ns, 18ns 20ns, 20ns 20ns, 20ns (Max) 20ns, 24ns 20ns, 25ns 20ns, 29ns 20ns, 40ns 20µs, 20µs 210ns, 240ns 21ns, 10ns 21ns, 18ns 21ns, 8ns 22ns, 15ns 22ns, 16ns 22ns, 18ns 22ns, 20ns 22ns, 22ns 230ns, 90ns 235ns, 97ns 23ns, 14ns 23ns, 18ns 23ns, 19ns 23ns, 20ns 23ns, 22ns 23ns, 25ns 24ns, 12ns 24ns, 16ns 24ns, 7ns 250ns, 200ns 250ns, 250ns 25ns 25ns, 12ns 25ns, 14ns 25ns, 15ns 25ns, 17ns 25ns, 18ns 25ns, 20ns 25ns, 21ns 25ns, 22ns 25ns, 23ns 25ns, 25ns 25ns, 30ns 25ns, 33ns 26ns, 18ns 277ns (Max), 277ns (Max) 27ns, 19ns 27ns, 21ns 27ns, 29ns 28ns, 13ns 28ns, 18ns 28ns, 32ns 2ns, 1.5ns 3.4ns, 1.65ns 3.5µs, 3µs 300ns, 150ns 300ns, 300ns 305ns, 20ns 30ns, 20ns 30ns, 25ns 30ns, 27ns 30ns, 30ns 30ns, 31ns 30ns, 32ns 30ns, 40ns 30ns, 50ns 30ns, 8ns 31ns, 18ns 31ns, 31ns 31ns, 32ns 32ns, 26ns 32ns, 36ns 330ns, 200ns 33ns (Max), 33ns (Max) 33ns, 27ns 33ns, 33ns (Max) 350ns, 250ns 35ns, 20ns 35ns, 25ns 35ns, 30ns 35ns, 35ns 360ns, 210ns 36ns, 17ns 36ns, 32ns 375ps, 350ps 380ns, 380ns 38ns, 33ns 390ns, 1430ns 3ns, 2ns 3ns, 3ns 4.5ns, 3.5ns 4.5ns, 4ns 400ns, 300ns 400ns, 400ns 40ns, 20ns 40ns, 25ns 40ns, 28ns 40ns, 30ns 40ns, 40ns 40ns, 40ns (Max) 42ns, 30ns 42ns, 42ns 430ns, 260ns 435ns, 365ns 43ns, 26ns 450ns, 21ns 450µs, 26µs 45ns, 25ns 45ns, 35ns 45ns, 45ns 465ns, 460ns 480ns, 50ns 48ns, 24ns 48ns, 32ns 48ns, 35ns 48ns, 37ns 4ns, 3.5ns 4ns, 4ns 5.3ns, 4.5ns 5.3ns, 4.8ns 5.5ns, 5.5ns 500ns, 300ns 500ns, 400ns 500ns, 500ns 500ps, 500ps 50ns, 12ns 50ns, 25ns 50ns, 30ns 50ns, 35ns 50ns, 40ns 50ns, 50ns 50ns, 90ns 520ns, 120ns 570ns, 430ns 5ns, 10ns 5ns, 1ns 5ns, 5ns 5ns, 6ns 5ns, 7ns 6.4ns, 5.4ns 6.5ns, 4.5ns 600ns, 300ns 600ns, 350ns 600ns, 400ns 600ns, 600ns 600ns, 750ns 60ns, 20ns 60ns, 26ns 60ns, 30ns 60ns, 35ns (Max) 60ns, 40ns 60ns, 60ns 650ps, 850ps 650µs, 3ms (Max) 65ns, 25ns 65ns, 65ns 6ns, 10ns 6ns, 12ns 6ns, 4ns 6ns, 6ns 6ns, 7ns 6µs, 6µs 7.2ns, 5.5ns 7.3ns, 11ns 7.5ns, 10ns 7.5ns, 6.5ns 7.8ns, 6ns 700ns, 500ns 70ns, 30ns 70ns, 35ns 70ns, 40ns 75ns, 25ns 75ns, 35ns 77ns, 26ns 7ns, 1.5ns 7ns, 25ns 7ns, 3.5ns 7ns, 6ns 7ns, 7ns 8.3ns, 10.8ns 8.3ns, 5ns 8.9ns, 8.9ns 80ns, 25ns 80ns, 35ns 80ns, 40ns 80ns, 45ns 80ns, 50ns 80ns, 80ns 80ns, 90ns 82ns, 12.5ns 85ns, 30ns 85ns, 35ns 85ns, 40ns 85ns, 85ns 8ns, 14ns 8ns, 2ns 8ns, 4ns 8ns, 5ns 8ns, 6ns 8ns, 7ns 8ns, 8ns 9.2ns, 7.9ns 9.4ns, 9.7ns 9.5ns, 9ns 900ps, 900ps 90ns, 35ns 90ns, 40ns 9840ns, 78ns 990ns, 715ns 9ns, 30ns 9ns, 7.5ns 9ns, 7ns 9ns, 8ns 9ns, 9ns	- -10°C ~ 125°C (TA) -10°C ~ 125°C (TJ) -10°C ~ 150°C (TJ) -20°C ~ 125°C (TJ) -20°C ~ 150°C (TJ) -20°C ~ 60°C -20°C ~ 60°C (TA) -20°C ~ 70°C -20°C ~ 70°C (TA) -20°C ~ 85°C -20°C ~ 85°C (TA) -25°C ~ 125°C (TA) -25°C ~ 125°C (TJ) -25°C ~ 150°C (TJ) -25°C ~ 70°C (TA) -25°C ~ 85°C -25°C ~ 85°C (TA) -30°C ~ 125°C (TJ) -30°C ~ 85°C (TA) -40°C ~ 100°C (TA) -40°C ~ 105°C -40°C ~ 105°C (TA) -40°C ~ 105°C (TJ) -40°C ~ 115°C (TA) -40°C ~ 115°C (TJ) -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 130°C (TJ) -40°C ~ 135°C (TA) -40°C ~ 140°C (TJ) -40°C ~ 150°C (TA) -40°C ~ 150°C (TJ) -40°C ~ 165°C (TJ) -40°C ~ 175°C (TJ) -40°C ~ 85°C -40°C ~ 85°C (TA) -40°C ~ 85°C (TJ) -45°C ~ 125°C (TJ) -50°C ~ 150°C (TJ) -55°C ~ 115°C (TJ) -55°C ~ 125°C -55°C ~ 125°C (TA) -55°C ~ 125°C (TJ) -55°C ~ 150°C -55°C ~ 150°C (TJ) -55°C ~ 155°C (TJ) -55°C ~ 85°C (TA) -65°C ~ 150°C (TJ) 0°C ~ 100°C (TA) 0°C ~ 125°C (TJ) 0°C ~ 150°C (TJ) 0°C ~ 70°C 0°C ~ 70°C (TA) 0°C ~ 70°C (TJ) 0°C ~ 80°C (TJ) 0°C ~ 85°C (TA) 0°C ~ 85°C (TJ) 125°C (TJ) 150°C (TJ)	- Chassis Mount Surface Mount Surface Mount, Wettable Flank Through Hole

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
ADP3625ARDZ-RL IC GATE DRVR LOW-SIDE 8SOIC Analog Devices Inc.	5,213	3.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	4A, 4A	Inverting, Non-Inverting	-	10ns, 10ns	-40°C ~ 150°C (TJ)	Surface Mount
ISL6625ACRZ-T IC GATE DRVR HALF-BRIDGE 8DFN Renesas Electronics America Inc	7,463	2.84	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	5.5V ~ 13.2V	-	-, 3A	Non-Inverting	36 V	31ns, 18ns	0°C ~ 125°C (TJ)	Surface Mount
NCP252160MNTWG 25V/60A INTEGRATED DRIVER AND MO onsemi	6,677	2.84	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Single	2	N-Channel MOSFET	4.5V ~ 16V	0.7V, 2.65V	60A, 60A	Non-Inverting	35 V	12ns, 6ns	-40°C ~ 125°C (TA)	Surface Mount
MAX4428EPA+ IC GATE DRVR LOW-SIDE 8DIP Analog Devices Inc./Maxim Integrated	5,997	6.71	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.5A, 1.5A	Inverting, Non-Inverting	-	20ns, 20ns	-40°C ~ 85°C (TA)	Through Hole
MAX4427EPA+ IC GATE DRVR LOW-SIDE 8DIP Analog Devices Inc./Maxim Integrated	9,954	6.71	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.5A, 1.5A	Non-Inverting	-	20ns, 20ns	-40°C ~ 85°C (TA)	Through Hole
HIP4086APZ IC GATE DRVR HALF-BRIDGE 24DIP Renesas Electronics America Inc	6,780	6.99	RFQ	Datasheet	Tube	-	Active	Half-Bridge	3-Phase	6	N-Channel MOSFET	7V ~ 15V	1V, 2.5V	500mA, 500mA	Inverting, Non-Inverting	95 V	20ns, 10ns	-40°C ~ 150°C (TJ)	Through Hole
UC3706DW IC GATE DRVR LOW-SIDE 16SOIC Texas Instruments	9,039	8.80	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	5V ~ 40V	0.8V, 2.2V	1.5A, 1.5A	Inverting, Non-Inverting	-	40ns, 30ns	0°C ~ 70°C (TA)	Surface Mount
IR2132SPBF IC GATE DRVR HALF-BRIDGE 28SOIC Infineon Technologies	2,833	11.92	RFQ	Datasheet	Tube	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	250mA, 500mA	Inverting	600 V	80ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount
2SD300C17A1 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	825	133.87	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	-	2	IGBT	14V ~ 16V	-	30A, 30A	-	-	-	-40°C ~ 85°C (TA)	Through Hole
1SP0635D2S1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	358	150.41	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
2DU180506MR04 (ROHM: BSM180D12P2E002) Tamura	415	161.60	RFQ		Bulk	-	Active	Half-Bridge	Independent	2	IGBT, SiC MOSFET	5V	-	-	-	-	500ns, 500ns	-40°C ~ 85°C (TA)	Chassis Mount
2DU180506MR01 (ROHM: BSM120D12P2C005) Tamura	700	161.60	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	SiC MOSFET	5V	0.8V, 8V	20mA, -	-	-	500ns, 500ns	-25°C ~ 85°C	Chassis Mount
2SP0320T2C0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	559	193.16	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320V2A0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	395	201.40	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount

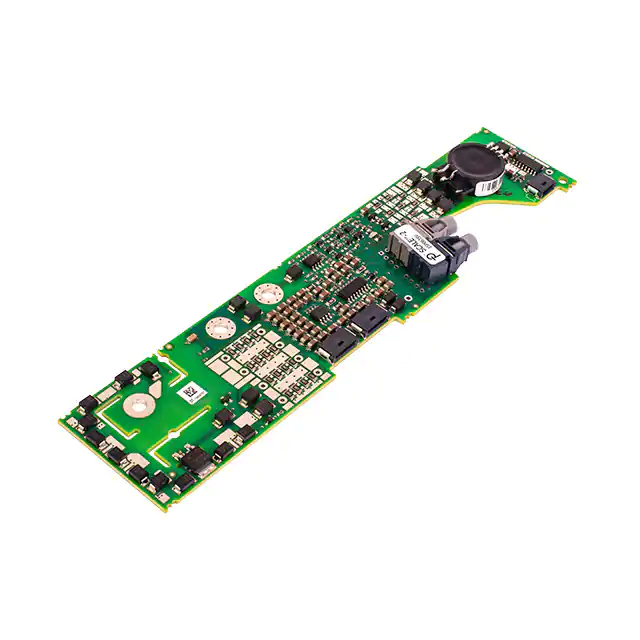

1SP0635V2M1-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	698	347.11	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
ISL6208BIRZ-T IC GATE DRVR HALF-BRIDGE 8DFN Renesas Electronics America Inc	9,854	2.03	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.5V ~ 5.5V	0.5V, 2V	2A, 2A	Non-Inverting	33 V	8ns, 8ns	-40°C ~ 125°C (TJ)	Surface Mount
TPS2811DR IC GATE DRVR LOW-SIDE 8SOIC Texas Instruments	7,156	3.09	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Low-Side	Synchronous	2	N-Channel, P-Channel MOSFET	4V ~ 14V	1V, 4V	2A, 2A	Inverting	-	14ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
FAN73895MX IC GATE DRVR HALF-BRIDGE 28SOIC onsemi	6,218	3.83	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	350mA, 650mA	Non-Inverting	600 V	50ns, 30ns	-40°C ~ 150°C (TJ)	Surface Mount
LM25101ASD-1/NOPB IC GATE DRVR HALF-BRIDGE 8WSON Texas Instruments	9,623	4.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	9V ~ 14V	2.3V, -	3A, 3A	Non-Inverting	100 V	430ns, 260ns	-40°C ~ 125°C (TJ)	Surface Mount
MCP14E3-E/MF IC GATE DRVR LOW-SIDE 8DFN Microchip Technology	9,461	2.54	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	IGBT, N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	4A, 4A	Inverting	-	15ns, 18ns	-40°C ~ 150°C (TJ)	Surface Mount
