Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	RivetDiameter	RivetLength	HeadDiameter	HeadHeight	HoleDiameter	GripRange	Features	Color
700970500 SNAP RIVET 2,0/5,0 MM Würth Elektronik	11,319	0.27	RFQ	Datasheet	Bag	WA-EXRV	Active	Snap Rivet	0.079 (2.00mm)	0.197 (5.00mm)	0.189 (4.80mm)	0.197 (5.00mm)	0.079 (2.00mm)	-	Flame Retardant	Black
XT3120750A BARBED FASTENER 0.894 NYLON BLK Essentra Components	831	0.27	RFQ	Datasheet	Bulk	XT	Obsolete	Barbed Fastener	-	0.894 (22.71mm)	0.874 (22.20mm)	0.100 (2.54mm)	0.312 (7.92mm) 5/16	0.062 ~ 0.752 (1.57mm ~ 19.10mm)	-	Black
700972200 SNAP RIVET 3,0/4,5 MM Würth Elektronik	10,606	0.27	RFQ	Datasheet	Bag	WA-EXRV	Active	Snap Rivet	0.118 (3.00mm)	0.177 (4.50mm)	0.248 (6.30mm)	0.067 (1.70mm)	0.118 (3.00mm)	-	Flame Retardant	Black
BHF-11 BARBED FASTENER 1.283 NYLON BLK Essentra Components	14,075	0.27	RFQ	Datasheet	Bulk	Richco, BHF	Active	Barbed Fastener	-	1.283 (32.60mm)	0.650 (16.51mm)	0.063 (1.60mm) 1/16	0.281 (7.14mm)	0.075 ~ 1.025 (1.90mm ~ 26.00mm)	-	Black
27SNC2190187 SNAP CLIPS, .219 HOLE, .187 PANE Essentra Components	13,555	0.30	RFQ	Datasheet	Bulk	MicroPlastics	Active	Mounting Button	-	0.547 (13.89mm) 35/64	0.344 (8.73mm) 11/32	0.060 (1.52mm)	0.219 (5.56mm) 7/32	0.187 (4.75mm) 3/16	-	Natural
700973800 SNAP RIVET 3,45/9,0 MM Würth Elektronik	10,553	0.33	RFQ	Datasheet	Bag	WA-EXRV	Active	Snap Rivet	0.136 (3.45mm)	0.354 (9.00mm)	0.248 (6.30mm)	0.067 (1.70mm)	0.138 (3.50mm)	-	Flame Retardant	Black
700975100 SNAP RIVET 5,0/4,6 MM Würth Elektronik	12,099	0.33	RFQ	Datasheet	Bag	WA-EXRV	Active	Snap Rivet	0.197 (5.00mm)	0.181 (4.60mm)	0.350 (8.90mm)	0.087 (2.20mm)	0.197 (5.00mm)	-	Flame Retardant	Black

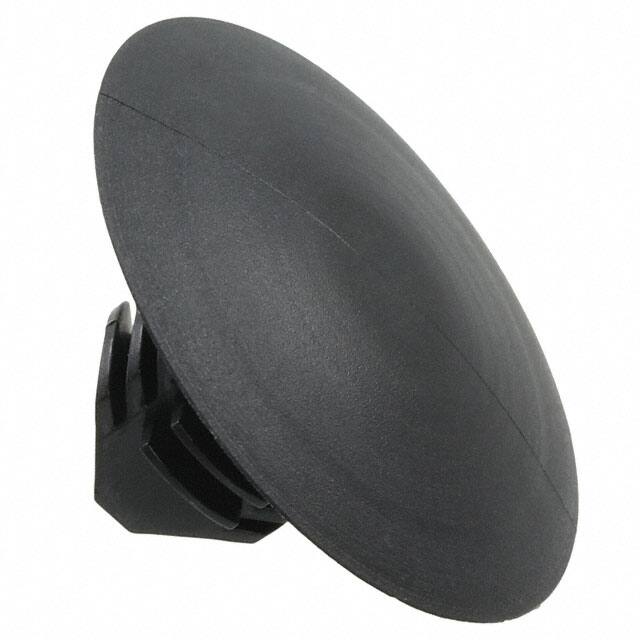

XT3750250A BARBED FASTENER 0.445 NYLON BLK Essentra Components	13,838	0.34	RFQ	Datasheet	Bulk	Alliance Plastics, XT	Active	Barbed Fastener	-	0.445 (11.30mm)	1.000 (25.40mm) 1	0.100 (2.54mm)	0.375 (9.53mm) 3/8	0.062 ~ 0.252 (1.57mm ~ 6.40mm)	-	Black
27XT2811500 FIR TREE RIVET, .281 HOLE, .062- Essentra Components	12,894	0.36	RFQ	Datasheet	Bulk	MicroPlastics, XT	Active	Barbed Fastener	-	1.651 (41.94mm)	0.787 (19.99mm)	0.100 (2.54mm)	0.281 (7.14mm) 9/32	0.062 ~ 1.500 (1.58mm ~ 38.10mm)	-	Black
27SR160475 SNAP RIVET, .161-.165 HOLE, .354 Essentra Components	12,956	0.38	RFQ	Datasheet	Bulk	MicroPlastics, SR	Active	Snap Rivet	0.157 (3.99mm)	0.470 (11.94mm)	0.317 (8.05mm)	0.071 (1.80mm)	-	0.354 ~ 0.413 (8.99mm ~ 10.49mm)	-	Natural

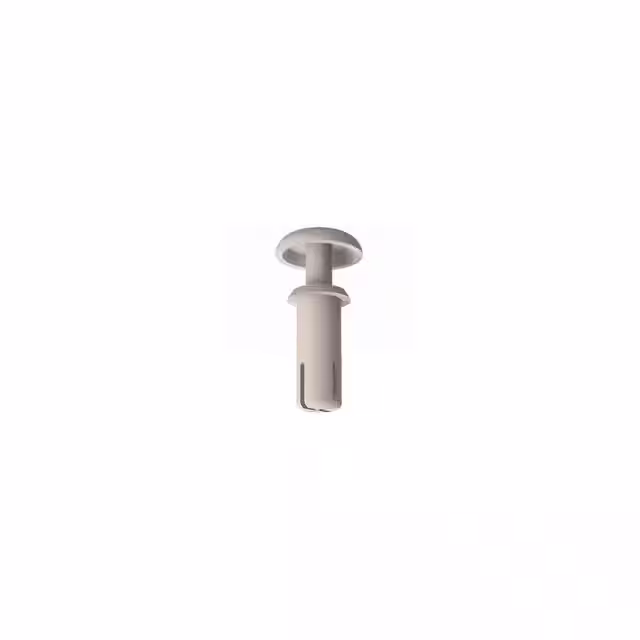

27SR157390W SNAP RIVET, .161-.165 HOLE, .295 Essentra Components	11,100	0.42	RFQ		Bulk	MicroPlastics	Active	Snap Rivet	-	0.390 (9.91mm)	0.317 (8.05mm)	0.071 (1.80mm)	0.161 ~ 0.165 (4.09mm ~ 4.19mm)	0.295 ~ 0.335 (7.49mm ~ 8.51mm)	-	White
XT3121500A BARBED FASTENER 1.670 NYLON BLK Essentra Components	969	0.43	RFQ	Datasheet	Bulk	XT	Obsolete	Barbed Fastener	-	1.670 (42.42mm)	0.874 (22.20mm)	0.100 (2.54mm)	0.312 (7.92mm) 5/16	0.062 ~ 1.500 (1.57mm ~ 38.10mm) 1/16 ~ 1 1/2	-	Black
495233 NATURAL NYLON 6 FIR TREE RIVETS Essentra Components	900	900.00	RFQ	Datasheet	Bag	Skiffy, SR1965	Active	Barbed Fastener	-	1.201 (30.50mm)	0.748 (19.00mm)	0.079 (2.01mm)	0.283 (7.20mm)	0.059 ~ 1.000 (1.50mm ~ 25.40mm)	-
27XT3121750 FIR TREE RIVET, .312 HOLE, .062- Essentra Components	11,631	0.66	RFQ	Datasheet	Bulk	MicroPlastics, XT	Active	Barbed Fastener	-	1.923 (48.84mm)	0.874 (22.20mm)	0.100 (2.54mm)	0.312 (7.93mm)	0.062 ~ 1.750 (1.58mm ~ 44.45mm)	-	Black
468828 BLACK NYLON 6/6 FIR TREE RIVETS Essentra Components	946	946.00	RFQ	Datasheet	Bag	Skiffy, SR1965	Active	Barbed Fastener	-	0.744 (18.90mm)	0.626 (15.90mm)	0.039 (0.99mm)	0.276 ~ 0.283 (7.01mm ~ 7.20mm)	0.094 ~ 0.469 (2.39mm ~ 11.90mm)	-
468821 BLACK NYLON 6/6 FIR TREE RIVETS Essentra Components	990	990.00	RFQ	Datasheet	Bag	Skiffy, SR1965	Active	Barbed Fastener	-	0.803 (20.40mm)	0.701 (17.81mm)	0.098 (2.49mm)	0.236 ~ 0.248 (5.99mm ~ 6.30mm)	0.098 ~ 0.472 (2.50mm ~ 12.00mm)	-
468817 BLACK NYLON 6/6 FIR TREE RIVETS Essentra Components	996	996.00	RFQ	Datasheet	Bag	Skiffy, SR1965	Active	Barbed Fastener	-	0.591 (15.01mm)	0.630 (16.00mm)	0.079 (2.01mm)	0.236 (5.99mm)	0.098 ~ 0.315 (2.50mm ~ 8.00mm)	-
ABA-64-TEG ALUMINUM/ALUMINUM 3/16 .062-.25 Goebel	14,857	0.68	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
ABA-66-TEG ALUMINUM/ALUMINUM 3/16 .188-.37 Goebel	14,393	0.71	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
ABA-68-TEG ALUMINUM/ALUMINUM 3/16 .312-.50 Goebel	12,394	0.77	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
