Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	RivetDiameter	RivetLength	HeadDiameter	HeadHeight	HoleDiameter	GripRange	Features	Color
ABA-84-TEG ALUMINUM/ALUMINUM 1/4 .063-.252 Goebel	13,791	0.84	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
ABA-86-TEG ALUMINUM/ALUMINUM 1/4 .126-.374 Goebel	11,775	0.89	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-

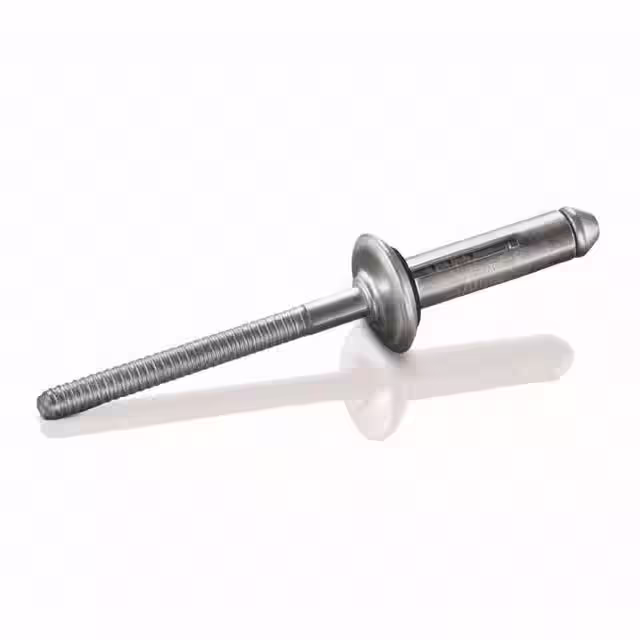

ABA-610-TEG ALUMINUM/ALUMINUM 3/16 .437-.62 Goebel	12,500	0.90	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
ABA-612-TEG ALUMINUM/ALUMINUM 3/16 .563-.75 Goebel	12,177	0.94	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
B983348 STANLEY STEEL RIVETS 1/8X1/4, 1 Stanley	8,158	4.75	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
B983400 STANLEY RIVET PACK ASSORTMENT, 1 Stanley	2,605	20.03	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-
B983347 STANLEY STEEL RIVETS 1/8X1/8, 1 Stanley	13,386	0.00	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-
26 EYELET 0.187 BRASS TIN PLATED Keystone Electronics	10,398	0.13	RFQ	Datasheet	Bulk	-	Active	Eyelets	0.059 (1.50mm)	0.187 (4.75mm) 3/16	0.105 (2.67mm)	-	0.062 (1.57mm) 1/16	-	Requires Installation Tool	-
SR-3075W RIVET SNAP 0.295 NYLON WHITE Essentra Components	11,835	0.25	RFQ	Datasheet	Bulk	Richco, SR	Active	Snap Rivet	0.118 (3.00mm)	0.295 (7.50mm)	0.252 (6.40mm)	0.063 (1.60mm) 1/16	0.124 (3.15mm)	0.197 ~ 0.236 (5.00mm ~ 5.99mm)	-	White
SRP-3055 RIVET SNAP 0.220 POLYSULFONE BLK Essentra Components	12,981	0.95	RFQ	Datasheet	Bulk	Richco, SRP	Active	Snap Rivet	0.120 (3.05mm)	0.220 (5.59mm)	0.250 (6.35mm) 1/4	0.060 (1.52mm)	0.124 (3.15mm)	0.098 ~ 0.138 (2.50mm ~ 3.51mm)	Heat Resistant	Black
167201569902 BLACK NYLON 6/6 FIR TREE RIVETS Essentra Components	14,398	0.00	RFQ	Datasheet	Bag	Skiffy	Active	Barbed Fastener	-	0.433 (11.00mm)	0.236 (5.99mm)	0.035 (0.90mm)	0.106 ~ 0.130 (2.69mm ~ 3.30mm)	0.059 ~ 0.315 (1.50mm ~ 8.00mm)	-
468853 NATURAL NYLON 6 FIR TREE RIVETS Essentra Components	13,051	0.00	RFQ	Datasheet	Bag	Skiffy, SR1965	Active	Barbed Fastener	-	0.661 (16.80mm)	0.500 (12.70mm) 1/2	0.059 (1.50mm)	0.315 (8.00mm)	0.130 ~ 0.500 (3.30mm ~ 12.70mm)	-

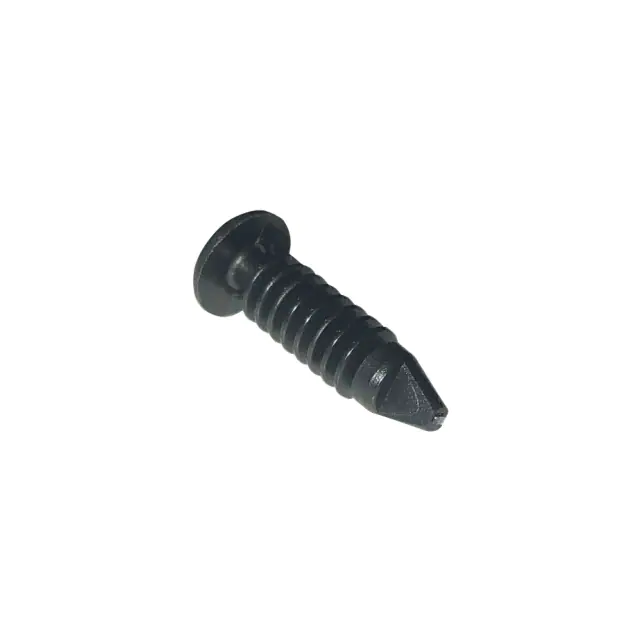

27RT187675 PAWL LOCK, .187 HOLE, .030-.512 Essentra Components	12,058	0.20	RFQ	Datasheet	Bulk	MicroPlastics	Active	Barbed Fastener	-	0.680 (17.27mm)	0.438 (11.11mm)	0.070 (1.78mm)	0.187 (4.75mm) 3/16	0.030 ~ 0.512 (0.76mm ~ 13.01mm)	-	Black
27KY1250156 NATURAL NYLON 6/6 KEY-HOLE RIVET Essentra Components	11,140	0.21	RFQ	Datasheet	Bulk	MicroPlastics, KY	Active	Mounting Button	-	-	0.250 (6.35mm) 1/4	-	0.125 (3.18mm) 1/8	-	-	Natural
167208569902 BLACK NYLON 6/6 FIR TREE RIVETS Essentra Components	3,808	100.00	RFQ	Datasheet	Bag	Skiffy, 167-2	Active	Barbed Fastener	-	0.591 (15.01mm)	0.669 (16.99mm)	-	0.232 ~ 0.283 (5.90mm ~ 7.20mm)	0.039 ~ 0.394 (0.99mm ~ 10.00mm)	-
PL-250-10-01 BARBED FASTENER 0.606 NYLON NRTL Essentra Components	14,524	0.22	RFQ	Datasheet	Bulk	Richco, PL	Active	Barbed Fastener	-	0.606 (15.40mm)	0.500 (12.70mm) 1/2	0.078 (1.98mm)	0.250 (6.35mm) 1/4	-	-	Natural
MMB-187-01BK MOUNTING BUTTON 0.430 NYLON BLK Essentra Components	14,200	0.23	RFQ	Datasheet	Bulk	Richco, MMB	Active	Mounting Button	-	0.430 (10.92mm)	0.500 (12.70mm) 1/2	0.087 (2.21mm)	0.187 (4.75mm) 3/16	0.098 ~ 0.157 (2.50mm ~ 4.00mm)	-	Black
RBF-4-15-8 BARBED FASTENER 0.590 NYLON BLK Essentra Components	12,430	0.24	RFQ	Datasheet	Bulk	Richco, RBF	Active	Barbed Fastener	-	0.590 (14.99mm)	0.320 (8.13mm)	0.040 (1.02mm)	0.157 (3.99mm)	0.220 ~ 0.420 (5.59mm ~ 10.67mm)	-	Black
167209000002 NATURAL NYLON 6/6 FIR TREE RIVET Essentra Components	14,552	0.24	RFQ	Datasheet	Bag	Skiffy	Active	Barbed Fastener	-	0.945 (24.00mm)	0.669 (16.99mm)	0.047 (1.19mm) 3/64	0.232 ~ 0.283 (5.90mm ~ 7.20mm)	0.079 ~ 0.748 (2.01mm ~ 19.00mm)	-	Natural

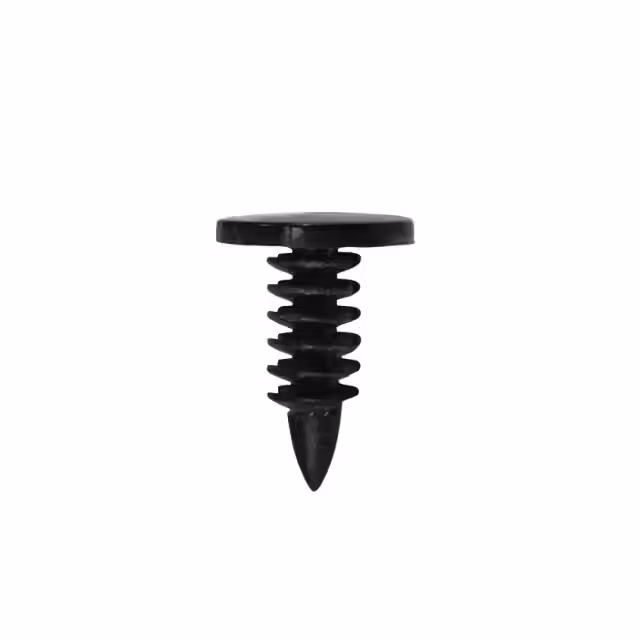

27RT250810 PAWL LOCK, .250 HOLE, .150-.535 Essentra Components	10,469	0.24	RFQ	Datasheet	Bulk	MicroPlastics	Active	Barbed Fastener	-	0.783 (19.89mm)	0.495 (12.57mm)	0.074 (1.88mm)	0.250 (6.35mm) 1/4	0.150 ~ 0.535 (3.81mm ~ 13.59mm)	-	Black
