| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103H5210-52XB12STEP, F2 MOTOR, SQ.42, 2 PHASE S |
438 | 225.53 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 72.22 / 510 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 4.8 Ohms | |
|
SP2863-5260STEP, F2, SQ.86, 1.8, IP65, , BI |
317 | 258.76 |
RFQ |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 1275 / 9000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | - | 0.551 (14.00mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.53 Ohms |
|
|
103H7822-25XB12STEP, F2 MOTOR, SQ.60, 2 PHASE S |
673 | 265.12 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 4.4 A | 200 | 1.8° | - | 155.8 / 1100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 17 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.4 Ohms | |
|
PBM862FXK30-MPB, PB, SQ.86, FOR PB4A, , , CE/ |
714 | 289.87 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 863.8 / 6100 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | - | 0.551 (14.00mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads with Connector | -10°C ~ 40°C | - |
|

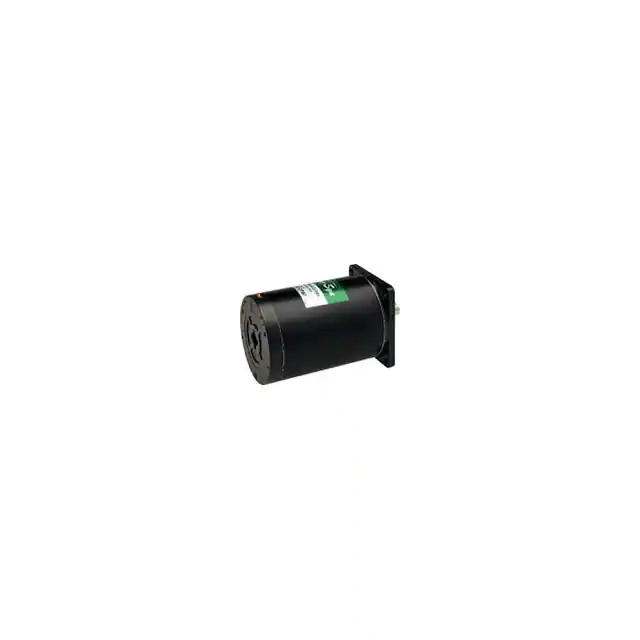

103H89222-5241STEP, F2, 106, 1.8, , , BIPOLAR/ |
550 | 300.48 |
RFQ |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 1869 / 13200 | Square - 4.173 x 4.173 (106.00mm x 106.00mm) | - | 0.630 (16.00mm) | 1.378 (35.00mm) | 3.500 (88.90mm) | Wire Leads | -10°C ~ 50°C | 0.45 Ohms |
|
|
103H89223-5241STEP, F2, 106, 1.8, , , BIPOLAR/ |
311 | 369.05 |
RFQ |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 2691 / 19000 | Square - 4.173 x 4.173 (106.00mm x 106.00mm) | - | 0.630 (16.00mm) | 1.378 (35.00mm) | 3.500 (88.90mm) | Wire Leads | -10°C ~ 50°C | 0.63 Ohms |
|
44M100D1BSTEPPER MOTOR PM BIPOLAR 5V |
2,540 | 25.09 |
RFQ |
Datasheet |
Bulk | 44M | Active | Permanent Magnet | Bipolar | 5VDC | - | 100 | 3.6° | ±11% | 5.5 / 38.8 | Round - 1.732 Dia (44.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | 0°C ~ 60°C | 12.5 Ohms |
|
44M100D2BSTEPPER MOTOR PM BIPOLAR 12V |
2,289 | 26.13 |
RFQ |
Datasheet |
Bulk | 44M | Active | Permanent Magnet | Bipolar | 12VDC | - | 100 | 3.6° | ±11% | 6.6 / 46.6 | Round - 1.732 Dia (44.00mm) | - | 0.118 (3.00mm) | 0.450 (11.43mm) | 1.950 (49.48mm) | Wire Leads | 0°C ~ 60°C | 70 Ohms |
|

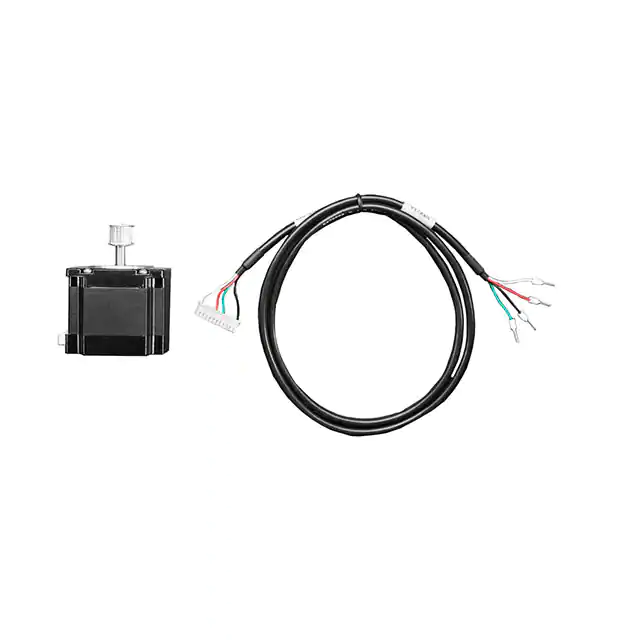

5117STEPPER MOTOR - NEMA-23 SIZE WIT |
2,824 | 31.19 |
RFQ |
Datasheet |
Bulk | - | Active | Hybrid Gear Motor | Bipolar | 2.32VDC | 2.8 A | 200 | 1.8° | - | 140 oz-in / 989 mNm | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | - | 1.016 (25.80mm) | 1.856 (47.14mm) | Connector | -20°C ~ 50°C | - |
|
SH2281-5671STEP, F2, SQ.28, 1.8, , , BIPOLA |
2,255 | 45.40 |
RFQ |
Datasheet |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200 | 1.8° | - | 9.91 / 70 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 10.5 Ohms |
|
|
SH2281-5631STEP, F2, SQ.28, 1.8, , , BIPOLA |
1,803 | 45.40 |
RFQ |
Datasheet |
Tray | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 500 mA | 200 | 1.8° | - | 9.91 / 70 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 10.5 Ohms |
|
|
SH2285-5631STEP, F2, SQ.28, 1.8, , , BIPOLA |
1,249 | 51.99 |
RFQ |
Datasheet |
Box | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 500 mA | 200 | 1.8° | - | 20.53 / 145 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 15 Ohms |
|

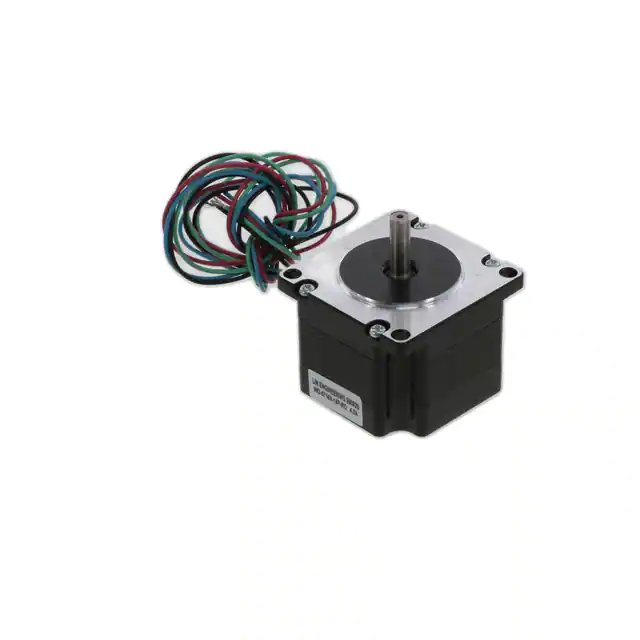

WO-5718X-15S-ROSTEPPER MOTOR |
3,836 | 65.77 |
RFQ |
Datasheet |
Bulk | - | Active | - | Bipolar | 24VDC | 2.1 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|
|
SS2422-5041PSTPR MTR BIPOLAR 5.4V 1A/PHASE |
2,434 | 76.94 |
RFQ |
Bulk | SS | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 26.33 / 186 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.276 (7.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 5.4 Ohms | |
|
|
A4K-M245STEPPER MOTOR 2PHASE 42MM 1.2A |
3,664 | 79.95 |
RFQ |
Box | AK-2 | Active | - | Bipolar | - | 1.2 A | 200 | 1.8° | - | 49.3 / 348 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.906 (23.00mm) | 1.220 (31.00mm) | Connector | 0°C ~ 50°C | 2.8 Ohms | |
|
|
A9K-G265STEPPER MOTOR 2PHASE 56MM 2A |
306 | 107.95 |
RFQ |
Box | AK-2 | Active | - | Bipolar | - | 2 A | 200 | 1.8° | - | 131 / 925 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | 0°C ~ 50°C | 1.7 Ohms | |
|
|
SH2141-5541STPR MTR BIPOLAR 6.3V 0.3A/PHASE |
996 | 141.62 |
RFQ |
Datasheet |
Bulk | SH | Active | Hybrid | Bipolar | 24VDC | 300 mA | 200 | 1.8° | - | 0.92 / 6.5 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms |
|
103H7126-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
2,016 | 71.76 |
RFQ |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | - | 226.6 / 1600 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.94 Ohms |
|
|
SM3.4-F20-HHD8STEPPER MOTOR PM BIPOLAR 3V |
2,089 | 86.36 |
RFQ |
Datasheet |
Bulk | - | Active | Permanent Magnet | Bipolar | 3VDC | - | 20 | 18° | - | - | Round - 0.134 Dia (3.40mm) | - | 0.024 (0.60mm) | 0.118 (3.00mm) | - | Through Hole | -10°C ~ 50°C | 25 Ohms |
|
|
SM2862-5152STEP, F2, SQ.86, 1.8, HALF INCH |
963 | 152.71 |
RFQ |
Datasheet |
Box | - | Active | Hybrid | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.8 Ohms |
