| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBM604FXE20PB, PB, SQ.60, FOR PB3D, , |
8,380 | 1.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 269.1 / 1900 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
42M048C2U-R21STEPPER MOTOR PM GEARED UNI 12V |
3,398 | 53.36 |
RFQ |
Datasheet |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 230 mA | 480 | 0.75° | - | 9.4 / 66.2 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 52.4 Ohms |
|
80910502MOTOR DC LINEAR .033 MM-STEP 4 P |
1,722 | 69.81 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
103H7128-5710STEP, F2, SQ.56, 1.8, , , BIPOLA |
1,418 | 72.68 |
RFQ |
Datasheet |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 283.2 / 2000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.3 Ohms |
|

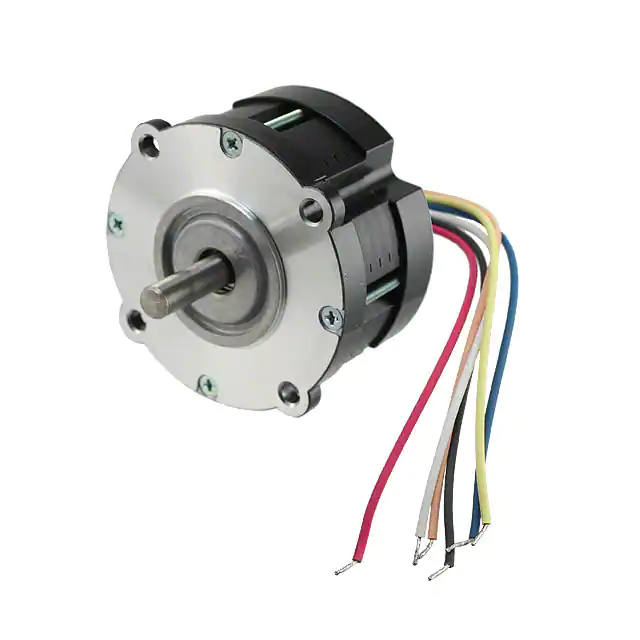

29SM-K550-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
4,923 | 81.40 |
RFQ |
Datasheet |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.5 A | 200 | 1.8° | ±5% | 53.82 / 380 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.1 Ohms |
|

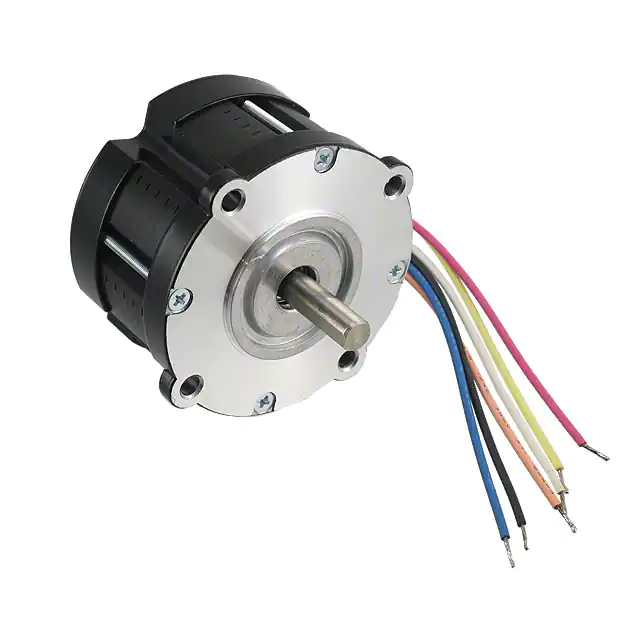

29SM-K250-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,363 | 82.84 |
RFQ |
Datasheet |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 1.6 A | 200 | 1.8° | ±5% | 82.15 / 580 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms |
|

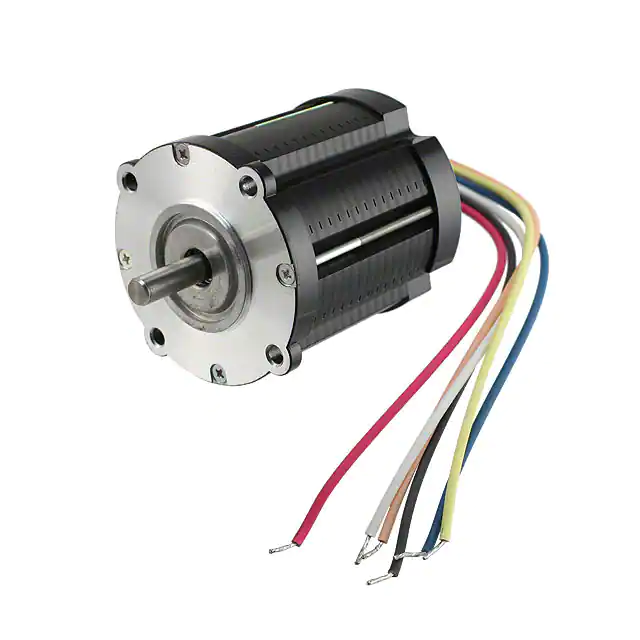

29SM-K711-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
825 | 105.51 |
RFQ |
Datasheet |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 205.36 / 1450 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms |
|
SM2863-5052STEP, F2, SQ.86, 1.8, HALF INCH |
939 | 180.28 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 2 A | 200 | 1.8° | - | 1275 / 9000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 4 Ohms | |
|
ERMS-32-180-ST-M-H1-PLK-AAROTARY DRIVE UNIT |
522 | 1586.90 |
RFQ |
Datasheet |
Bulk | - | Active | Hybrid | - | 24VDC | 5.3 A | 2 | 180° | ±0.1% | 793.20 / 5600 | Rectangular - 5.425 x 4.134 (137.80mm x 105.00mm) | - | - | 0.472 (12.00mm) | 3.346 (85.00mm) | Wire Leads with Connector | 0°C ~ 50°C | - |
|
PM20L-180-025PERMANENT MAGNET STEPPER MOTOR |
1,046 | 21.83 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 12VDC | 0.25 A | 20 | 18° | - | 1.7 / 11.8 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 21.5 Ohms |
|
|
PM25L-075-035PERMANENT MAGNET STEPPER MOTOR |
2,143 | 21.83 |
RFQ |
Datasheet |
Tray | PM | Active | - | Bipolar | 12VDC | 0.35 A | 48 | 7.5° | - | 3.7 / 26 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 14 Ohms |
|
|
PM35S-075-060PERMANENT MAGNET STEPPER MOTOR |
2,575 | 24.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 5 Ohms | 48 | 7.5° | - | 6.80 / 48 | Round - 1.378 Dia (35.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 5 Ohms |
|
|
PM35S-075-038PERMANENT MAGNET STEPPER MOTOR |
1,450 | 24.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.38 A | 48 | 7.5° | - | 6.4 / 45.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 12 Ohms |
|
|
PM35L-075-040PERMANENT MAGNET STEPPER MOTOR |
2,522 | 25.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.4 A | 48 | 7.5° | - | 8.64 / 61 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 12.5 Ohms |
|
|
PM42S-075-042PERMANENT MAGNET STEPPER MOTOR |
3,263 | 25.66 |
RFQ |
Datasheet |
Tray | PM | Active | - | Bipolar | 24VDC | 0.42 A | 48 | 7.5° | - | 8.89 / 62.77 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | -20°C ~ 50°C | 11.5 Ohms |
|
|
PM42S-075-065PERMANENT MAGNET STEPPER MOTOR |
3,748 | 25.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.65 A | 48 | 7.5° | - | - | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | -20°C ~ 50°C | 5.4 Ohms |
|
|
PM35L-075-016PERMANENT MAGNET STEPPER MOTOR |
3,952 | 25.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.16 A | 48 | 7.5° | - | 8.64 / 61 | Round - 1.378 Dia (35.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 75 Ohms |
|
|
PM35L-075-063PERMANENT MAGNET STEPPER MOTOR |
3,518 | 25.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.63 A | 48 | 7.5° | - | 8.64 / 61 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 5.3 Ohms |
|
|
PF25-48W4Tin-can step motor 48 steps 2.1V |
4,732 | 26.00 |
RFQ |
Datasheet |
Box | - | Active | Permanent Magnet | - | 2.1VDC | - | 48 | 7.5° | - | - | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.323 (8.20mm) | 1.260 (32.00mm) | Wire Leads | -10°C ~ 50°C | - |
|

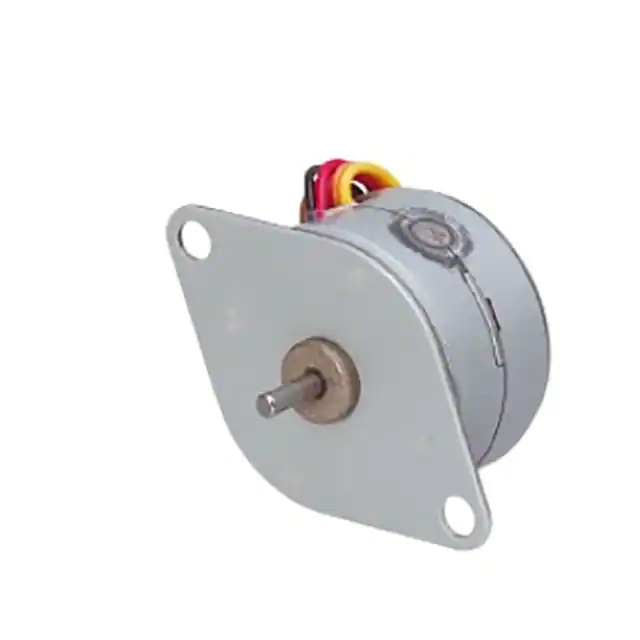

PF25-48Q4Tin-can step motor 48 steps 5V |
4,107 | 26.00 |
RFQ |
Datasheet |
Box | - | Active | Permanent Magnet | Bipolar | 5VDC | - | 48 | 7.5° | - | 1.699 / 12 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.323 (8.20mm) | 1.260 (32.00mm) | Wire Leads | -10°C ~ 50°C | 15 Ohms |
