Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

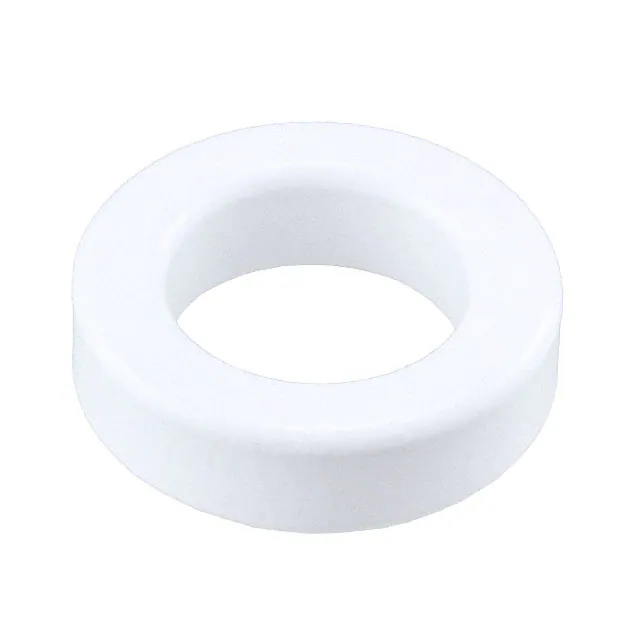

TX39/20/13-3E6 FERRITE CORES ROUND Ferroxcube	7,776	5.73	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	-	1.567 (39.80mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.535 (13.60mm)
HF90T38X14X22 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	9,132	5.93	RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.551 (14.00mm)

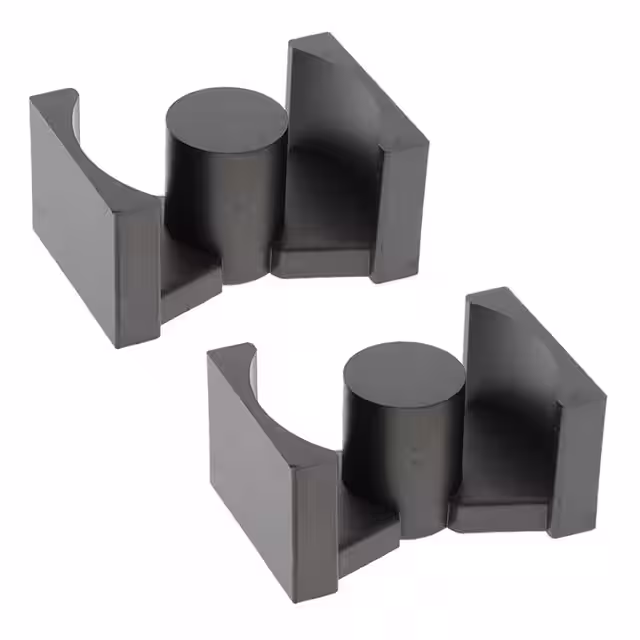

6695404121 95 PQ CORE SET Fair-Rite Products Corp.	7,333	6.15	RFQ	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	52.3	103.6	198	170	20500	Uncoated	-

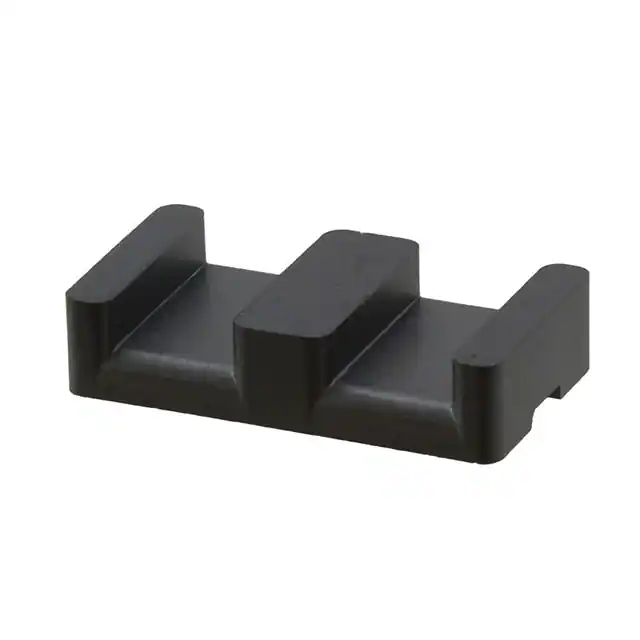

B66461G0000X195 FERRITE CORE ELP N95 1PC EPCOS - TDK Electronics	9,271	6.21	RFQ	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)

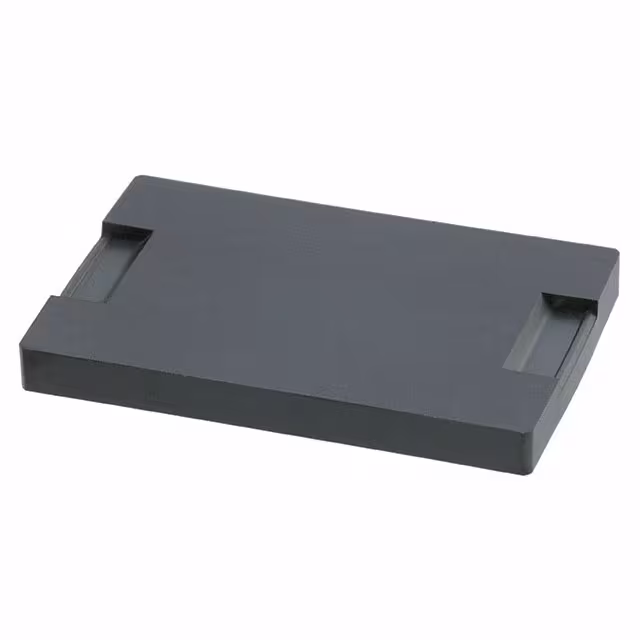

B66461K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	9,353	7.34	RFQ	Datasheet	Bag	I43/4/28	Active	I	I 43 x 4 x 28	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
PC95PQ26/20Z-12 FERRITE CORE PQ 7.47UH 2PC SET TDK Corporation	8,955	7.99	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 26 x 20	PC95	-	7.47 µH	±25%	Ungapped	-	-	0.39	46.3	119	-	5490	Uncoated	0.793 (20.15mm)
B64290L0696X037 FERRITE CORE TOROID 5UH T37 EPCOS - TDK Electronics	3,607	33.50	RFQ	Datasheet	Box	TX68/48/13	Active	Toroid	-	T37	2.756 (70.00mm)	5 µH	±25%	Ungapped	-	5500	1.39	178.6	128.7	-	22980	Epoxy	0.559 (14.20mm)

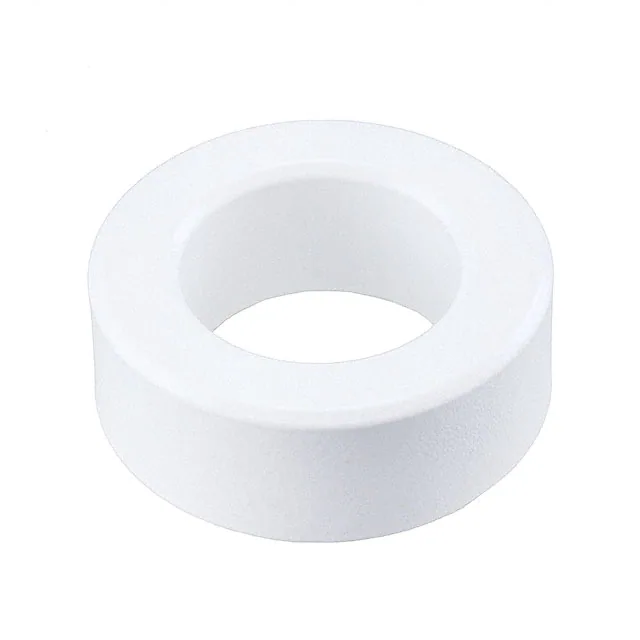

TX42/26/18-3E6 FERRITE CORES ROUND Ferroxcube	6,716	8.43	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	-	1.697 (43.15mm)	-	±30%	Ungapped	10000	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
B65661T0400A048 FERRITE CORE EPCOS - TDK Electronics	6,715	8.86	RFQ	Datasheet	Box	P22/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	-	-	Gapped	-	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)

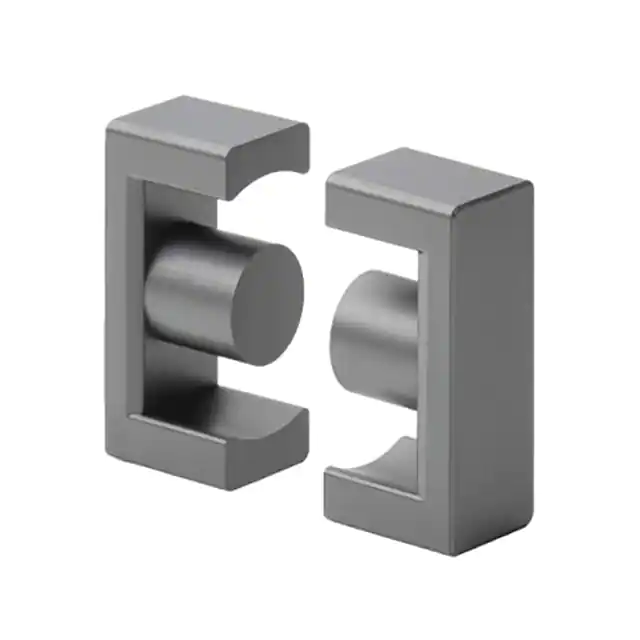

PC47EER49-Z FERRITE CORE EER 6.25UH 2PC SET TDK Corporation	8,426	9.02	RFQ	Datasheet	Tray	E	Active	E	EER 49	PC47	-	6.25 µH	±25%	Ungapped	-	-	0.4	91.3	231	-	21100	Uncoated	0.748 (19.00mm)
T58/41/18-3E27 FERRITE CORES ROUND Ferroxcube	1,464	11.34	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	2.295 (58.30mm)	-	±25%	-	5500	-	-	-	-	-	-	Uncoated	0.693 (17.60mm)

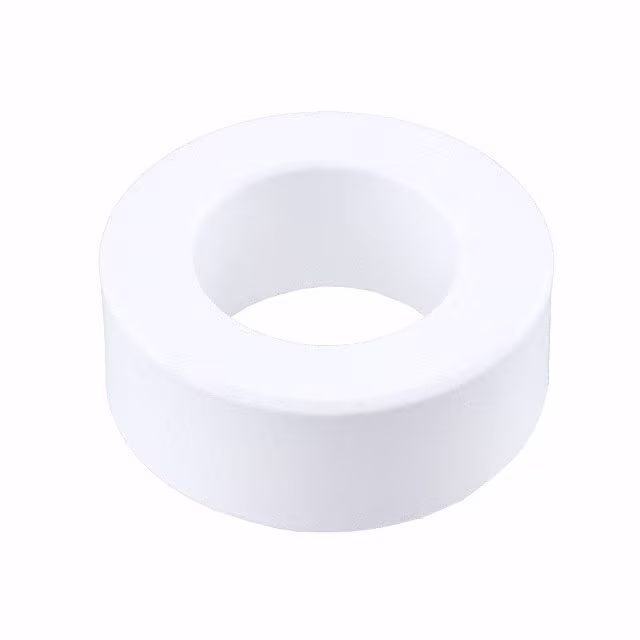

TX51/32/19-3E27 FERRITE CORES ROUND Ferroxcube	3,500	12.46	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	3E27	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)
B65701T0250G048 FERRITE CORE EPCOS - TDK Electronics	4,109	12.49	RFQ	Datasheet	Box	P30/19	Active	-	P 30 x 19	N48	1.200 (30.50mm)	-	-	Gapped	-	2300	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
TX58/41/18-3E27 FERRITE CORES ROUND Ferroxcube	1,043	13.28	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	3E27	2.354 (59.80mm)	-	±25%	Ungapped	5500	-	1	152	152	-	23200	Epoxy	0.729 (18.60mm)

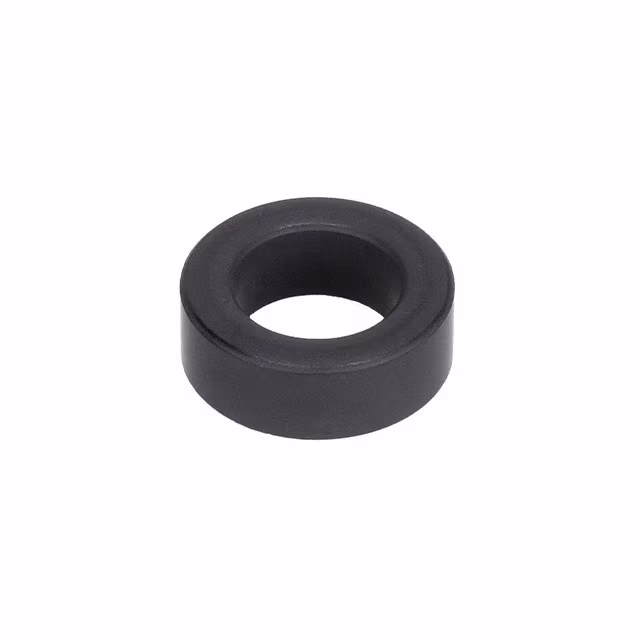

B64290A0048X001 FERRITE CORE EPCOS - TDK Electronics	3,891	13.31	RFQ	Datasheet	Box	T34/20.5/12.5	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
PC95PQ40/40Z-12 FERRITE CORE PQ 6.4UH 2PC SET TDK Corporation	3,327	14.10	RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 40 x 40	PC95	-	6.4 µH	±25%	Ungapped	-	-	0.51	102	201	-	20500	Uncoated	1.565 (39.75mm)
B65881A0000R092 FERRITE CORE PQ 3.3UH N92 2PCS EPCOS - TDK Electronics	3,962	15.26	RFQ	Datasheet	Box	PQ35/35	Active	PQ	PQ 35 x 35	N92	-	3.3 µH	-20%, +30%	Ungapped	1225	1500	0.467	79.2	169.7	146.5	13440	Uncoated	0.685 (17.40mm)
T63/38/25-3C94 FERRITE CORES ROUND Ferroxcube	4,827	18.34	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C94	2.480 (63.00mm)	-	±25%	Ungapped	2300	-	0.497	152	306	-	46500	Uncoated	0.984 (25.00mm)

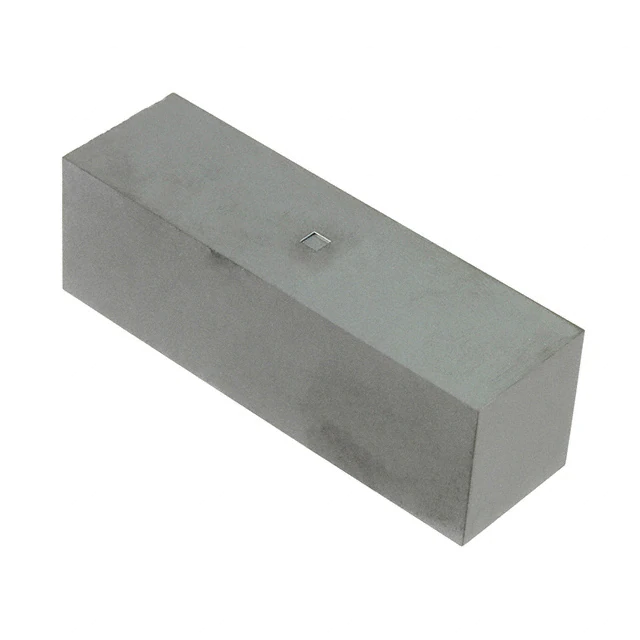

B67345B0002X027 FERRITE CORE I N27 1PC EPCOS - TDK Electronics	3,252	28.65	RFQ	Datasheet	Box	I93/28/30	Active	I	I 93 x 28 x 30	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.102 (28.00mm)
TX102/66/15-3C90 FERRITE CORES ROUND Ferroxcube	4,781	38.18	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	4.031 (102.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.602 (15.30mm)
