Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

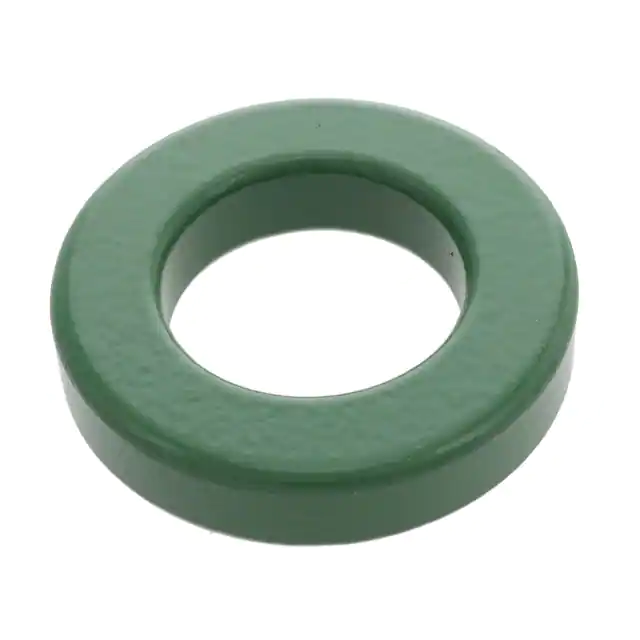

5961003821 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	4,742	16.40	RFQ	Datasheet	Bulk	-	Active	Toroid	-	61	2.472 (62.80mm)	170 nH	±25%	Ungapped	-	125	0.91627	145	158	-	22800	Plastic	0.539 (13.70mm)
P42/29-3C90 P CORES 2PC SET Ferroxcube	3,739	16.48	RFQ		Bulk	-	Active	P	P 42 x 29	3C90	1.669 (42.40mm)	-	±25%	Ungapped	-	-	0.259	68.6	265	214	18200	Uncoated	1.157 (29.40mm)
B66371Q0100K187 E70/33/32-N87-DG100 EPCOS - TDK Electronics	3,470	16.66	RFQ	Datasheet	Bulk	E70/33/32	Active	E	E 70 x 33 x 32	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.22	149	683	676	102000	Uncoated	1.307 (33.20mm)
ROD10/200-4B1 FERRITE ROD Ferroxcube	1,132	18.12	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 200	-	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
LRF462725MKCX NANOCRYSTALLINE CORE, 46X27X25 United Chemi-Con	2,250	21.62	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.945 (49.40mm)	64.6 µH	-	Ungapped	-	-	-	-	190	-	-	Uncoated	-
B65981Q0250K097 PQ50/50-N97-DG250 EPCOS - TDK Electronics	2,856	22.10	RFQ	Datasheet	Tray	PQ50/50	Active	PQ	PQ 50 x 50	N97	-	250 nH	±10%	Distributed Gapped	-	-	0.342	113	332	314	37630	Uncoated	0.984 (25.00mm)
LRF624520MKCX NANOCRYSTALLINE CORE, 62X45X20 United Chemi-Con	2,530	24.85	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	2.598 (66.00mm)	31.5 µH	-	Ungapped	-	-	-	-	1681	-	-	Uncoated	-
B65981Q0100K095 PQ50/50-N95-DG100 EPCOS - TDK Electronics	3,084	27.60	RFQ	Datasheet	Bulk	PQ50/50	Active	PQ	PQ 50 x 50	N95	-	100 nH	±10%	Distributed Gapped	-	3000	0.342	113	332	314	37630	Uncoated	0.984 (25.00mm)

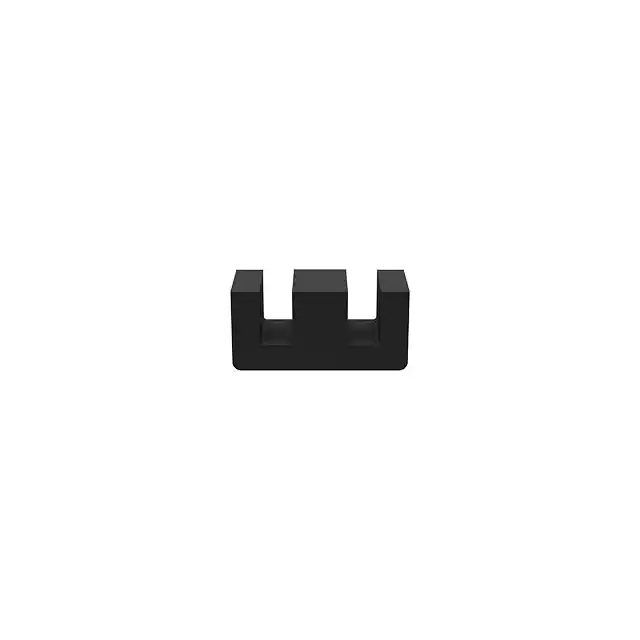

B66894G0000X197 FERRITE CORES EPCOS - TDK Electronics	2,831	44.36	RFQ	Datasheet	Bulk	E100/60/28	Active	E	E 100/60/28	N95	-	-	-20%, +30%	Ungapped	2020	-	0.373	274	735	690	201390	Uncoated	2.339 (59.40mm)
28T0100-20P FT,NIZN,PC 2.54X1.27X0.76-850 Laird-Signal Integrity Products	14,353	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.101 (2.57mm)	90 nH	±20%	Ungapped	-	850	10.91	5.49	0.5	-	-	Parylene	0.031 (0.79mm)
35T0100-00P FERRITE CORE TOROID 2.57MM OD Laird-Signal Integrity Products	11,882	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.100 (2.54mm)	880 nH	±20%	Ungapped	-	5000	7.138	5.531	0.775	-	4.286	Parylene	0.050 (1.27mm)
28T0100-00P FT,NIZN,PC 2.54X1.27X1.27-850 Laird-Signal Integrity Products	11,353	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.101 (2.57mm)	161 nH	±20%	Ungapped	-	850	6.63	5.49	0.83	-	-	Parylene	0.051 (1.29mm)
28T0119-10P FT,NIZN,PC 3.05X1.27X0.76-850 Laird-Signal Integrity Products	11,119	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.121 (3.07mm)	113 nH	±20%	Ungapped	-	850	8.77	5.93	0.68	-	-	Parylene	0.031 (0.79mm)
28T0100-30P FT,NIZN,PC 2.54X1.27X0.99-850 Laird-Signal Integrity Products	11,535	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.100 (2.54mm)	117 nH	±20%	Ungapped	-	850	9.15	5.53	0.6	-	-	Parylene	0.040 (1.02mm)
28T0082-300 FT,NIZN,EC Laird-Signal Integrity Products	14,318	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.080 (2.03mm)	200 nH	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.065 (1.65mm)
28T0135-00P FT,NIZN,PC 3.43X1.78X1.27-850 Laird-Signal Integrity Products	11,985	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.136 (3.45mm)	142 nH	±20%	Ungapped	-	850	7.12	7.57	1.06	-	-	Parylene	0.051 (1.29mm)
28T0135-60P FT,NIZN,PC 3.43X1.78X1.52-850 Laird-Signal Integrity Products	11,973	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.136 (3.45mm)	170 nH	±20%	Ungapped	-	850	6.28	7.62	1.21	-	-	Parylene	0.061 (1.55mm)
35T0135-00P FT,MNZN,PC 3.43X1.78X1.27-5000 Laird-Signal Integrity Products	13,908	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.136 (3.45mm)	834 nH	±20%	Ungapped	-	5000	7.12	7.57	1.06	-	-	Parylene	0.051 (1.29mm)
35T0135-10P FT,MNZN,PC 3.43X1.78X2.06-5000 Laird-Signal Integrity Products	13,623	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.136 (3.45mm)	1.351 µH	±20%	Ungapped	-	5000	4.65	7.62	1.64	-	-	Parylene	0.082 (2.08mm)
36T0135-60P FT,MNZN,PC 3.43X1.78X1.52-4500 Laird-Signal Integrity Products	11,393	0.01	RFQ	Datasheet	Bulk	-	Active	Toroid	-	36	0.136 (3.45mm)	901 nH	-0.25%	Ungapped	-	4500	-	-	-	-	-	Parylene	0.061 (1.55mm)
