Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
28T0231-10P FT,NIZN,PC 5.84X3.05X3.05-850 Laird-Signal Integrity Products	12,328	0.06	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.231 (5.87mm)	337 nH	±20%	Ungapped	-	850	3.08	12.99	4.22	-	-	Parylene	0.121 (3.07mm)
28T0231-20P FT,NIZN,PC 5.84X3.05X3.18-850 Laird-Signal Integrity Products	12,461	0.06	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.231 (5.87mm)	351 nH	±20%	Ungapped	-	850	2.95	12.99	4.4	-	-	Parylene	0.126 (3.20mm)

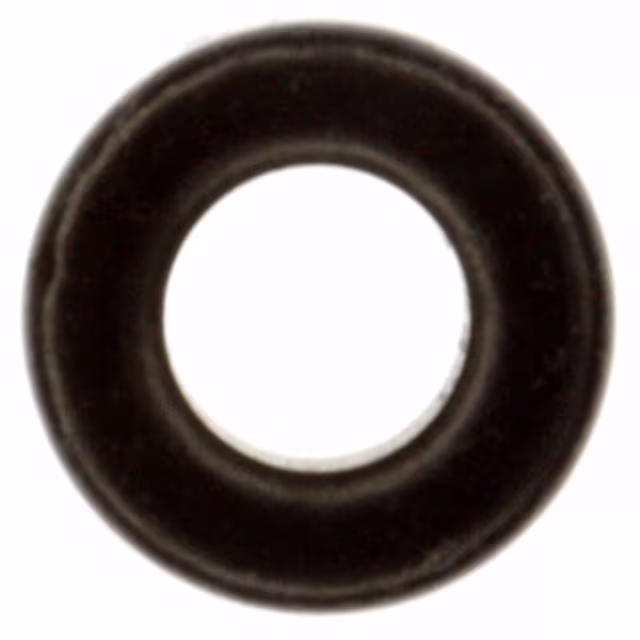

35T0231-20P FERRITE TOROID CORE .23 OD Laird-Signal Integrity Products	10,323	0.06	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	0.231 (5.87mm)	-	±20%	-	-	5000	-	-	-	-	-	Coated	0.126 (3.20mm)
35T0231-10Q FT,MNZN,PC 5.84X3.05X3.05-5000 Laird-Signal Integrity Products	14,232	0.06	RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.232 (5.89mm)	1.983 µH	±20%	Ungapped	-	5000	3	12.96	4.31	-	-	Parylene	0.122 (3.10mm)
28N0277-200 NFCC,NEW FERRITE CHIP/CH Laird-Signal Integrity Products	10,190	0.06	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	28	-	-	-	Ungapped	-	850	-	-	-	-	-	Uncoated	0.122 (3.10mm)
ROD4/15-3C90-D FERRITE ROD Ferroxcube	13,257	0.07	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 4 x 15	3C90	0.157 (4.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
33N0277-000 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	10,714	0.07	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	33	-	-	-	Ungapped	-	2300	-	-	-	-	-	Uncoated	0.244 (6.20mm)
ROD1.5/10-4B1-D FERRITE ROD Ferroxcube	13,799	0.07	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 1.5 x 10	-	0.059 (1.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
36T0250-10P FT,MNZN,PC 6.35X3.81X3.18MMX4500 Laird-Signal Integrity Products	11,854	0.08	RFQ	Datasheet	Bulk	-	Active	Toroid	-	36	0.251 (6.38mm)	1.46 µH	-0.25%	Ungapped	-	4500	3.75	15.25	4.07	-	-	Parylene	0.126 (3.20mm)
HFN0277-200 FB,NIZN,UC Laird-Signal Integrity Products	12,872	0.08	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	HF	-	-	-	Ungapped	-	100	-	-	-	-	-	Uncoated	0.122 (3.10mm)
ROD3/15-4B1-D FERRITE ROD Ferroxcube	13,798	0.08	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 3 x 15	-	0.118 (3.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
28T0121-20P FT,NIZN,EC 3.07X1.5X2.08MMX850. Laird-Signal Integrity Products	10,376	0.08	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.121 (3.07mm)	244 nH	±20%	Ungapped	-	850	4.41	6.64	1.51	-	-	Parylene	0.082 (2.08mm)
37T0231-10P FT,MNZN,PC 5.84X3.05X3.05MMX7500 Laird-Signal Integrity Products	10,487	0.08	RFQ	Datasheet	Bulk	-	Active	Toroid	-	37	0.231 (5.87mm)	2.974 µH	±30%	Ungapped	-	5500	3.08	12.99	4.22	-	-	Parylene	0.121 (3.07mm)
ROD5/25-3C90-D FERRITE ROD Ferroxcube	11,309	0.09	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 5 x 25	3C90	0.197 (5.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
ROD5/20-3C90-D FERRITE ROD Ferroxcube	10,083	0.09	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 5 x 20	3C90	0.197 (5.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
28N0277-000 FB,NIZN,PC 7.04X4.06X6.2MMX850.. Laird-Signal Integrity Products	11,488	0.09	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	28	-	-	-	Ungapped	-	850	-	-	-	-	-	Uncoated	0.244 (6.20mm)
ROD4/25-3C90-D FERRITE ROD Ferroxcube	12,193	0.10	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 4 x 25	3C90	0.157 (4.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B64290P0072X065 FERRITE CORE TOROID 600NH T65 EPCOS - TDK Electronics	11,499	0.10	RFQ	Datasheet	Box	TC2.5/1.5/1.3	Active	Toroid	-	T65	0.099 (2.52mm)	600 nH	±30%	Ungapped	-	4600	9.41	6.02	0.64	-	3.85	Parylene	0.052 (1.32mm)
28T0301-10P FT,NIZN,PC 7.62X3.18X3.18-850 Laird-Signal Integrity Products	10,916	0.10	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.301 (7.65mm)	473 nH	±20%	Ungapped	-	850	2.21	14.93	6.75	-	-	Parylene	0.126 (3.20mm)
4052098411 52 ROD Fair-Rite Products Corp.	10,086	0.10	RFQ	Datasheet	Bulk	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
