Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
46T0145-00P FT,MNZN,PC 3.68X1.65X2.54-4000 Laird-Signal Integrity Products	14,858	0.02	RFQ		Bulk	-	Active	Toroid	-	46	0.146 (3.71mm)	1.63 µH	-	Ungapped	-	4000	2.97	7.51	2.53	-	-	Parylene	0.101 (2.57mm)
28T0155-10P FT,NIZN,PC 3.94X2.24X1.27-850 Laird-Signal Integrity Products	12,281	0.02	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.156 (3.96mm)	122 nH	±20%	Ungapped	-	850	8.74	9.2	1.05	-	-	Parylene	0.051 (1.29mm)
28T0155-00P FT,NIZN,PC 3.94X2.24X2.54-850 Laird-Signal Integrity Products	11,831	0.02	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.156 (3.96mm)	244 nH	±25%	Ungapped	-	850	4.19	9.16	2.19	-	-	Parylene	0.101 (2.57mm)
33N0136-000 NFCC,NEW FERRITE CABLE C Laird-Signal Integrity Products	12,312	0.02	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	33	-	920 nH	±30%	Ungapped	-	2300	-	-	-	-	-	Uncoated	0.093 (2.36mm)

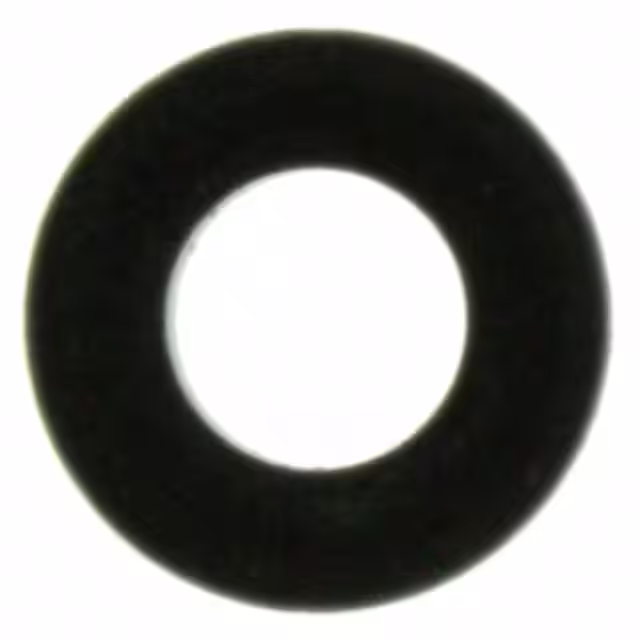

35T0231-00P FERRITE CORE TOROID Laird-Signal Integrity Products	11,069	0.03	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	0.231 (5.87mm)	991 nH	±20%	Ungapped	-	5000	-	-	-	-	26.775	Parylene	0.061 (1.55mm)
33T0190-10P FT,MNZN,PC 4.83X2.29X2.54X2700* Laird-Signal Integrity Products	13,407	0.03	RFQ	Datasheet	Bulk	-	Active	Toroid	-	33	0.191 (4.85mm)	512 nH	±20%	Ungapped	-	2700	6.62	10.2	1.54	-	-	Parylene	0.051 (1.29mm)
28T0145-500 FT,NIZN,EC Laird-Signal Integrity Products	13,830	0.03	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.145 (3.68mm)	443 nH	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.128 (3.25mm)
33T0140-500 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	13,928	0.03	RFQ	Datasheet	Bulk	-	Active	Toroid	-	33	0.138 (3.50mm)	2.339 µH	±30%	Ungapped	-	2300	-	-	-	-	-	Uncoated	0.236 (6.00mm)
28T0140-500 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	13,151	0.03	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.138 (3.50mm)	864 nH	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.236 (6.00mm)
36T0231-00Q FERRITE CORE TOROID 5.89MM OD Laird-Signal Integrity Products	13,972	0.04	RFQ	Datasheet	Bulk	-	Active	Toroid	-	36	0.230 (5.84mm)	892 nH	±25%	Ungapped	-	4500	6.337	13.026	2.055	-	26.775	-	0.060 (1.52mm)
28T0231-00P FERRITE CORE TOROID 5.87MM OD Laird-Signal Integrity Products	10,407	0.04	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.230 (5.84mm)	169 nH	±20%	Ungapped	-	850	6.337	13.026	2.055	-	26.775	Parylene	0.060 (1.52mm)
ROD1.5/10-3C90-D FERRITE ROD Ferroxcube	10,122	0.04	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 1.5 x 10	3C90	0.059 (1.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
28T0145-600 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	14,387	0.04	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.145 (3.68mm)	812 nH	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.234 (5.95mm)
ROD3/15-3C90-D FERRITE ROD Ferroxcube	11,571	0.04	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 3 x 15	3C90	0.118 (3.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
33T0157-900 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	14,692	0.05	RFQ	Datasheet	Bulk	-	Active	Toroid	-	33	0.157 (4.00mm)	2.172 µH	±30%	Ungapped	-	2300	-	-	-	-	-	Uncoated	0.270 (6.85mm)
33T0231-00P FT,MNZN,PC 5.84X3.05X1.52-2700 Laird-Signal Integrity Products	13,750	0.05	RFQ	Datasheet	Bulk	-	Active	Toroid	-	33	0.231 (5.87mm)	454 nH	±20%	Ungapped	-	2700	6.34	13.03	2.06	-	-	Parylene	0.061 (1.55mm)
28T0201-100 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	14,672	0.05	RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.201 (5.10mm)	727 nH	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.134 (3.40mm)

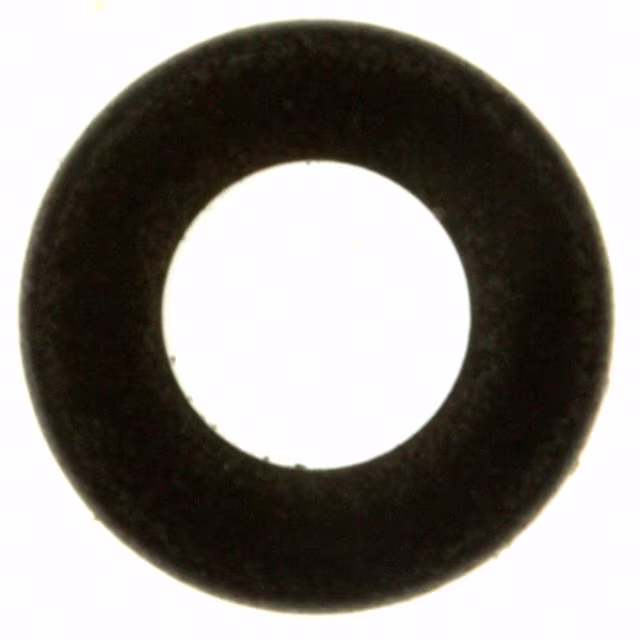

35T0231-30P FERRITE CORE TOROID Laird-Signal Integrity Products	12,112	0.05	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	0.231 (5.87mm)	-	±20%	-	-	5000	-	-	-	-	-	Parylene	0.101 (2.56mm)
33N0277-200 NFCC,NEWTRANSFORMFERRITE Laird-Signal Integrity Products	11,546	0.05	RFQ	Datasheet	Bulk	-	Active	Multi-Hole (2)	-	33	-	-	-	Ungapped	-	2300	-	-	-	-	-	Uncoated	0.122 (3.10mm)
35T0231-10P FT,MNZN,PC 5.84X3.05X3.05-5000 Laird-Signal Integrity Products	11,393	0.06	RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	0.231 (5.87mm)	1.983 µH	±20%	Ungapped	-	5000	3.08	12.99	4.22	-	-	Parylene	0.121 (3.07mm)
