Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
UNL15W4P7K-F CAP FILM 4.7UF 10% 1.5KVDC RAD Cornell Dubilier Electronics (CDE)	1,830	30.21	RFQ	Datasheet	Radial, Can	Bulk	UNL	Active	4.7 µF	±10%	-	1500V (1.5kV)	Polypropylene (PP), Metallized	15 mOhms	-55°C ~ 105°C	Through Hole	1.378 Dia (35.00mm)	2.134 (54.20mm)	PC Pins	0.500 (12.70mm)	-	-
UNL5W35K-F CAP FILM 35UF 10% 500VDC RADIAL Cornell Dubilier Electronics (CDE)	2,561	32.64	RFQ	Datasheet	Radial, Can	Bulk	UNL	Active	35 µF	±10%	-	500V	Polypropylene (PP), Metallized	8 mOhms	-55°C ~ 105°C	Through Hole	1.378 Dia (35.00mm)	2.134 (54.20mm)	PC Pins	0.500 (12.70mm)	-	-
MKP1848680704Y5 CAP FILM 80UF 5% 700VDC RADIAL Vishay Beyschlag/Draloric/BC Components	2,315	35.19	RFQ	Datasheet	Radial - 4 Leads	Bulk	MKP1848 DC-Link	Active	80 µF	±5%	-	700V	Polypropylene (PP), Metallized	4.5 mOhms	-40°C ~ 105°C	Through Hole	2.264 L x 1.772 W (57.50mm x 45.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

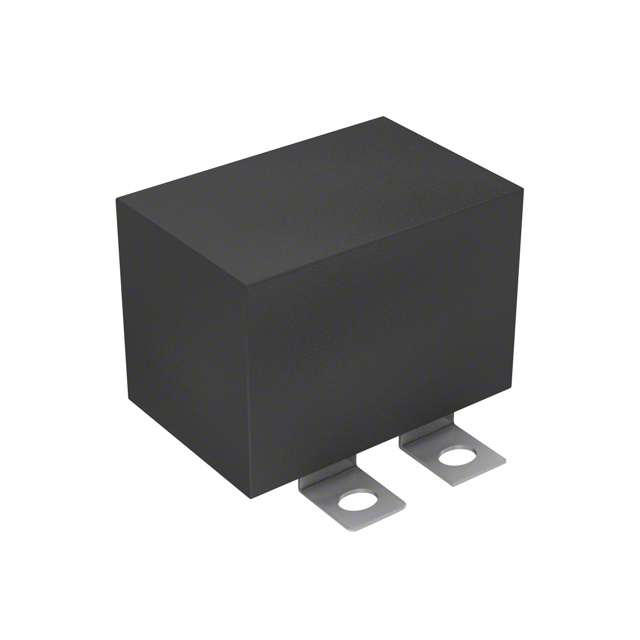

SCD205K162A3Z25-F CAP FILM 2UF 10% 1.6KVDC SCREW Cornell Dubilier Electronics (CDE)	2,892	36.33	RFQ	Datasheet	Rectangular Box	Bulk	SCD	Active	2 µF	±10%	630V	1600V (1.6kV)	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 85°C	Chassis Mount	2.626 L x 1.752 W (66.70mm x 44.50mm)	1.827 (46.40mm)	Screw Terminals	1.000 (25.40mm)	Snubber	-
JSNIJ5100KB6L0 CAP FILM 10UF 10% 250VDC SMD KEMET	2,515	37.61	RFQ	Datasheet	SMD, J-Lead	Bulk	JSN	Active	10 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.681 L x 1.181 W (17.30mm x 30.00mm)	0.720 (18.30mm)	-	-	DC Link, DC Filtering	-
SFC66T15K391B-F CAP FILM 15UF 10% 660VAC RADIAL Cornell Dubilier Electronics (CDE)	2,901	44.38	RFQ	Datasheet	Radial, Can	Bulk	SF	Active	15 µF	±10%	660V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	2.910 L x 1.910 W (73.91mm x 48.51mm), Lip	4.030 (102.36mm)	Quick Connect, Disconnect	0.810 (20.57mm)	Motor Run	-
C44BXFP4100ZB0J CAP FILM 1UF 5% 2.4KVDC RADIAL KEMET	1,962	46.45	RFQ	Datasheet	Radial, Can	Bulk	C44B	Active	1 µF	±5%	1000V (1kV)	2400V (2.4kV)	Polypropylene (PP), Metallized	2.5 mOhms	-40°C ~ 85°C	Chassis, Stud Mount	1.969 Dia (50.00mm)	4.016 (102.00mm)	Threaded, Male	0.878 (22.30mm)	Snubber	-
FFV34D0167K-- CAP FILM 160UF 10% 75VDC RADIAL KYOCERA AVX	4,107	48.54	RFQ	Datasheet	Radial - 4 Leads	Bulk	FFV3	Active	160 µF	±10%	45V	75V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.575 L x 1.417 W (40.00mm x 36.00mm)	1.575 (40.00mm)	PC Pins	0.984 (25.00mm)	General Purpose	-
C44AJGP5500ZA0J CAP FILM 50UF 5% 700VDC RAD KEMET	1,650	50.06	RFQ	Datasheet	Radial, Can	Bulk	C44A	Active	50 µF	±5%	400V	700V	Polypropylene (PP), Metallized	4 mOhms	-40°C ~ 85°C	Chassis, Stud Mount	2.559 Dia (65.00mm)	5.512 (140.00mm)	Threaded, Male	0.878 (22.30mm)	General Purpose	-
B32362A4107J080 CAP FILM 100UF 5% 480VAC RADIAL EPCOS - TDK Electronics	2,928	61.03	RFQ	Datasheet	Radial, Can	Bulk	MKP AC	Active	100 µF	±5%	480V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis, Stud Mount	2.953 Dia (75.00mm)	7.756 (197.00mm)	Threaded, Male	1.378 (35.00mm)	General Purpose	-
SFD66T30K391B-F CAP FILM 30UF 10% 660VAC RADIAL Cornell Dubilier Electronics (CDE)	4,693	65.54	RFQ	Datasheet	Radial, Can	Bulk	SF	Active	30 µF	±10%	660V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	3.660 L x 1.970 W (92.96mm x 50.04mm), Lip	4.030 (102.36mm)	Quick Connect, Disconnect	0.810 (20.57mm)	Motor Run	-
944U101K102ABI CAP FILM 100UF 10% 1KVDC RADIAL Cornell Dubilier Electronics (CDE)	1,681	69.71	RFQ	Datasheet	Radial, Can	Bulk	944U	Active	100 µF	±10%	-	1000V (1kV)	Polypropylene (PP), Metallized	0.8 mOhms	-40°C ~ 85°C	Chassis Mount	3.327 Dia (84.50mm)	2.047 (52.00mm)	Threaded, Female	1.772 (45.00mm)	DC Link, DC Filtering	-
944U700K122ABM CAP FILM 70UF 10% 1.2KVDC RADIAL Cornell Dubilier Electronics (CDE)	1,324	78.42	RFQ	Datasheet	Radial, Can	Bulk	944U	Active	70 µF	±10%	-	1200V (1.2kV)	Polypropylene (PP), Metallized	1 mOhms	-40°C ~ 85°C	Chassis Mount	3.327 Dia (84.50mm)	2.047 (52.00mm)	Threaded, Male	1.772 (45.00mm)	DC Link, DC Filtering	-
C4DEIPQ6140A8TK CAP FILM 140UF 10% 800VDC RADIAL KEMET	4,581	84.22	RFQ	Datasheet	Radial, Can	Bulk	C4DE	Active	140 µF	±10%	-	800V	Polypropylene (PP), Metallized	1.2 mOhms	-40°C ~ 85°C	Chassis Mount	3.307 Dia (84.00mm)	2.598 (66.00mm)	Threaded, Male	1.772 (45.00mm)	DC Link, DC Filtering	-
947D421K901BDMSN CAP FILM 420UF 10% 900VDC RADIAL Cornell Dubilier Electronics (CDE)	1,930	99.56	RFQ	Datasheet	Radial, Can	Bulk	947D	Active	420 µF	±10%	230V	900V	Polypropylene (PP), Metallized	1.2 mOhms	-45°C ~ 85°C	Chassis, Stud Mount	3.543 Dia (90.00mm)	3.465 (88.00mm)	Threaded, Female	1.772 (45.00mm)	DC Link, DC Filtering	-
MKT1820756065 CAP FILM 560UF 10% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	534	114.23	RFQ	Datasheet	Radial	Bulk	MKT1820	Active	560 µF	±10%	40V	63V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	2.264 L x 1.378 W (57.50mm x 35.00mm)	1.969 (50.00mm)	PC Pins	2.067 (52.50mm)	DC Link, DC Filtering	-

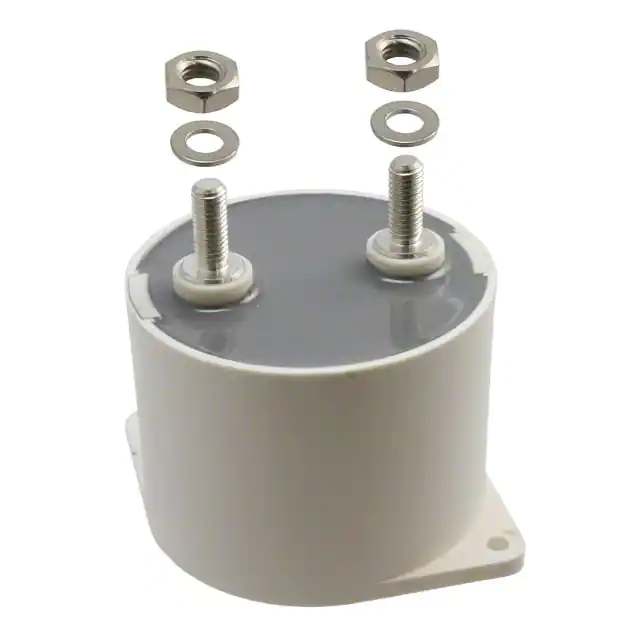

C4DEFPQ6380A8TK CAP FILM 380UF 10% 400VDC RADIAL KEMET	556	116.92	RFQ	Datasheet	Radial, Can	Bulk	C4DE	Active	380 µF	±10%	-	400V	Polypropylene (PP), Metallized	0.81 mOhms	-40°C ~ 85°C	Chassis Mount	3.307 Dia (84.00mm)	2.598 (66.00mm)	Threaded, Male	1.772 (45.00mm)	DC Link, DC Filtering	-
FFVI6A0227KJE CAP FILM 220UF 10% 700VDC RADIAL KYOCERA AVX	880	116.94	RFQ	Datasheet	Radial, Can	Bulk	FFVI	Active	220 µF	±10%	-	700V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Chassis Mount	3.327 Dia (84.50mm)	2.559 (65.00mm)	Threaded, Female	1.772 (45.00mm)	DC Link, DC Filtering	-

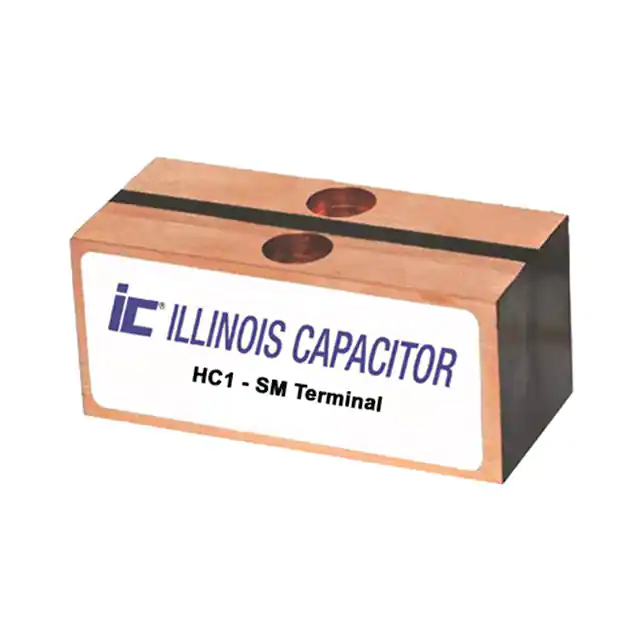

504HC1700K2SM6 CAP FILM 0.5UF 10% 700VAC CHASS Cornell Dubilier / Illinois Capacitor	333	119.85	RFQ	Datasheet	Nonstandard	Bulk	HC1	Active	0.5 µF	±10%	700V	-	Polypropylene (PP)	1 mOhms	-40°C ~ 85°C	Chassis Mount	2.677 L x 1.189 W (68.00mm x 30.20mm)	1.201 (30.50mm)	Threaded, Female	-	Conduction Cooled; High Pulse, DV/DT	-
503HC1102K2SM6 CAP FILM 0.05UF 10% 1KVAC CHASS Cornell Dubilier / Illinois Capacitor	824	119.85	RFQ	Datasheet	Nonstandard	Bulk	HC1	Active	0.05 µF	±10%	1000V (1kV)	-	Polypropylene (PP)	1.5 mOhms	-40°C ~ 85°C	Chassis Mount	2.677 L x 1.189 W (68.00mm x 30.20mm)	1.201 (30.50mm)	Threaded, Female	-	Conduction Cooled; High Pulse, DV/DT	-
