Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
C274ACF4800WA0J CAP FILM 8UF 5% 470VAC RADIAL KEMET	6,391	9.42	RFQ	Datasheet	Radial, Can	Bulk	C274	Active	8 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.378 Dia (35.00mm)	2.382 (60.50mm)	Wire Leads	-	Motor Run; Motor Start	-
R75IR51004040J CAP FILM 10UF 5% 250VDC RADIAL KEMET	9,116	9.80	RFQ	Datasheet	Radial	Tray	R75	Active	10 µF	±5%	160V	250V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.461 (37.10mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
226MWR100K CAP FILM 22UF 10% 100VDC AXIAL Cornell Dubilier / Illinois Capacitor	6,408	9.85	RFQ	Datasheet	Axial	Bulk	MWR	Active	22 µF	±10%	63V	100V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.866 Dia x 1.811 L (22.00mm x 46.00mm)	-	PC Pins	-	General Purpose	-
R76MW468050H3J CAP FILM 6.8UF 5% 400VDC RADIAL KEMET	1,702	10.13	RFQ	Datasheet	Radial	Tray	R76	Active	6.8 µF	±5%	250V	400V	Polypropylene (PP), Metallized	0.6 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 1.181 W (41.50mm x 30.00mm)	1.776 (45.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
C4ATGBW5150A3LJ CAP FILM 15UF 5% 450VDC RADIAL KEMET	1,401	10.15	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	15 µF	±5%	275V	450V	Polypropylene (PP), Metallized	2.8 mOhms	-40°C ~ 85°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
940C16P47K-F CAP FILM 0.47UF 1.6KVDC AXIAL Cornell Dubilier Electronics (CDE)	4,903	10.20	RFQ	Datasheet	Axial	Bulk	940C	Active	0.47 µF	±10%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 105°C	Through Hole	1.083 Dia x 1.811 L (27.50mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
C274ACF5150WA0J CAP FILM 15UF 5% 470VAC RADIAL KEMET	3,313	10.21	RFQ	Datasheet	Radial, Can	Bulk	C274	Active	15 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.575 Dia (40.00mm)	2.894 (73.50mm)	Wire Leads	-	Motor Run; Motor Start	-

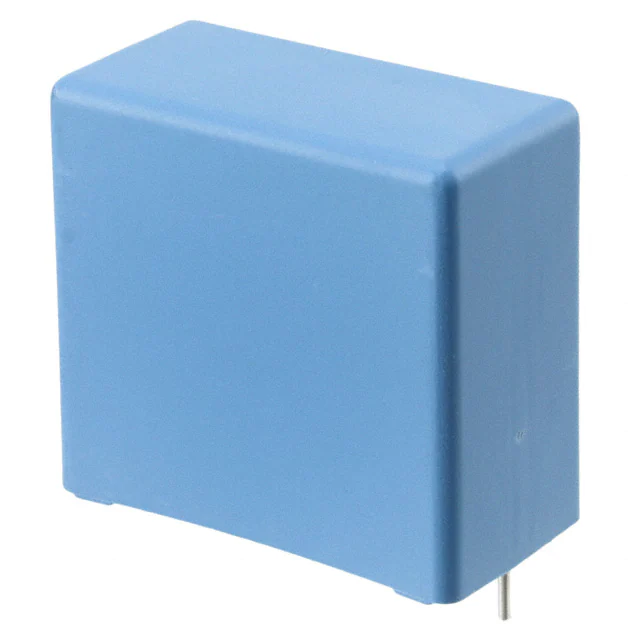

PHE450MR7270JR06L2 CAP FILM 2.7UF 5% 630VDC RADIAL KEMET	4,855	10.25	RFQ	Datasheet	Radial	Bulk	PHE450	Active	2.7 µF	±5%	400V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.614 L x 0.827 W (41.00mm x 21.00mm)	1.496 (38.00mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching	-
SMR15335J50B06L16.5CBULK CAP FILM 3.3UF 5% 50VDC RADIAL KEMET	1,335	10.28	RFQ	Datasheet	Radial	Bulk	SMR	Active	3.3 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized	-	-55°C ~ 150°C	Through Hole	0.709 L x 0.295 W (18.00mm x 7.50mm)	0.571 (14.50mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
C4ATHBW4900A3LJ CAP FILM 9UF 5% 600VDC RADIAL KEMET	3,114	10.30	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	9 µF	±5%	350V	600V	Polypropylene (PP), Metallized	1.9 mOhms	-40°C ~ 85°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-

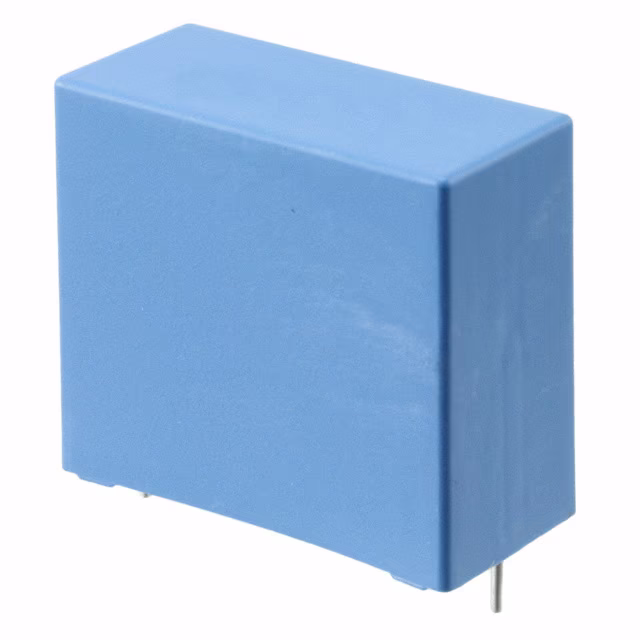

PHE450MR7220JR06L2 CAP FILM 2.2UF 5% 630VDC RADIAL KEMET	2,563	10.32	RFQ	Datasheet	Radial	Bulk	PHE450	Active	2.2 µF	±5%	400V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.614 L x 0.748 W (41.00mm x 19.00mm)	1.417 (36.00mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching	-
FFB24D0476K-- CAP FILM 47UF 10% 75VDC RADIAL KYOCERA AVX	2,474	10.54	RFQ	Datasheet	Radial	Bulk	FFB	Active	47 µF	±10%	45V	75V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.575 W (31.10mm x 14.60mm)	1.012 (25.70mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-

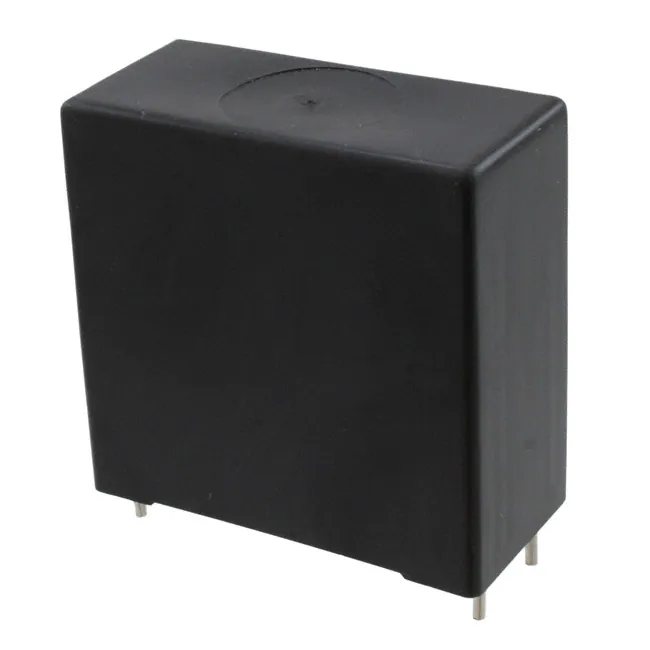

BLC080J112B4A CAP FILM 8UF 5% 1.1KVDC RADIAL Cornell Dubilier Electronics (CDE)	3,683	10.67	RFQ	Datasheet	Radial - 4 Leads	Bulk	BLC	Active	8 µF	±5%	230V	1100V (1.1kV)	Polypropylene (PP), Metallized	6.5 mOhms	-45°C ~ 85°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
MPX256K305R CAP FILM 25UF 10% 305VAC RAD Cornell Dubilier / Illinois Capacitor	1,992	10.74	RFQ	Datasheet	Radial	Tray	MPX	Active	25 µF	±10%	305V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.791 (45.50mm)	PC Pins	2.067 (52.50mm)	EMI, RFI Suppression	X2
DCP4L053007HD2KSSD CAP FILM 30UF 10% 800VDC RAD WIMA	1,911	10.78	RFQ	Datasheet	Radial	Bulk	-	Active	30 µF	±10%	-	800V	Polypropylene (PP), Metallized	4.1 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.791 (45.50mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
106PHC600K CAP FILM 10UF 10% 600VDC AXIAL Cornell Dubilier / Illinois Capacitor	2,582	10.79	RFQ	Datasheet	Axial	Bulk	PHC	Active	10 µF	±10%	330V	600V	Polypropylene (PP), Metallized	5.4 mOhms	-40°C ~ 85°C	Through Hole	1.378 Dia x 2.165 L (35.00mm x 55.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching	-
C4GADUD5300AA3J CAP FILM 30UF 5% 250VDC AXIAL KEMET	2,177	10.92	RFQ	Datasheet	Axial	Bulk	C4G	Active	30 µF	±5%	160V	250V	Polypropylene (PP), Metallized	4 mOhms	-40°C ~ 85°C	Through Hole	1.142 Dia x 2.283 L (29.00mm x 58.00mm)	-	PC Pins	-	High Frequency, Switching	-
C4ASPBW3470A3GJ CAP FILM 0.47UF 5% 1.2KVDC RAD KEMET	2,139	11.00	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AS	Active	0.47 µF	±5%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	3.7 mOhms	-40°C ~ 85°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.457 (37.00mm)	PC Pins	1.083 (27.50mm)	Snubber	-
C4ASPBW4100A3FJ CAP FILM 1UF 5% 1.2KVDC RADIAL KEMET	3,164	11.12	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AS	Active	1 µF	±5%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	3.5 mOhms	-40°C ~ 85°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	PC Pins	1.476 (37.50mm)	Snubber	-
C4AEQBW5100A3JJ CAP FILM 10UF 5% 1.1KVDC RADIAL KEMET	4,403	11.12	RFQ	Datasheet	Radial	Box	C4AE	Active	10 µF	±5%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	6.3 mOhms	-40°C ~ 85°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.465 (37.20mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
