Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

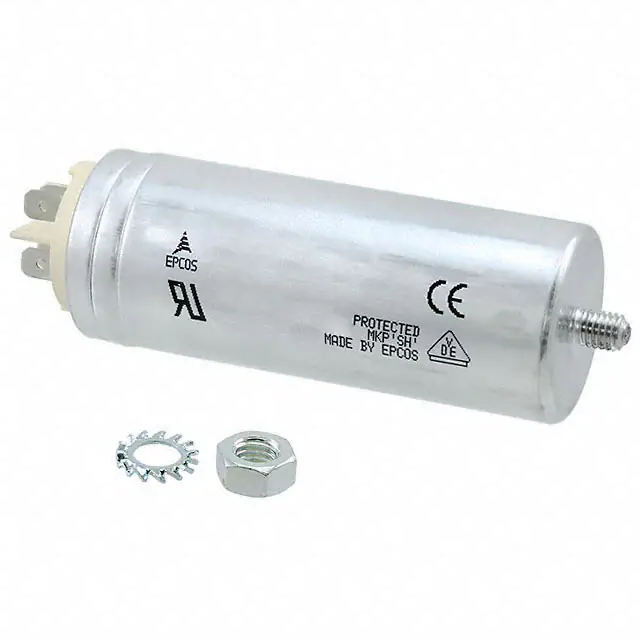

B32332I6406J081 CAP FILM 40UF 5% 450VAC RADIAL EPCOS - TDK Electronics	1,949	18.22	RFQ	Datasheet	Radial, Can	Bulk	B32332* - S2 Motor Run	Active	40 µF	±5%	450V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.575 Dia (40.00mm)	4.173 (106.00mm)	Quick Connect, Disconnect	-	Motor Run	-
C274AC35350SA0J CAP FILM 35UF 5% 470VAC RADIAL KEMET	2,846	18.43	RFQ	Datasheet	Radial, Can	Bulk	C274	Active	35 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.969 Dia (50.00mm)	3.740 (95.00mm)	Quick Connect - 0.250 (6.3mm)	-	Motor Run; Motor Start	-
940C12W1P5K-F CAP FILM 1.5UF 10% 1.2KVDC AXIAL Cornell Dubilier Electronics (CDE)	3,381	18.95	RFQ	Datasheet	Axial	Bulk	940C	Active	1.5 µF	±10%	500V	1200V (1.2kV)	Polypropylene (PP), Metallized	4 mOhms	-55°C ~ 105°C	Through Hole	1.378 Dia x 2.126 L (35.00mm x 54.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
DCP4L055007JD4KSSD CAP FILM 50UF 10% 800VDC RAD WIMA	3,369	19.44	RFQ	Datasheet	Radial - 4 Leads	Bulk	-	Active	50 µF	±10%	-	800V	Polypropylene (PP), Metallized	3 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 1.378 W (41.50mm x 35.00mm)	1.969 (50.00mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

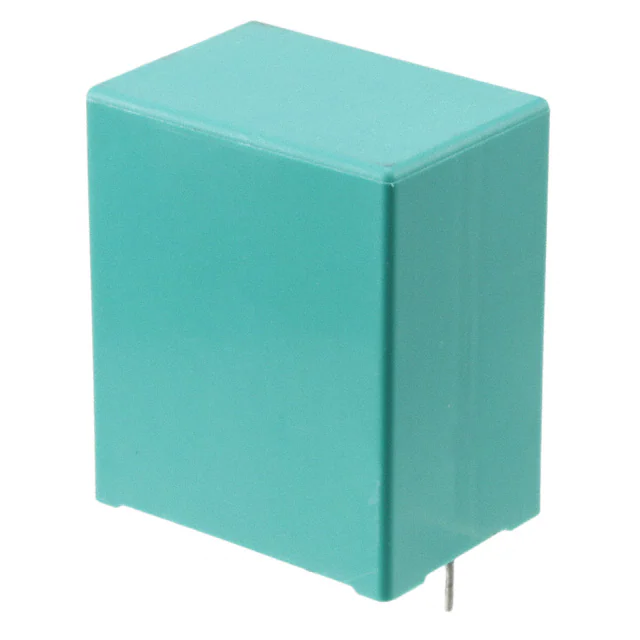

C4AEHBU5150A12J CAP FILM 15UF 5% 600VDC RADIAL KEMET	9,938	8.20	RFQ	Datasheet	Radial	Bulk	C4AE	Active	15 µF	±5%	-	600V	Polypropylene (PP), Metallized	5.3 mOhms	-40°C ~ 85°C	Through Hole	1.240 L x 0.866 W (31.50mm x 22.00mm)	1.465 (37.20mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
942C10P47K-F CAP FILM 0.47UF 10% 1KVDC AXIAL Cornell Dubilier Electronics (CDE)	8,673	8.39	RFQ	Datasheet	Axial	Bulk	942C	Active	0.47 µF	±10%	400V	1000V (1kV)	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	0.945 Dia x 1.811 L (24.00mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
C4GAMUD4220AA1J CAP FILM 2.2UF 5% 850VDC AXIAL KEMET	8,549	8.53	RFQ	Datasheet	Axial	Bulk	C4G	Active	2.2 µF	±5%	450V	850V	Polypropylene (PP), Metallized	3 mOhms	-40°C ~ 85°C	Through Hole	1.161 Dia x 1.732 L (29.50mm x 44.00mm)	-	PC Pins	-	High Frequency, Switching	-
940C10P47K-F CAP FILM 0.47UF 10% 1KVDC AXIAL Cornell Dubilier Electronics (CDE)	6,729	8.54	RFQ	Datasheet	Axial	Bulk	940C	Active	0.47 µF	±10%	500V	1000V (1kV)	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	0.945 Dia x 1.339 L (24.00mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
685PHC400K CAP FILM 6.8UF 10% 400VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,997	8.54	RFQ	Datasheet	Axial	Bulk	PHC	Active	6.8 µF	±10%	250V	400V	Polypropylene (PP), Metallized	6.4 mOhms	-40°C ~ 85°C	Through Hole	1.024 Dia x 1.811 L (26.00mm x 46.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching	-
R76QW4100SE30K CAP FILM 1UF 10% 1KVDC RADIAL KEMET	9,801	8.64	RFQ	Datasheet	Radial	Bulk	R76	Active	1 µF	±10%	600V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching; High Pulse, DV/DT	-
MKS4D053307C00JSSD CAP FILM 33UF 5% 100VDC RAD WIMA	5,013	8.71	RFQ	Datasheet	Radial	Bulk	-	Active	33 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	1.634 L x 0.512 W (41.50mm x 13.00mm)	0.945 (24.00mm)	PC Pins	1.476 (37.50mm)	General Purpose	-

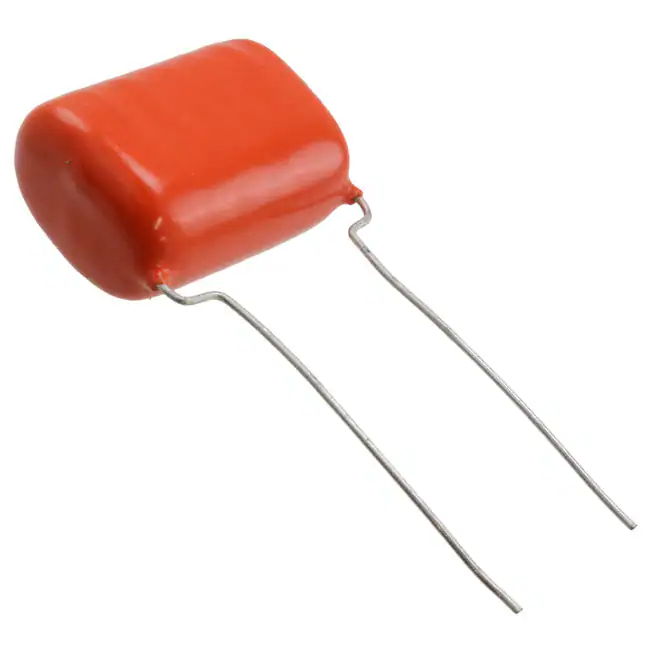

225P47494YD3 CAP FILM 0.47UF 10% 400VDC RAD Cornell Dubilier Electronics (CDE)	5,663	9.04	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	0.47 µF	±10%	200V	400V	Polyester	-	-55°C ~ 85°C	Through Hole	1.252 L x 0.839 W (31.80mm x 21.30mm)	1.142 (29.00mm)	PC Pins	0.720 (18.30mm)	Audio; DC Link, DC Filtering	-

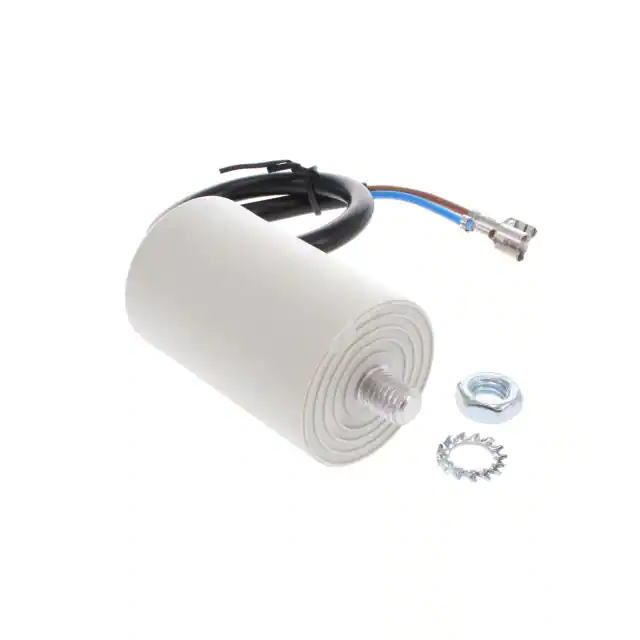

274ACH4700LG0J CAP FILM 7UF 5% 470VAC RADIAL KEMET	8,278	9.06	RFQ		Radial, Can	Bulk	C274	Active	7 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	-	-	Quick Connect, Disconnect	-	Motor Run; Motor Start	-
JS251156-BA CAP FILM 15UF 10% 250VAC CHAS MT Panasonic Electronic Components	9,399	9.07	RFQ	Datasheet	Rectangular Box	Bulk	PMF	Active	15 µF	±10%	250V	-	Polypropylene (PP), Metallized	-	-25°C ~ 70°C	Chassis Mount	1.969 L x 1.201 W (50.00mm x 30.50mm)	1.654 (42.00mm)	Quick Connect - 0.187 (4.7mm)	-	Motor Run	-
Z93S4824PN CAP FILM 24UF 3% 480VAC RADIAL Cornell Dubilier Electronics (CDE)	7,162	9.07	RFQ	Datasheet	Radial, Can	Bulk	-	Active	24 µF	±3%	480V	-	-	-	-40°C ~ 105°C	Chassis Mount	2.910 L x 1.910 W (73.91mm x 48.51mm)	4.000 (101.60mm)	Threaded, Male	0.810 (20.57mm)	General Purpose	-
MKP1839522634HQ CAP FILM 2.2UF 5% 630VDC AXIAL Vishay Beyschlag/Draloric/BC Components	7,613	9.11	RFQ	Datasheet	Axial	Bulk	MKP1839 HQ	Active	2.2 µF	±5%	300V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	0.906 Dia x 1.240 L (23.00mm x 31.50mm)	-	PC Pins	-	High Pulse, DV/DT	-
FFB36C0395K-- CAP FILM 3.9UF 10% 900VDC RADIAL KYOCERA AVX	6,579	9.11	RFQ	Datasheet	Radial	Bulk	FFB	Active	3.9 µF	±10%	150V	900V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.681 W (31.10mm x 17.30mm)	1.173 (29.80mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
C878BF35100SA0J CAP FILM 10UF 5% 470VAC RADIAL KEMET	5,059	9.12	RFQ	Datasheet	Radial, Can	Bulk	C87	Active	10 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.378 Dia (35.00mm)	3.150 (80.00mm)	Quick Connect - 0.250 (6.3mm)	0.528 (13.40mm)	Motor Run	-
940C30P15K-F CAP FILM 0.15UF 10% 3KVDC AXIAL Cornell Dubilier Electronics (CDE)	5,558	9.23	RFQ	Datasheet	Axial	Bulk	940C	Active	0.15 µF	±10%	500V	3000V (3kV)	Polypropylene (PP), Metallized	8 mOhms	-55°C ~ 105°C	Through Hole	1.063 Dia x 1.811 L (27.00mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
940C6W2K-F CAP FILM 2UF 10% 600VDC AXIAL Cornell Dubilier Electronics (CDE)	7,613	9.34	RFQ	Datasheet	Axial	Bulk	940C	Active	2 µF	±10%	275V	600V	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	0.925 Dia x 1.811 L (23.50mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
