| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV1S9062ACCSP-10YV#SC0LSO-5 |
9,218 | 5.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RV | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 25mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
RV1S9061ACCSP-10YV#SC0LSO-5 |
7,052 | 5.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RV | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.55V | 25mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
PS9124-AXSO-5 |
7,610 | 4.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
RV1S9162ACCSP-100C#SC0SO-5 |
6,893 | 5.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RV | Active | 1 | 1/0 | 3750Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 20mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
PS9001-Y-AXLSO-5 |
6,635 | 4.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector | 20 mA | 10Mbps | 100ns, 100ns | - | 1.56V | 25mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
RV1S9209ACCSP-10YC#SC0IPM DRIVER (ACTIVE HIGH OUTPUT) |
13,467 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | -40°C ~ 125°C | Surface Mount |
|
PS9324L2-V-AXSDIP |
7,497 | 7.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.55V | 25mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|

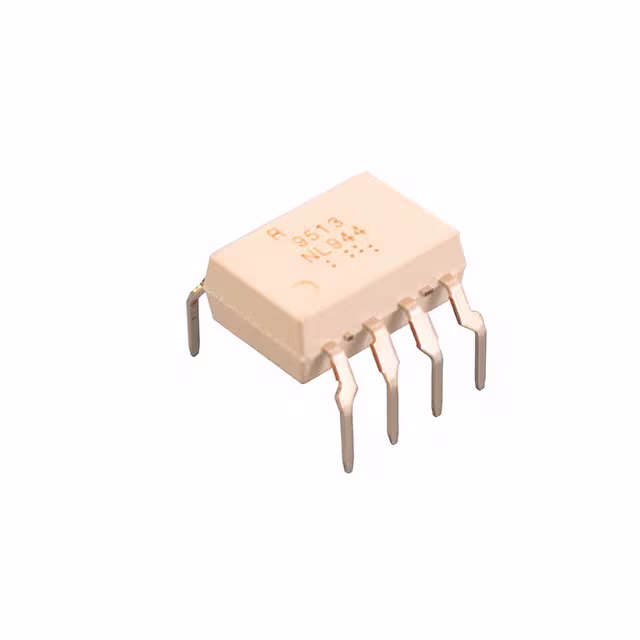

PS9513L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
7,582 | 4.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Through Hole |
|
HCPL2611VOPTOISO 2.5KV OPN COLLECTOR 8DIP |
5,416 | 1.29 |
RFQ |
Datasheet |
Tube,Tube | - | Last Time Buy | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
HCPL0601VOPTOISO 3.75KV OPN COLLECTOR 8SO |
9,338 | 3.42 |
RFQ |
Datasheet |
Tube,Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2630MOPTOISO 5KV 2CH OPEN COLL 8DIP |
5,442 | 1.29 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
HCPL-060L-060EOPTOISO 3.75KV OPN COLLECTOR 8SO |
9,195 | 1.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0600#560OPTOISO 3.75KV OPN COLLECTOR 8SO |
9,648 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
VOW137-X001WIDEBODY, HIGH ISOLATION, HIGH S |
5,658 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5300Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.65V | 20mA | 10V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
HCPL-061A-060EOPTOISO 3.75KV OPN COLLECTOR 8SO |
9,348 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-061A-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
9,764 | 3.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL-2611#060OPTOISO 3.75KV OPEN COLL 8DIP |
5,779 | 1.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2611#020OPTOISO 5KV OPEN COLLECTOR 8DIP |
9,603 | 1.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-061N-000EOPTOISO 3.75KV OPN COLLECTOR 8SO |
5,678 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
HCNW4506-000EOPTOISO 5KV OPEN COLLECTOR 8DIP |
9,581 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Through Hole |
