| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO2631-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
5,224 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.42V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
.JPG)
|
TLP104(E)OPTOISO 3.75KV OPEN COLL SO6-5 |
9,967 | 1.51 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
6N137A-X001OPTOISO 5KV 1CH OPEN COLL 8DIP |
9,163 | 1.51 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector | 50 mA | 10MBd | 75ns, 75ns | 27ns, 10ns | 1.35V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
TLP104(V4,EOPTOISO 3.75KV OPEN COLL SO6 |
5,913 | 1.51 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2366(V4,EOPTOISO 3.75KV PSH PULL SO6-5 |
7,077 | 1.51 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
SFH6757TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
7,649 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 4000Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|

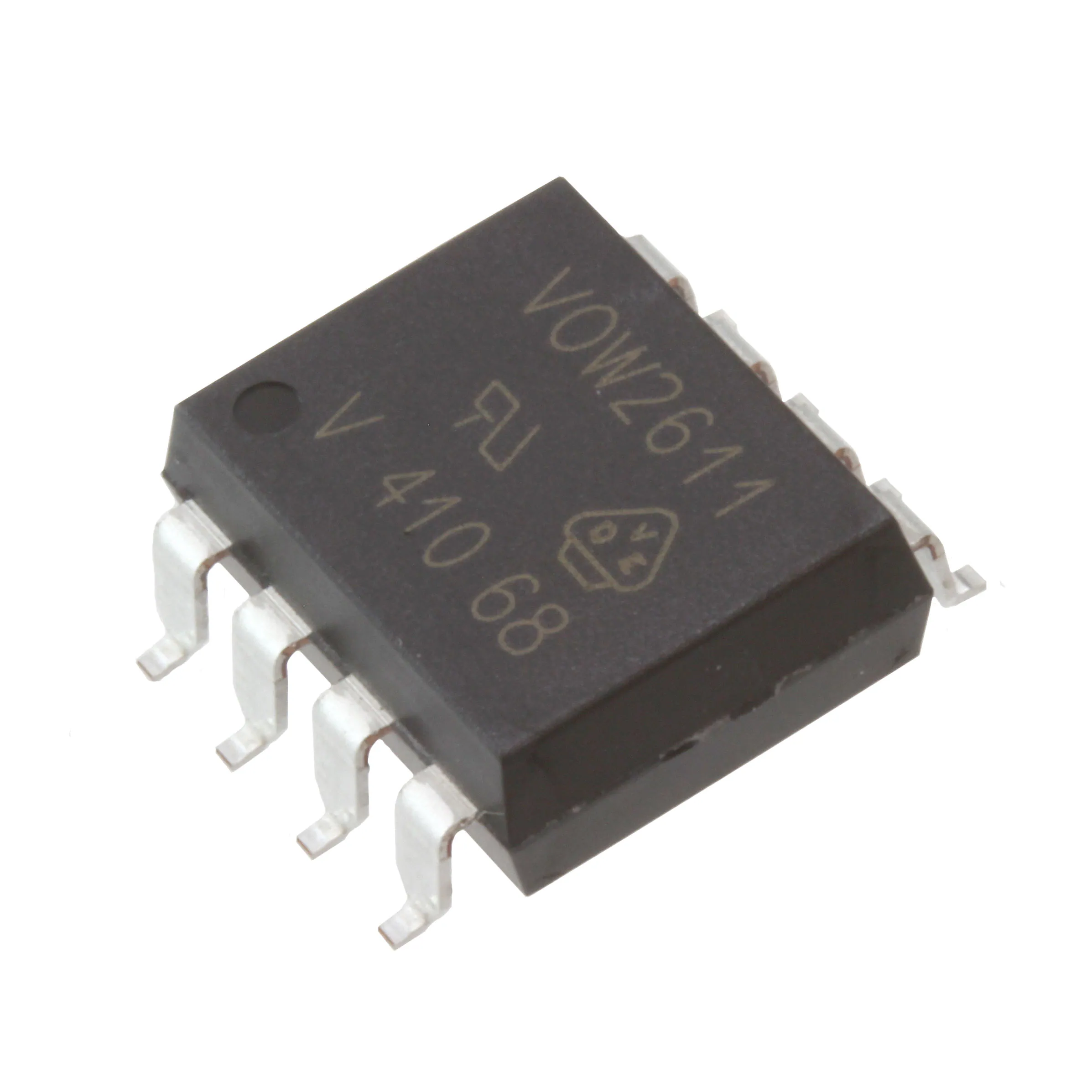

VOW2611-X017TOPTOISO 5.3KV OPN COLLECTOR 8SMD |
7,011 | 3.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
ICPL2601OPTOISOLATOR 2.5KV OPN COLL 8DIP |
7,112 | 2.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10Mbps | 75ns, 75ns | - | 1.55V | 20mA | 7V | 0°C ~ 70°C | Through Hole |
|

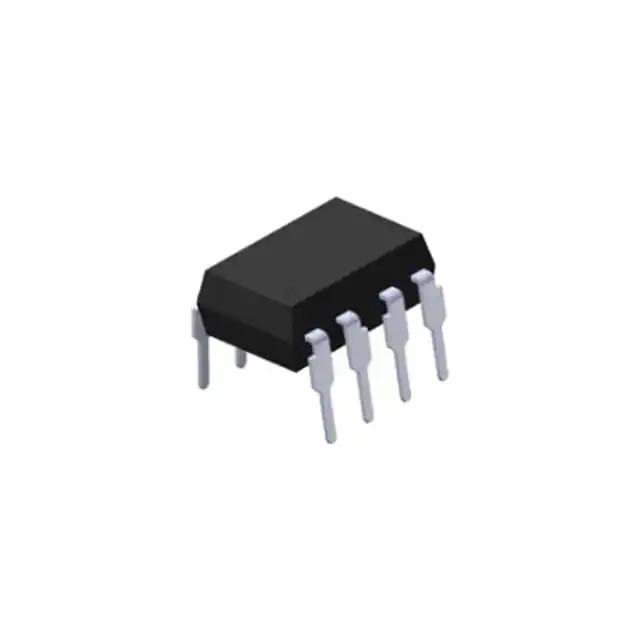

EL2630-VOPTOISO 5KV OPEN COLLECTOR 8DIP |
9,526 | 2.37 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | -40°C ~ 100°C | Through Hole |
|
ACPL-M483-000EOPTOISO 3.75KV PUSH PULL 5SO |
6,293 | 3.44 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
6N1378 PIN 10 MBITS HIGH SPEED LOGIC |
7,889 | 3.67 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 37ns, 10ns | 1.4V | 50mA | 7V | -55°C ~ 85°C | Through Hole |
|
RV1S9213ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP |
5,567 | 3.81 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 20mA | 4.5V ~ 25V | -40°C ~ 125°C | Surface Mount |
|
|
RV1S9260ACCSP-10YC#SC0OPTO COUPLER IN 5PIN SSOP |
9,167 | 4.38 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
APS1241S20 MBPS TYPE PHOTOIC COUPLER (TO |
9,135 | 5.13 |
RFQ |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 2ns, 2ns | 1.6V | 25mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
HCPL-7710-320EOPTOISO 5KV PUSH PULL 8DIP GW |
8,176 | 6.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
ACFL-6211T-000EOPTOISO 5KV 2CH PSH PULL SO12 |
8,476 | 9.07 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
HCPL-0720OPTOISO 3.75KV PUSH PULL 8SO |
7,851 | 9.32 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACNV260E-000EOPTOISO 5KV OPEN COLLECTOR 10DIP |
2,467 | 13.19 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 105°C | Through Hole |
|
|
HCPL-5600OPTOISO 1.5KV OPN COLLECTOR 8DIP |
2,204 | 82.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
5962-8876903FCOPTOISO 1.5KV PUSH PULL 16FLATPK |
389 | 213.19 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
