| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-W70L-000EOPTOISO 5KV PUSH PULL 6SSO |
8,480 | 4.05 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W480-000EOPTOISO 5KV PUSH PULL 6SO |
6,791 | 4.05 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.7V | 10mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
PS9513-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
8,515 | 4.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Through Hole |
.jpg)
|
FOD8160OPTOISO 5KV OPEN COLLECTOR 5SOP |
7,204 | 4.27 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/1 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
RV1S9260ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP |
5,475 | 4.47 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
RV1S9060ACCSP-10YV#SC0HI-SPEED OPTOCPLR LSO-5 |
5,762 | 5.01 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | -40°C ~ 125°C | Surface Mount |
|
|
RV1S9060ACCSP-10YC#SC0HI-SPEED OPTOCPLR LSO-5 |
7,388 | 5.07 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | -40°C ~ 125°C | Surface Mount |
|
ACPL-K24L-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
9,653 | 5.42 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ACNT-H61L-000EOPTOISO 7.5KV PUSH PULL 8SO |
6,102 | 6.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | 10MBd | - | - | - | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-K73L-000EOPTOISO 5KV 2CH PUSH PULL 8SSO |
6,552 | 7.39 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
HCPL-263N-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
9,456 | 7.63 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
ACPL-K74T-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
7,623 | 8.42 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-5400OPTOISO 1.5KV TRI-STATE 8DIP |
677 | 104.30 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 1500VDC | 500V/µs | DC | Tri-State | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | -55°C ~ 125°C | Through Hole |
|
HCPL-6430OPTOISO 1.5KV PUSH PULL 20LCCC |
529 | 111.24 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | -55°C ~ 125°C | Surface Mount |
|
5962-8876901XAOPTOISO 1.5KV PUSH PULL 8DIP GW |
315 | 184.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
|
6N137SDVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
9,746 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL2630SDVOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
5,863 | 2.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
VOH1016AD-VOPTOISO 5KV OPEN COLLECTOR 6-DIP |
5,075 | 1.14 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | -40°C ~ 100°C | Through Hole |
|

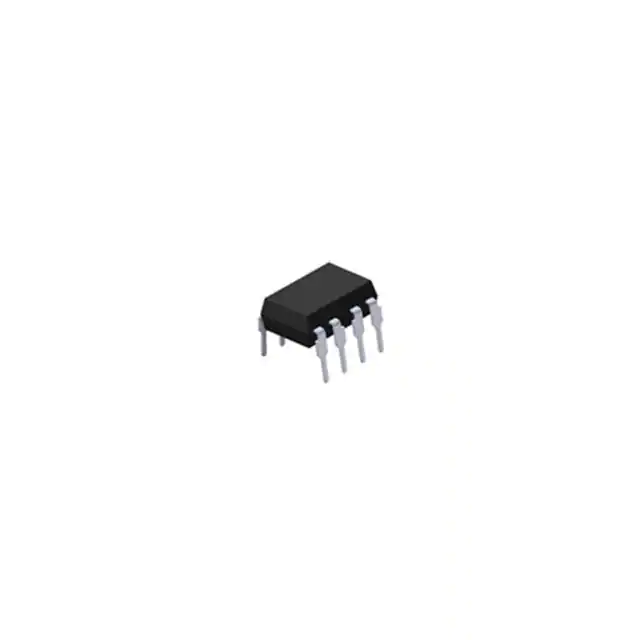

EL2601OPTOISO 5KV OPEN COLLECTOR 8DIP |
7,789 | 1.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | -40°C ~ 85°C | Through Hole |
|
HCPL2630SDMOPTOISO 5KV 2CH OPEN COLL 8SMD |
8,718 | 3.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
