| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

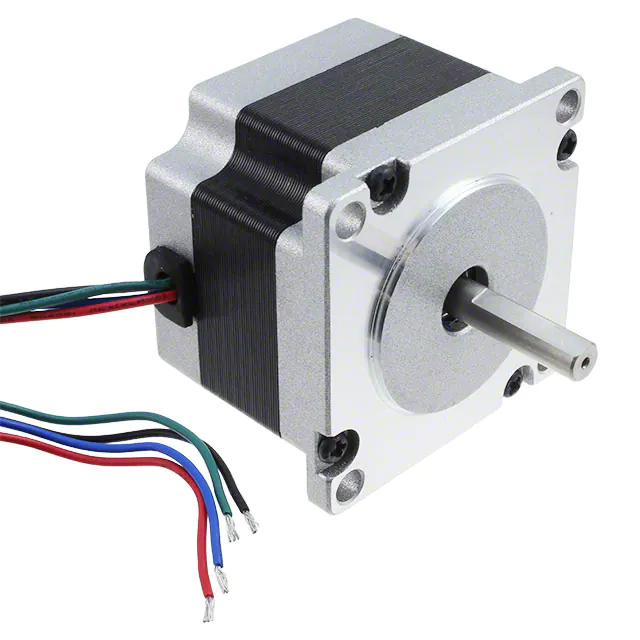

QSH5718-41-28-055STEPPER MOTOR HYBRID BIPOLAR 2V |
3,827 | 62.09 |
RFQ |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | ±5% | 77.89 / 550 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | |
|
WO-4118C-01STEPPER MOTOR |
4,320 | 67.91 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 115 / 812.1 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 2 Ohms |
|

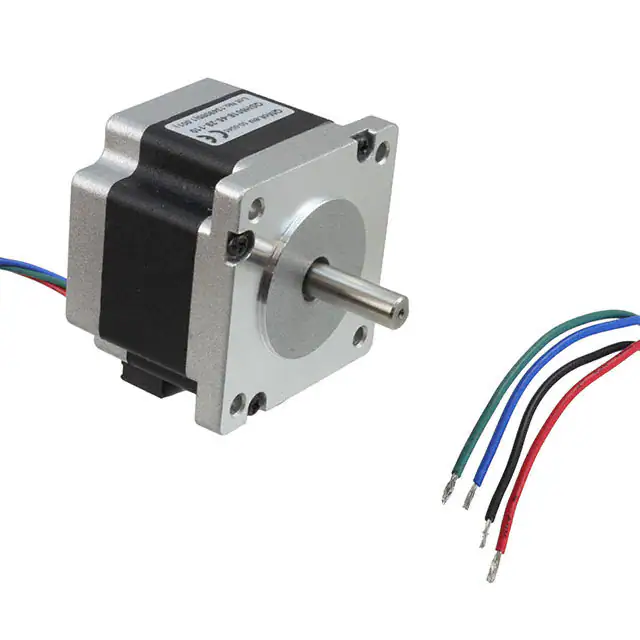

QSH6018-45-28-110STEP MOTOR HYBRID BIPOLAR 2.1V |
1,118 | 72.54 |
RFQ |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 2.1VDC | 2.8 A | 200 | 1.8° | ±5% | 155.77 / 1100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | |
|
PD42-2-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
853 | 121.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (30.99mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | |
|
NEMA23-22-02SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
564 | 129.35 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 2.1 A | 200 | 1.8° | ±0.2% | 170 / 1200.46 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 1.8 Ohms |
|

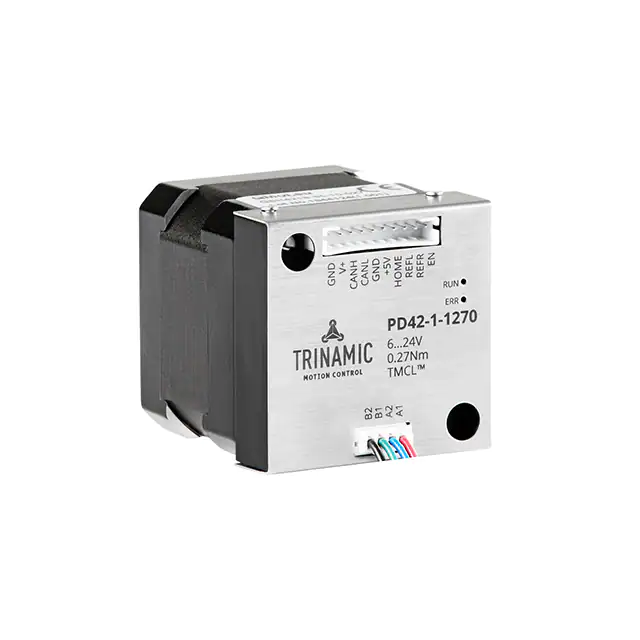

PD42-1-1270-TMCLPANDRIVE NEMA17, 24V, 38 OZ IN/ |
661 | 137.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms | |
|

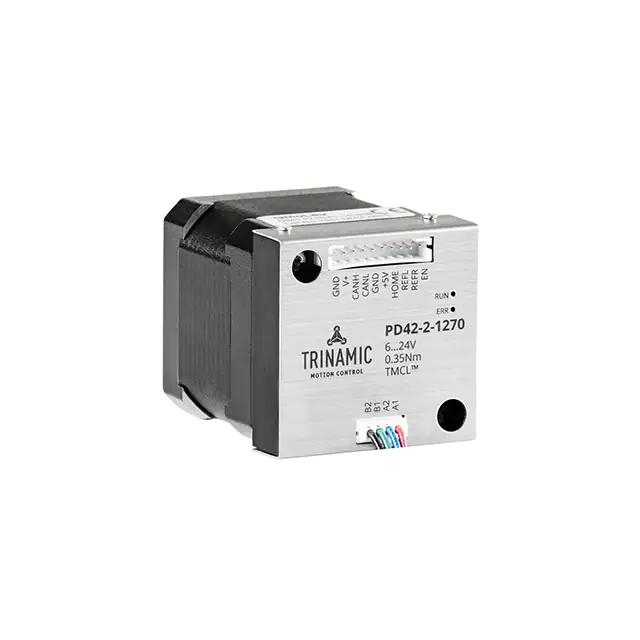

PD42-2-1270-TMCLPANDRIVE NEMA17, 24V, 50 OZ IN/ |
615 | 141.00 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | |
|

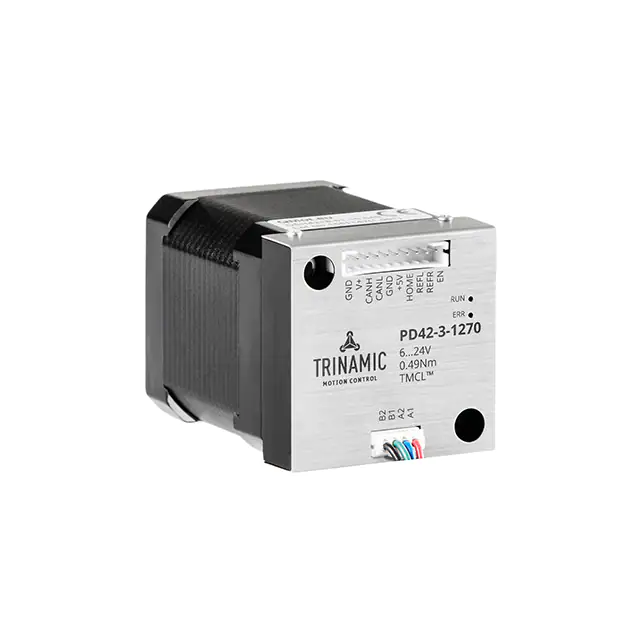

PD42-3-1270-TMCLPANDRIVE NEMA17, 24V, 69 OZ IN/ |
791 | 153.00 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
|

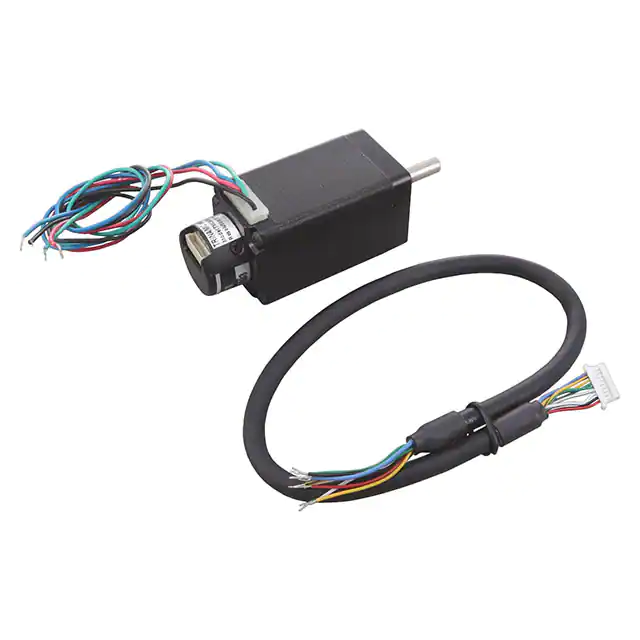

QSH2818-51-07-012-8KSTEP MOTOR HYBRID NEMA11 ENC 819 |
410 | 182.40 |
RFQ |
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200 | 1.8° | ±5% | 17 / 120 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms | |
|

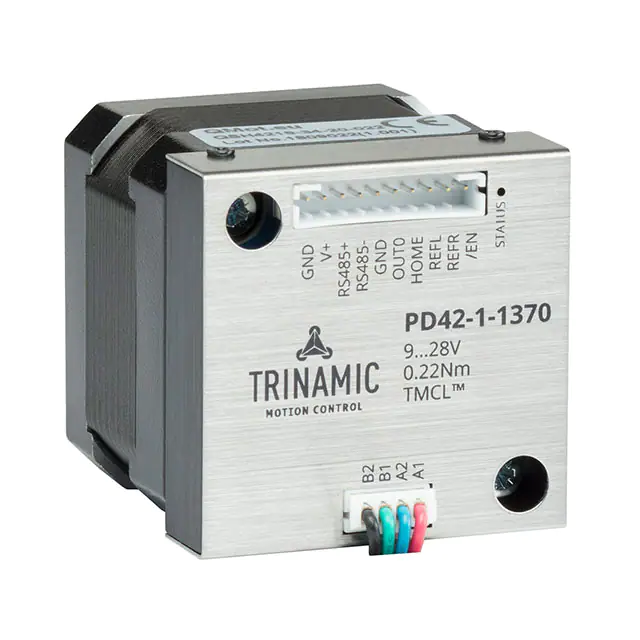

PD42-1-1370-TMCLPANDRIVE NEMA17, 24V, 0.22NM |
776 | 222.70 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2 A | 200 | 1.8° | ±5% | 31.16 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms |
|

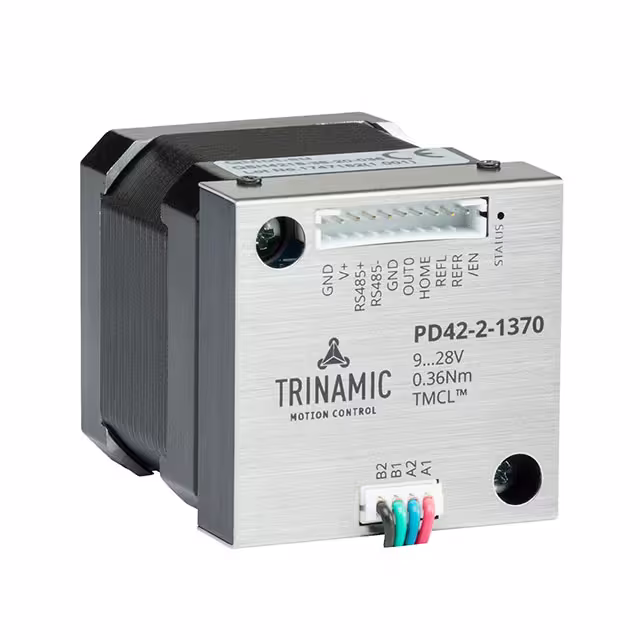

PD42-2-1370-TMCLPANDRIVE NEMA17, 24V, 0.36NM |
954 | 226.20 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms |
|

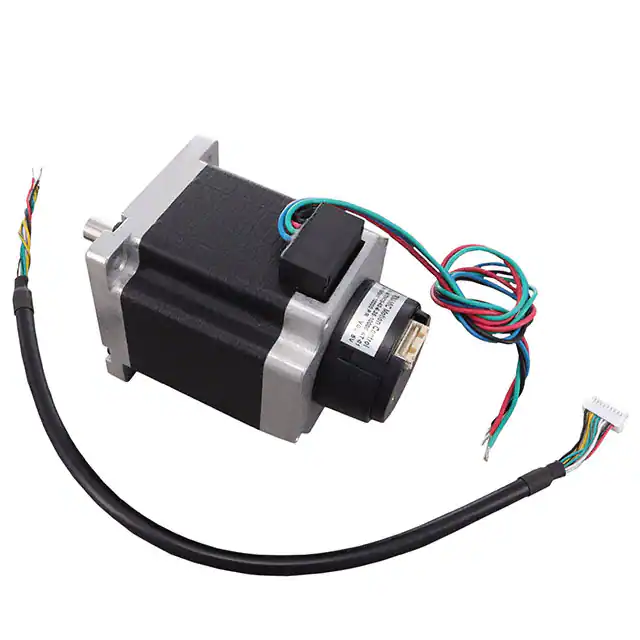

QSH6018-65-28-210-10KSTEP MOTOR HYBRID NEMA24 ENC 100 |
739 | 228.29 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms |
|

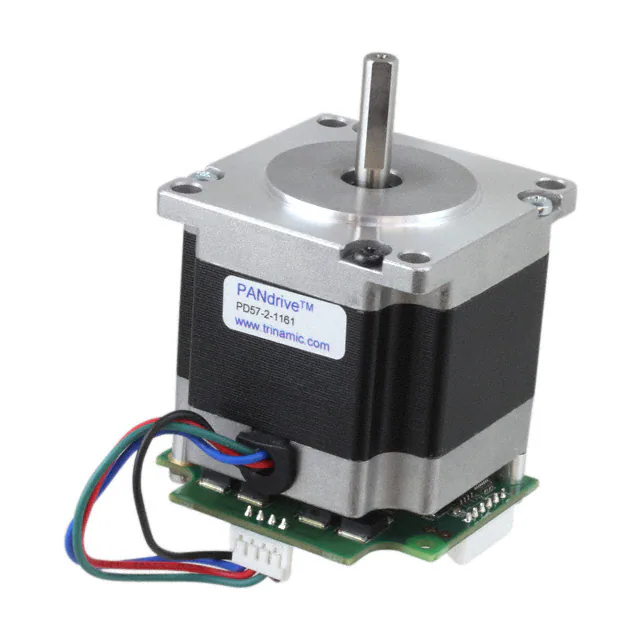

PD57-2-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
536 | 232.00 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 143.05 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|

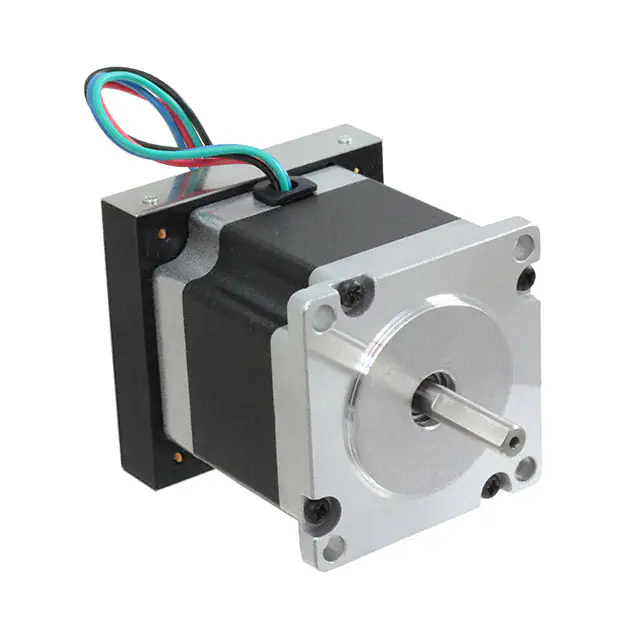

PD57-2-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
861 | 232.89 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms |
|

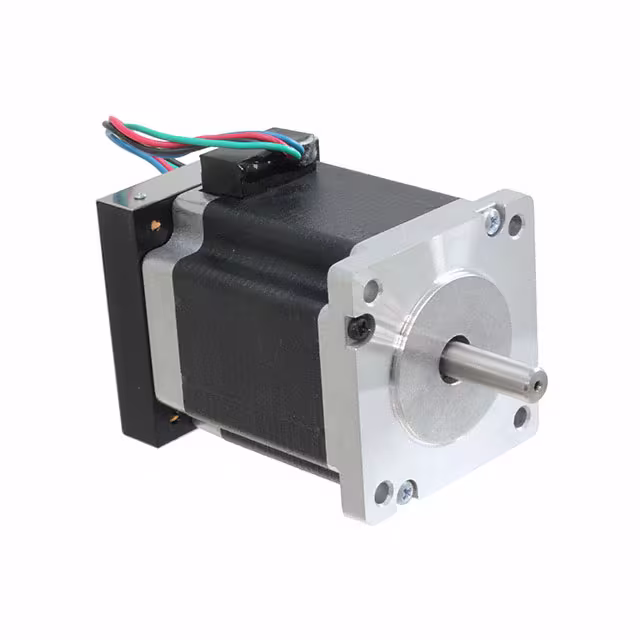

PD60-4-1076STEPPER MOTOR HYBRID BIPOLAR 24V |
998 | 237.69 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms |
|
PD42-4-1240-CANOPENPANDRIVE NEMA17, 24V, 0.7NM |
708 | 253.40 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.4VDC | 2 A | 200 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 2.3 Ohms | |
|

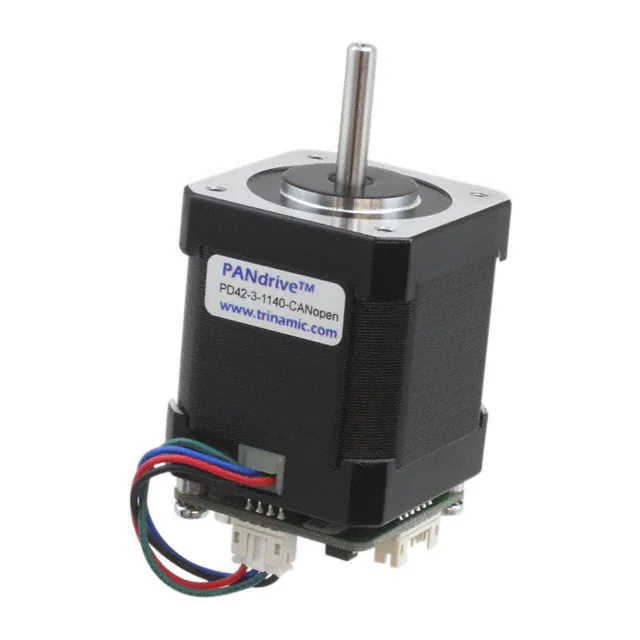

PD42-3-1140-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
948 | 267.17 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | - | Wire Leads with Connector | - | - |
|

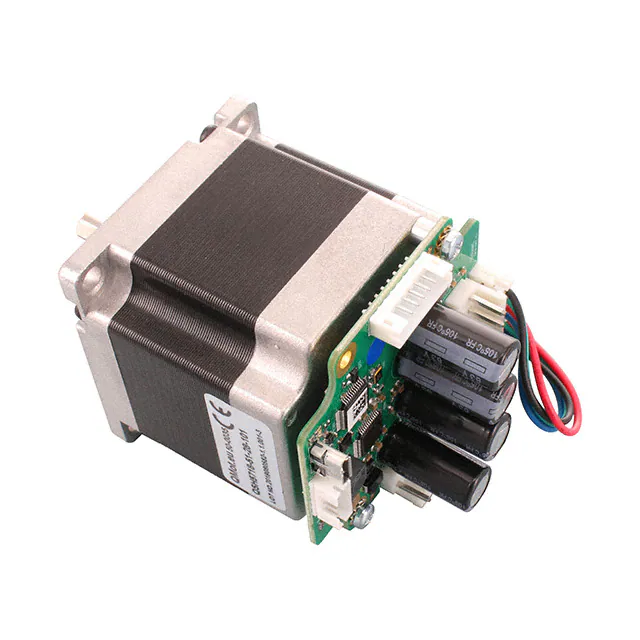

PD57-2-1260-CANOPENPANDRIVE NEMA23, 48V, 1.01NM |
916 | 279.38 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | - | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

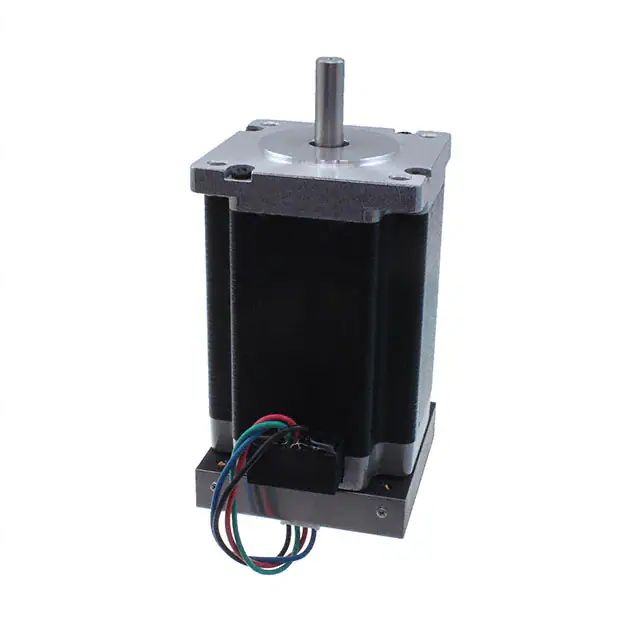

PD60-4-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
737 | 287.75 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms |
|

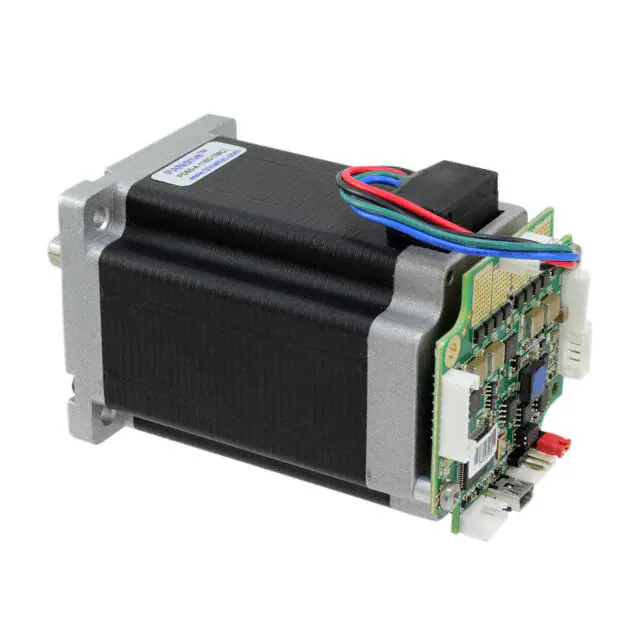

PD60-4-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
638 | 401.83 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
