| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

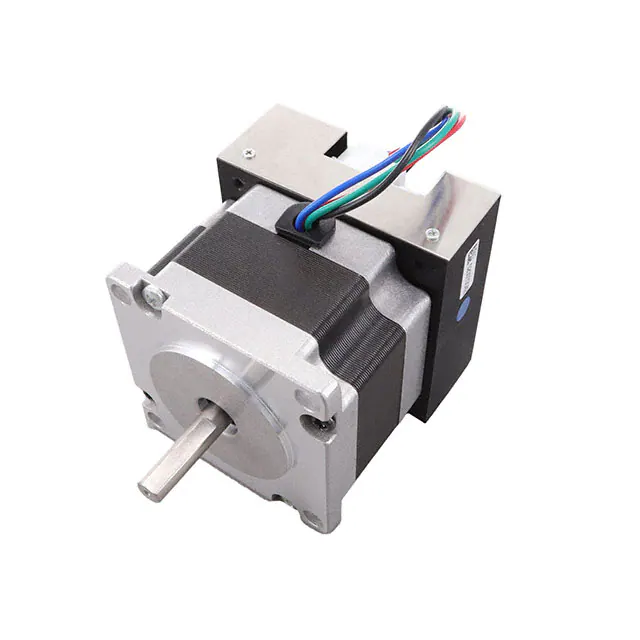

PD57-1-1378-CANOPENPANDRIVE NEMA23, 48V, 0.55NM |
679 | 510.45 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | - | |
|

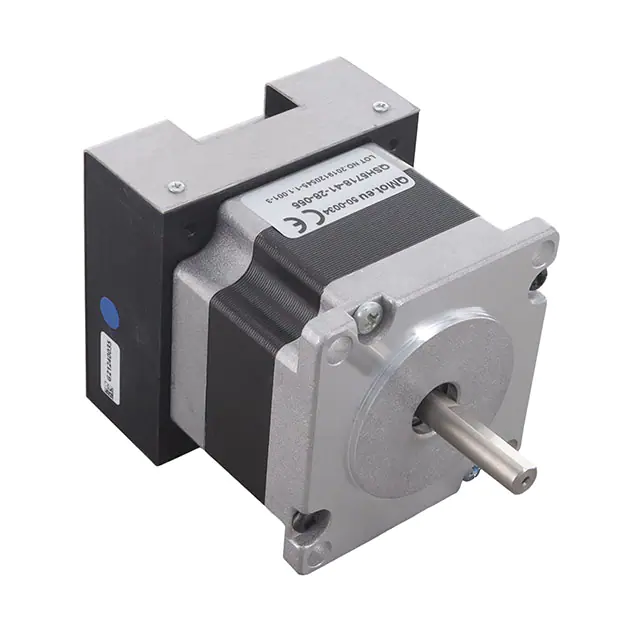

PD57-1-1378-TMCLPANDRIVE NEMA23, 48V, 0.55NM |
480 | 510.45 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.7 Ohms |
|

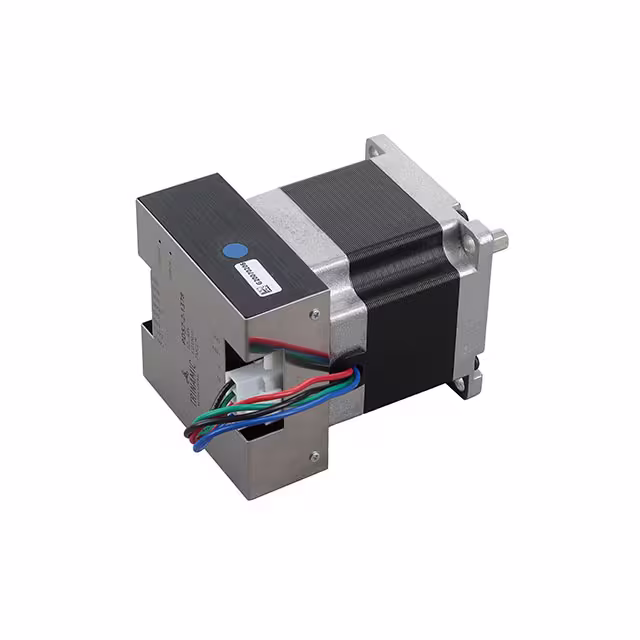

PD57-2-1378-TMCLPANDRIVE NEMA23, 48V, 1.01NM |
763 | 513.56 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms |
.jpg)
|

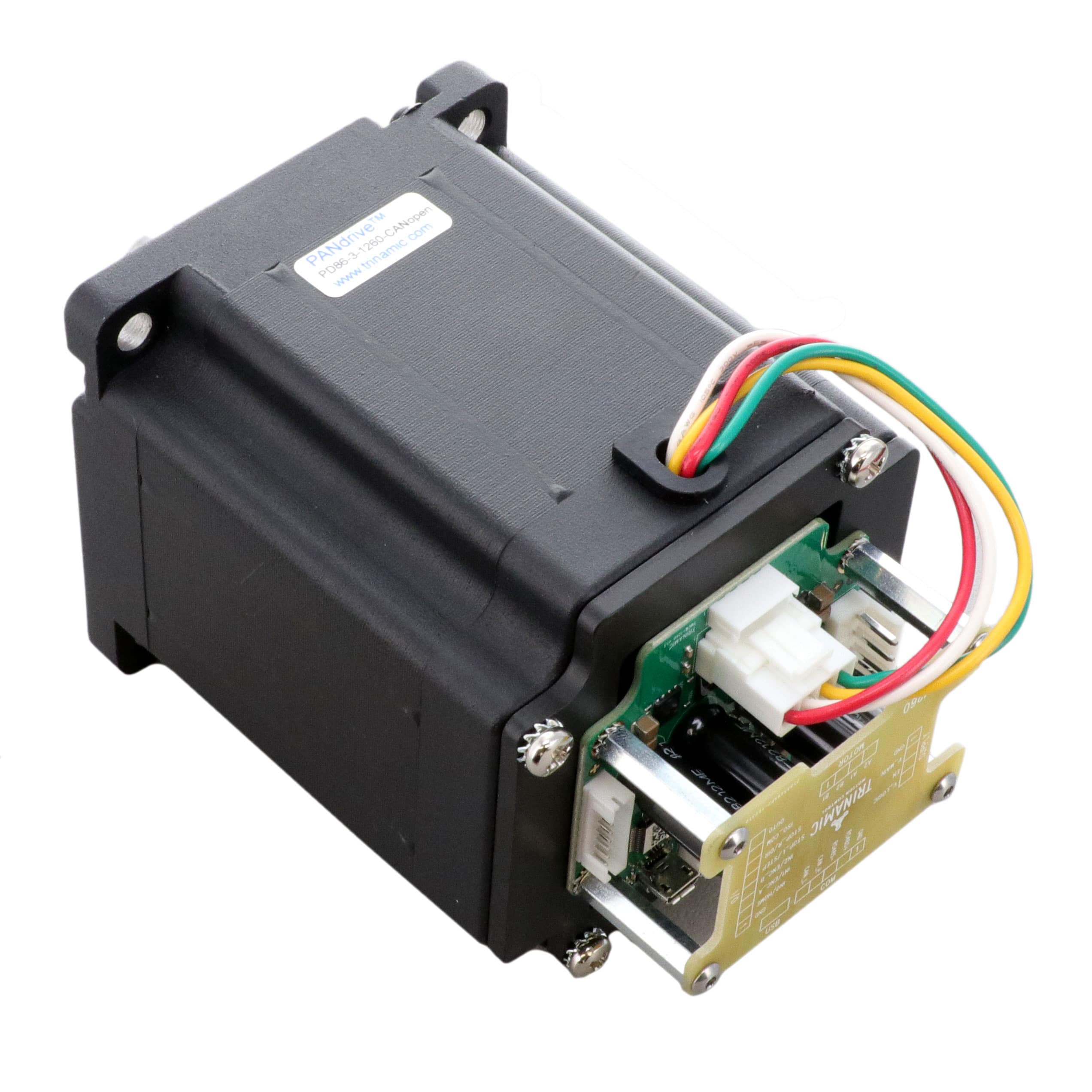

PD86-3-1260-CANOPENPANDRIVE NEMA34, 48V, 7.0NM |
676 | 562.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200 | 1.8° | - | 991.28 / 7000 | Square - 3.382 x 3.382 (85.90mm x 85.90mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms | |
|

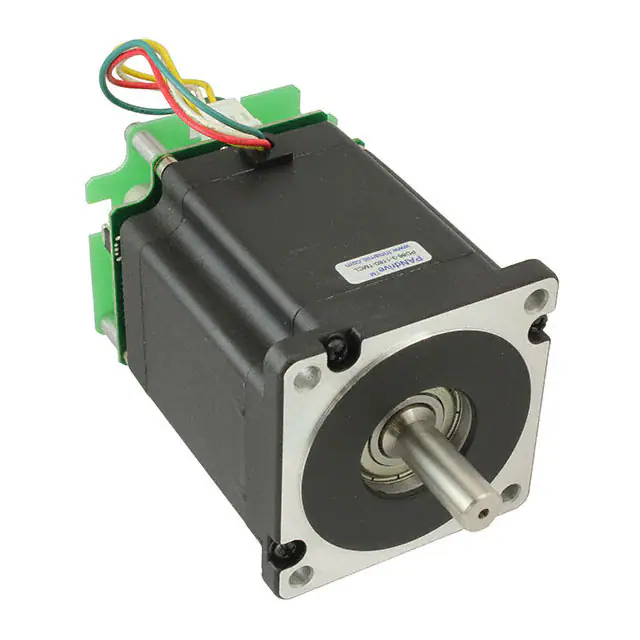

PD86-3-1180-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
793 | 727.08 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200 | 1.8° | - | 991.28 / 7000 | Square - 3.382 x 3.382 (85.90mm x 85.90mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms |
|
PD86-3-1180-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
935 | 727.08 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200 | 1.8° | - | 991.28 / 7000 | Square - 3.382 x 3.382 (85.90mm x 85.90mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms |
|
PM25L-075-047PERMANENT MAGNET STEPPER MOTOR |
3,629 | 21.83 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 12VDC | 0.47 A | 48 | 7.5° | - | 3.47 / 24.51 | Round - 0.591 Dia (15.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 8 Ohms |
|

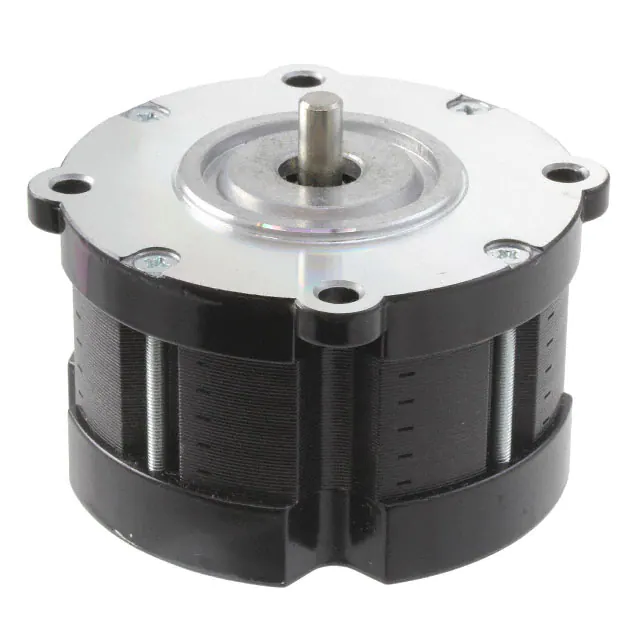

29SM-K242BT01CASTEPPER MOTOR HYBRID BIPOLAR 24V |
1,795 | 33.33 |
RFQ |
Datasheet |
Box | 29SM | Active | Hybrid | Bipolar | 24VDC | - | 200 | 1.8° | ±5% | - | Round - 2.795 Dia (71.00mm) | - | 0.236 (6.00mm) | 0.453 (11.50mm) | 1.856 (47.14mm) | Connector | -10°C ~ 50°C | - |
|
17PY-Z053-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
1,087 | 50.20 |
RFQ |
Datasheet |
Bulk | 17PY | Active | Hybrid | Unipolar | 24VDC | 850 mA | 400 | 0.9° | ±5% | 22.7 / 160 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 4.2 Ohms |
|

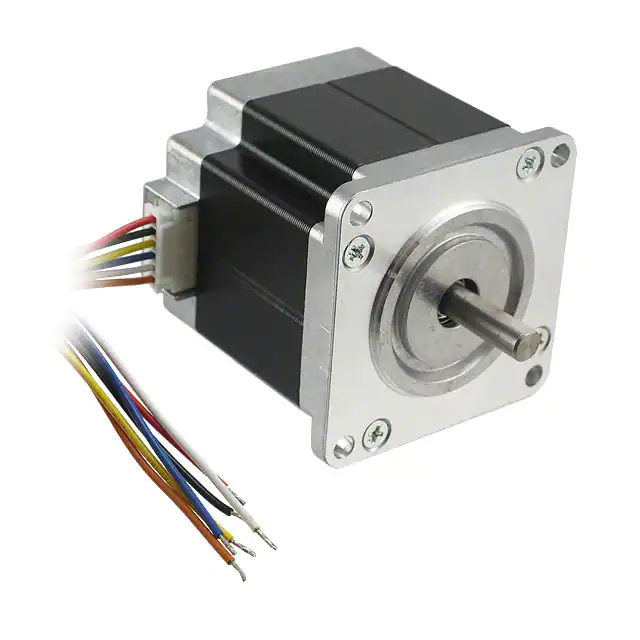

23KM-K049-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,050 | 69.02 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms |
|

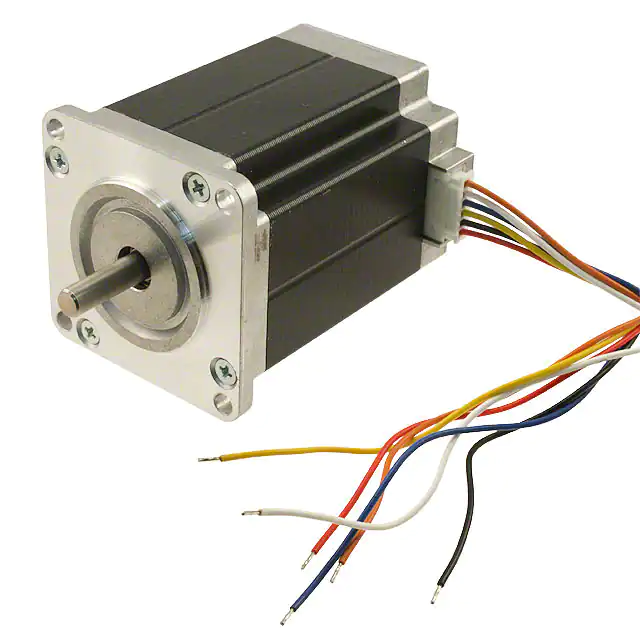

23KM-K762-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,988 | 86.43 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 8.6 Ohms |
|
NEMA11-13-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
597 | 112.51 |
RFQ |
Datasheet |
Box | NEMA11-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200 | 1.8° | ±0.2% | 9.2 / 64.97 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.791 (20.10mm) | 0.909 (23.10mm) | Connector | -20°C ~ 50°C | 5.7 Ohms |
|
|
NEMA11-18-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
579 | 117.35 |
RFQ |
Datasheet |
Box | NEMA11-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200 | 1.8° | ±0.2% | 13.7 / 96.74 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.791 (20.10mm) | 0.909 (23.10mm) | Connector | -20°C ~ 50°C | 7.1 Ohms |
|
|
NEMA11-20-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
807 | 122.35 |
RFQ |
Datasheet |
Box | NEMA11-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200 | 1.8° | ±0.2% | 16.6 / 117.22 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.791 (20.10mm) | 0.909 (23.10mm) | Connector | -20°C ~ 50°C | 8.6 Ohms |
|
NEMA23-17-15PD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
599 | 123.09 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 4.2 A | 200 | 1.8° | ±0.2% | 85 / 600.23 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 0.3 Ohms |
|
|
NEMA23-17-15SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
975 | 123.09 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 2.1 A | 200 | 1.8° | ±0.2% | 85 / 600.23 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 1.2 Ohms |
|

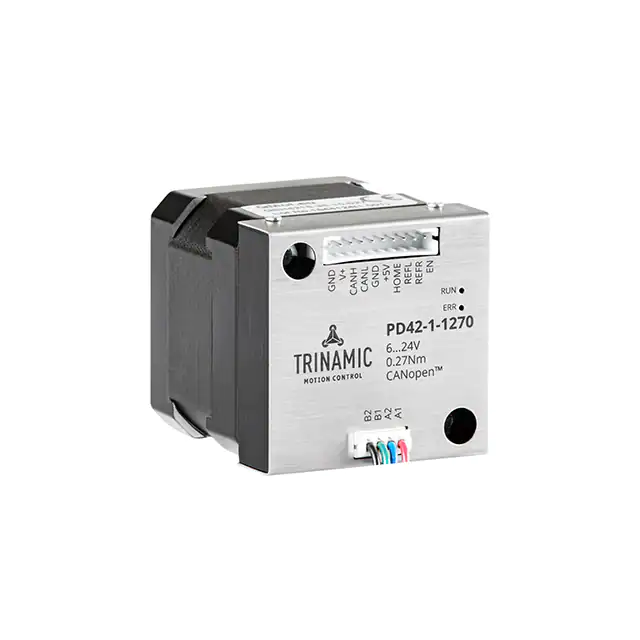

PD42-1-1270-CANOPENPANDRIVE NEMA17, 24V, 38 OZ IN/ |
677 | 137.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms | |
|

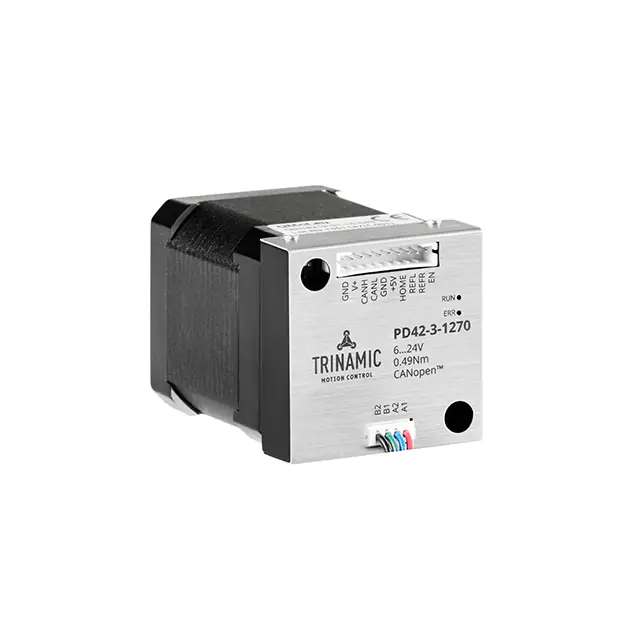

PD42-3-1270-CANOPENPANDRIVE NEMA17, 24V, 69 OZ IN/ |
860 | 153.00 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms |
|

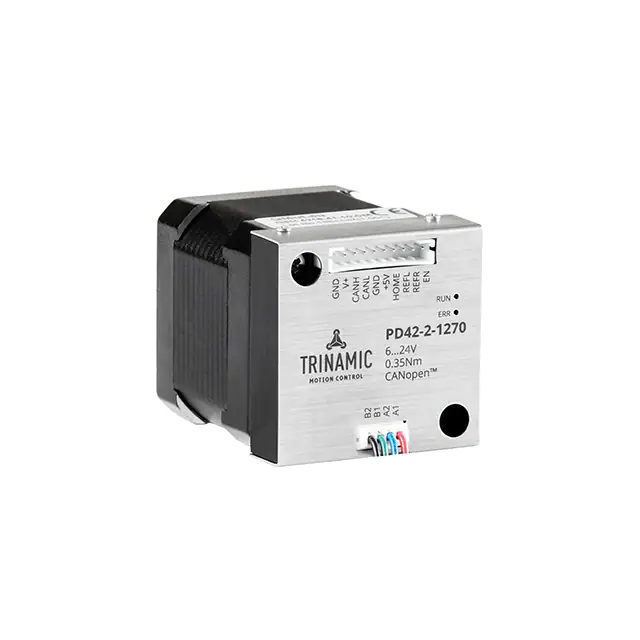

PD42-2-1270-CANOPENPANDRIVE NEMA17, 24V, 50 OZ IN/ |
569 | 156.53 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | - | - | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms |
|
34KM-K122-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
667 | 182.94 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 679.82 / 4800 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 3.9 Ohms |
